Nissan-Datsun Truck
>>
2000
>>
Frontier XE Crew Cab 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Models Without Intermittent Wiper
Models Without Intermittent Wiper

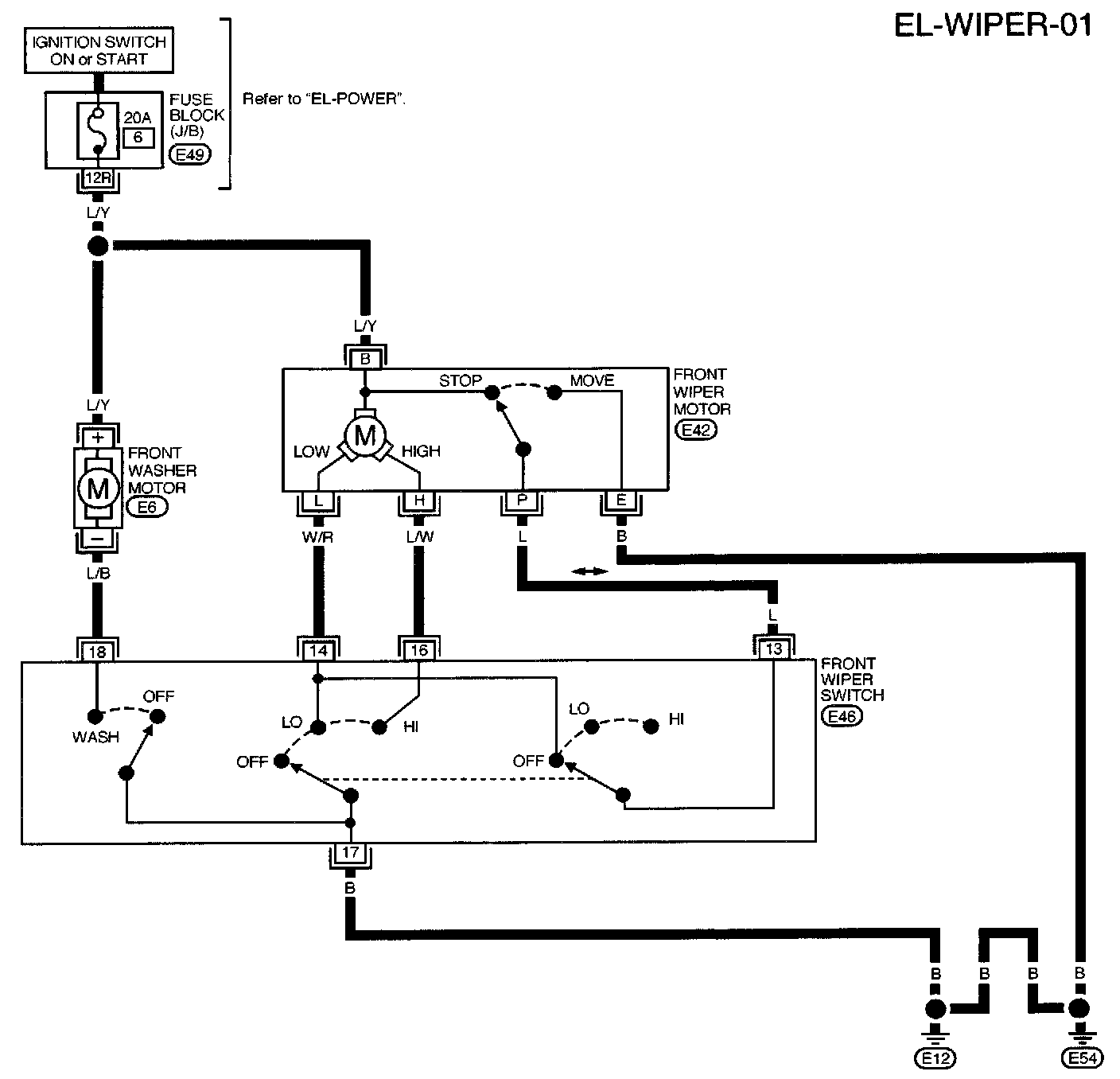

EL-WIPER-01:
Circuit Diagram
Circuit Connectors
