Before VIN 343314

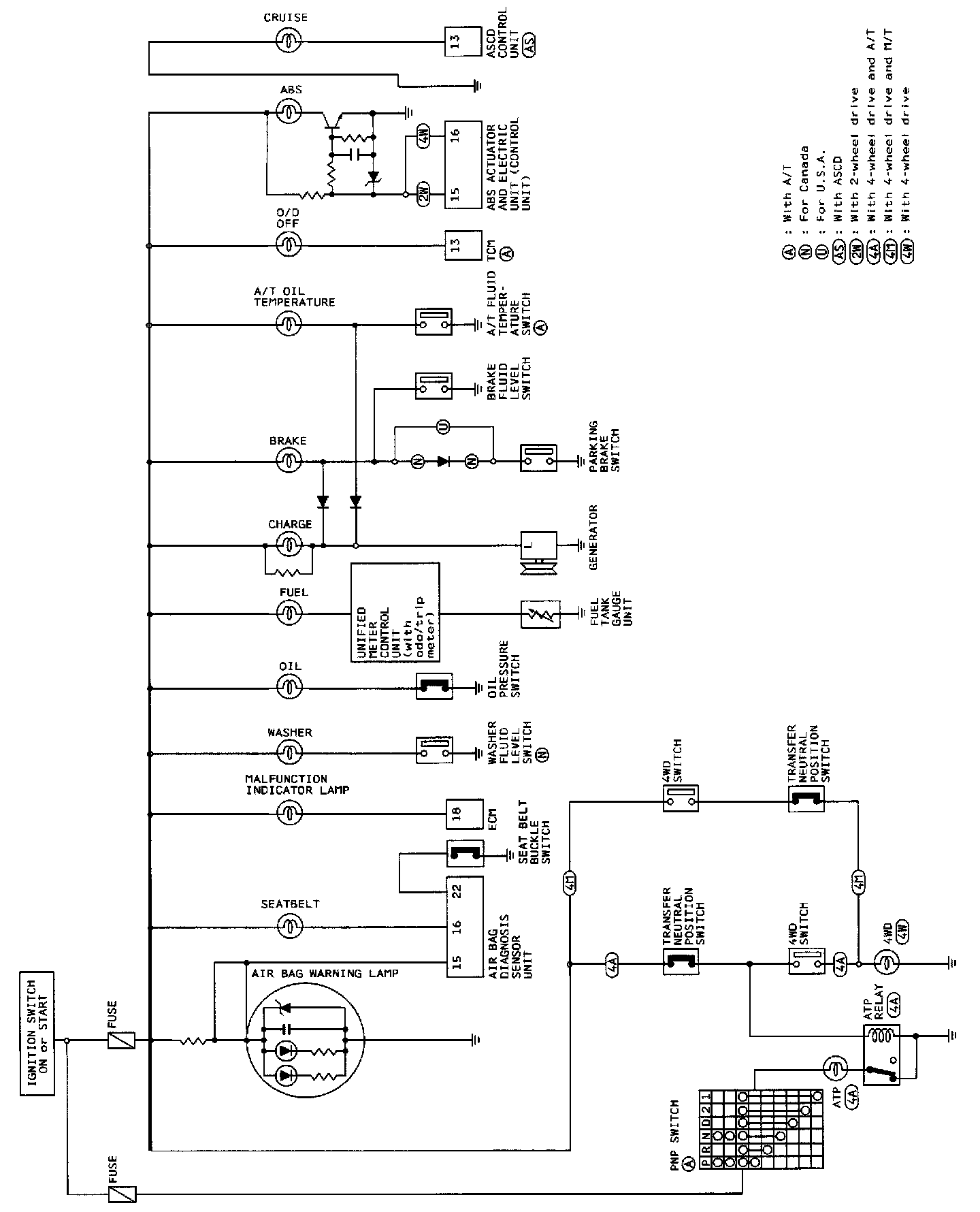

Schematic

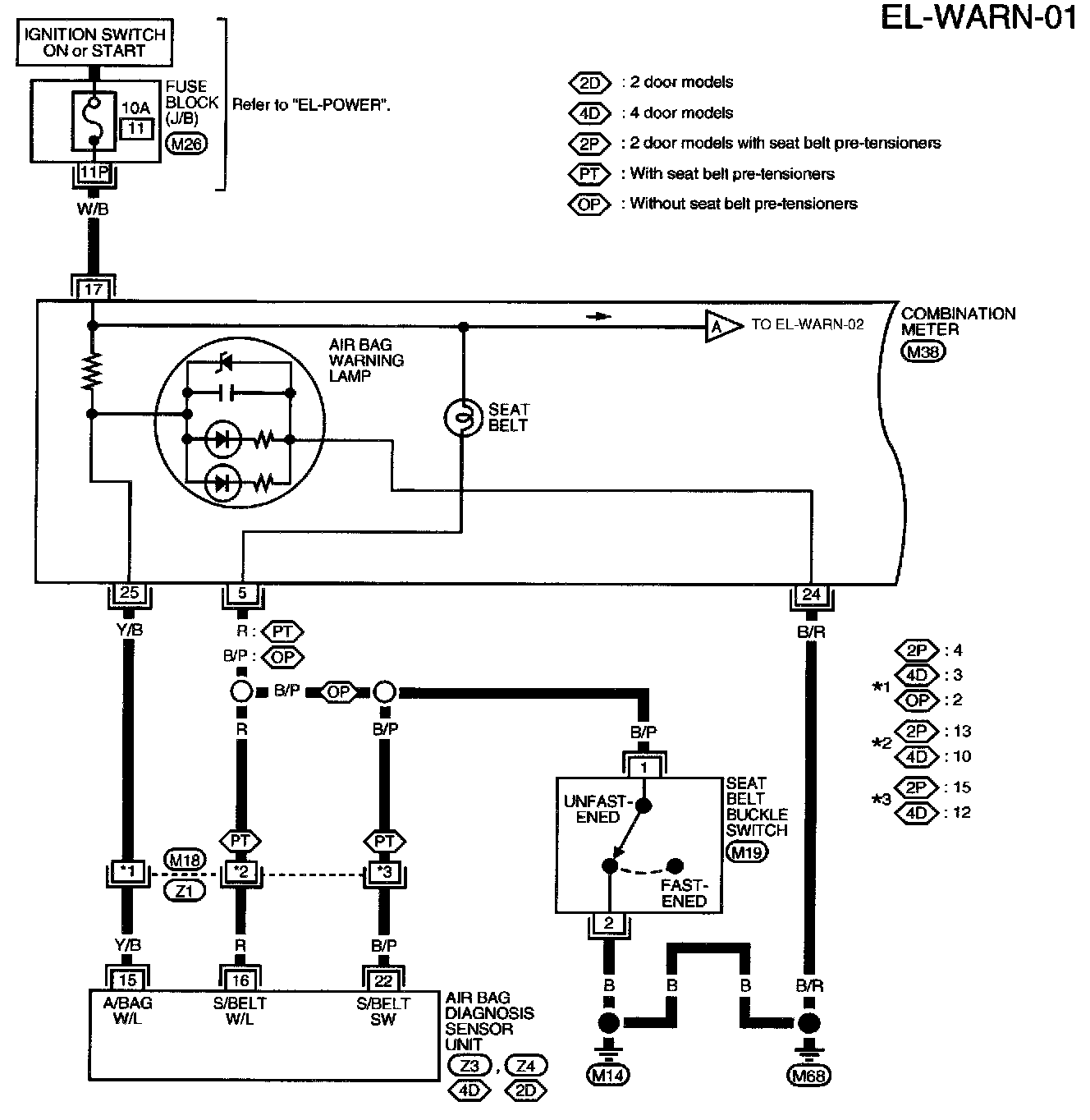

EL-WARN-01:
(Part 1 of 6)
Fuse Block (J/B)
Combination Meter
Seat Belt Buckle Switch
Air Bag Diagnosis Sensor Unit

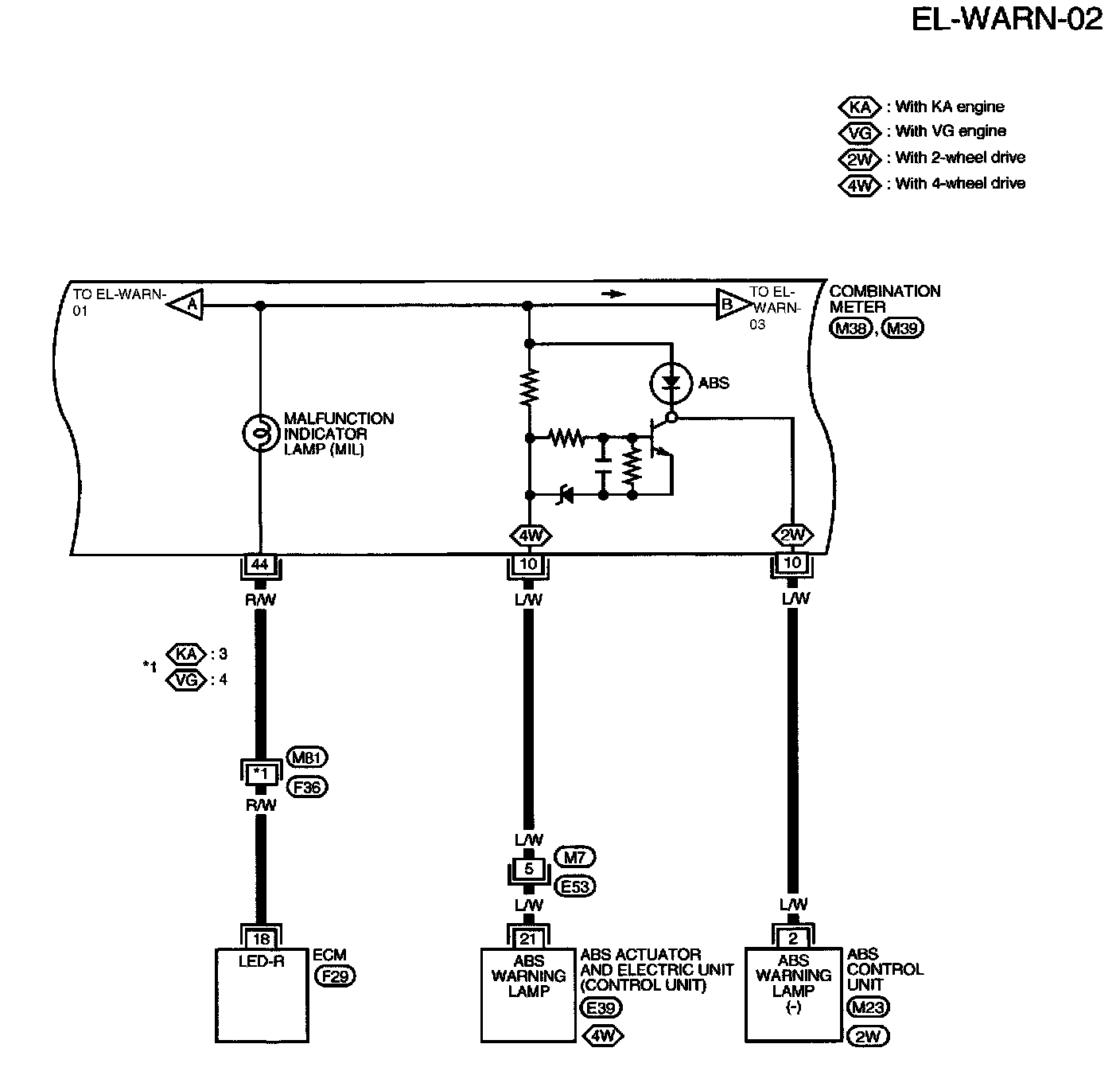

EL-WARN-02:
(Part 2 of 6)
Combination Meter
ABS Actuator and Electric Unit (Control Unit)
ABS Control Unit

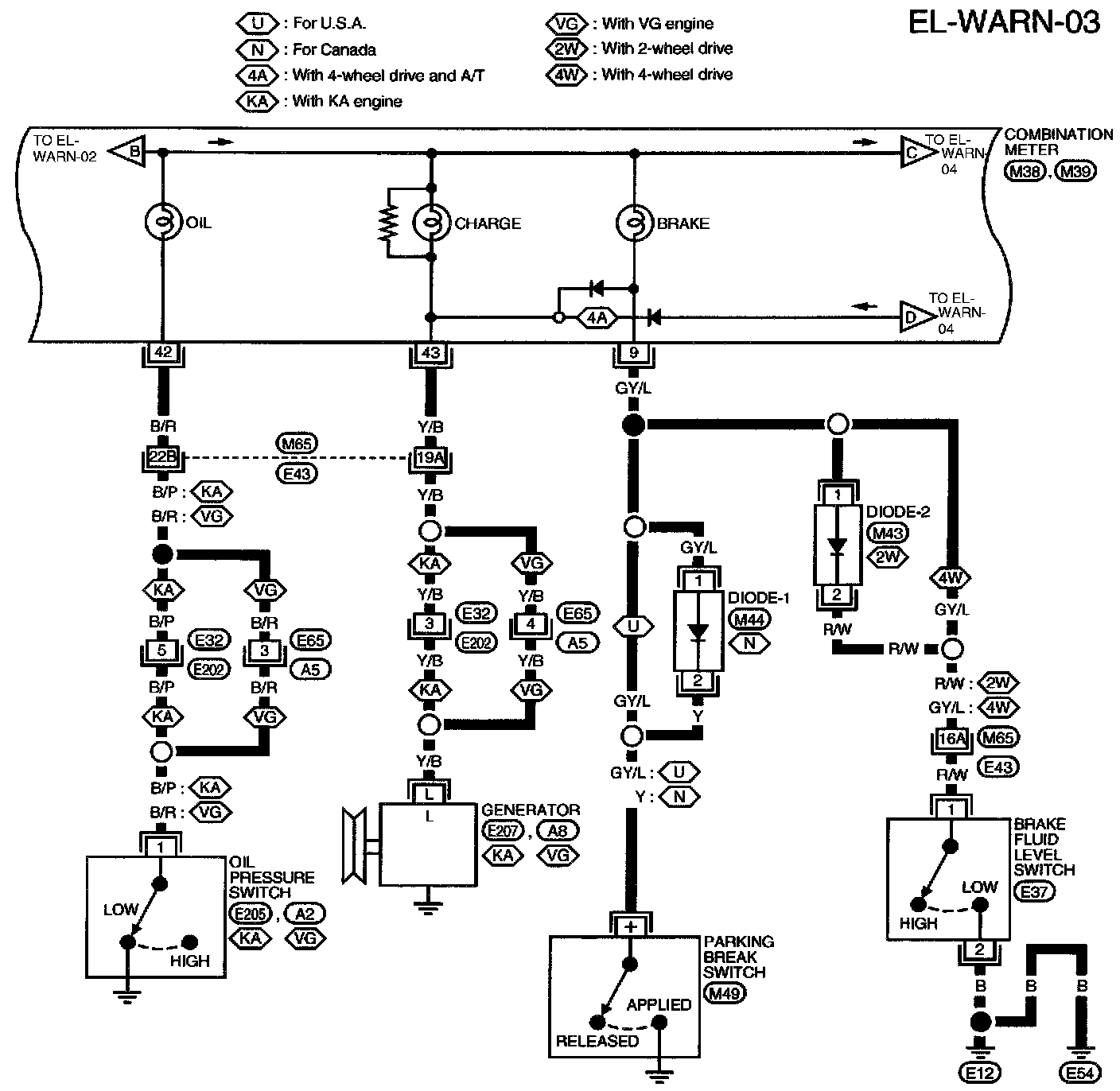

EL-WARN-03:
(Part 3 of 6)
Combination Meter
Oil Pressure Switch
Brake Fluid Level Switch
Generator
Parking Brake Switch
EL-WARN-04:
(Part 4 of 6)
Combination Meter
Terminal Cord Assembly
A/T Fluid Temperature Switch
Washer Fluid Level Switch
ASCD Control Unit
Fuel Tank Gauge Unit

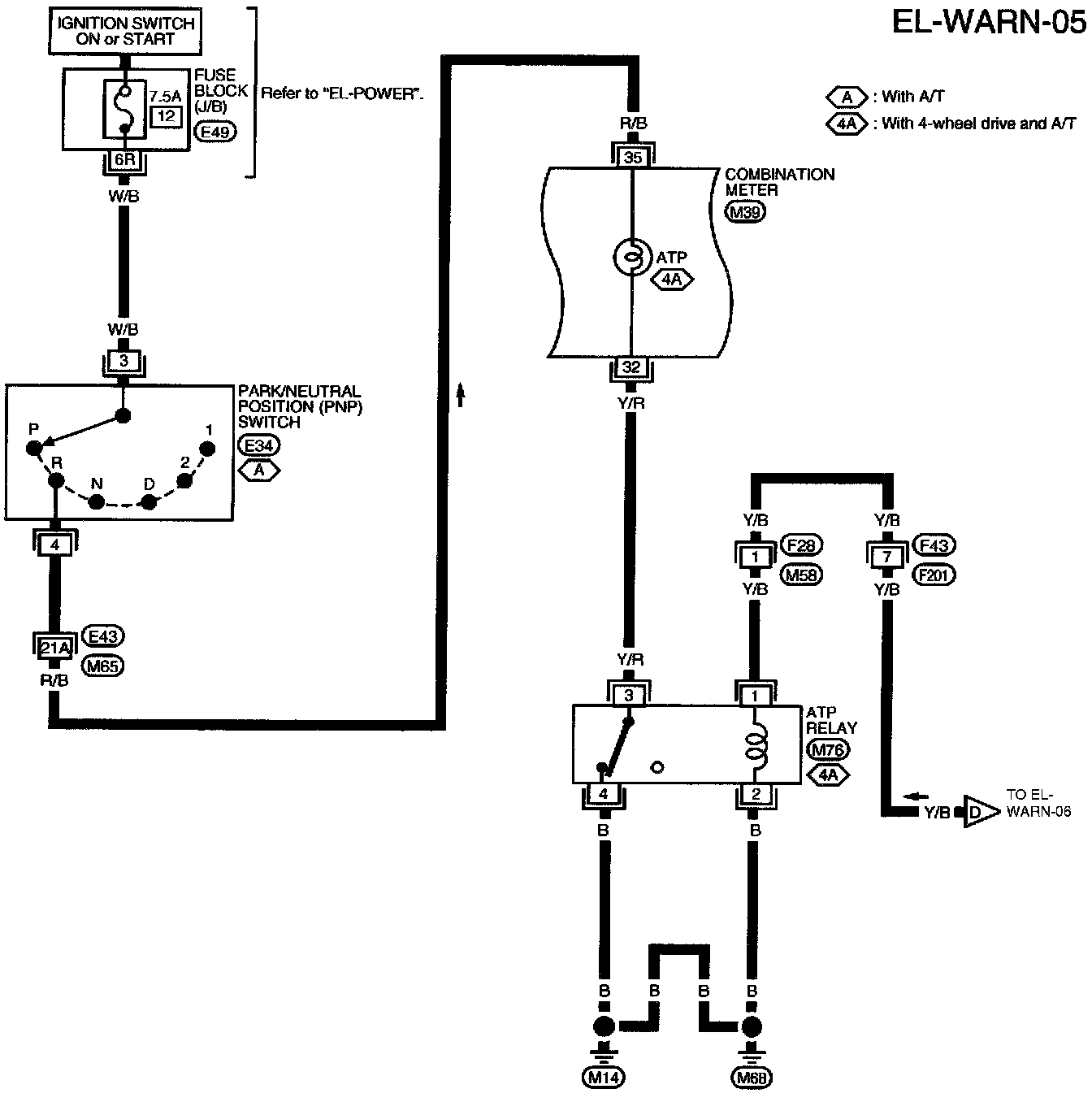

EL-WARN-05:
(Part 5 of 6)
Fuse Block (J/B)
Park/Neutral Position (PNP) Switch
Combination Meter
ATP Relay
EL-WARN-06:
Fuse Block (J/B)
Combination Meter
Transfer Neutral Position Switch
4WD Switch
Circuit Diagrams

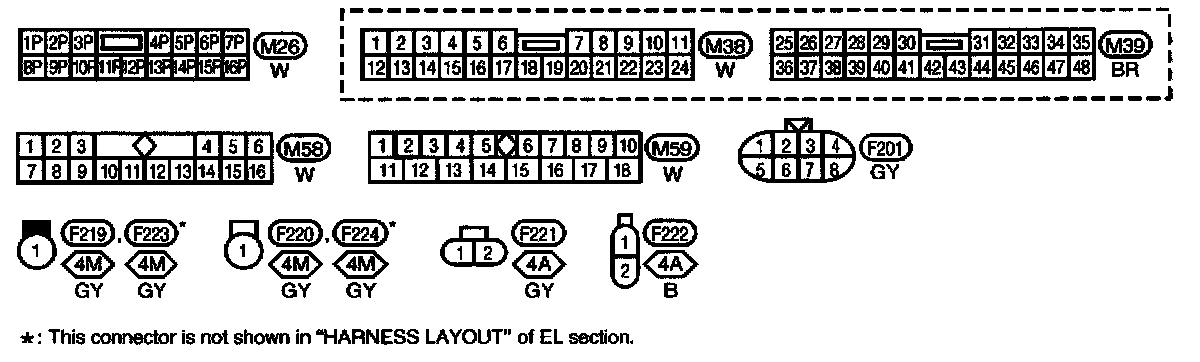

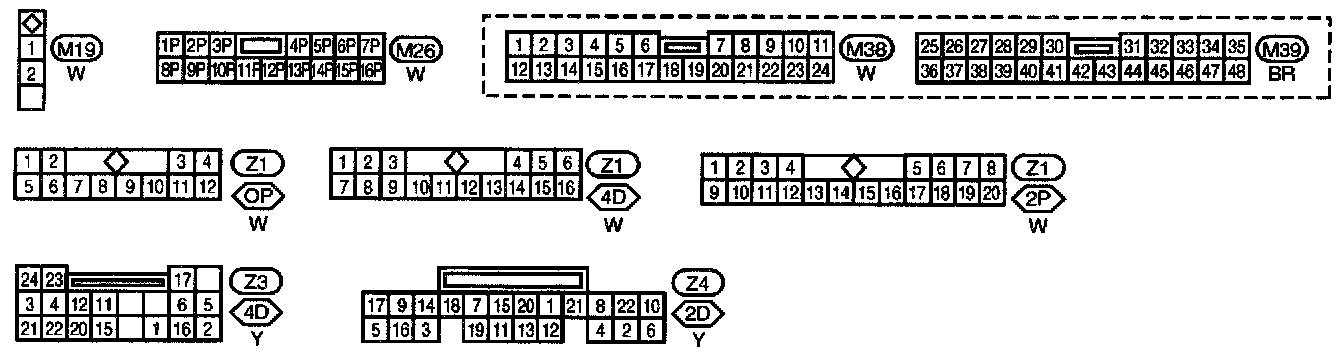

Circuit Connectors

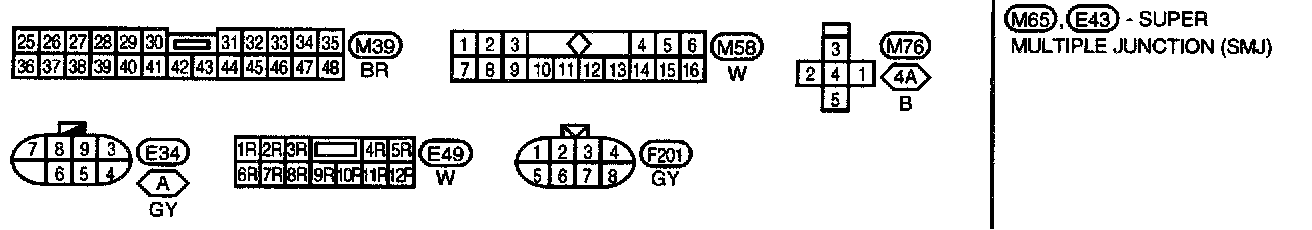

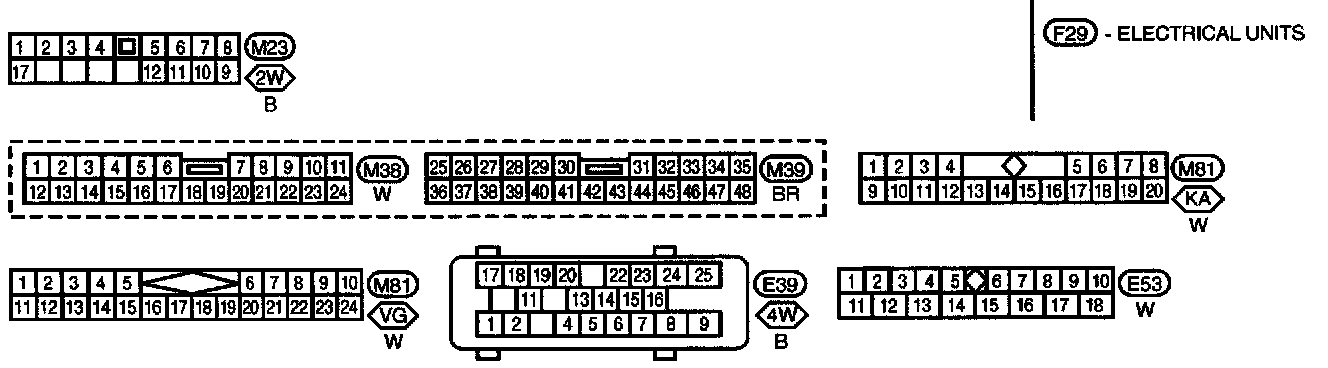

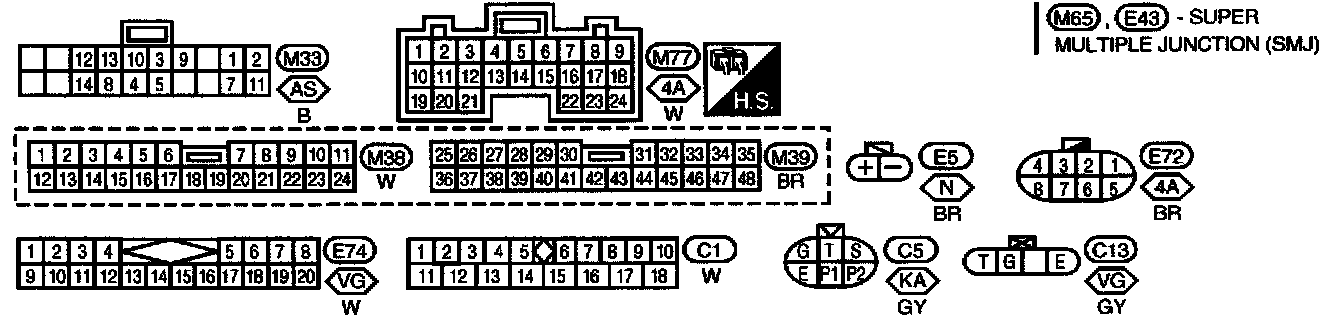

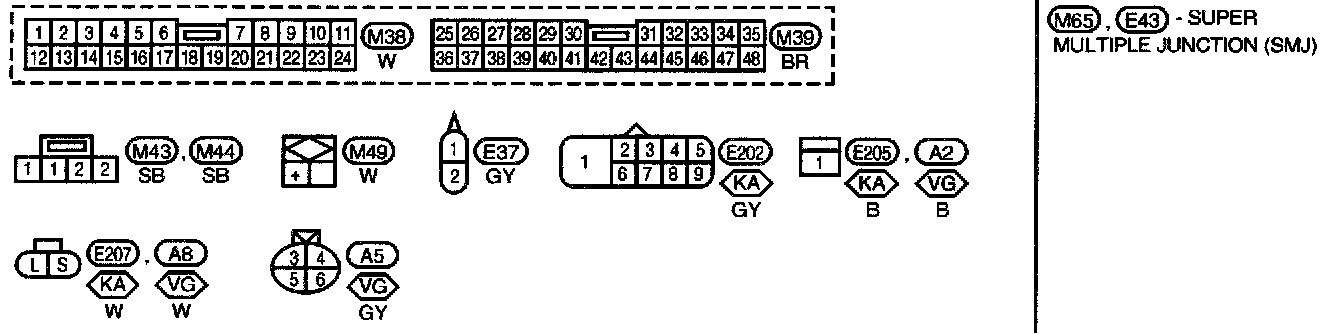

E43, M65, F29 Super Multiple Junction (SMJ) & Electrical Units Terminal Arrangement
