Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Meter and Gauges >> Beginning With VIN 343314

Beginning With VIN 343314







Combination Meter

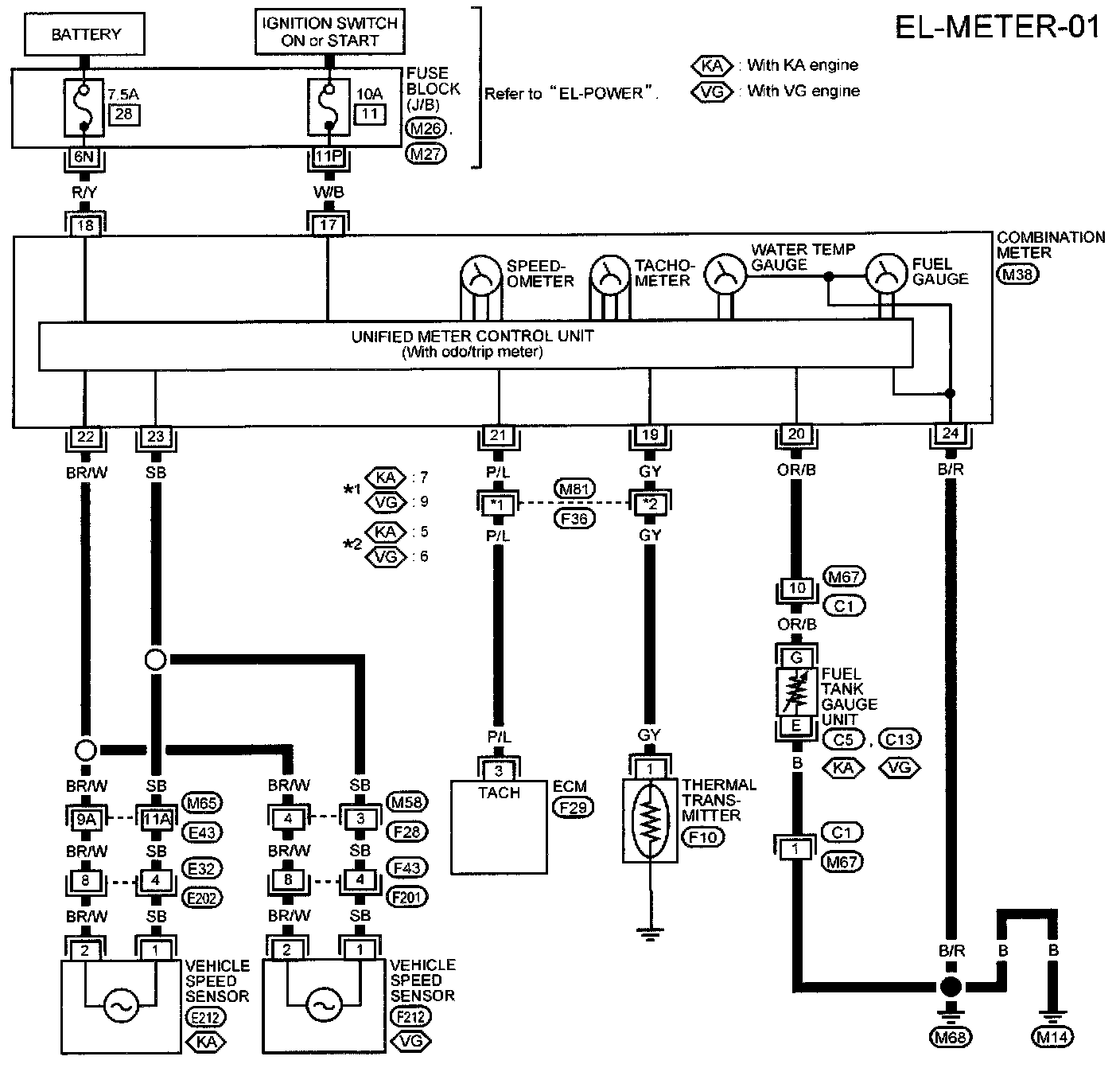

EL-METER-01:

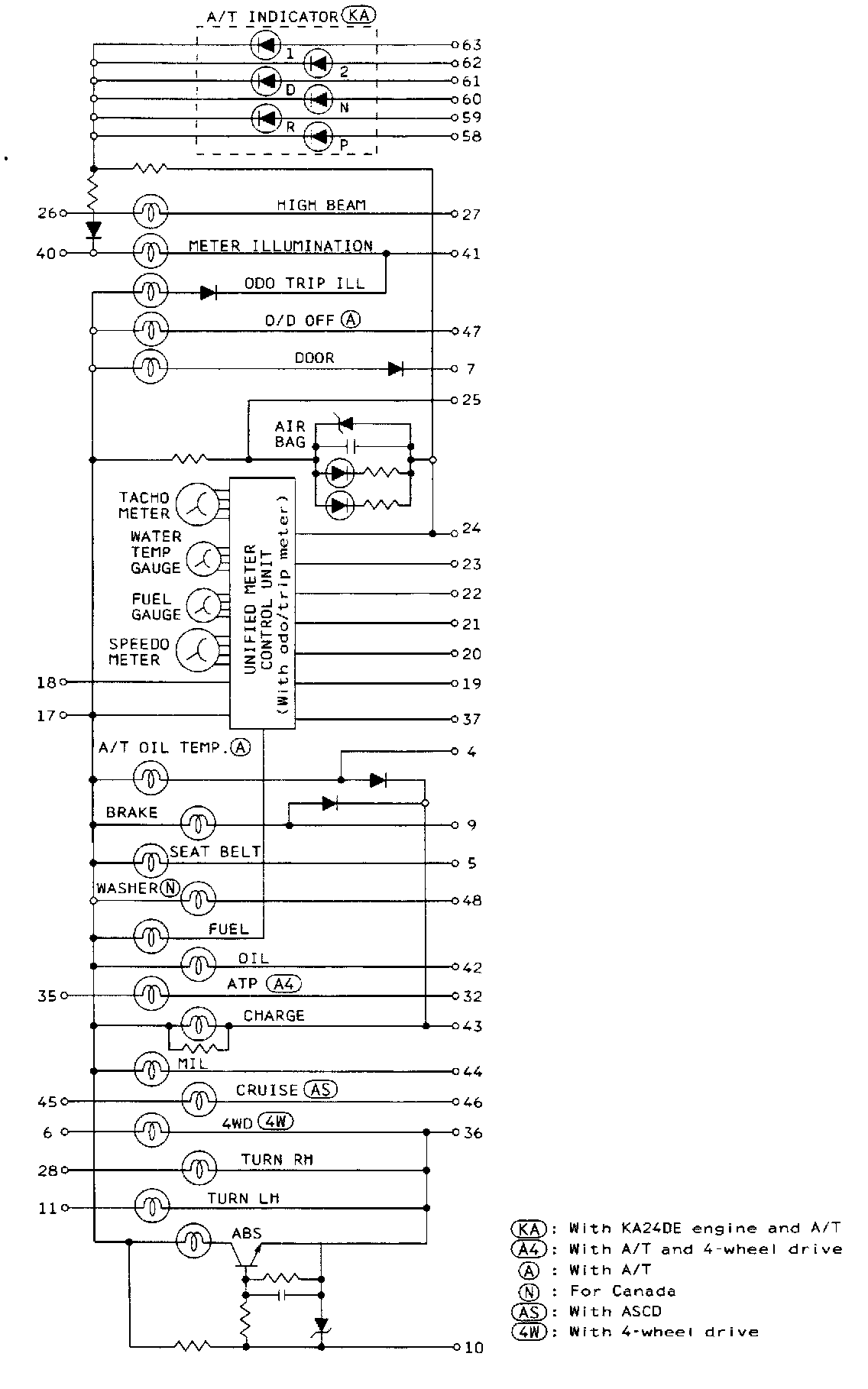

Circuit Diagram




Circuit Connectors

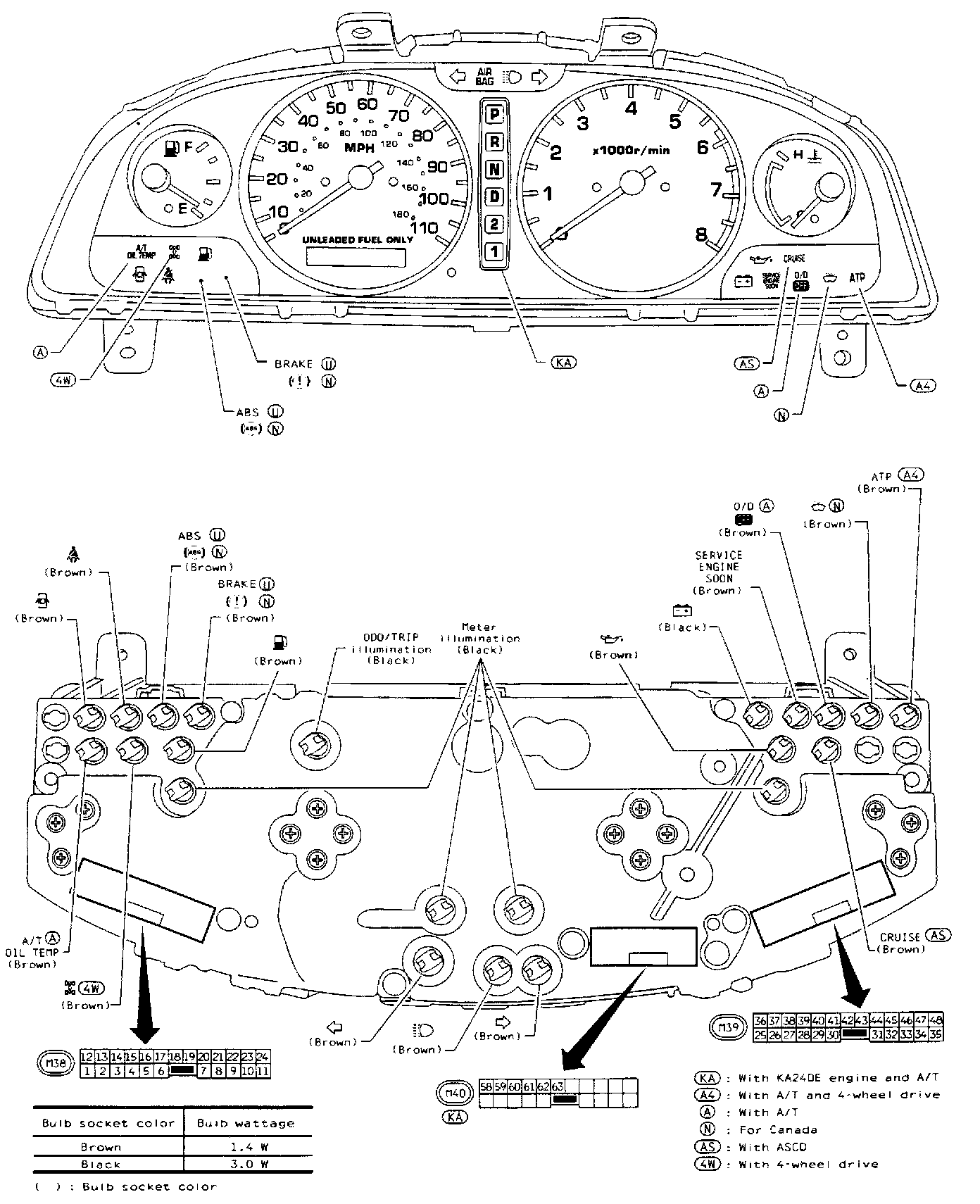

Connector Views:




Connector Views:

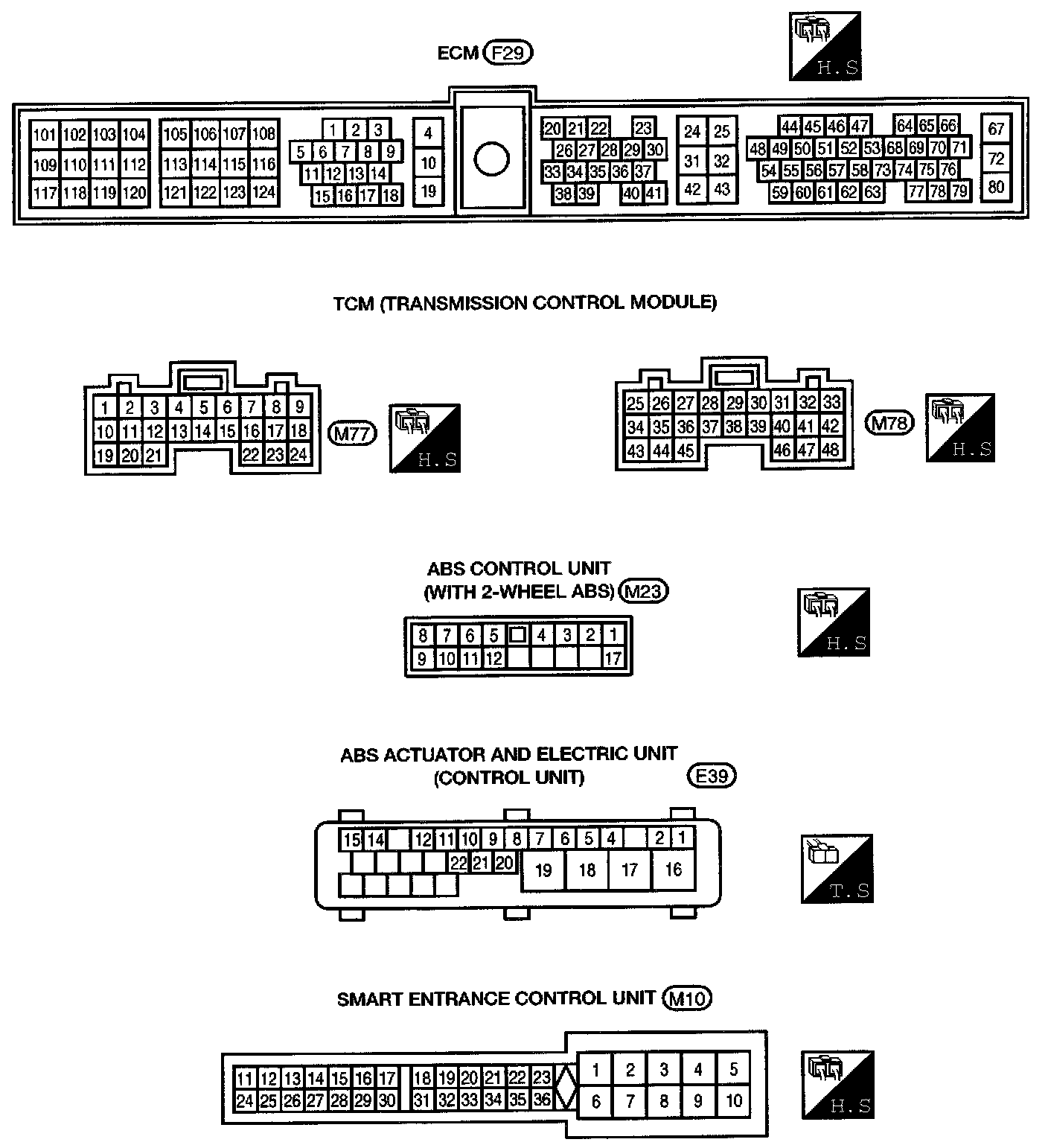

M65, E43, F29 Super Multiple Junction (SMJ) and Electrical Units Terminal Arrangement
