Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Up to VIN 343314 >> A/C >> Wiring Diagram

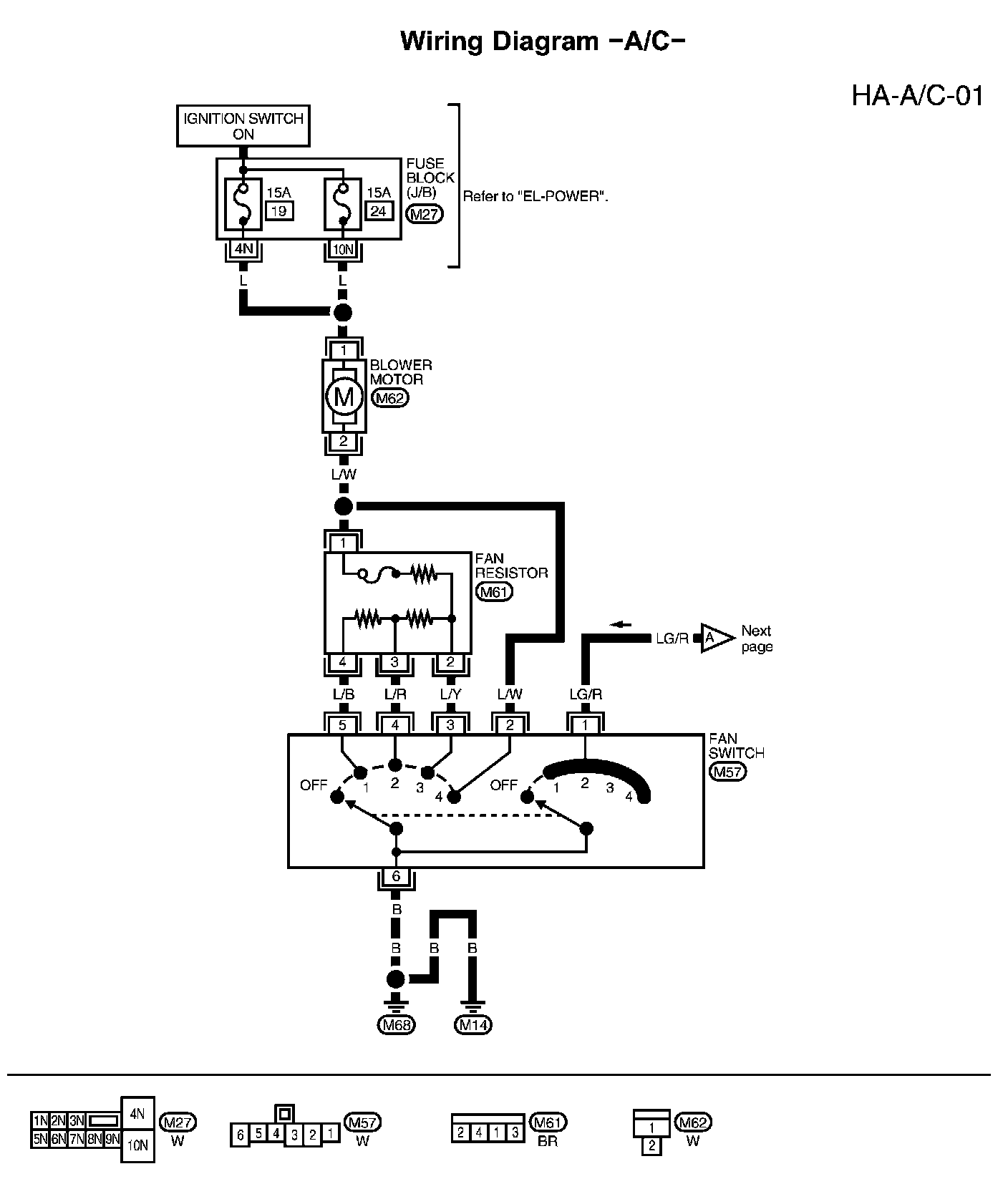

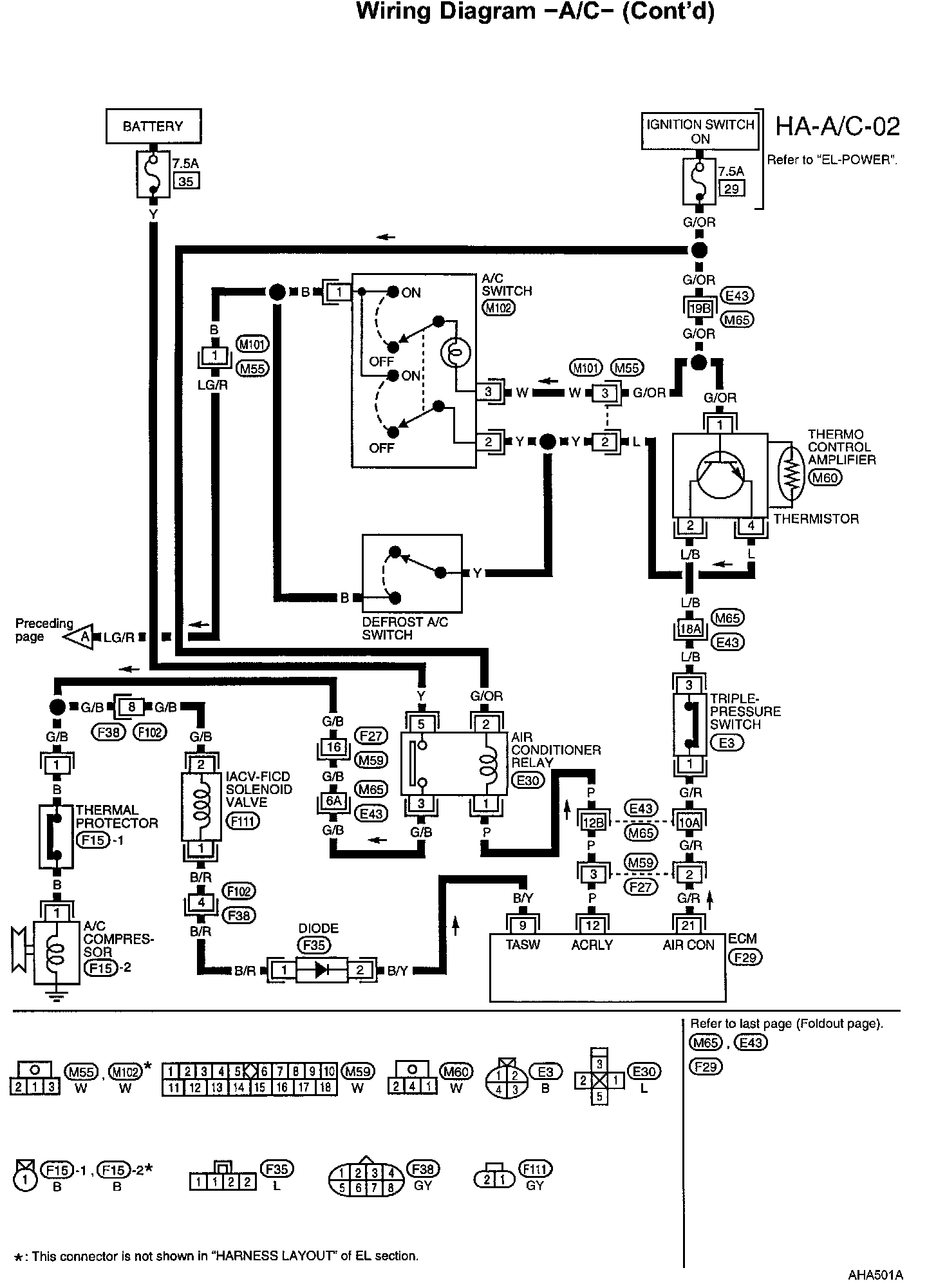

Wiring Diagram
