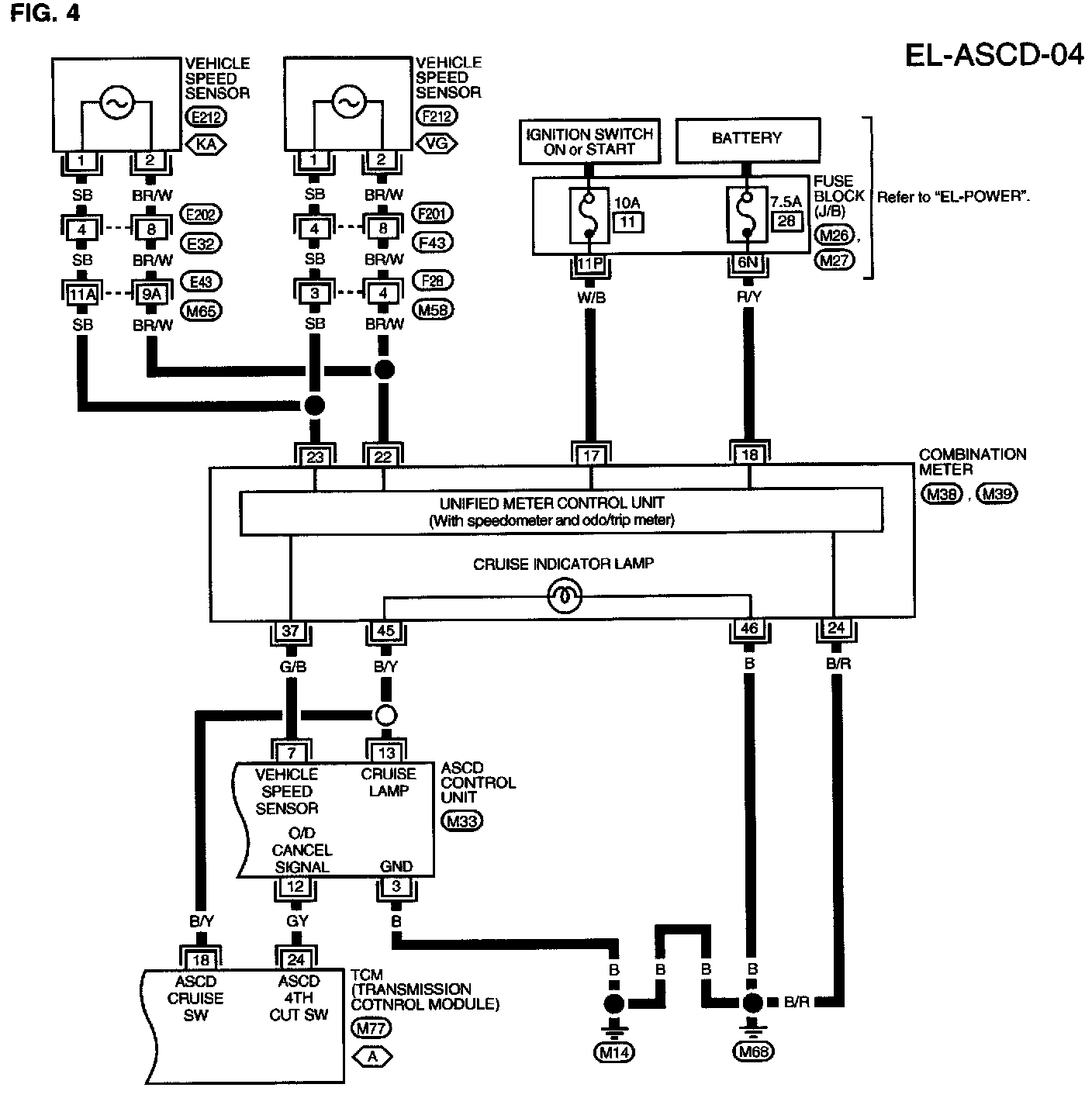

EL-ASCD-04

EL-ASCD-04:

EL-ASCD-04

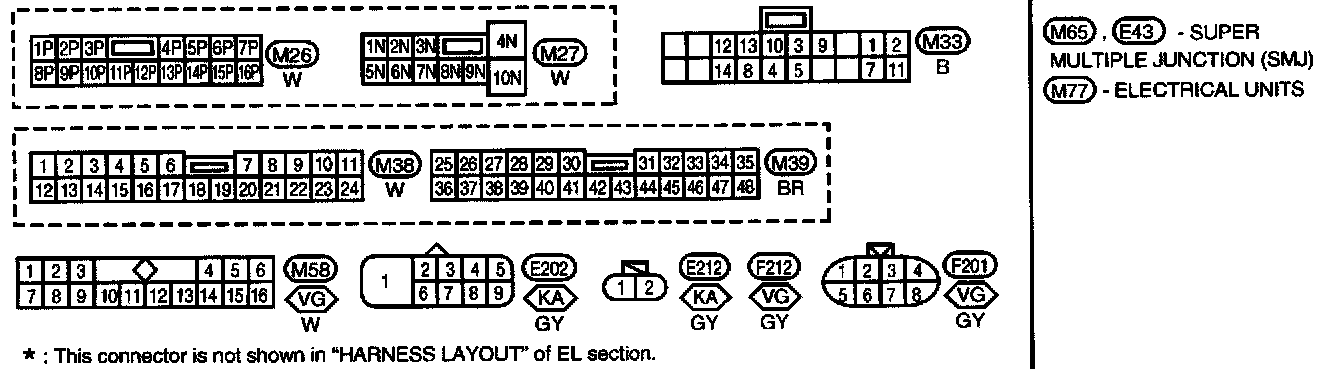

Circuit Connectors

E43, M65, M77 Super Multiple Junction (SMJ) Electrical Units & Terminal Arrangement
