Beginning With VIN 343314

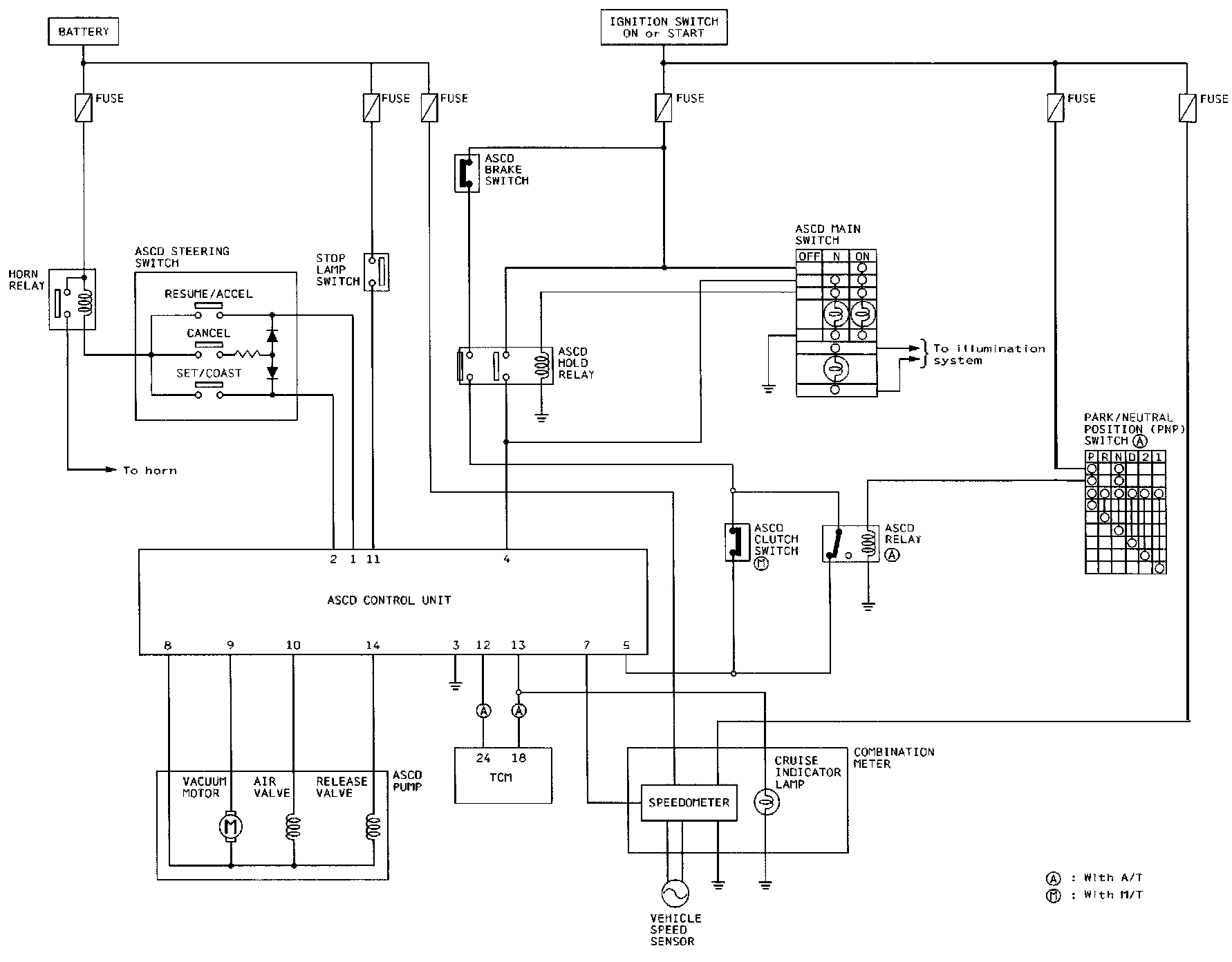

Schematic
Circuit Diagrams

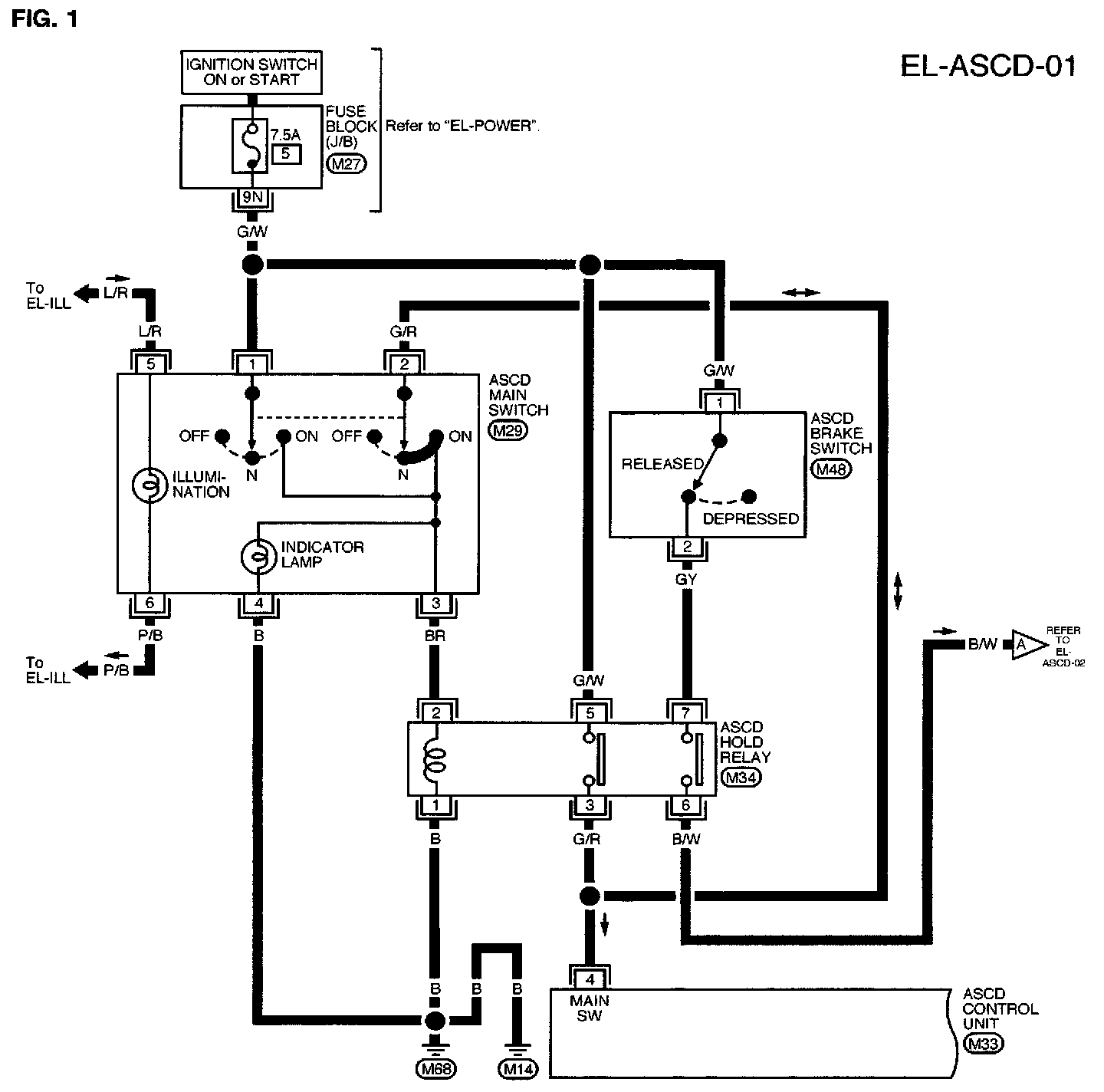

EL-ASCD-01:
(Part 1 of 4)
Fuse Block (J/B)
ASCD Main Switch
ASCD Brake Switch
ASCD Hold Relay
ASCD Control Unit

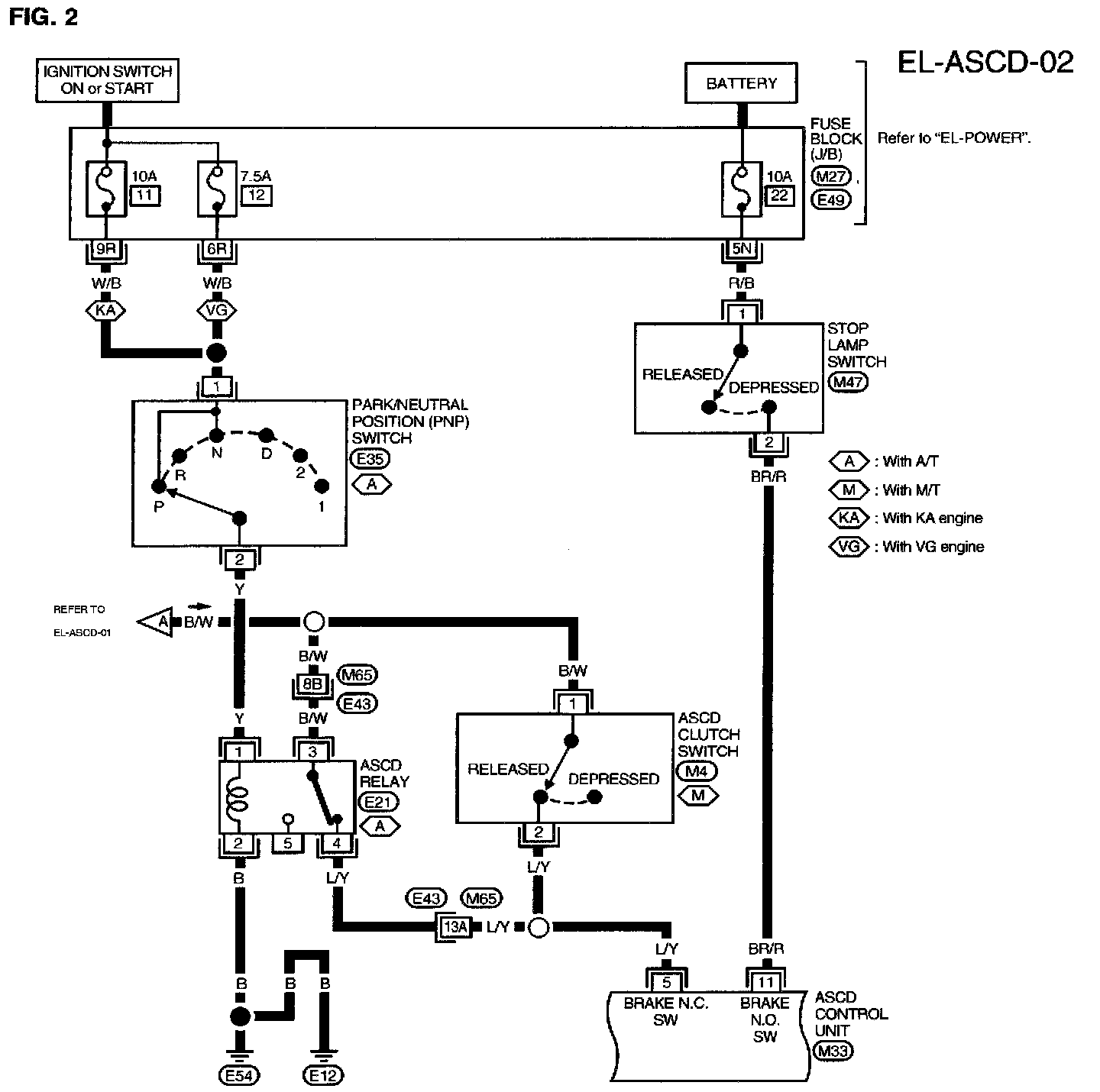

EL-ASCD-02:
(Part 2 of 4)
Fuse Block (J/B)
Park/Neutral Position (PNP) Switch
Stop Lamp Switch
ASCD Relay
ASCD Clutch Switch
ASCD Control Unit

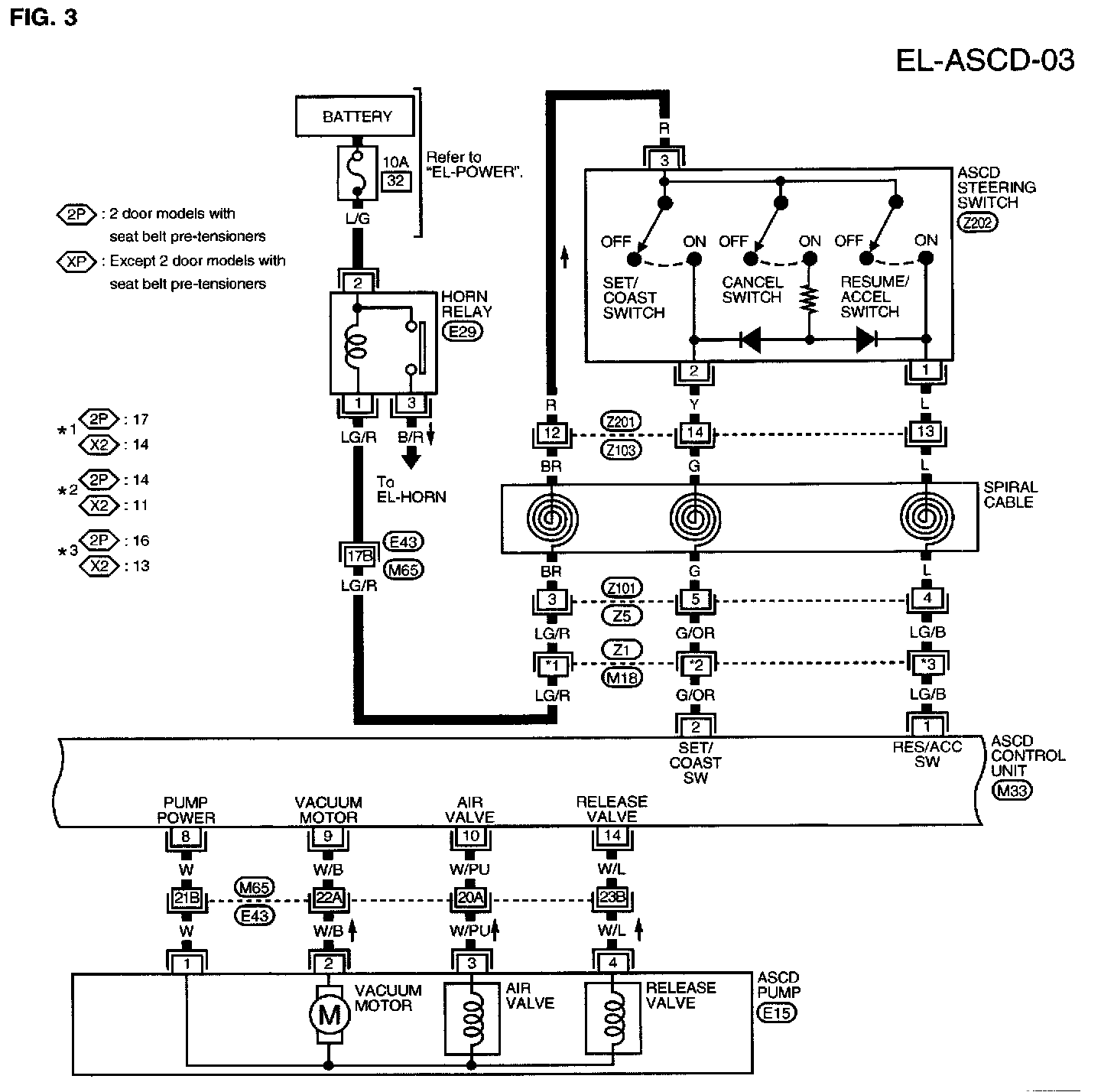

EL-ASCD-03:
(Part 3 of 4)
ASCD Steering Switch
Horn Relay
Spiral Cable
ASCD Control Unit
ASCD Pump

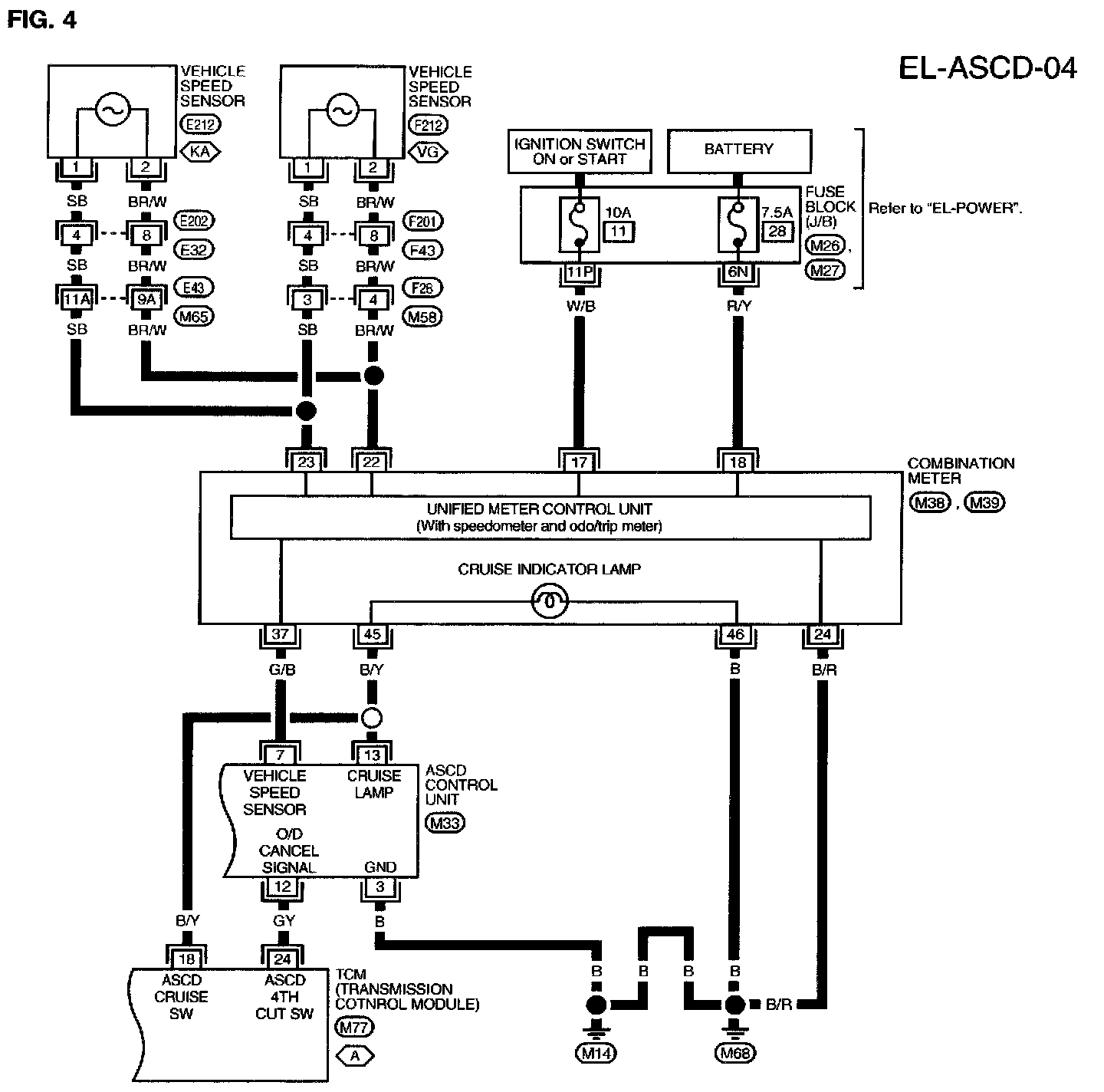

EL-ASCD-04:
(Part 4 of 4)
Vehicle Speed Sensor
Vehicle Speed Sensor
Fuse Block (J/B)
Combination Meter
ASCD Control Unit
Transmission Control Module
Circuit Connectors

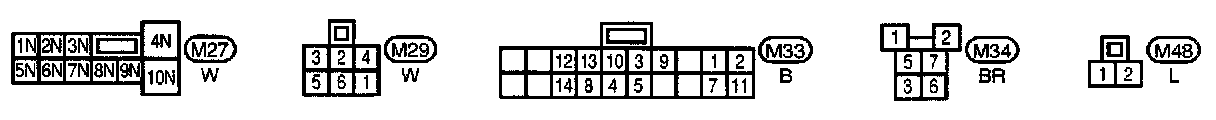

Connector Views:
Connector Views:

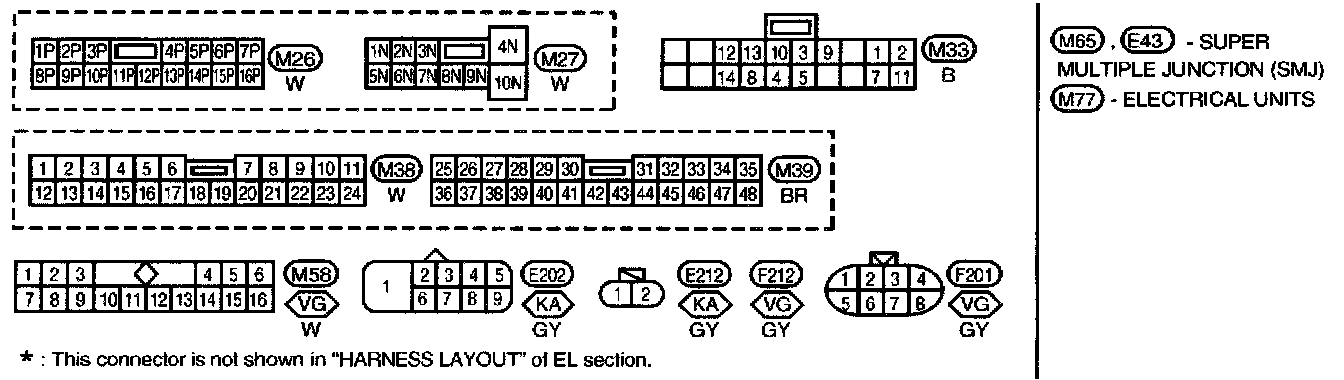

M65, E43, M77 Super Multiple Junction (SMJ) and Electrical Units Terminal Arrangement
