Beginning With VIN 343314

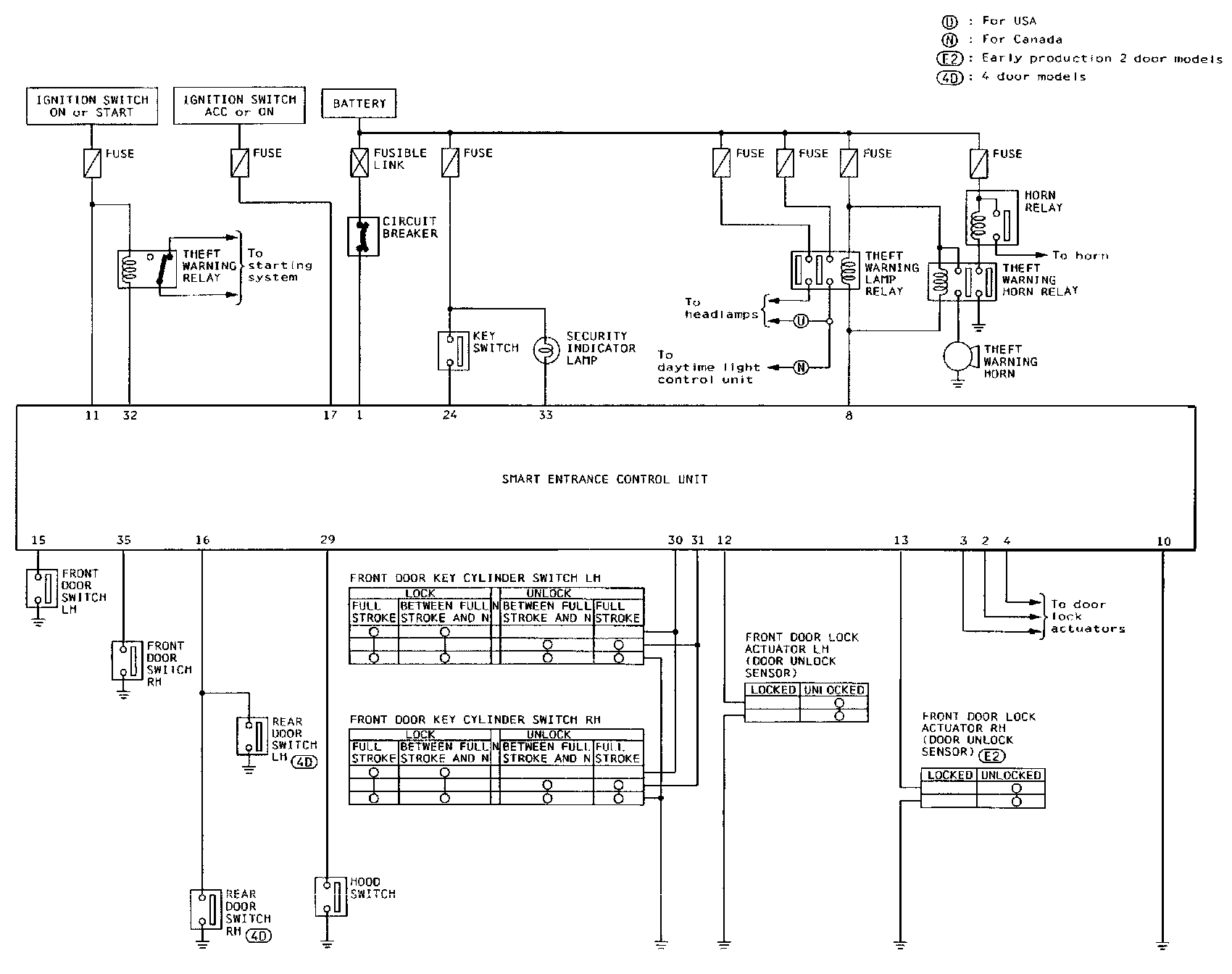

Schematic

Circuit Diagrams

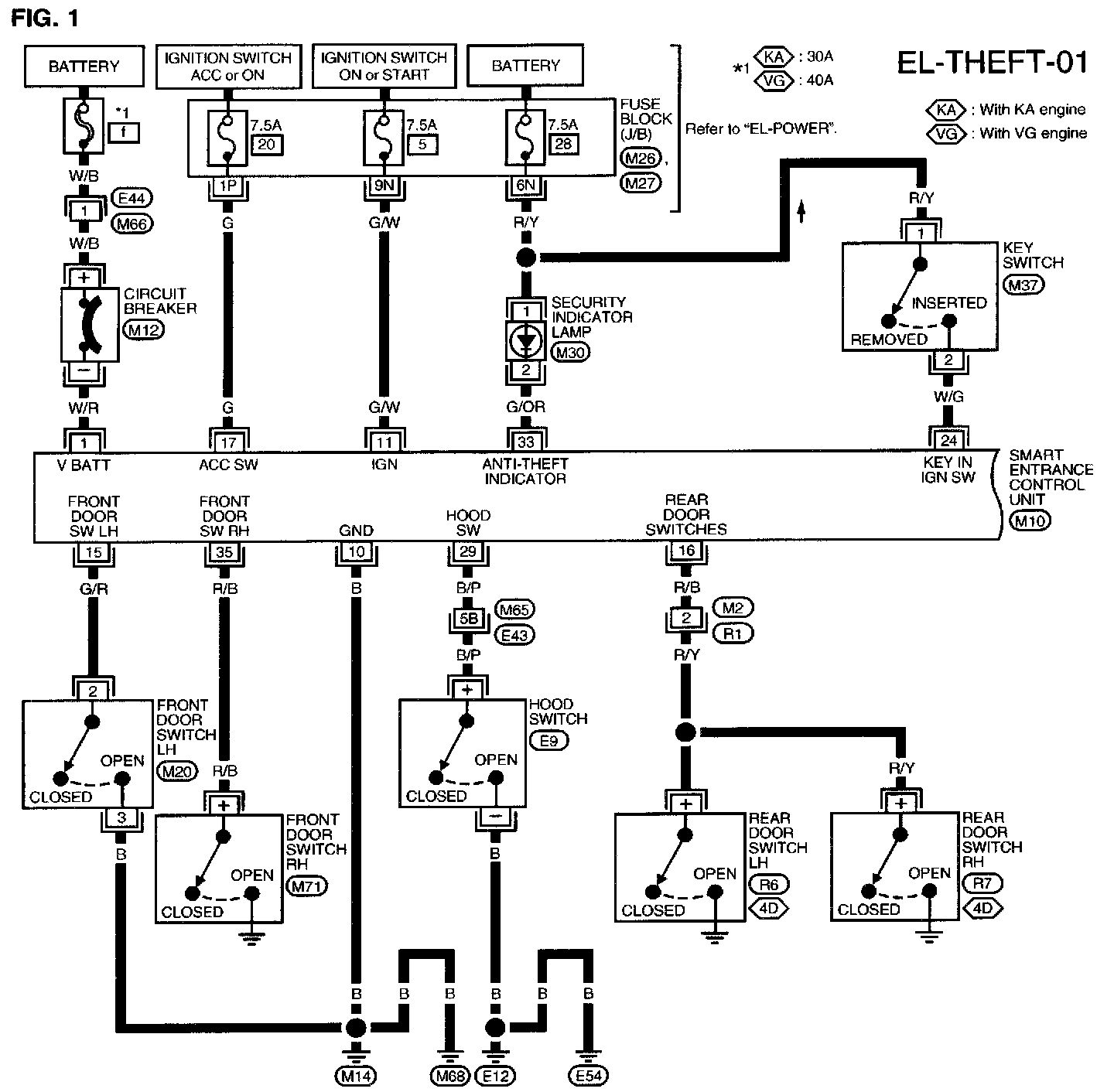

EL-THEFT-01:

(Part 1 of 4)
Fuse Block (J/B)
Circuit Breaker
Security Indicator Lamp
Key Switch
Smart Entrance Control Unit
Front Door Switch LH
Hood Switch
Front Door Switch RH
Rear Door Switch LH
Rear Door Switch RH

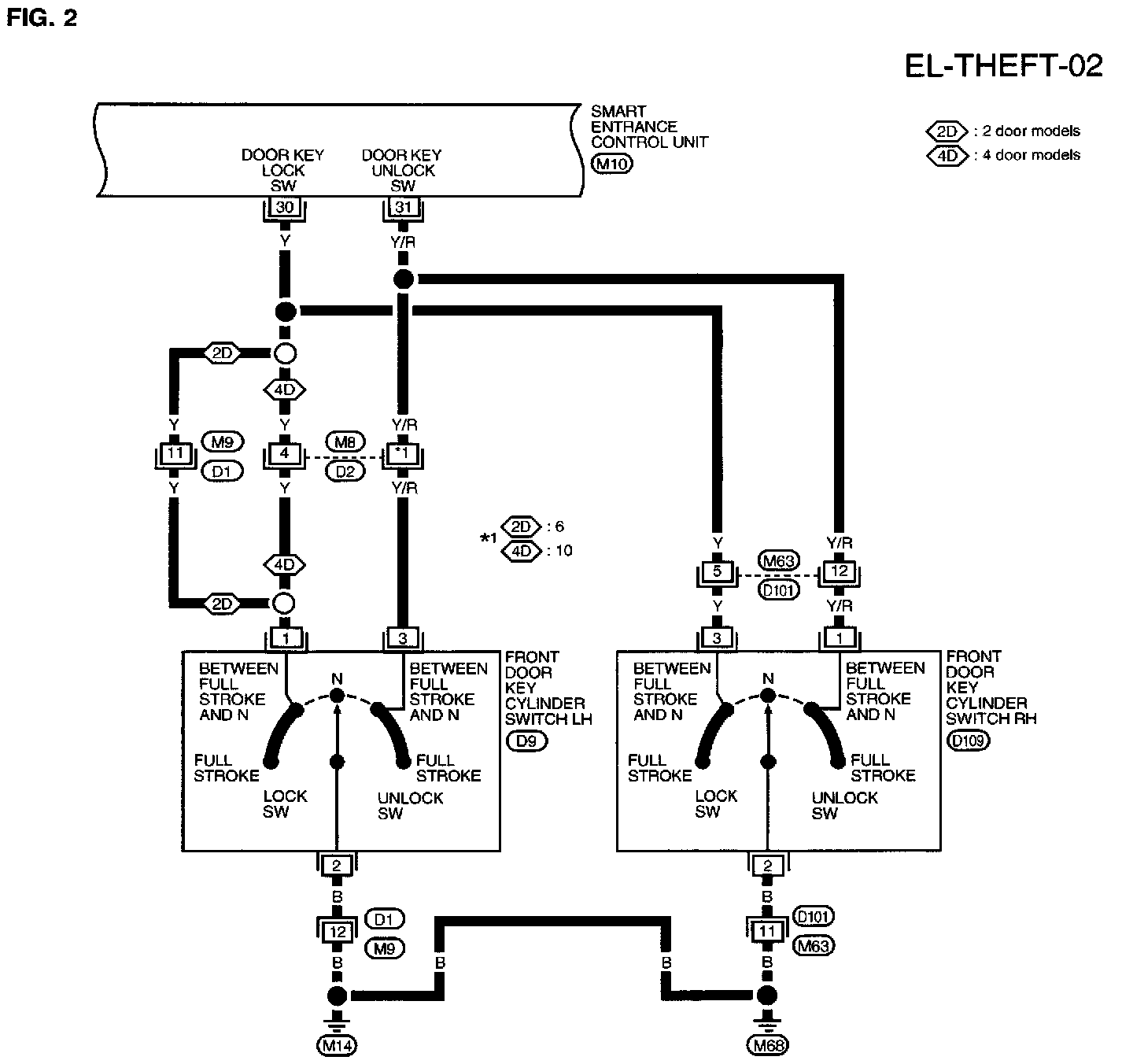

EL-THEFT-02:

(Part 2 of 4)
Smart Entrance Control Unit
Front Door Key Cylinder Switch LH
Front Door Key Cylinder Switch RH

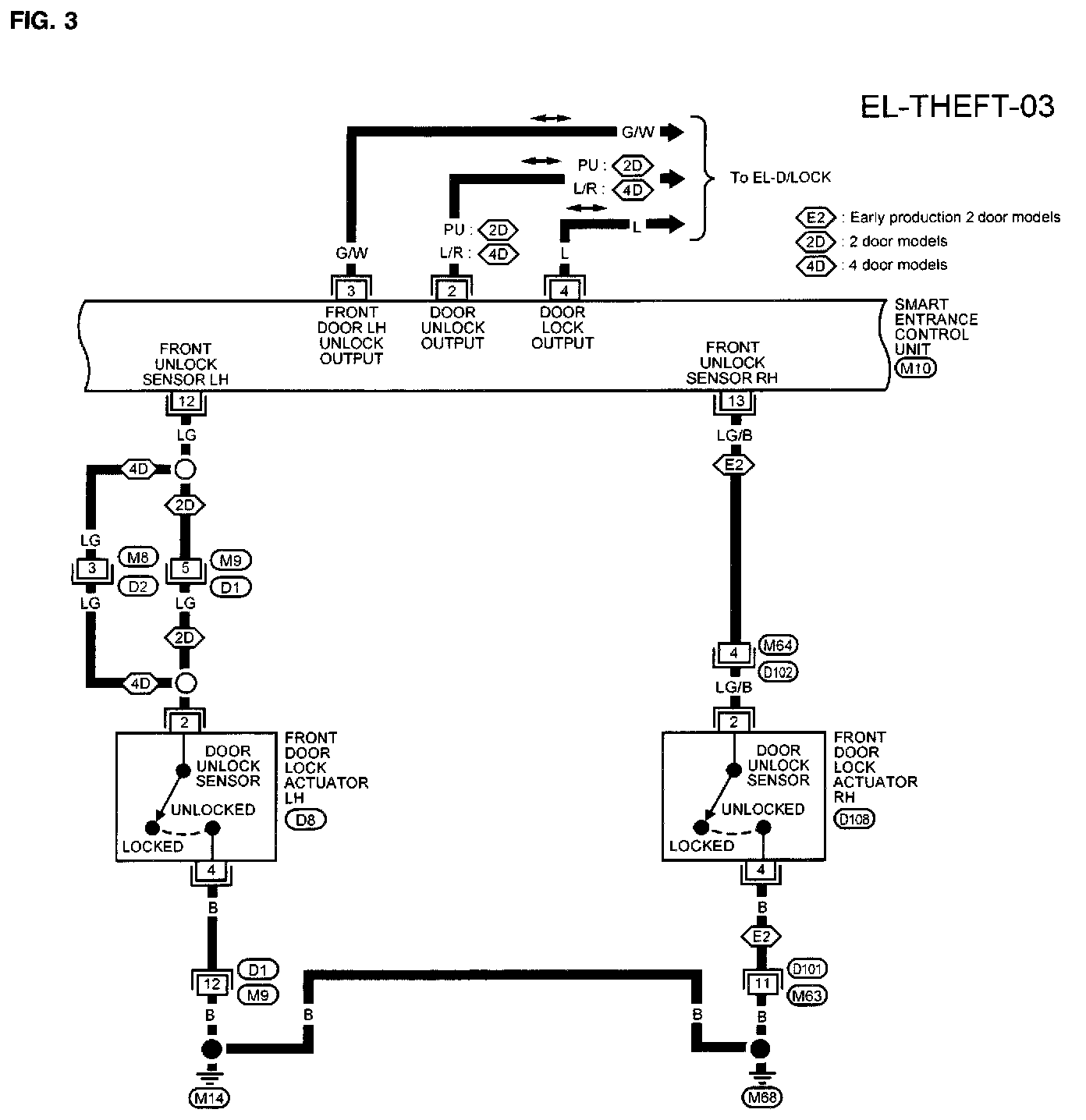

EL-THEFT-03:

(Part 3 of 4)
Smart Entrance Control Unit
Front Door Lock Actuator LH
Front Door Lock Actuator RH
Trunk Lid Key Cylinder Switch (Unlock Switch)

EL-THEFT-04:

(Part 4 of 4)
Fuse Block (J/B)
Horn Relay
Theft Warning Relay
Theft Warning Lamp Relay
Theft Warning Horn Relay
Theft Warning Horn
Smart Entrance Control Unit













Circuit Connectors

Connector Views:

M65, E43 Super Multiple Junction (SMJ) Terminal Arrangement
