Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Joint Connector (J/C) >> Beginning With VIN 343314

Beginning With VIN 343314

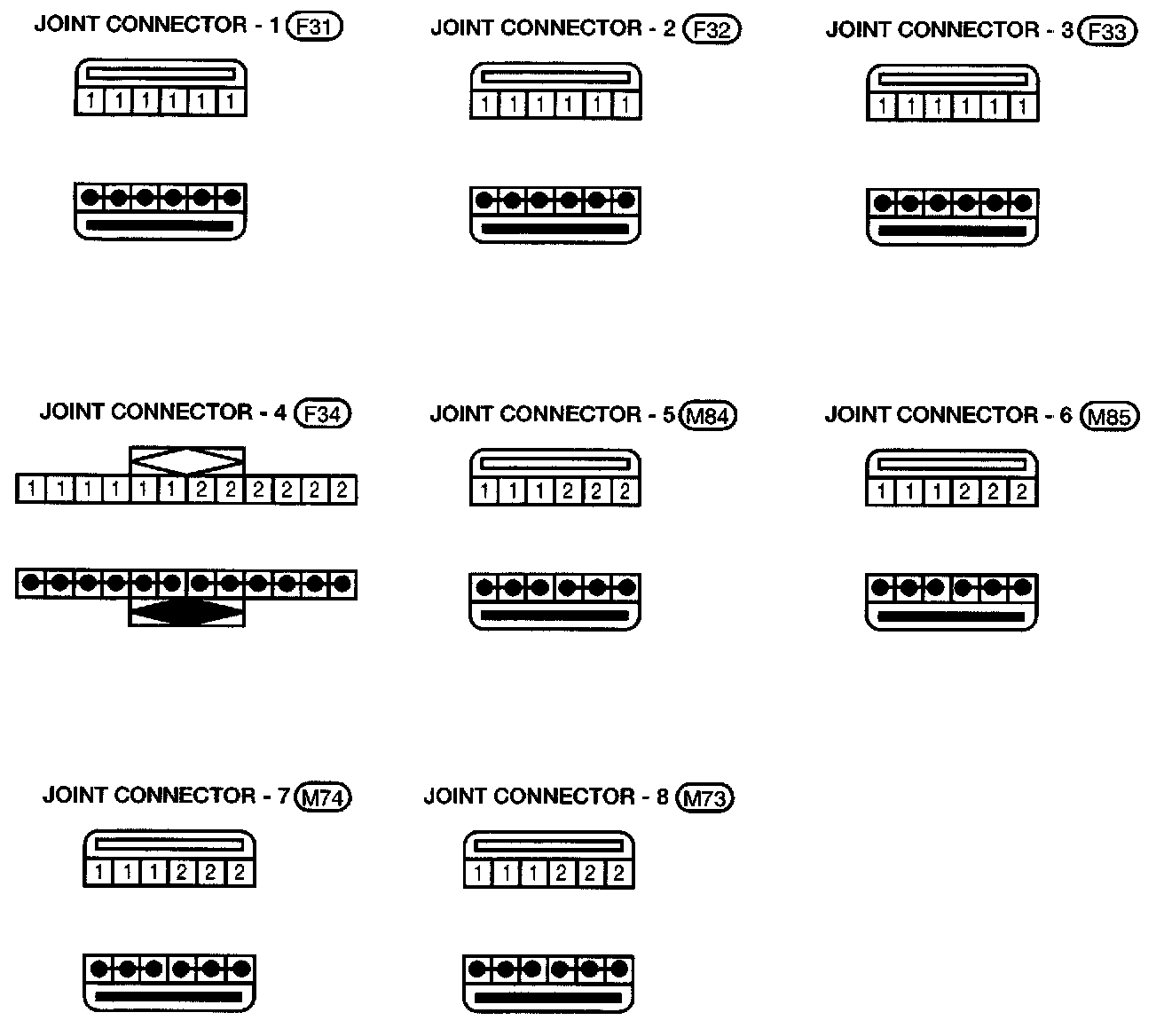

F31, F32, F33, F34, M84, M85, M74, M73 Joint Connector Terminal Arrangement
