Beginning With VIN 343314

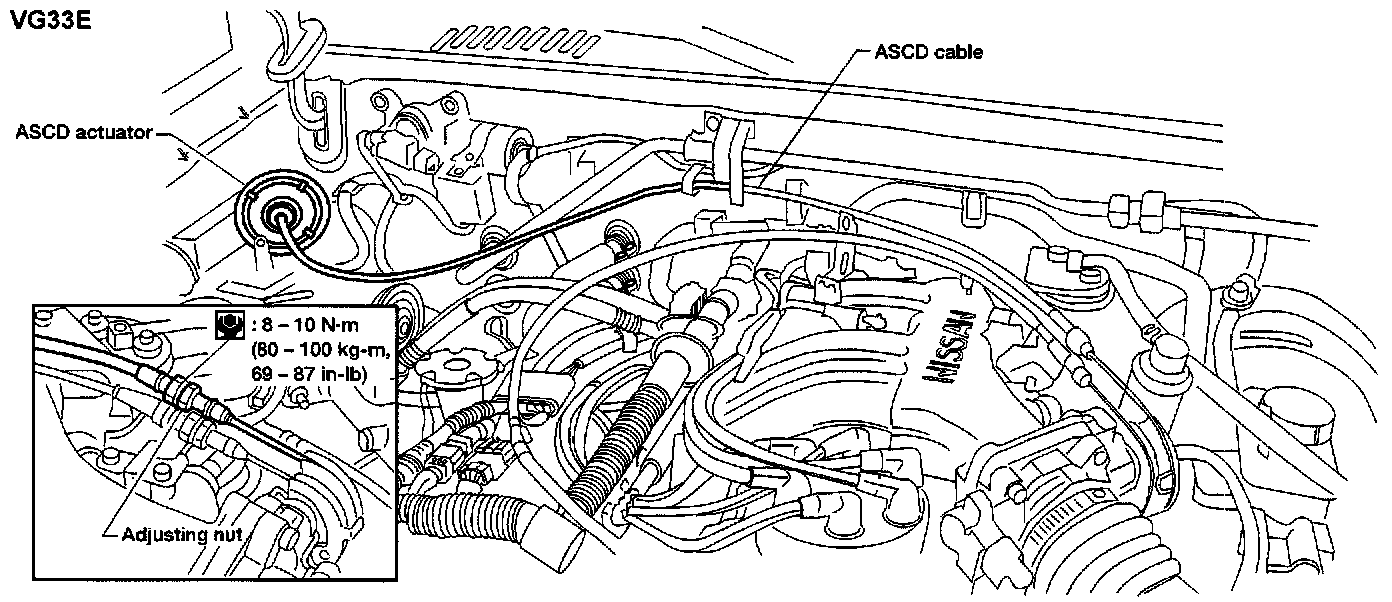

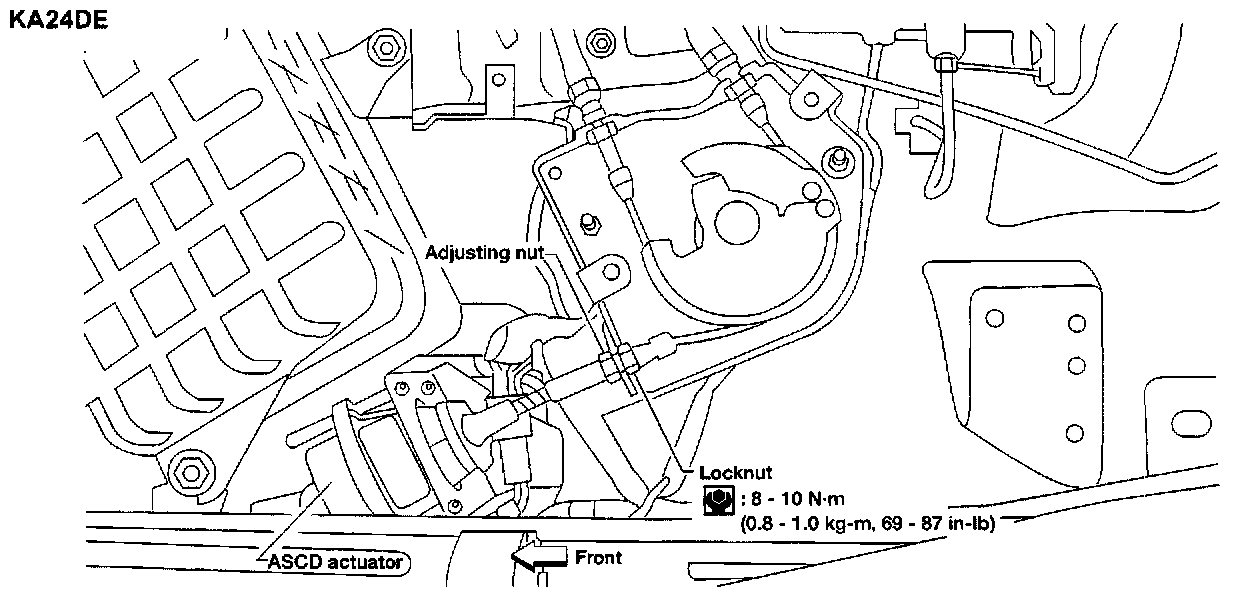

ASCD Wire Adjustment









CAUTION:
- Be careful not to twist ASCD wire when removing it.
- Do not tense ASCD wire excessively during adjustment.

Adjust the tension of ASCD wire in the following manner.
1. Loosen look nut and adjusting nut.
2. Make sure that accelerator wire is properly adjusted. Refer to "ACCELERATOR CONTROL SYSTEM".
3. Tighten adjusting nut just until throttle drum starts to move.
4. Loosen adjusting nut again 1/2 to 1 turn.
5. Tighten lock nut.
