Beginning With VIN 343314

Adjustment
Adjust parking as follows:
1. Fully release parking brake lever.

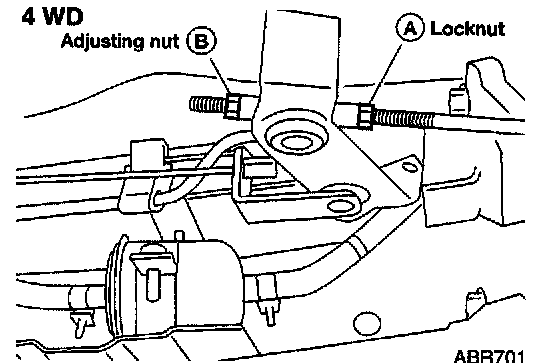

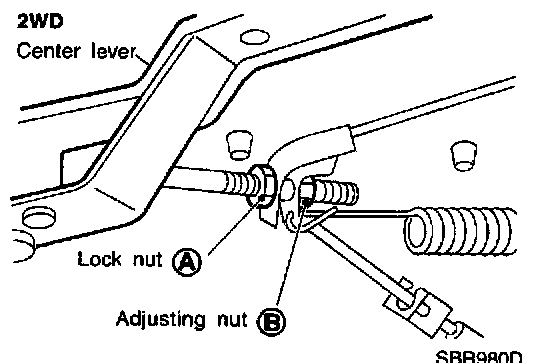

2. Loosen (A) and rotate (B) until parking brake pedal loosens.
3. Depress brake pedal several times until clicking sound does not occur from rear brakes.
4. Adjust clearance between rear brake shoe and drum.
5. Adjust parking brake lever stroke by rotating (B).

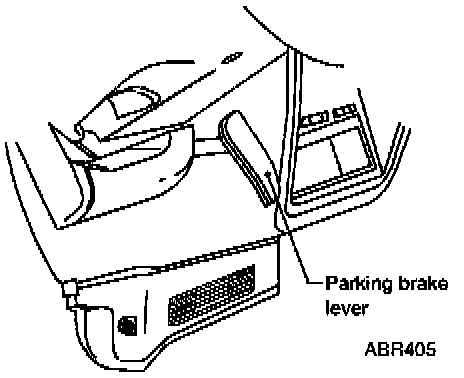

Parking Brake Lever:

6. Pull parking brake lever with specified force. Check lever stroke and ensure smooth operation.
7. Readjust clearance between rear brake shoe and drum.
