Load Compensator: Testing and Inspection

Inspection

CAUTION:
^ Carefully monitor brake fluid level at master cylinder.
^ Use new brake fluid "DOT 3".
^ Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on paint areas, wash it away with water immediately.
^ Depress pedal slowly when raising front brake pressure.
^ Check rear brake pressure 2 seconds after front brake pressure reaches specified value.
^ Disconnect harness connectors from ABS actuator and electric unit before checking.

1. Park vehicle on a level surface with vehicle unloaded*.
* Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

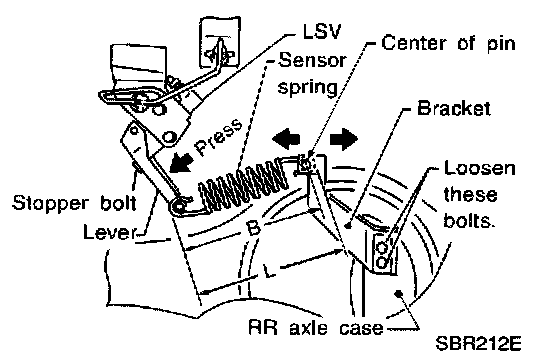

2. Press a lever to the stopper bolt, then adjust length "B" as shown:
3. If length "B" is not within specification, adjust sensor spring length.
