Beginning With VIN 343314

Removal
1) Disconnect battery cable.
2) Drain brake fluid.





3) Disconnect connectors, brake pipes, and remove fixing bolts and flare nuts.

Installation

CAUTION: After installation, refill brake fluid. Then bleed air. Refer to Brake Bleeding; Service and Repair.

1) Connect pipes temporarily.
2) Secure fixing bolts.

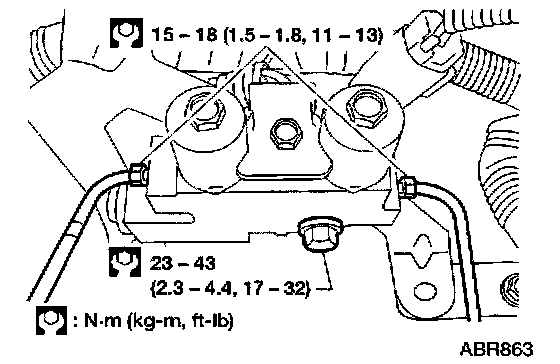

3) Torque brake pipe flare nuts.
4) Connect connectors and battery cable.
