Beginning With VIN 343314

Disassembly

WARNING: Do not place your fingers in front of piston.

CAUTION:
- Do not scratch or score cylinder wall.
- CL28VD type front disc brake uses plastic pistons. Handle them carefully.

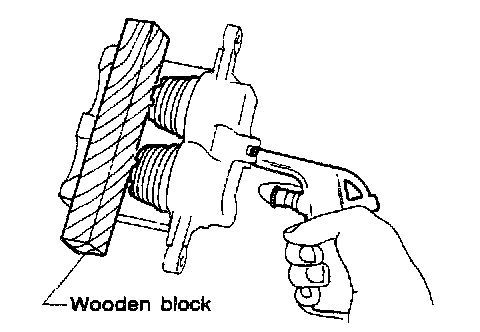

1. Push out piston and dust covers with compressed air. Use a wooden block so that both pistons come out evenly.
2. Remove piston seal with a suitable tool.

Inspection-Caliper
Cylinder Body
- Check inside surface of cylinder for score, rust, wear, damage and presence of foreign objects. If any of the above conditions are observed, replace cylinder body.
- Minor damage from rust or foreign objects may be eliminated by polishing surface with a fine emery paper. Replace cylinder body if necessary.

CAUTION: Use brake fluid to clean. Never use mineral oil.

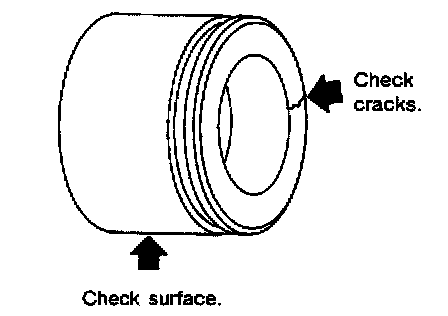

Piston





CAUTION: Piston sliding surface is plated. Do not polish with emery paper even if rust or foreign objects are stuck to sliding surface.

Slide Pin, Pin Bolt and Pin Boot
Check for wear, cracks, rust and other damage. Replace if any of the above conditions are observed.

Inspection-Rotor
Runout

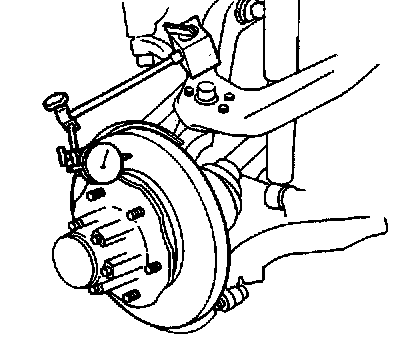

1. Check runout using a dial indicator. Make sure that wheel bearing axial end play is within the specifications before measuring.
Maximum runout: 0.07 mm (0.0028 inch)
2. If the runout is out of specification, find minimum runout position as follows:
a. Remove nuts and rotor from wheel hub.
b. Shift the rotor one hole and secure rotor to wheel hub with nuts.
c. Measure runout.
d. Repeat steps a. to c. so that minimum runout position can be found.
3. If the runout is still out of specification, turn rotor with on-car brake lathe ("MAD, DL-8700", "AMMCO 700 and 705" or equivalent).

Thickness

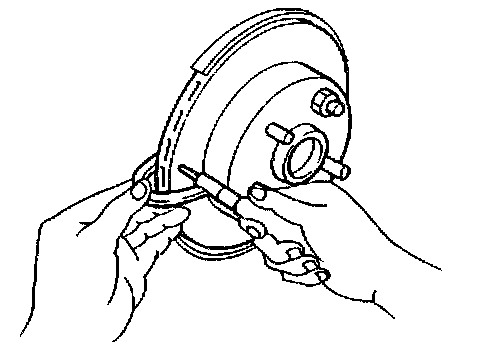

Thickness variation (At least 8 positions):
Maximum 0.02 mm (0.0008 inch)
If thickness variation exceeds the specification, turn rotor with on car brake lathe.
Rotor repair limits 24.0 mm (0.945 inch)

Assembly





1. Insert piston seal into groove on cylinder body.

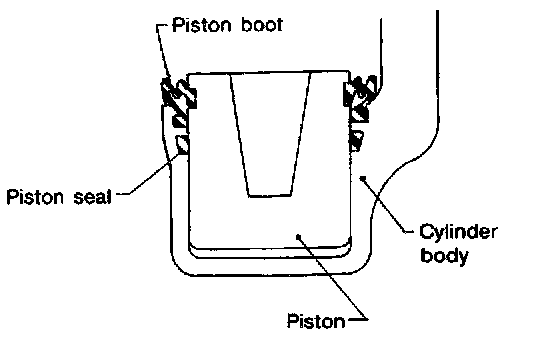

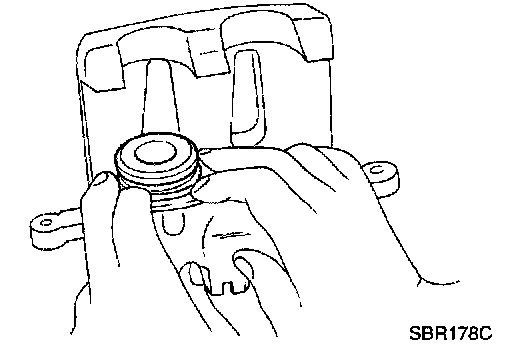

2. With piston boot fitted to piston, insert piston boot into groove on cylinder body and install piston.
3. Properly secure piston boot.

CAUTION:
- Secure dust seal properly.
- Lubricate with new brake fluid before installing plastic pistons into cylinder body.
