Beginning With VIN 343314
CHECKING THE NUMBER OF WARNING LAMP FLASHESWhen a problem occurs in ABS, the ABS warning lamp on the instrument panel turns on. As shown in the table, the control unit performs self-diagnosis.
To obtain satisfactory self-diagnosing results, the vehicle must be driven above 40 km/in (25 MPH) for at least one minute before the self-diagnosis is performed. After the vehicle has been stopped, with the engine still running, the number of ABS warning lamp flashes are counted by grounding the check terminal, thereby identifying the malfunction code(s).
If more than two parts or units malfunction at the same time, the ABS warning lamp will flash to indicate one of the malfunctioning parts or units. After the part or unit has been repaired, The ABS warning lamp will then flash to indicate the other part or unit that is malfunctioning.

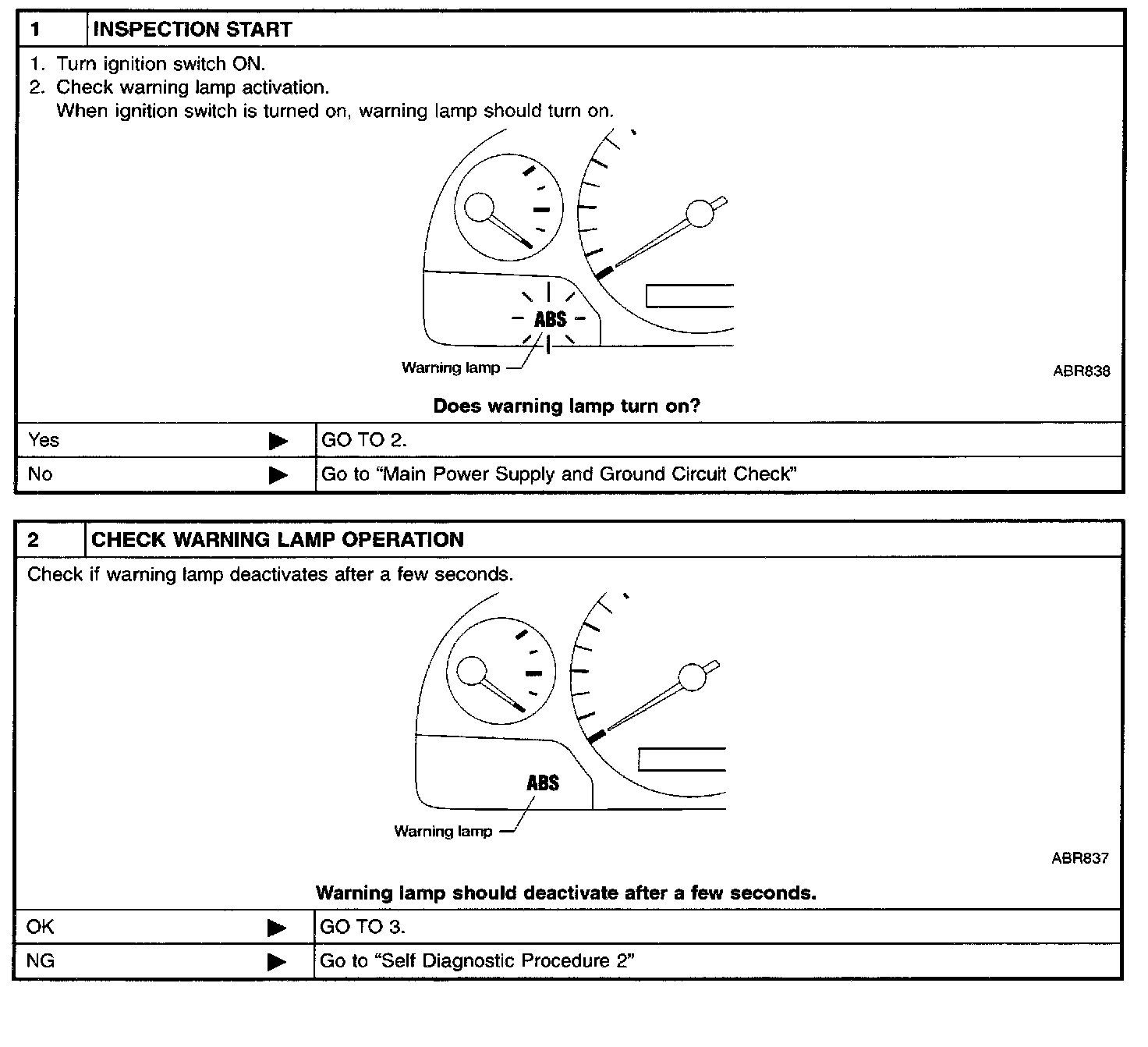

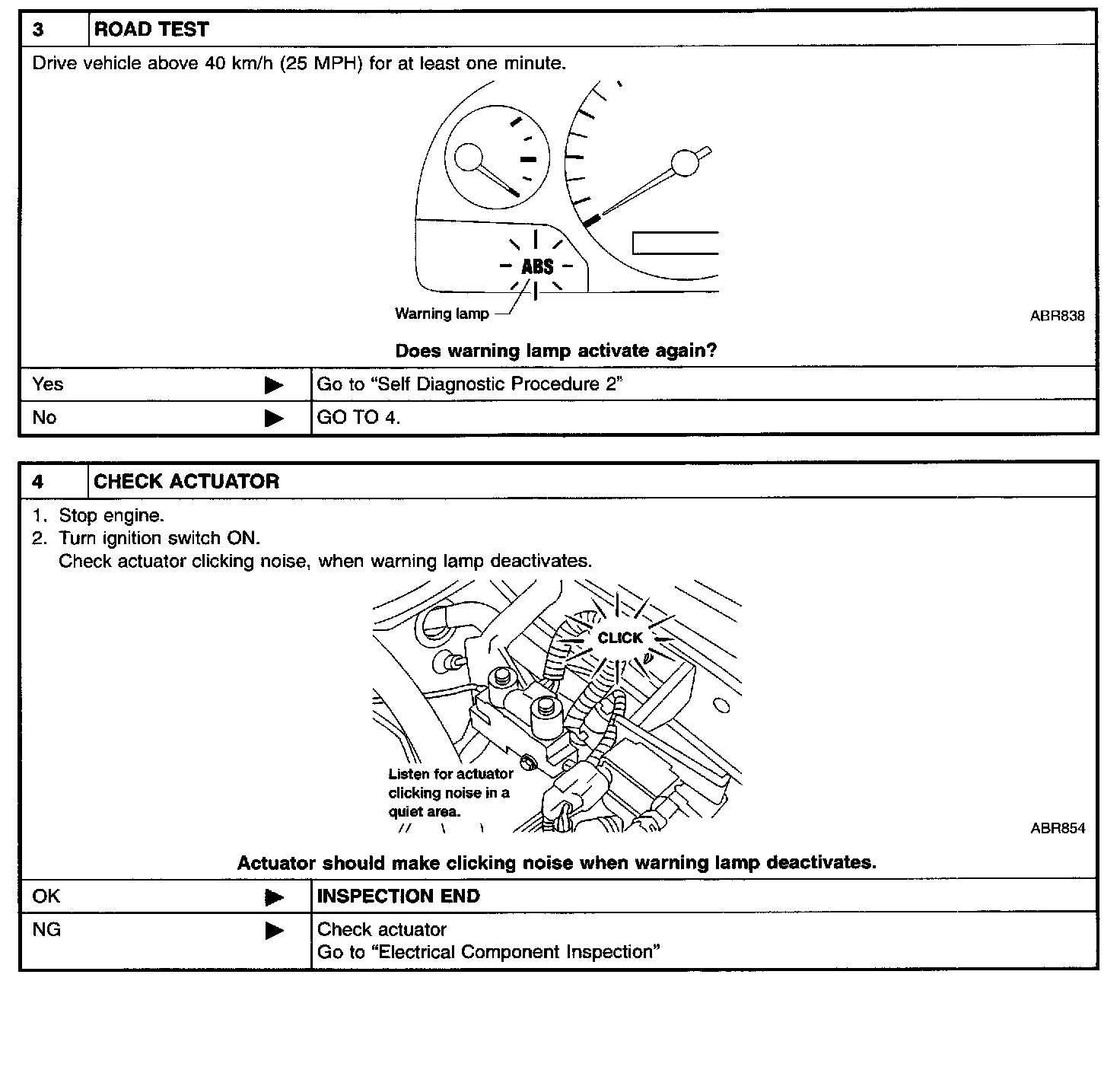

SELF-DIAGNOSIS PROCEDURE 1

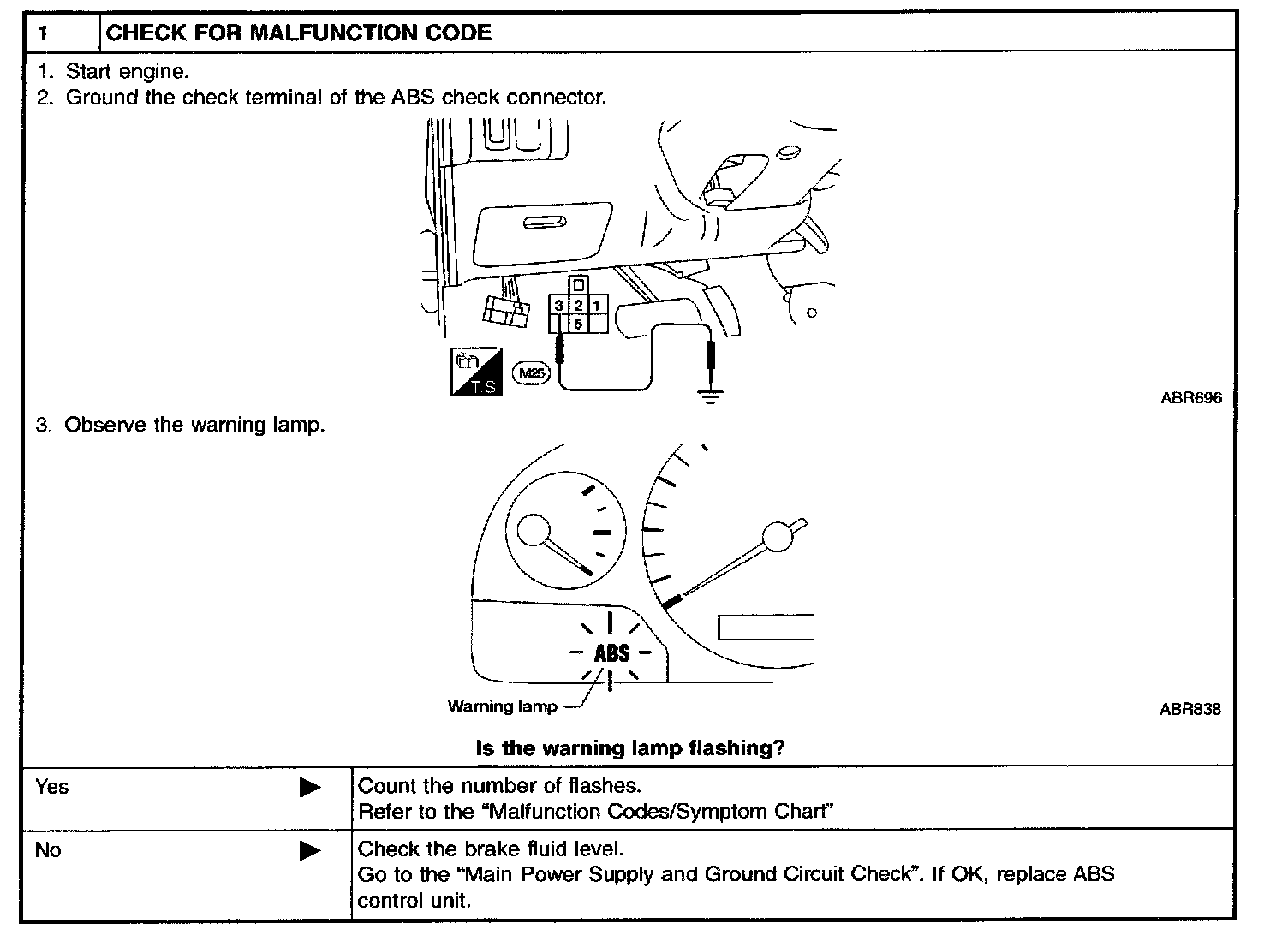

SELF-DIAGNOSIS PROCEDURE 2
