Before VIN 343314

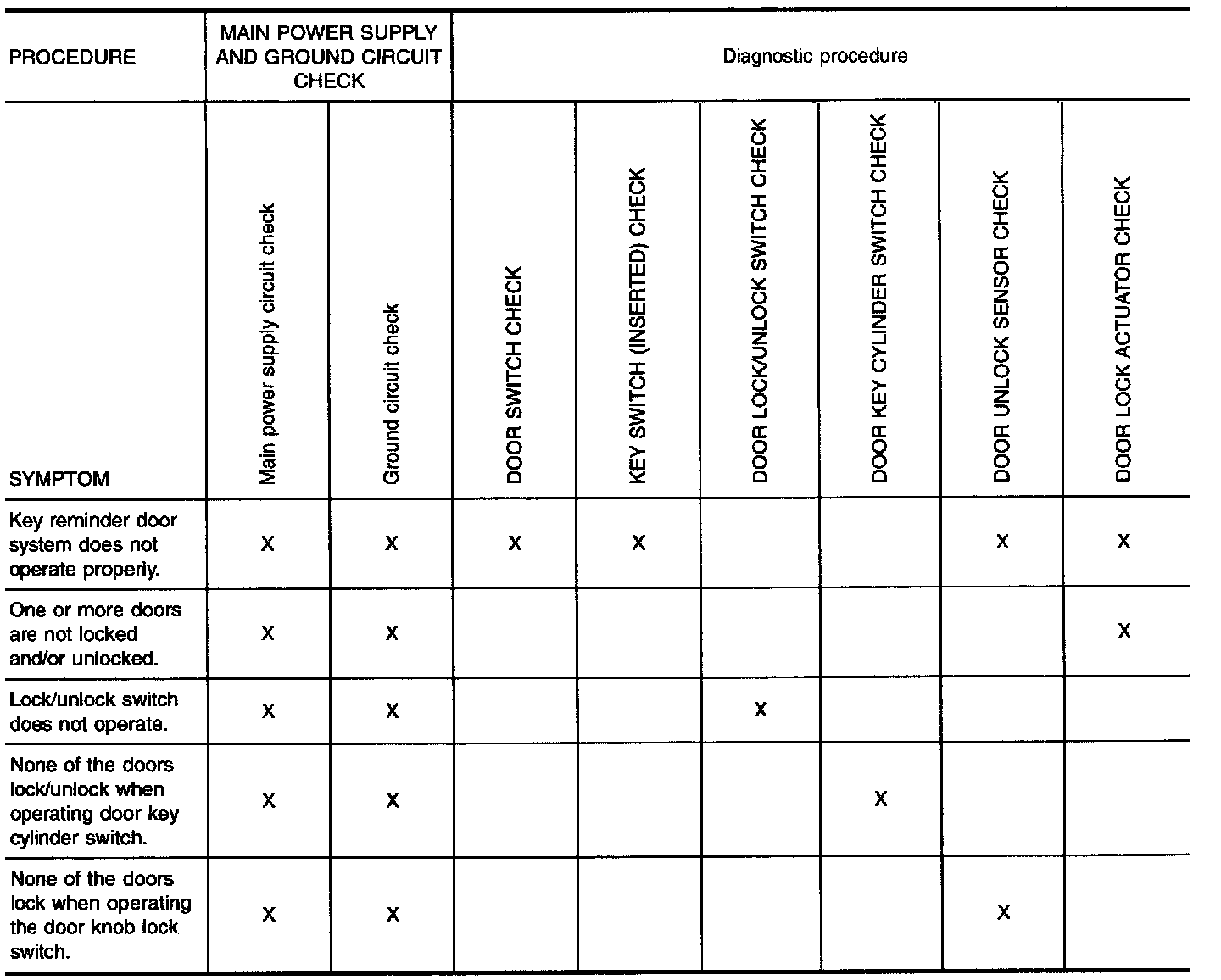

SYMPTOM CHART
MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK

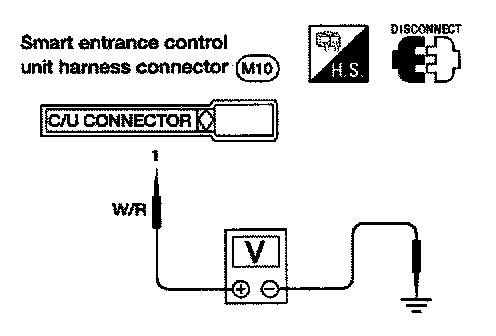

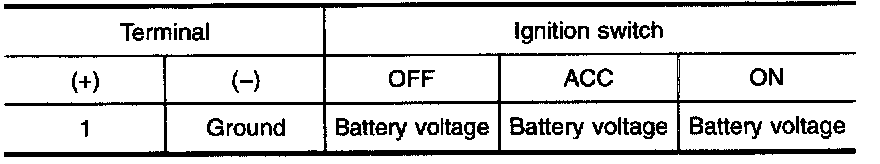

Main Power Supply Circuit Check

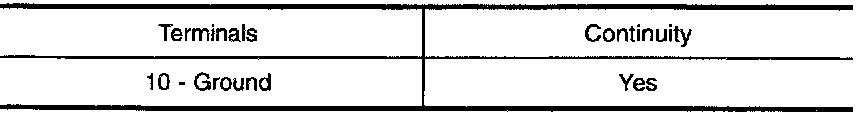

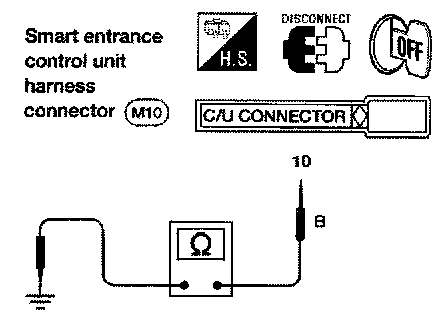

Ground circuit check

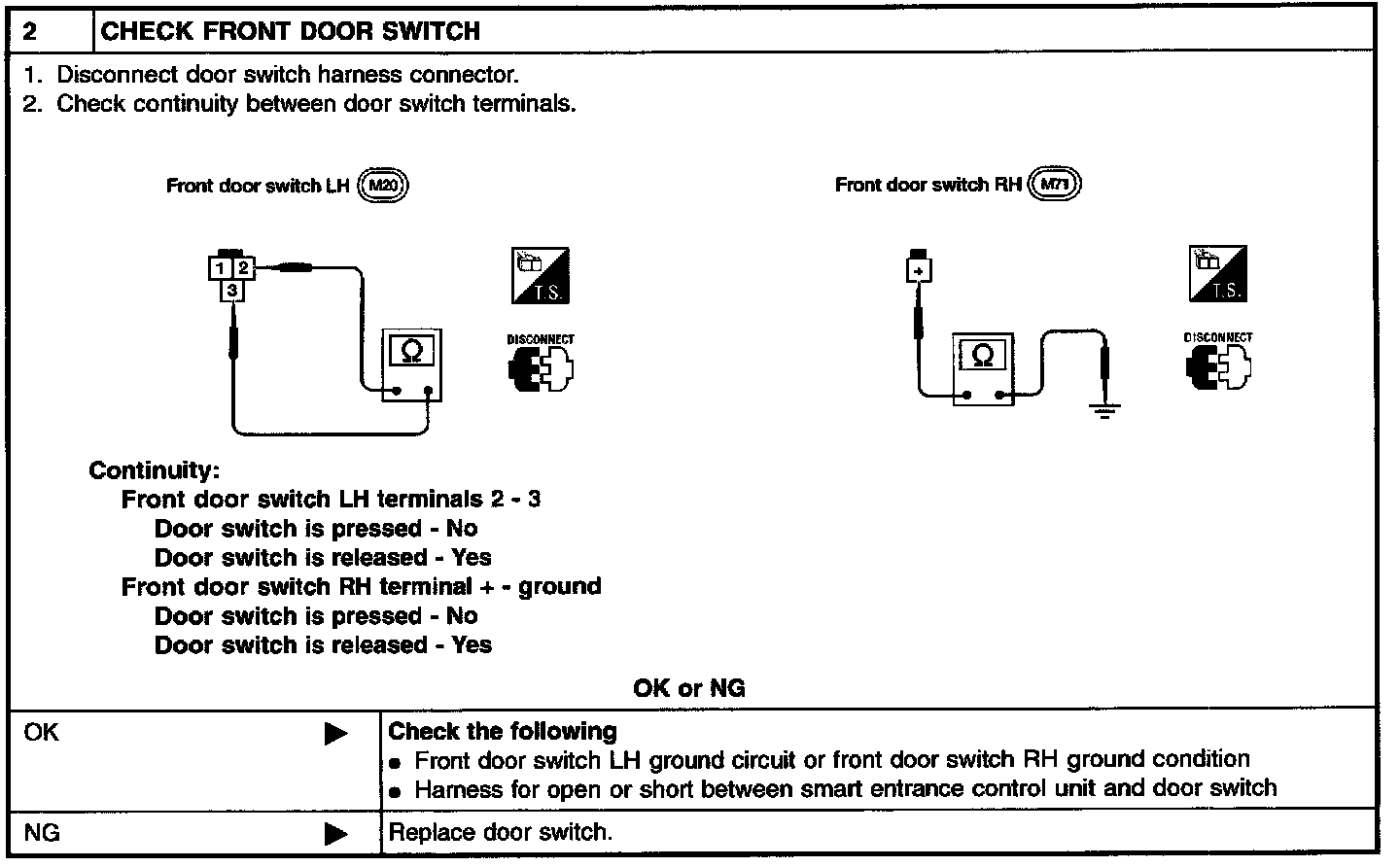

DOOR SWITCH CHECK

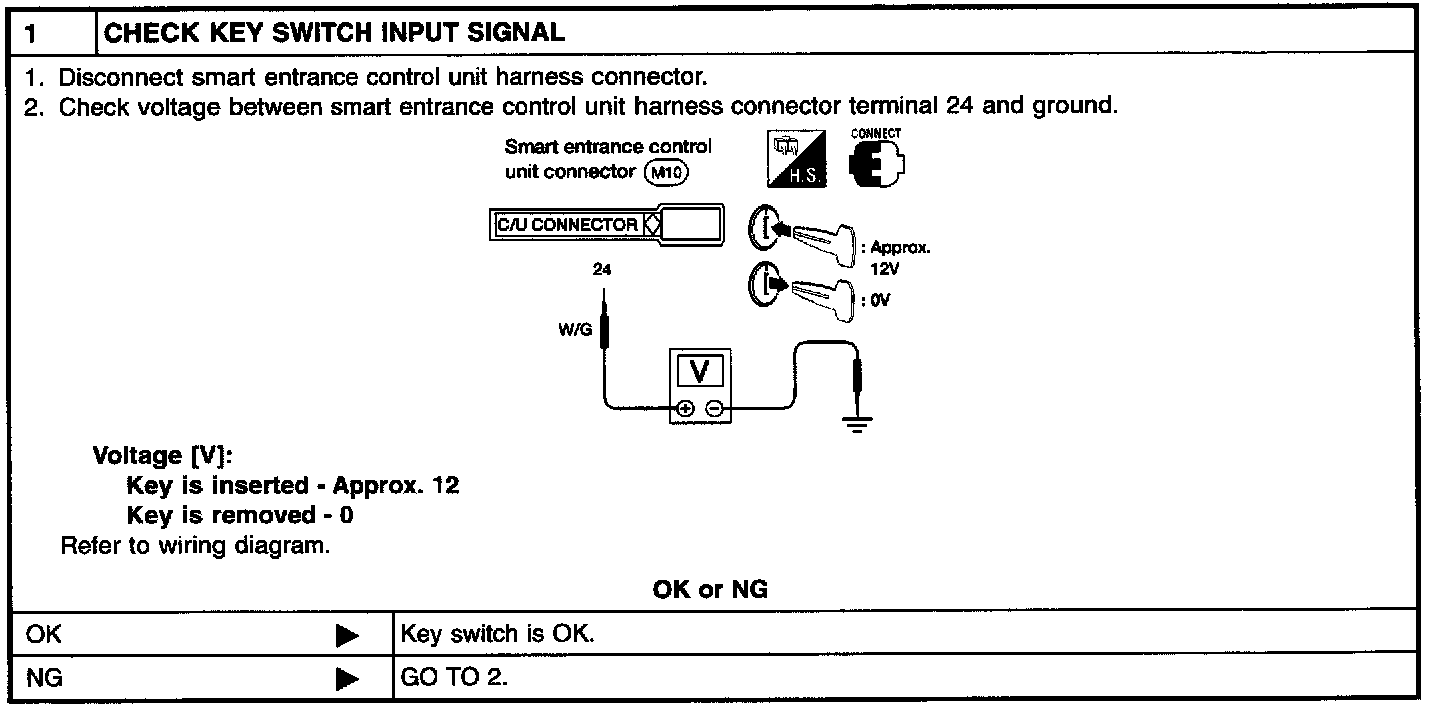

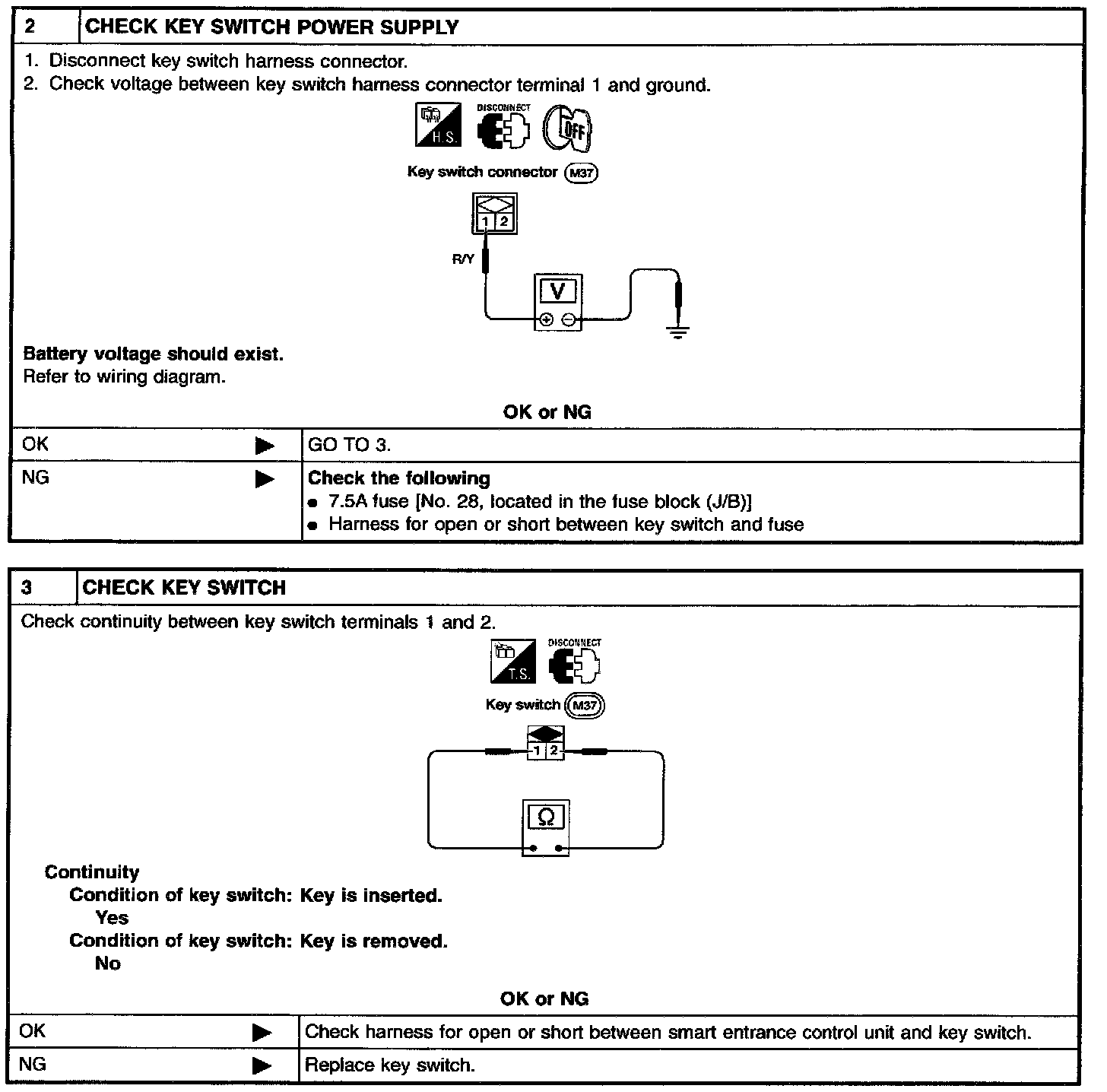

KEY SWITCH (INSERTED) CHECK

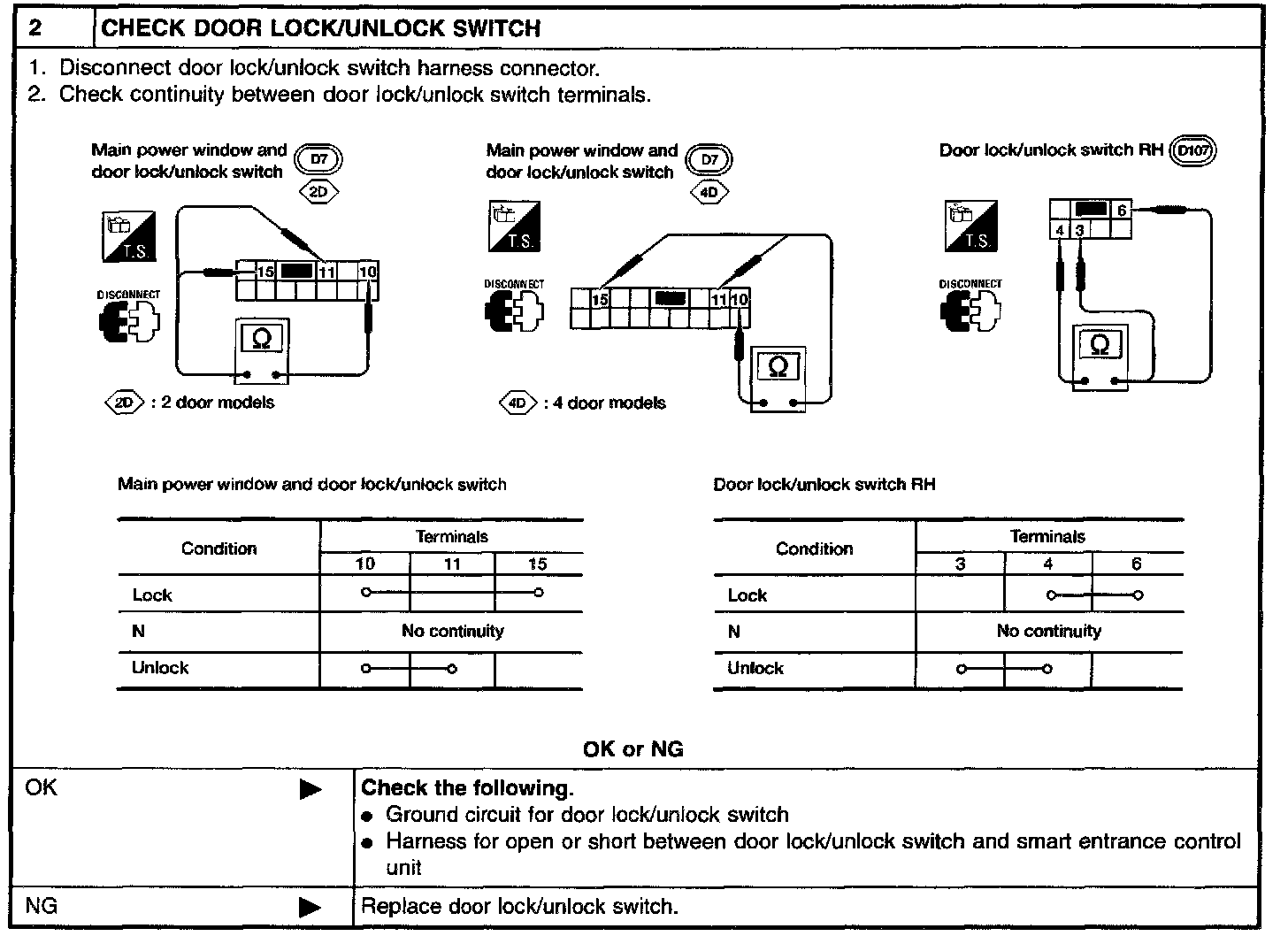

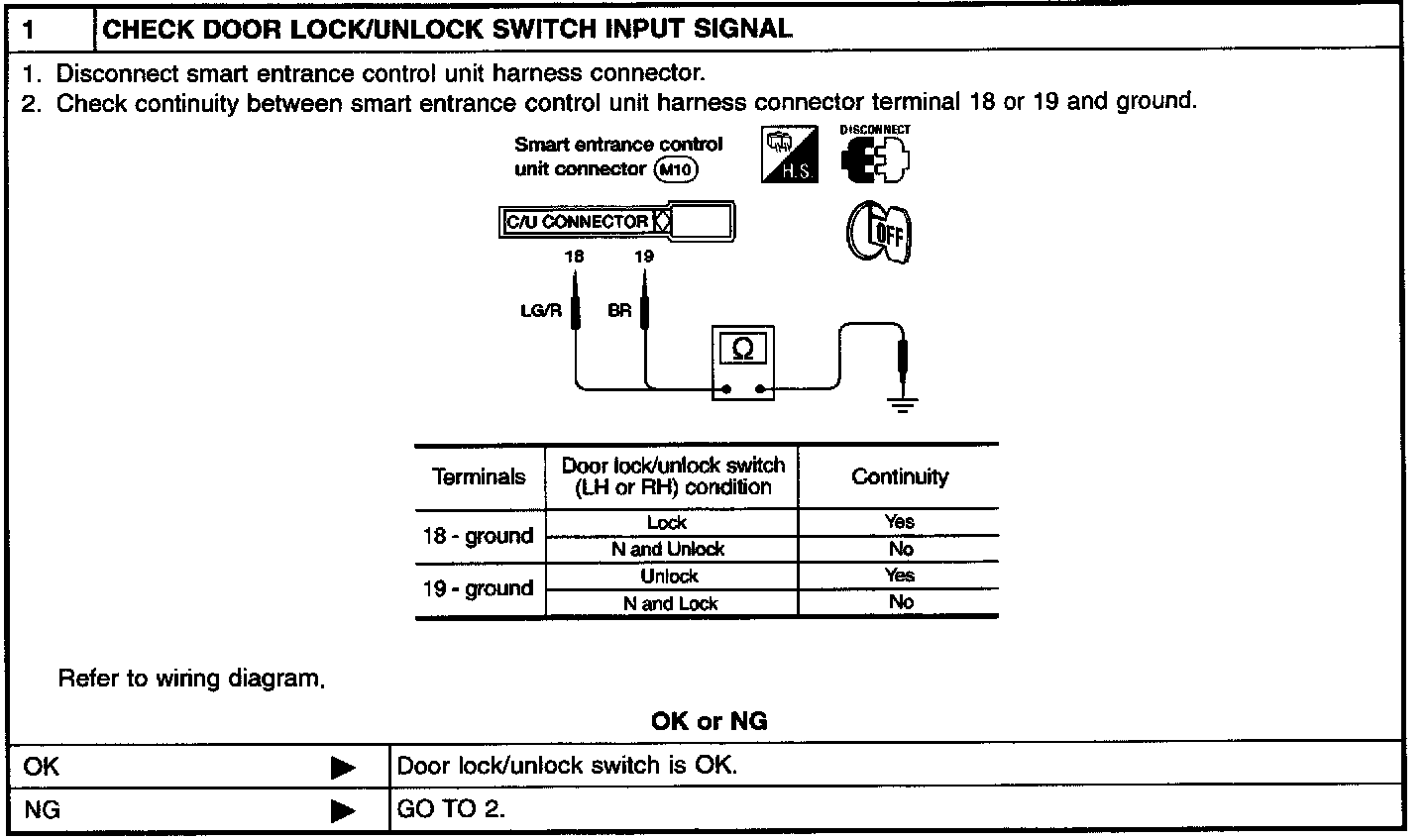

DOOR LOCK/UNLOCK SWITCH CHECK

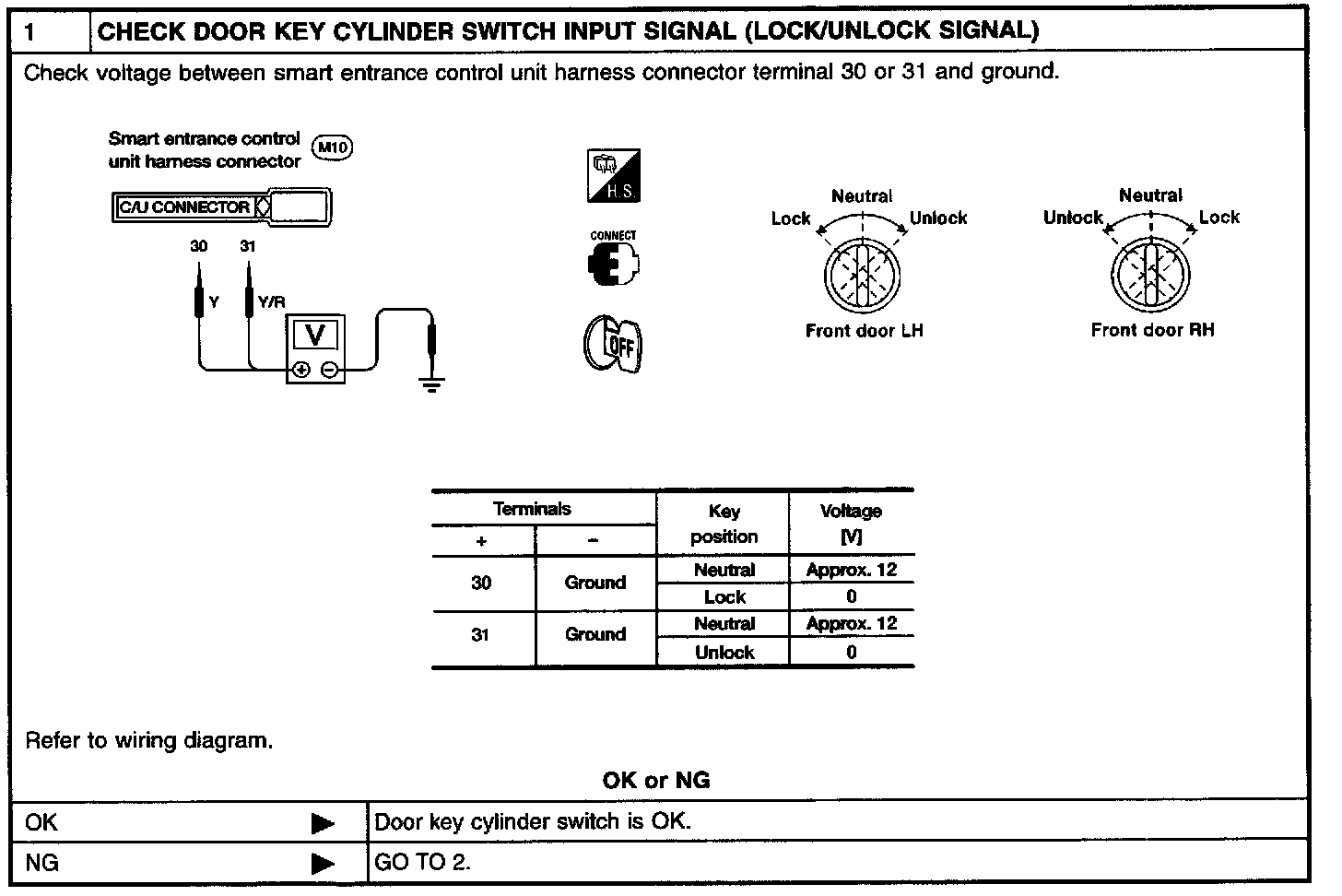

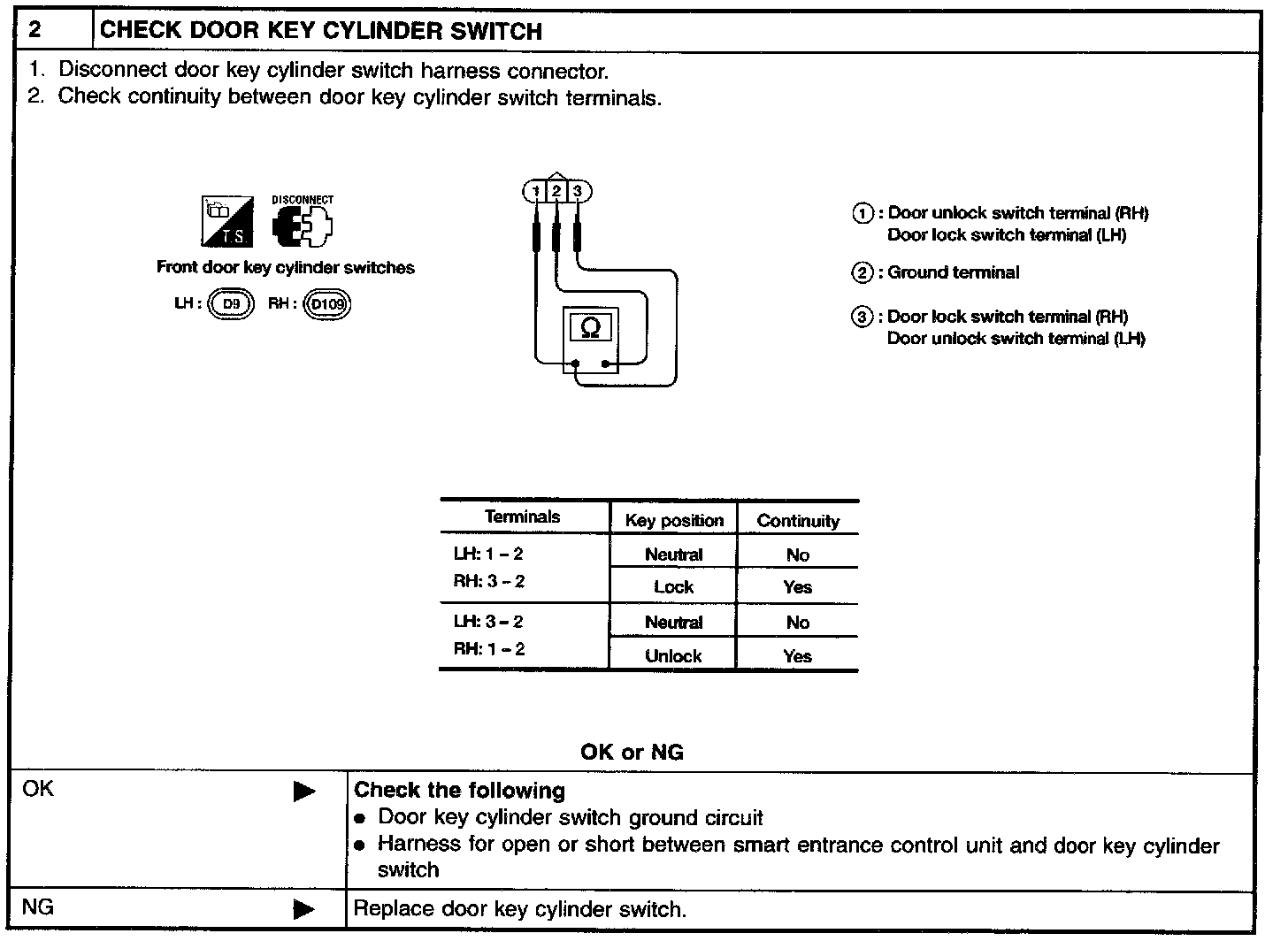

DOOR KEY CYLINDER SWITCH CHECK

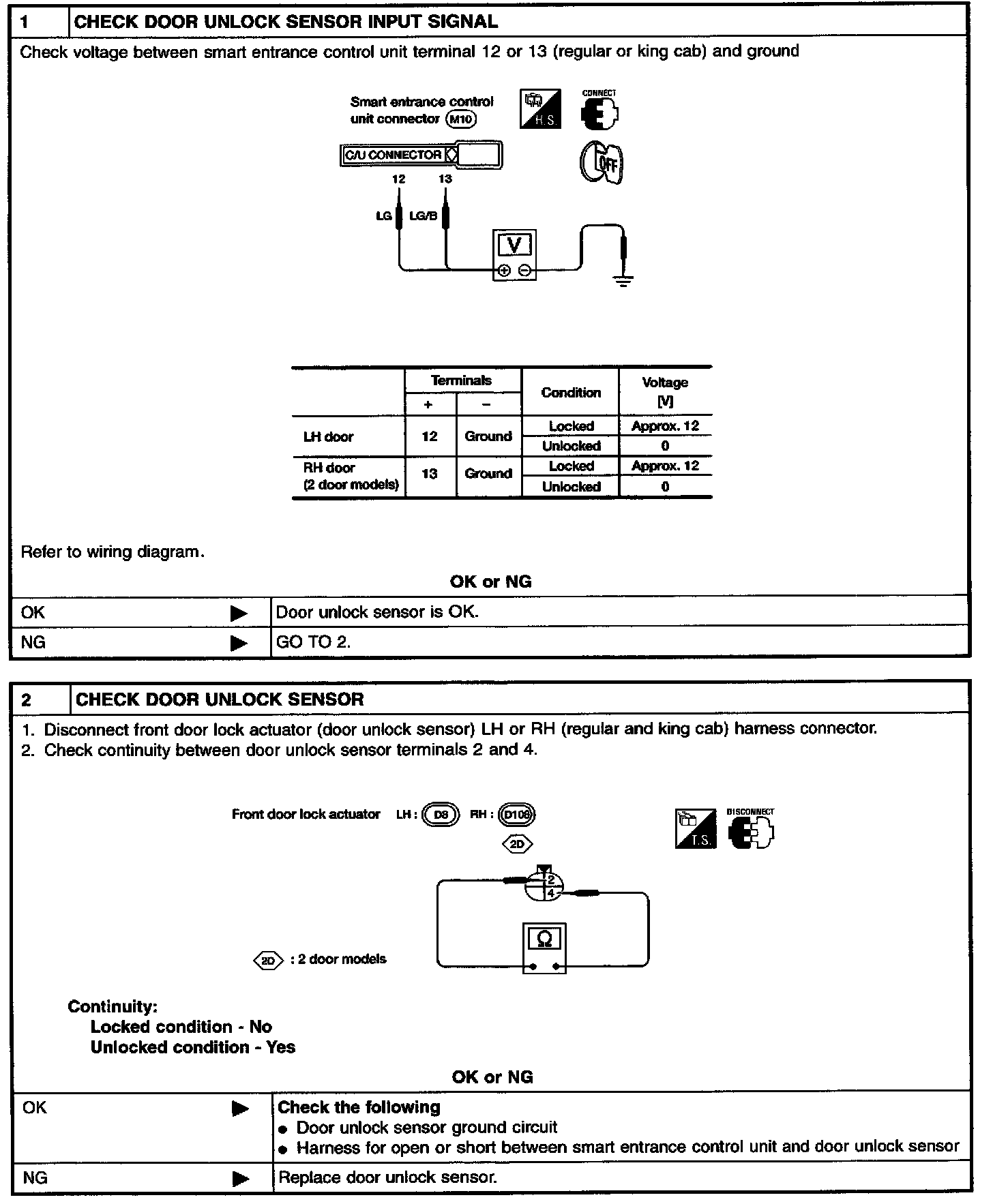

DOOR UNLOCK SENSOR CHECK

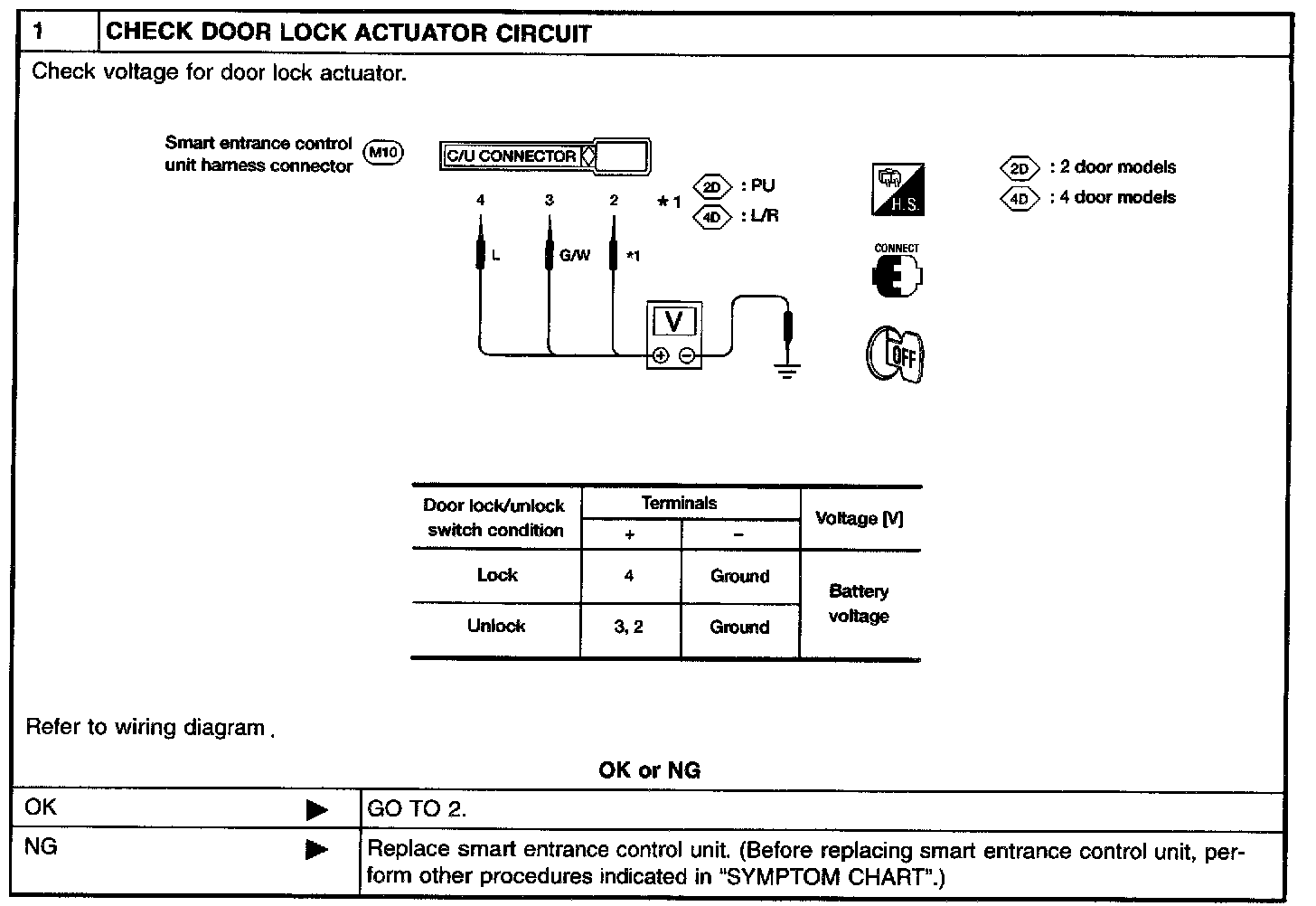

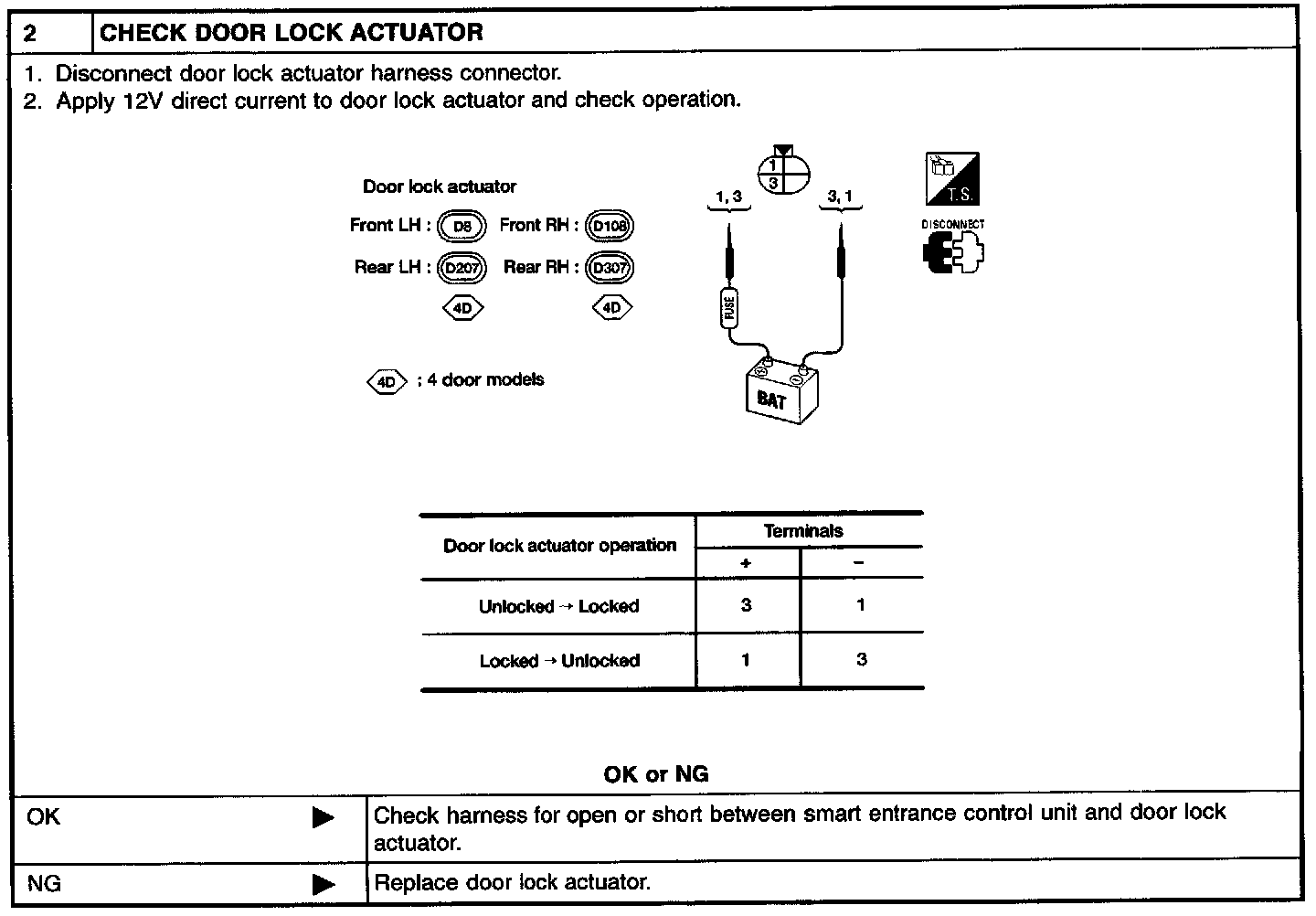

DOOR LOCK ACTUATOR CHECK
