Beginning With VIN 343314

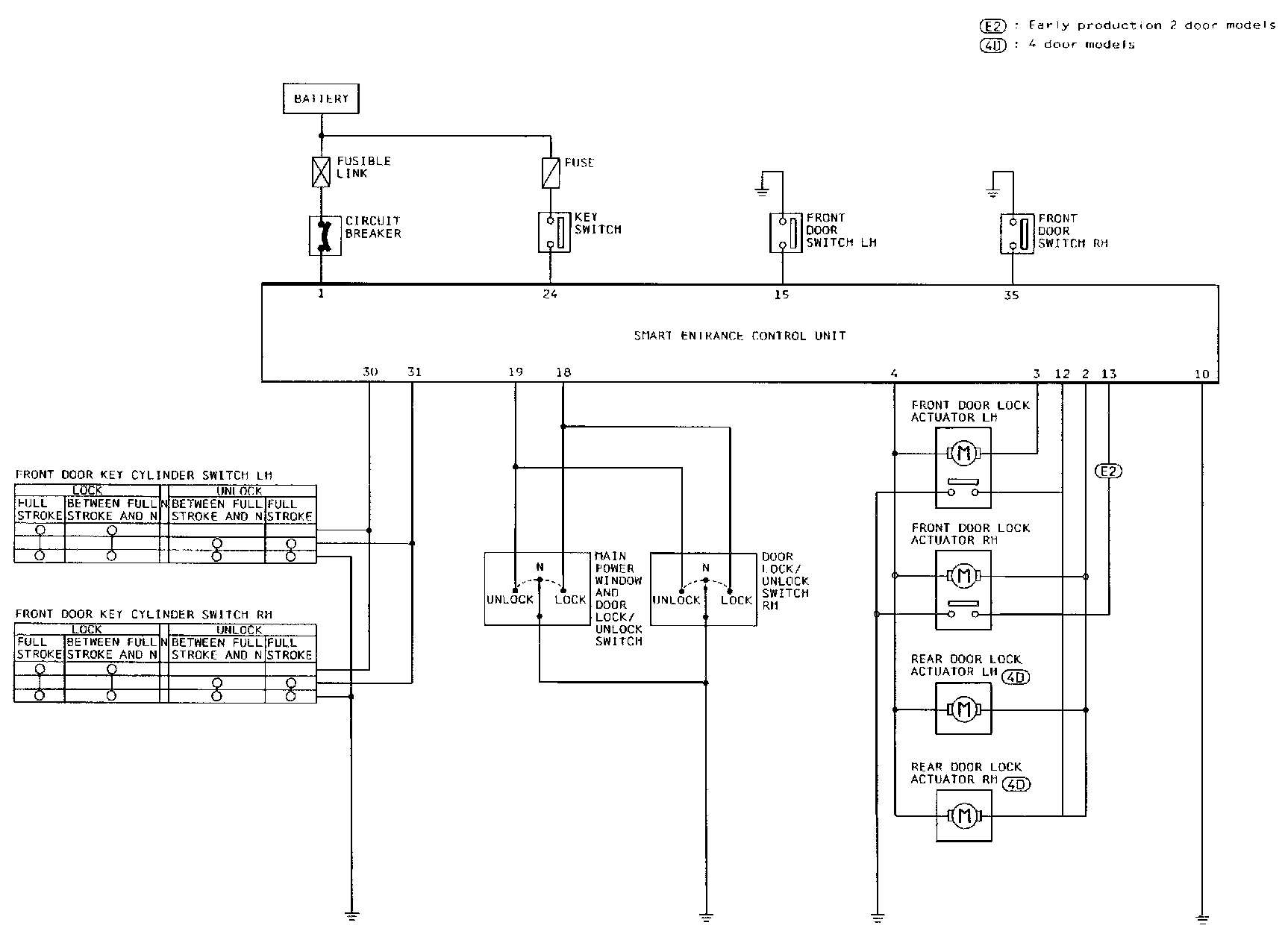

Schematic

Circuit Diagrams

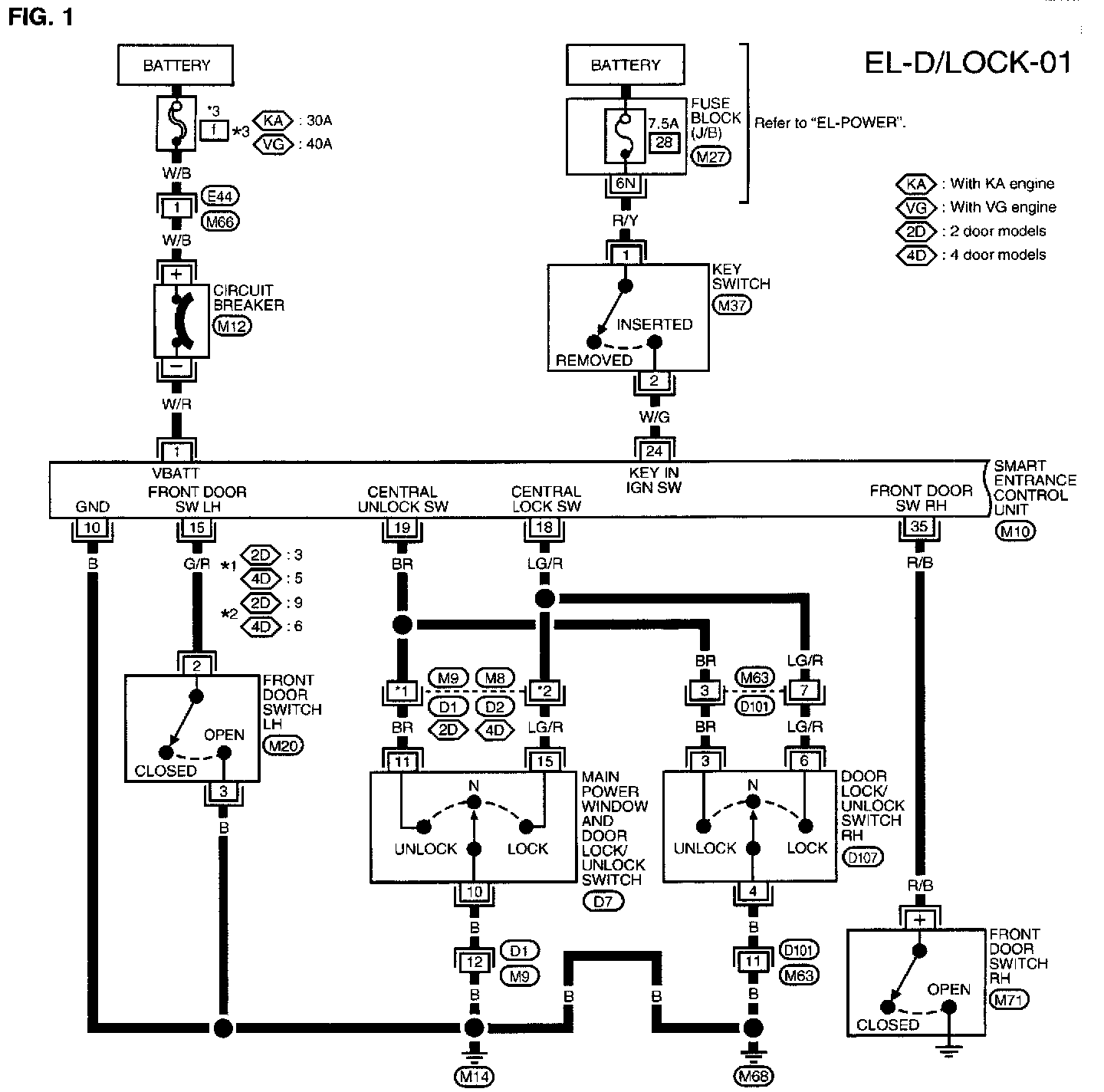

EL-D/LOCK-01:

(Part 1 of 3)
Fuse Block (J/B)
Circuit Breaker
Key Switch
[1][2]Smart Entrance Control Unit
Front Door Switch LH
Main Power Window And Door Lock/Unlock Switch
Door Lock/Unlock Switch RH
Front Door Switch RH

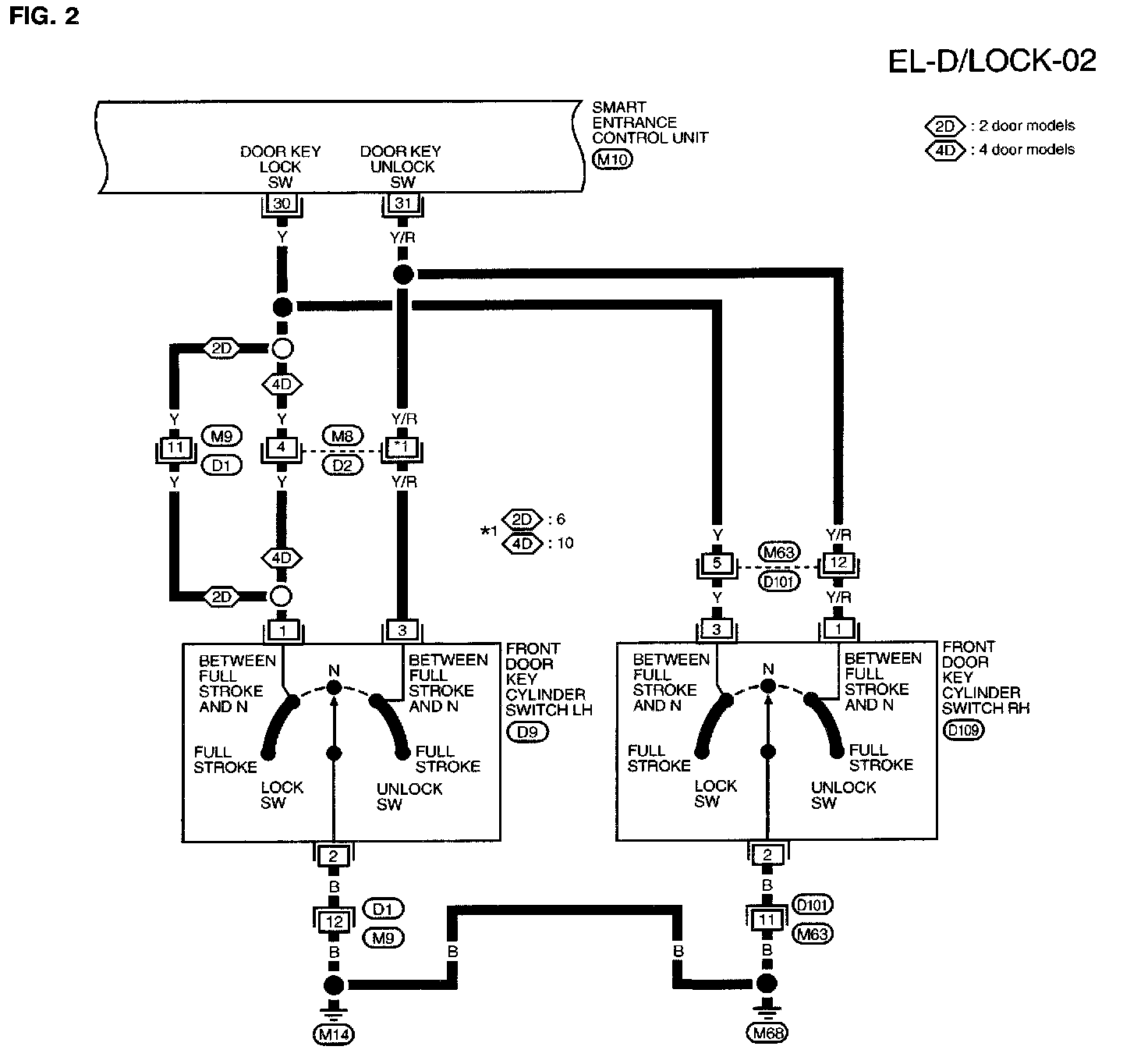

EL-D/LOCK-02:

(Part 2 of 3)
[1][2]Smart Entrance Control Unit
Front Door Key Cylinder Switch LH
Front Door Key Cylinder Switch RH

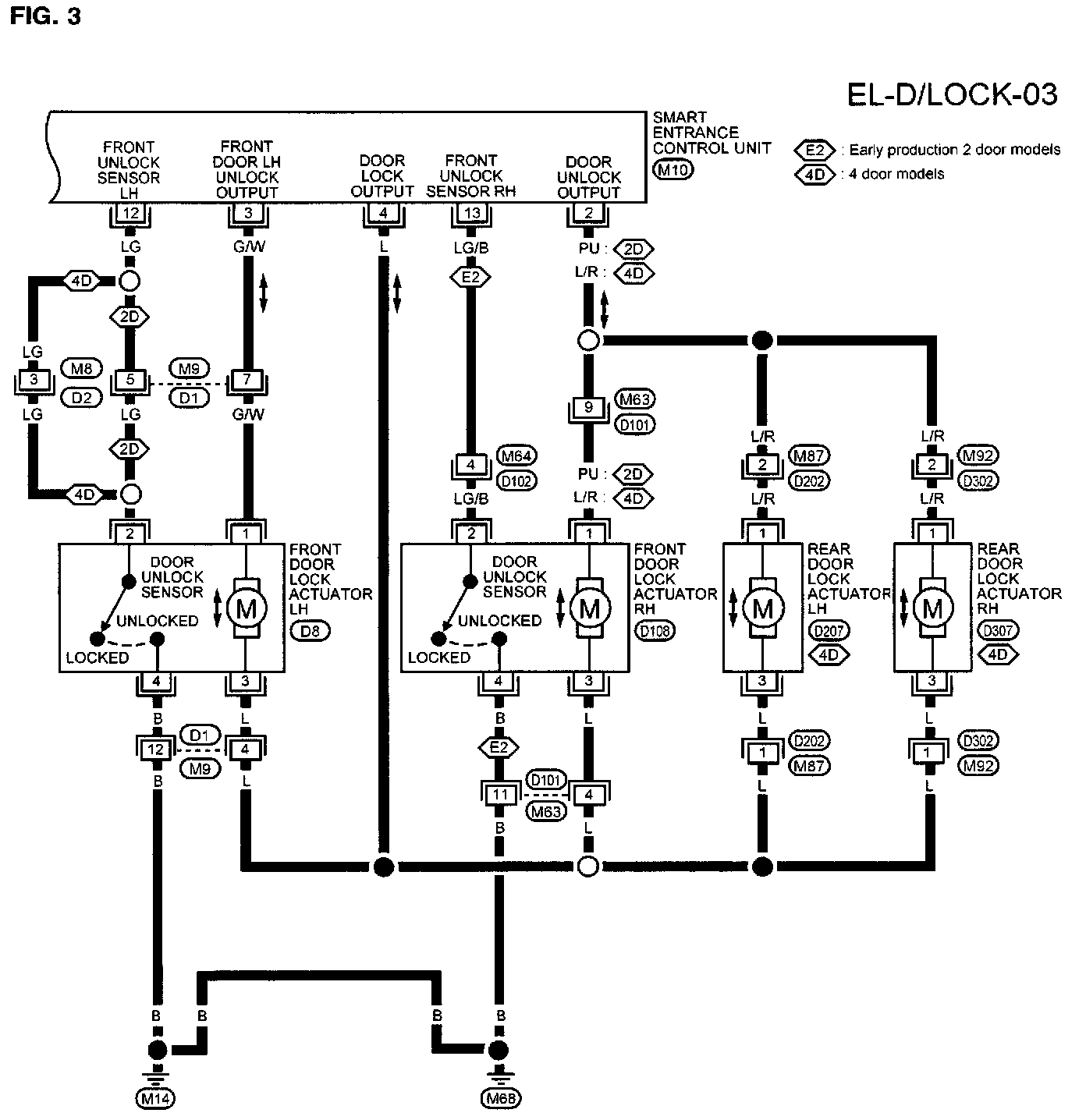

EL-D/LOCK-03:

(Part 3 of 3)
[1][2]Smart Entrance Control Unit
Front Door Lock Actuator LH
Front Door Lock Actuator RH
Rear Door Lock Actuator LH
Rear Door Lock Actuator RH

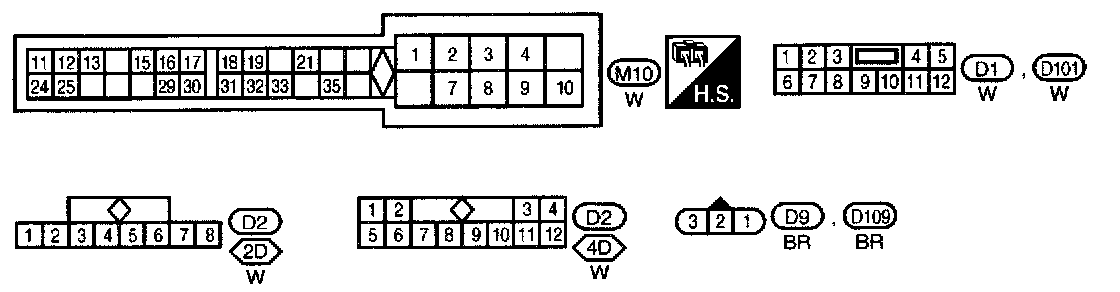

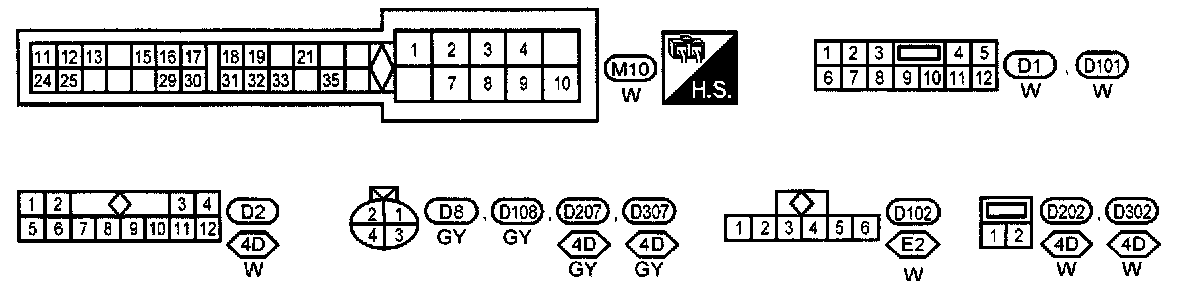

Circuit Connectors
