Before VIN 343314

Schematic

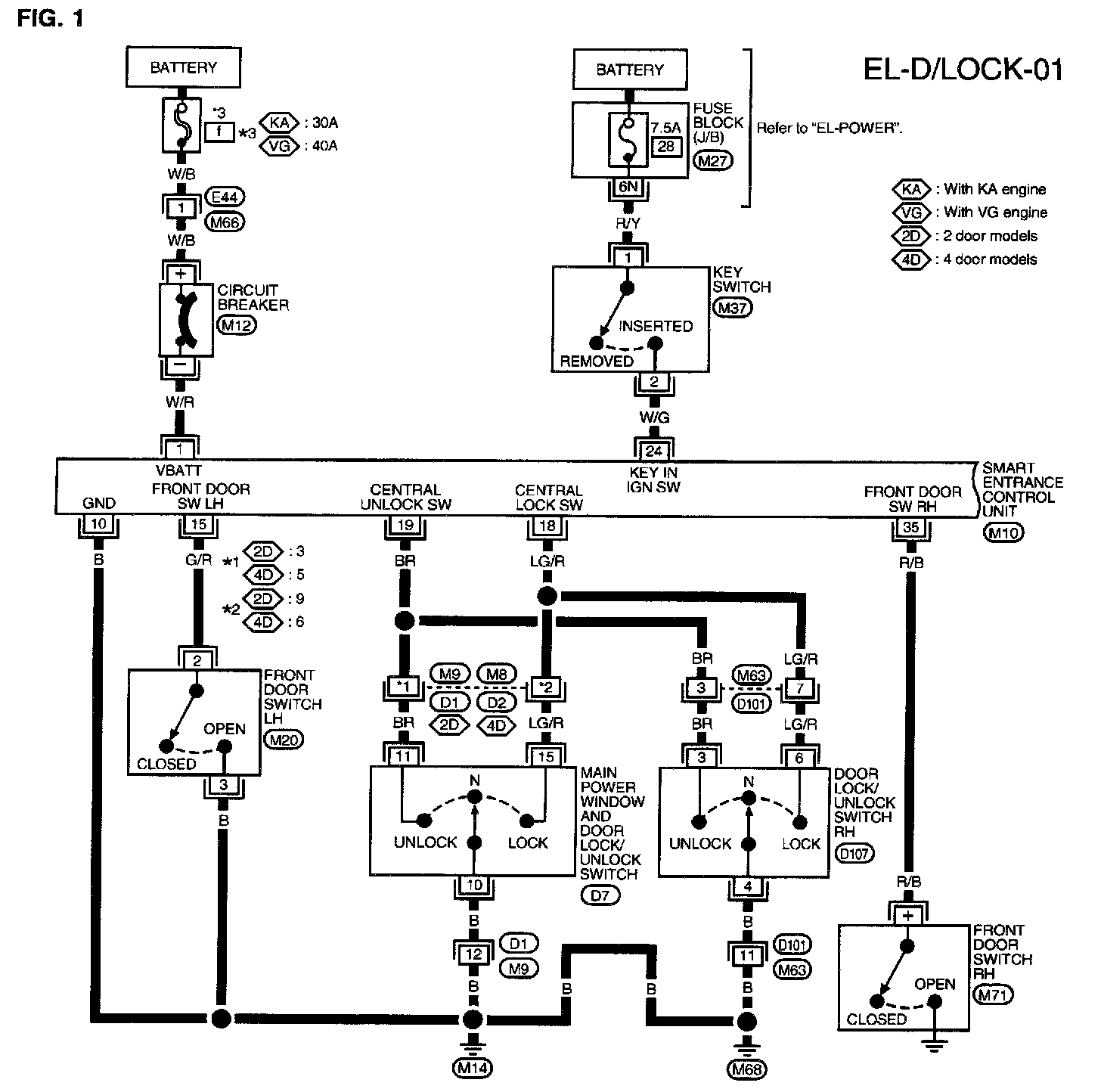

EL-D/LOCK-01:

(Part 1 of 3)
Fuse Block (J/B)
Key Switch
[1][2]Smart Entrance Control Unit
Circuit Breaker
Main Power Window And Door Lock/Unlock Switch
Door Lock/Unlock Switch RH
Front Door Switch (LH & RH)

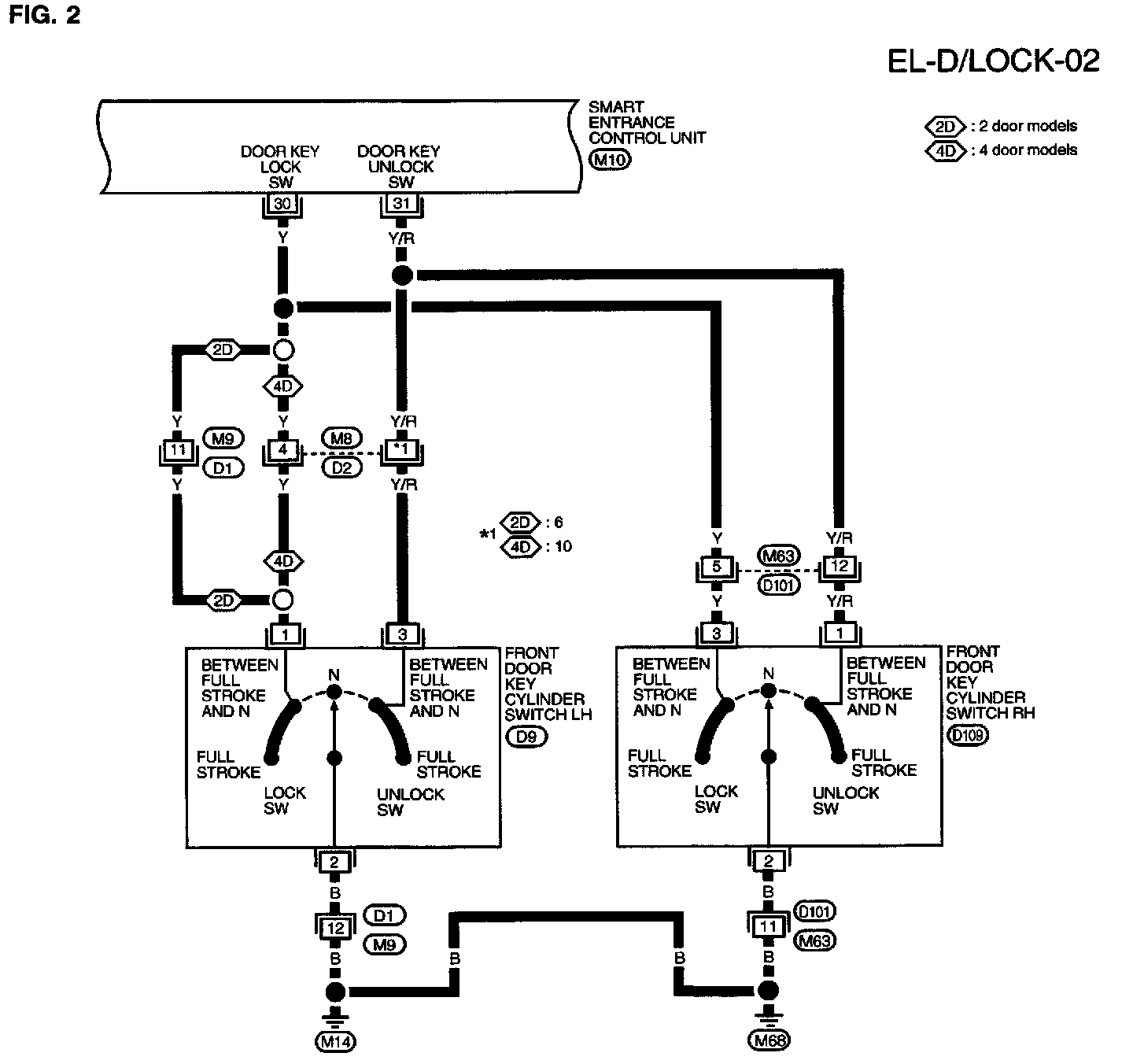

EL-D/LOCK-02:

(Part 2 of 3)
[1][2]Smart Entrance Control Unit
Front Door Key Cylinder Switch (LH & RH)

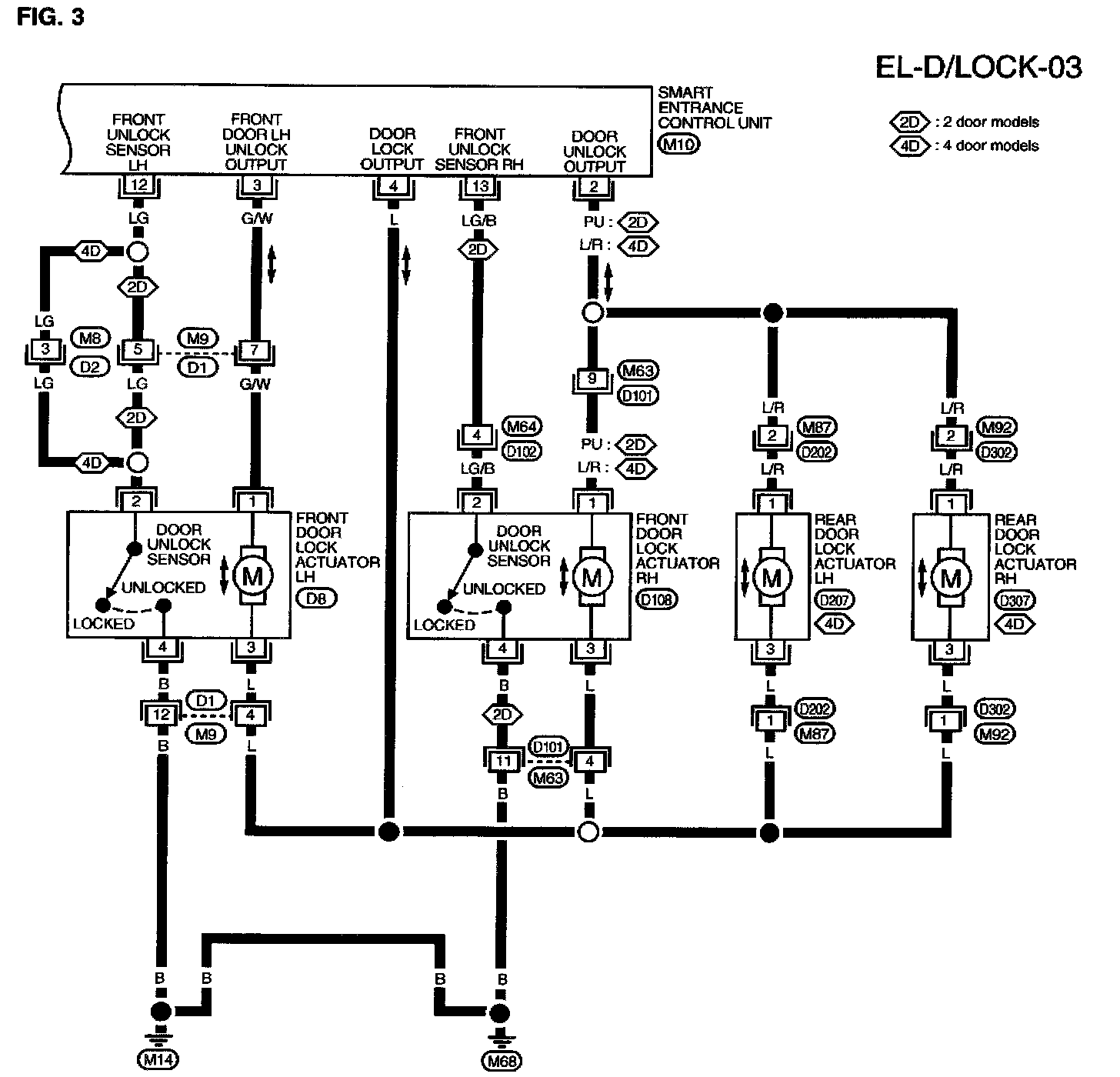

EL-D/LOCK-03:

(Part 3 of 3)
[1][2]Smart Entrance Control Unit
Front Door Lock Actuator (LH & RH)
Rear Door Lock Actuator (LH & RH)

Circuit Diagrams











Circuit Connectors
