Before VIN 343314

PRELIMINARY CHECK
The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.

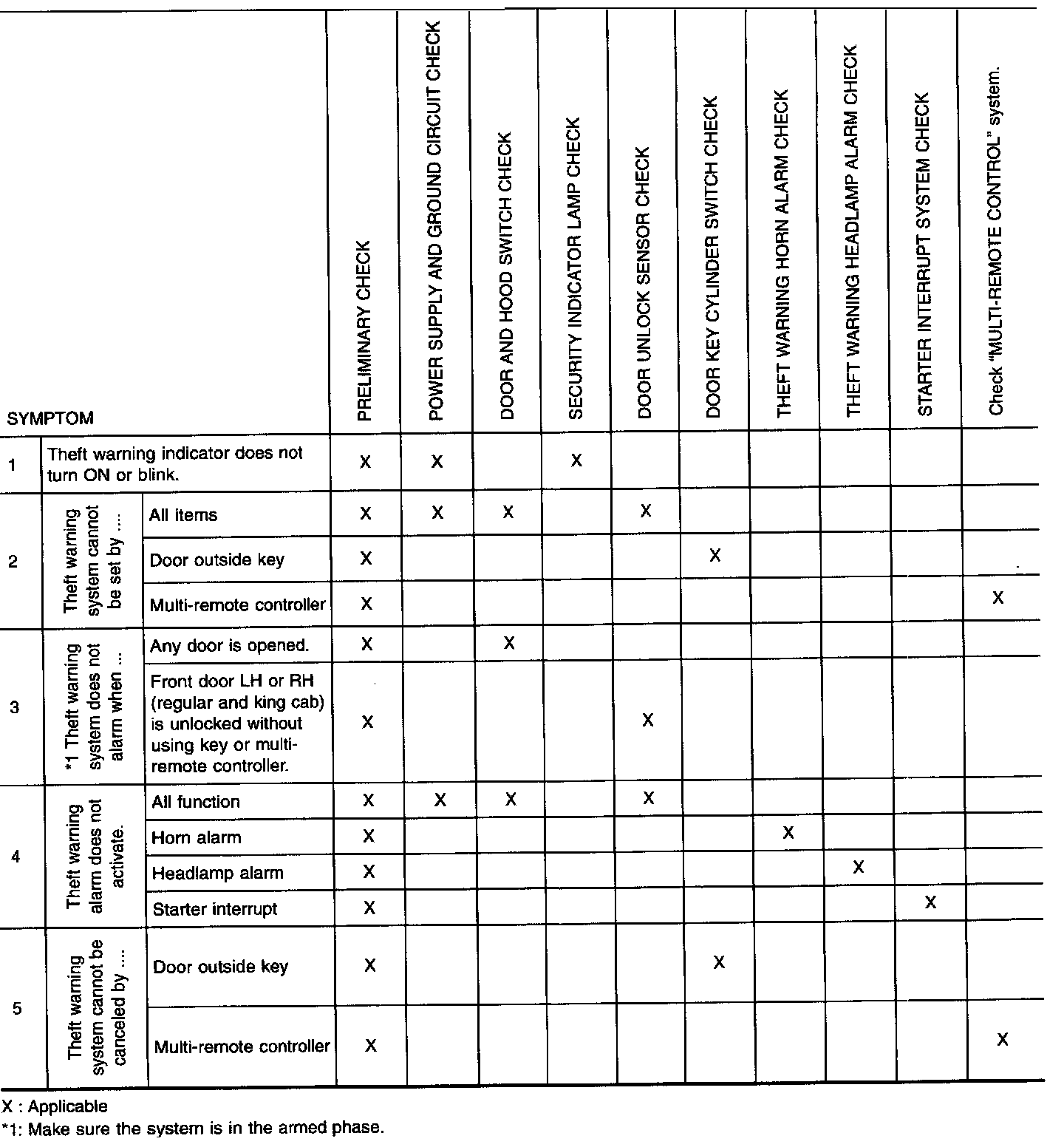

After performing "PRELIMINARY CHECK", go to "SYMPTOM CHART".




Before starting trouble diagnoses above, perform "PRELIMINARY CHECK".
Symptom numbers in the symptom chart correspond with those of "PRELIMINARY CHECK".

POWER SUPPLY AND GROUND CIRCUIT CHECK

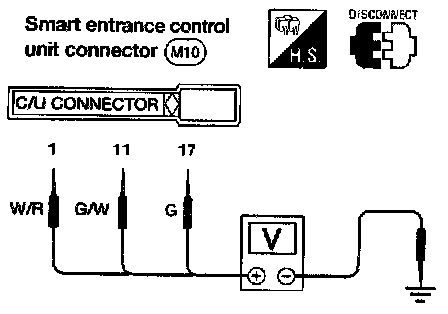

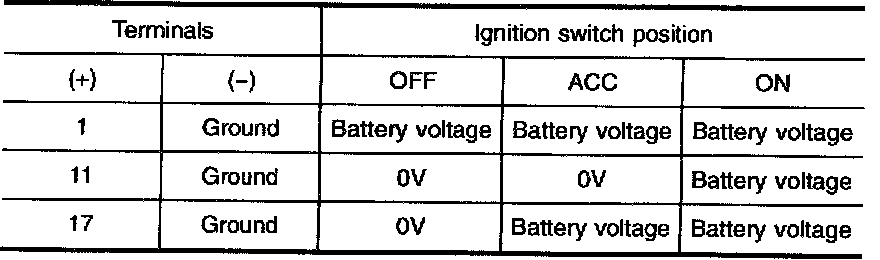

Power Supply Circuit Check

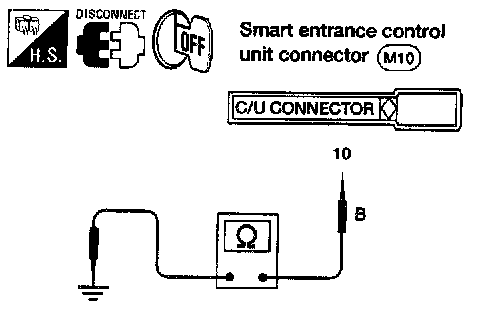

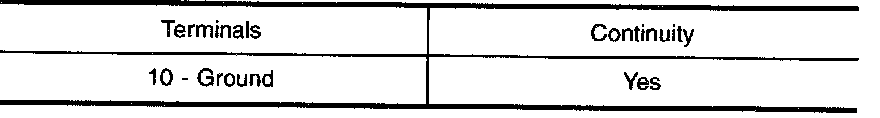

Ground Circuit Check

DOOR AND HOOD SWITCH CHECK

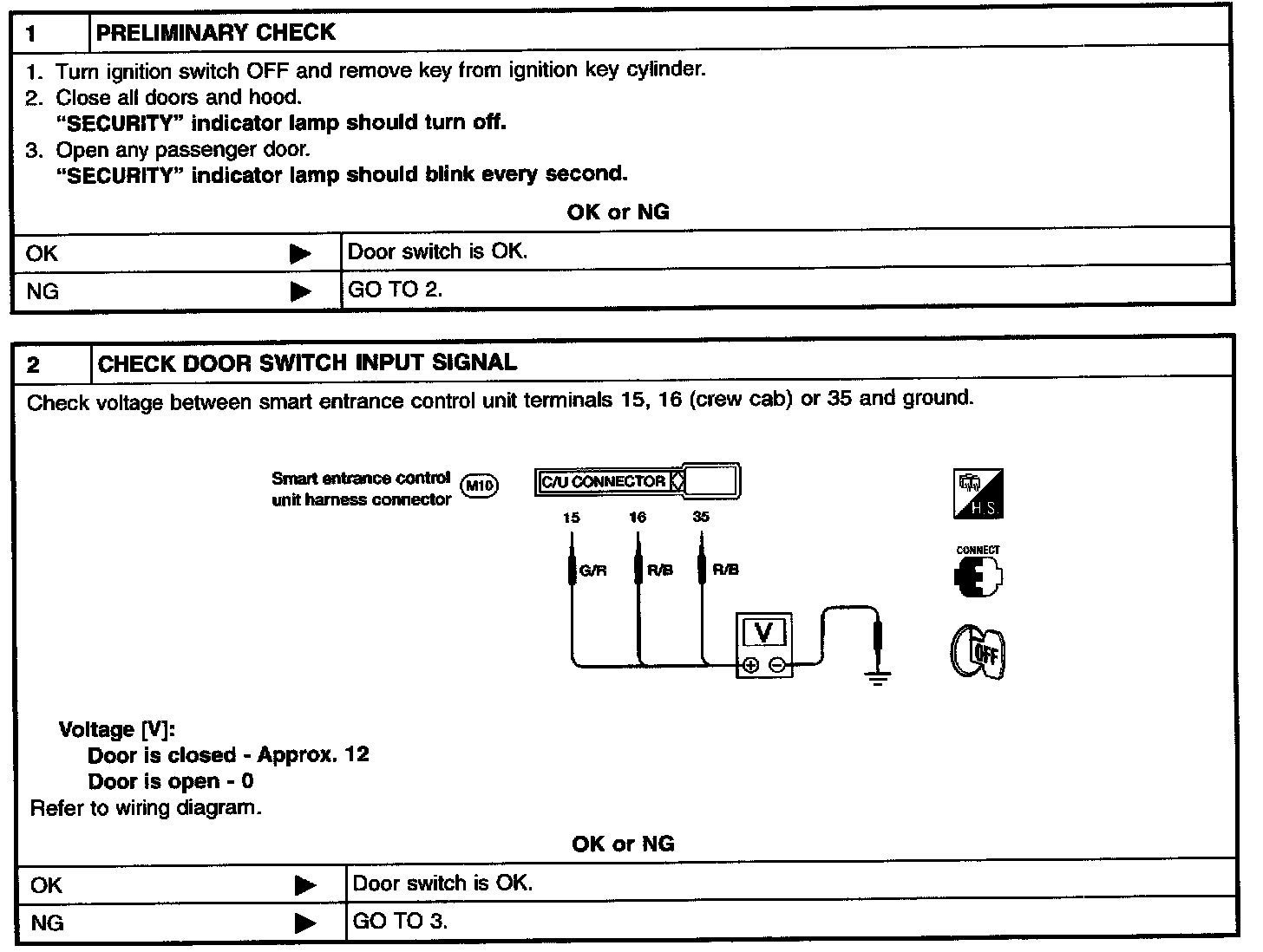

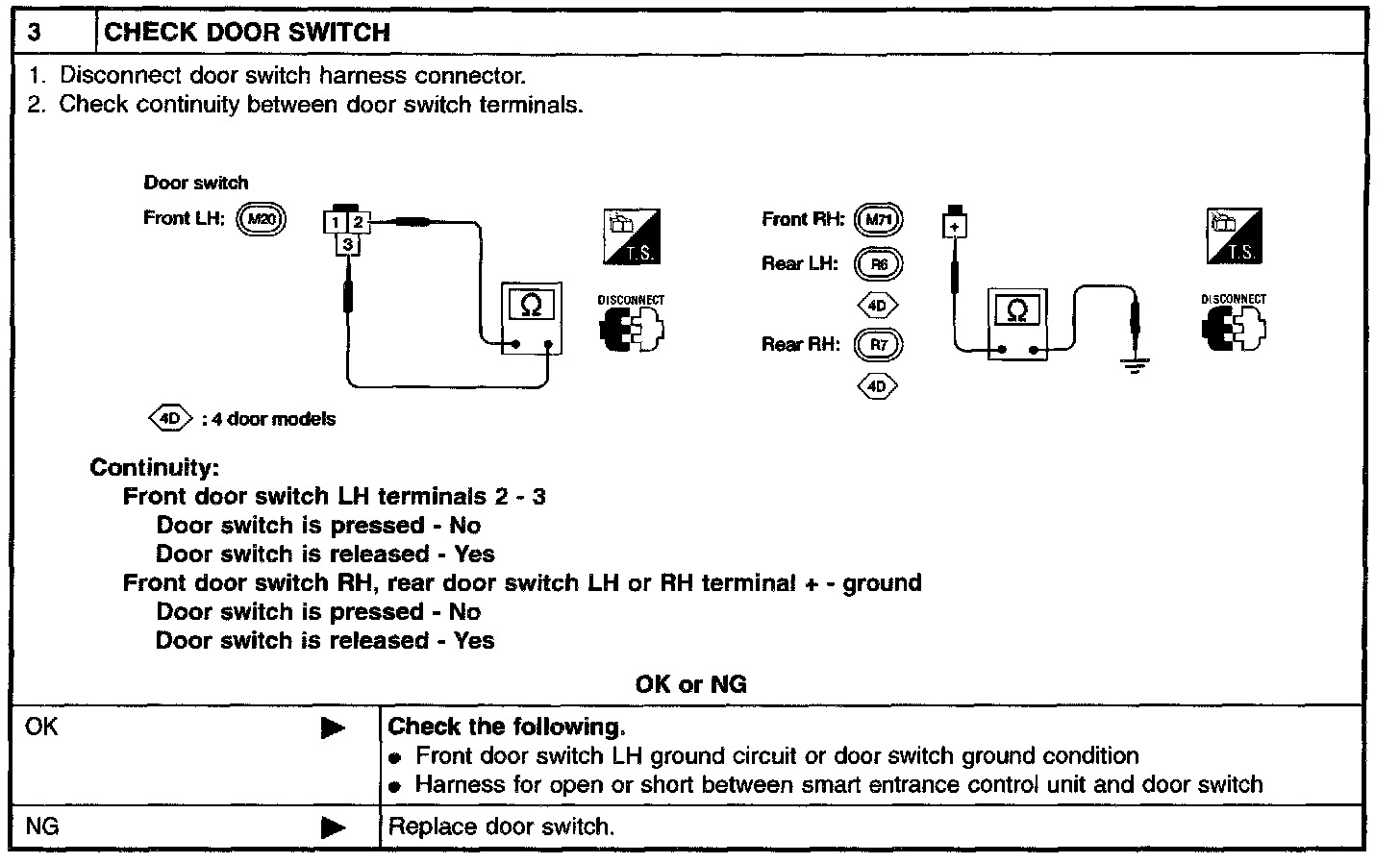

Door Switch Check

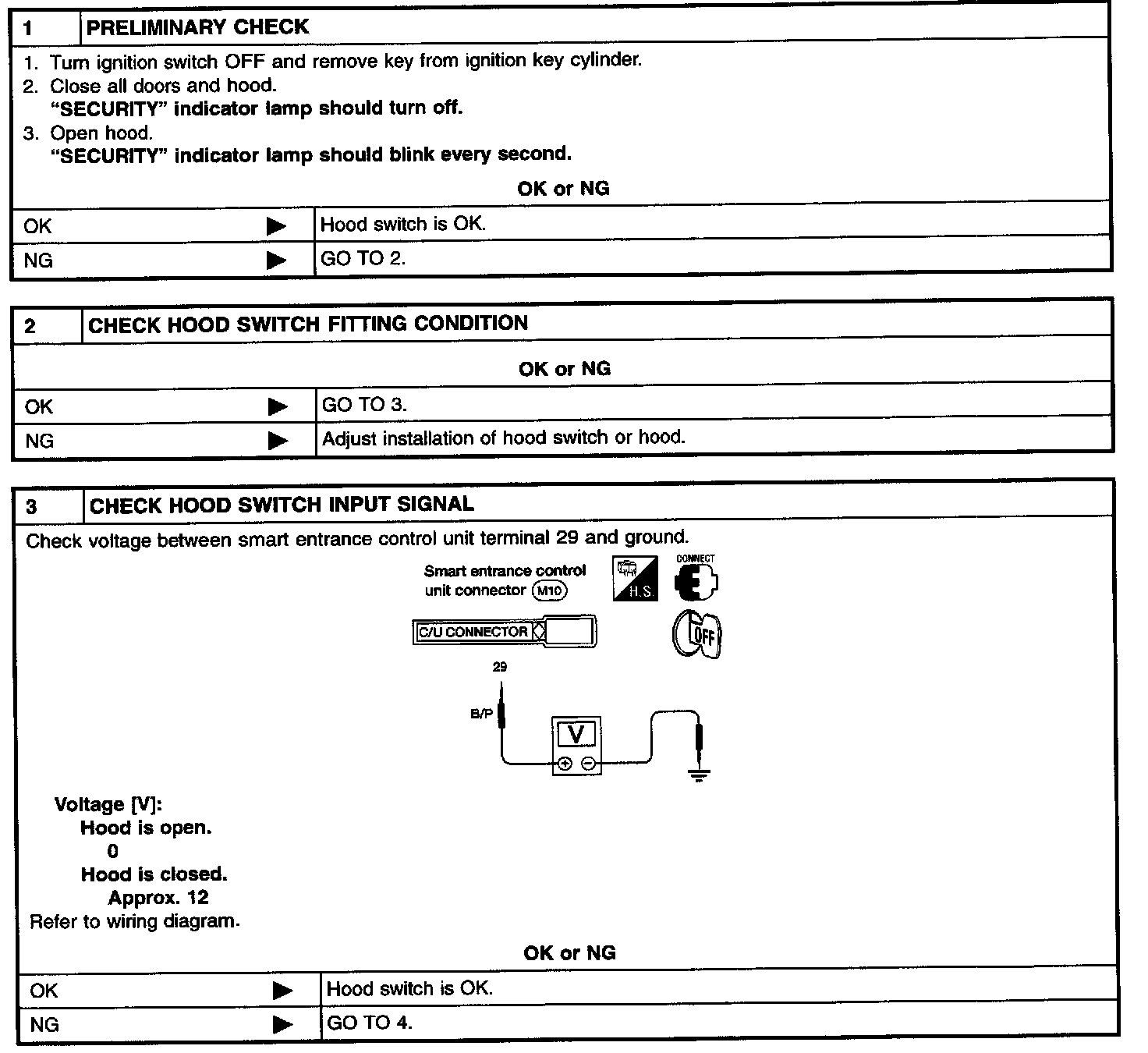

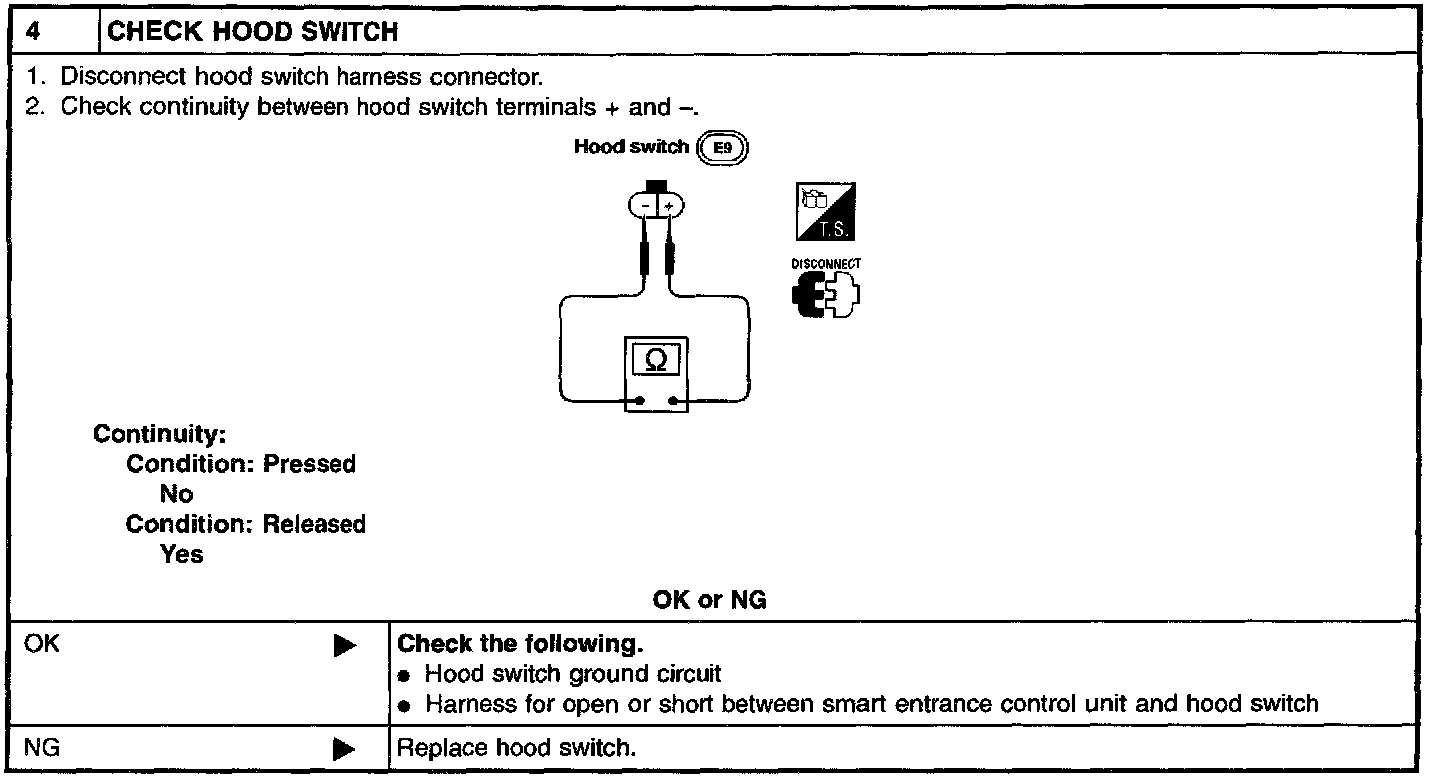

Hood Switch Check

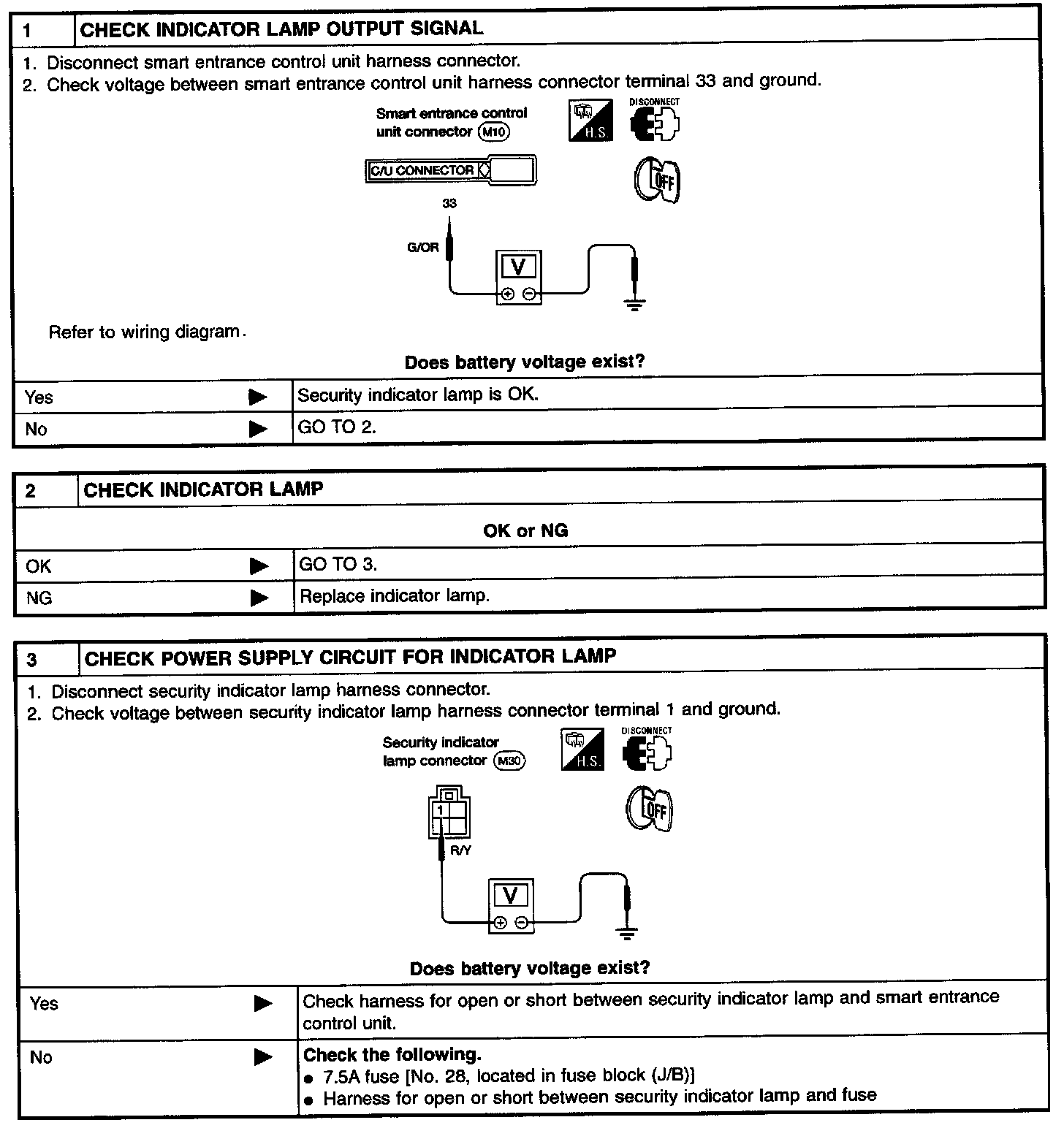

SECURITY INDICATOR LAMP CHECK

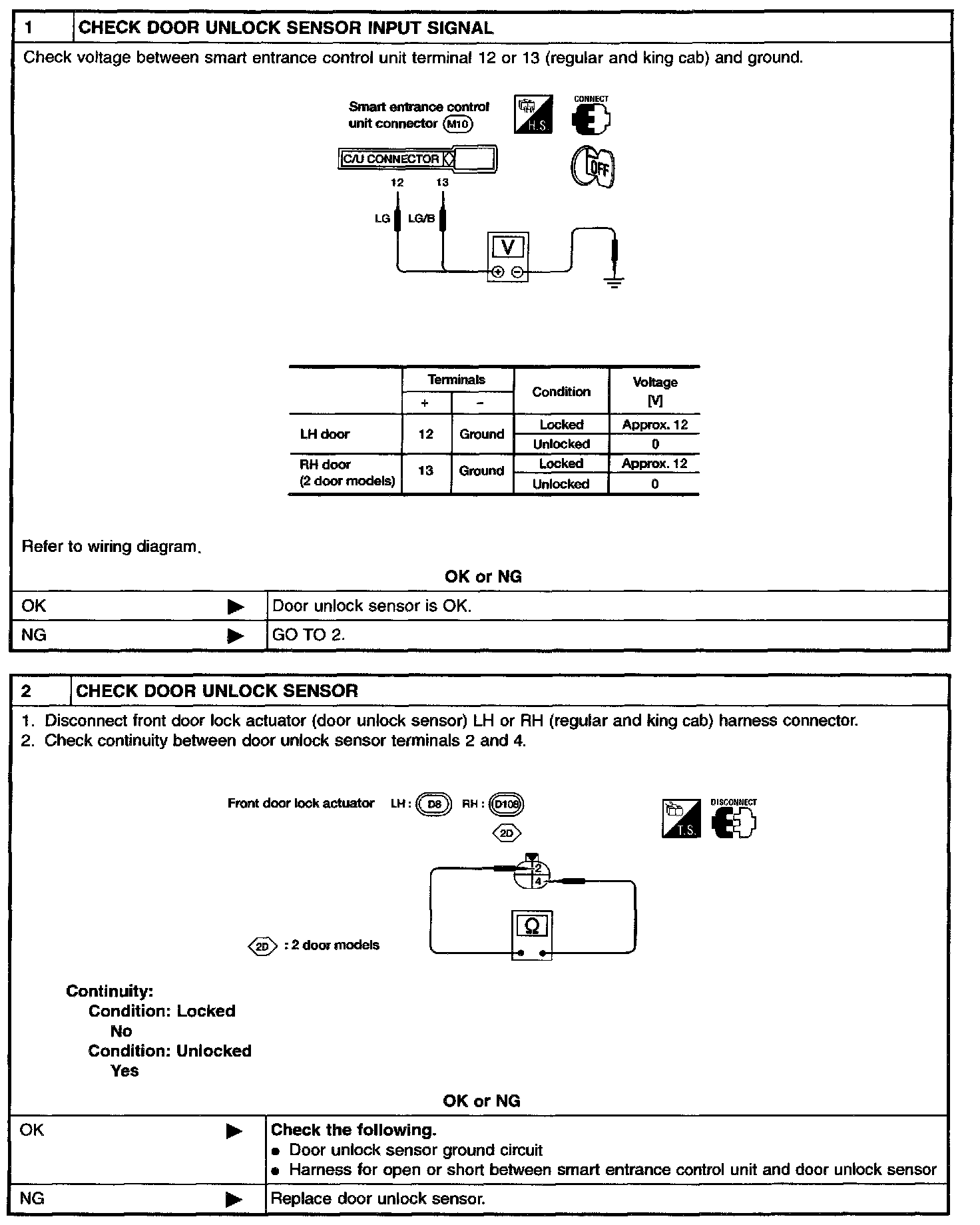

DOOR UNLOCK SENSOR CHECK

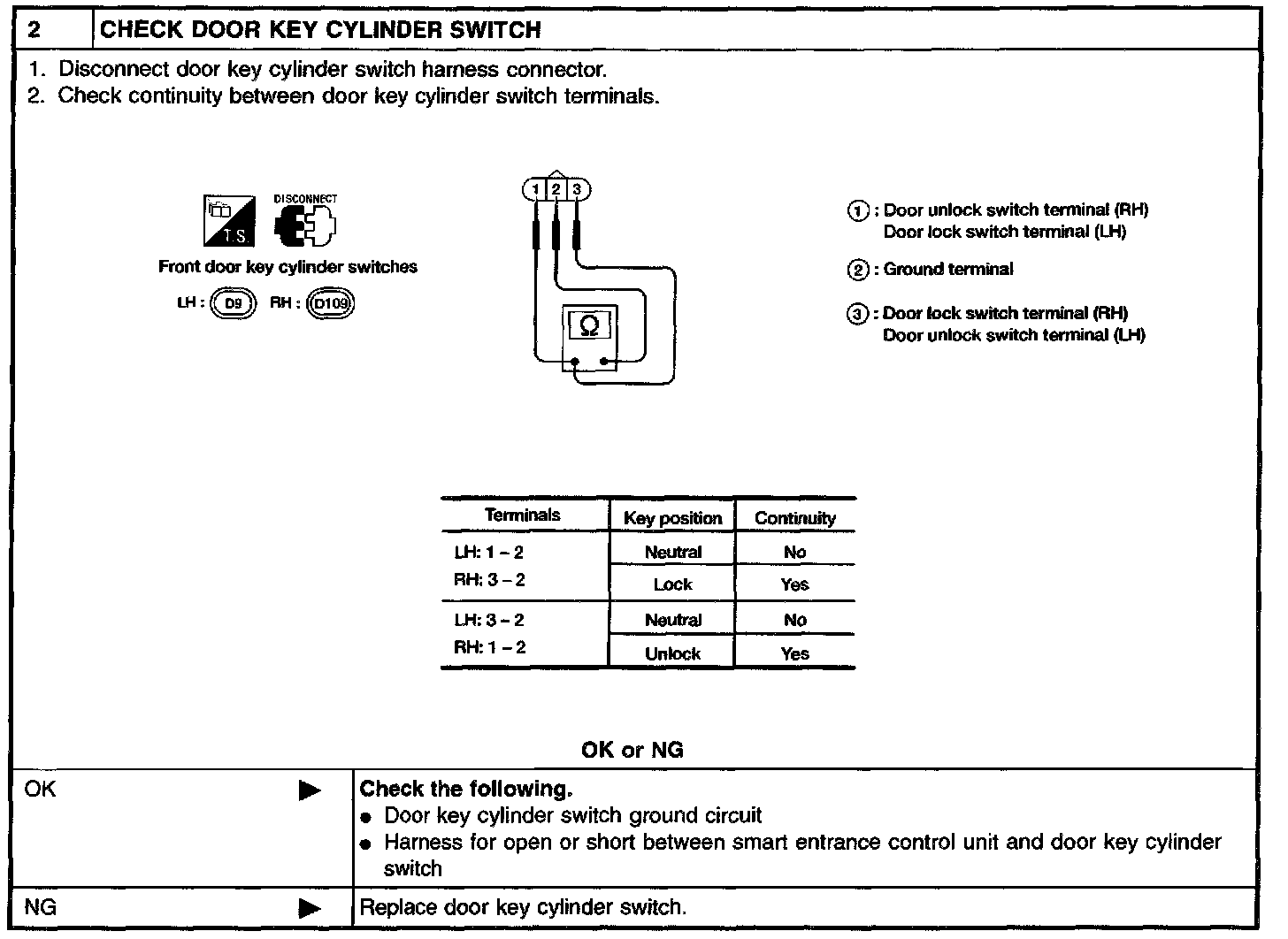

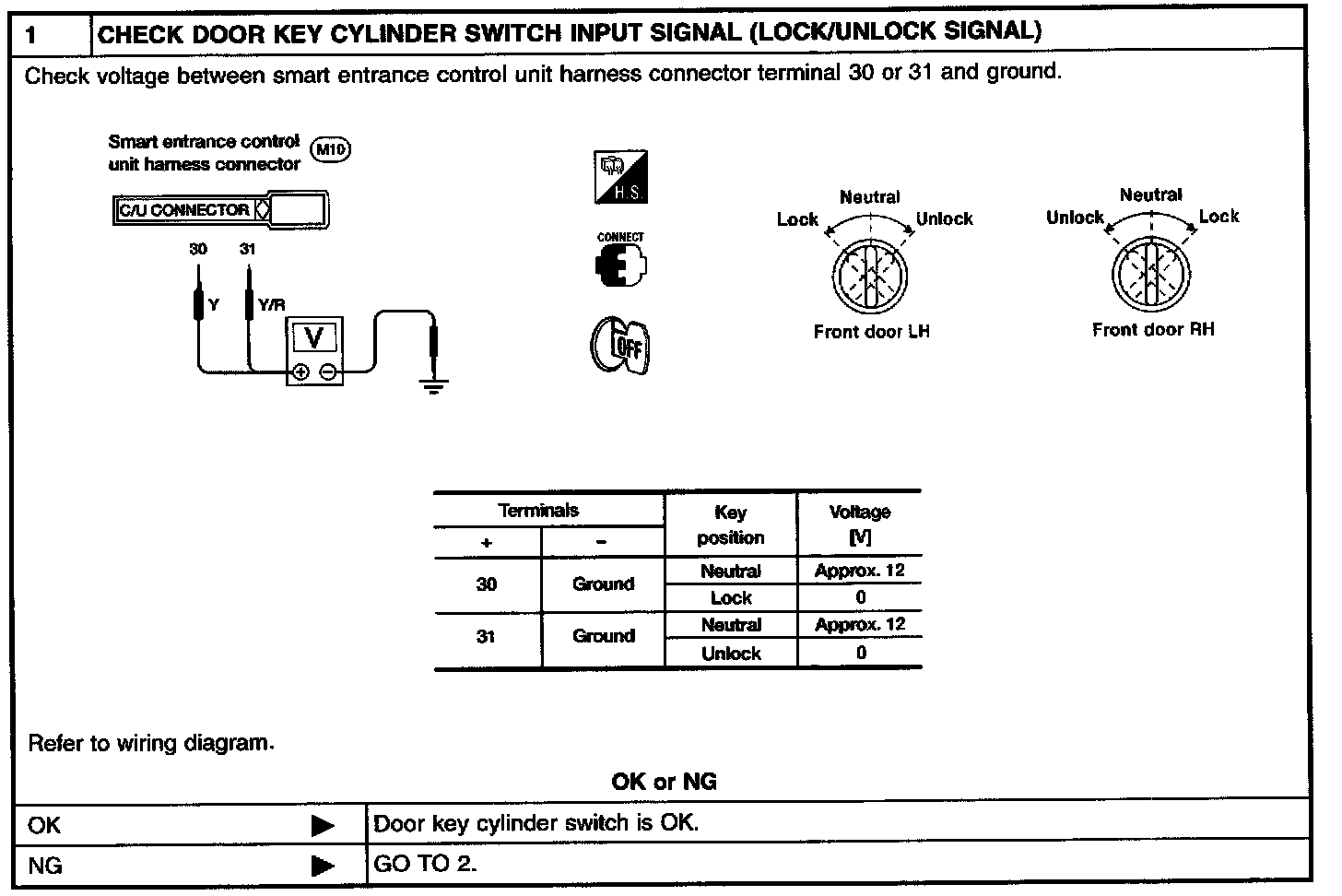

DOOR KEY CYLINDER SWITCH CHECK

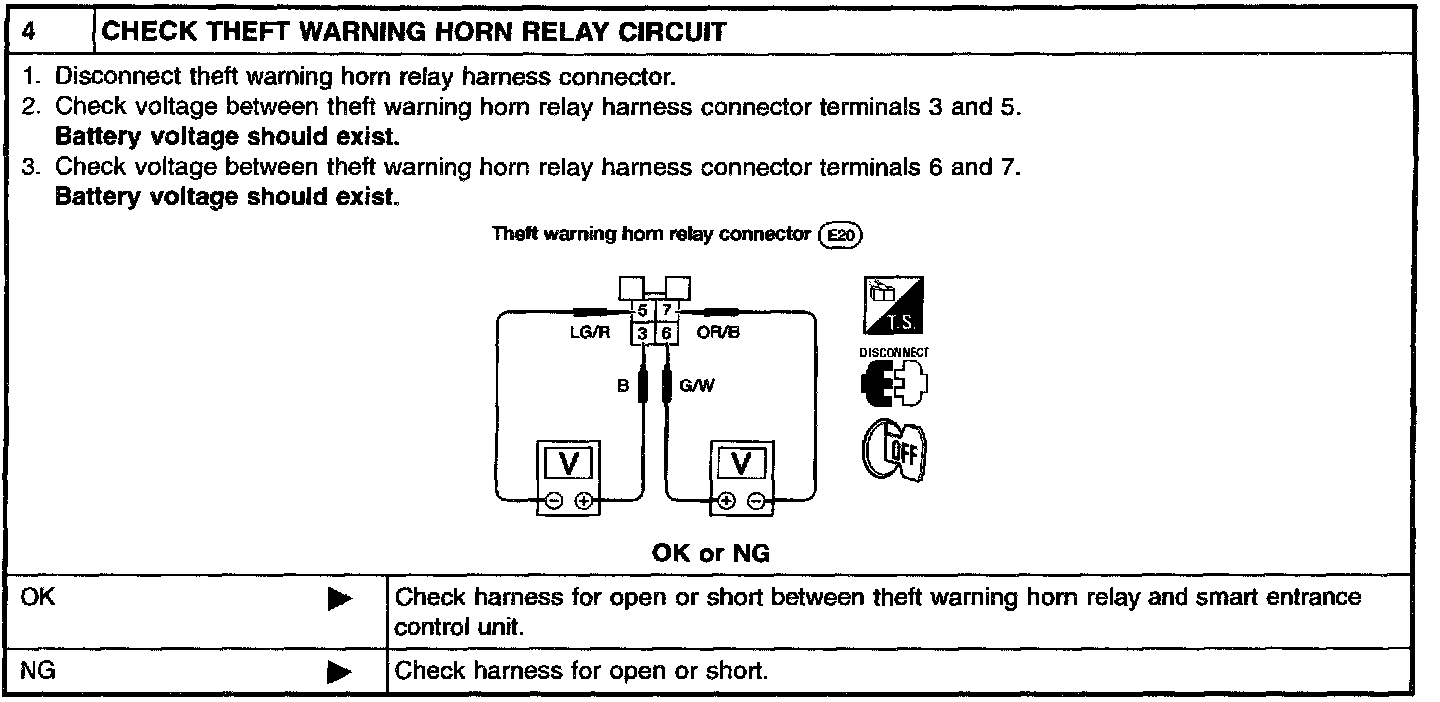

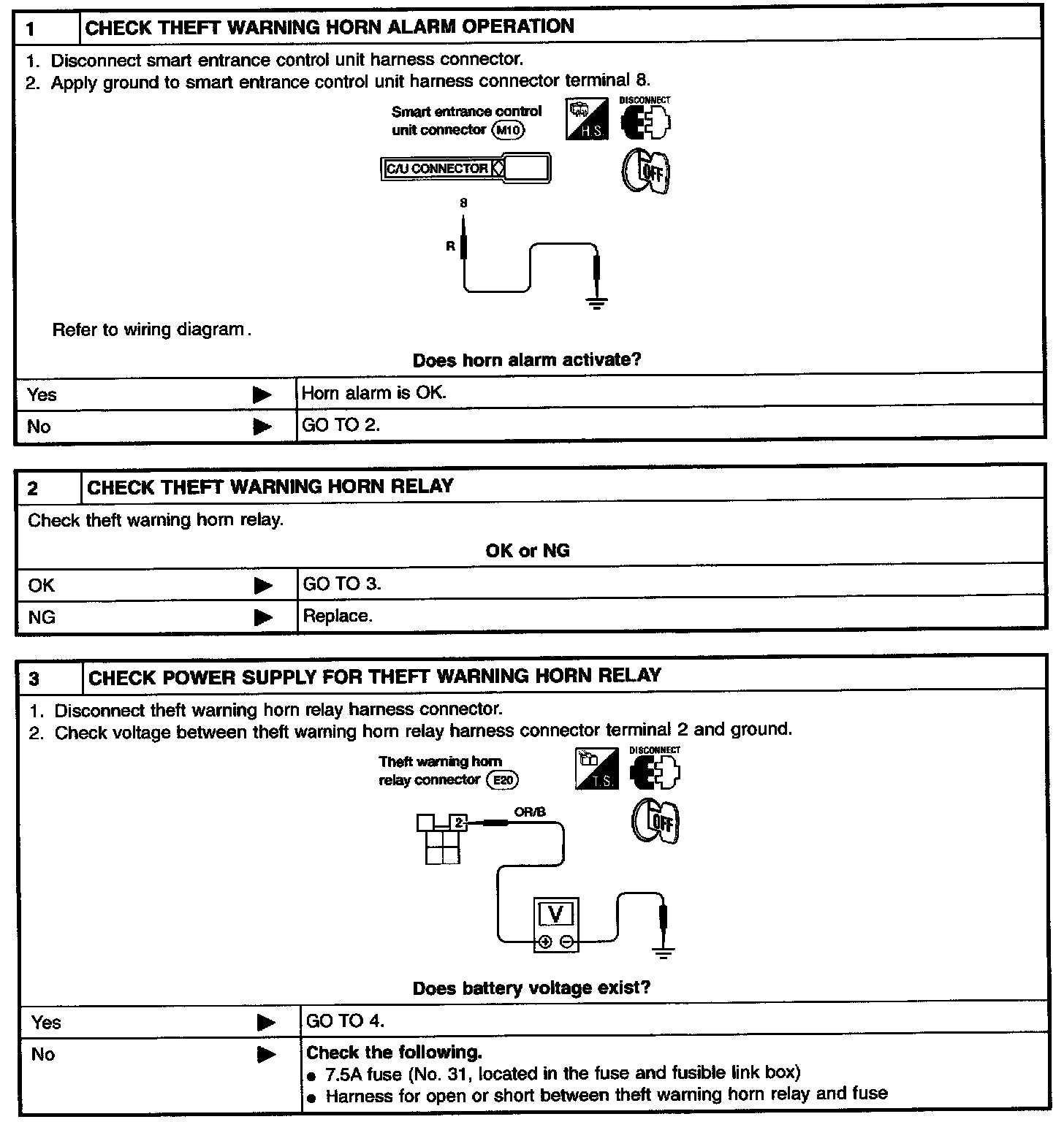

THEFT WARNING HORN ALARM CHECK

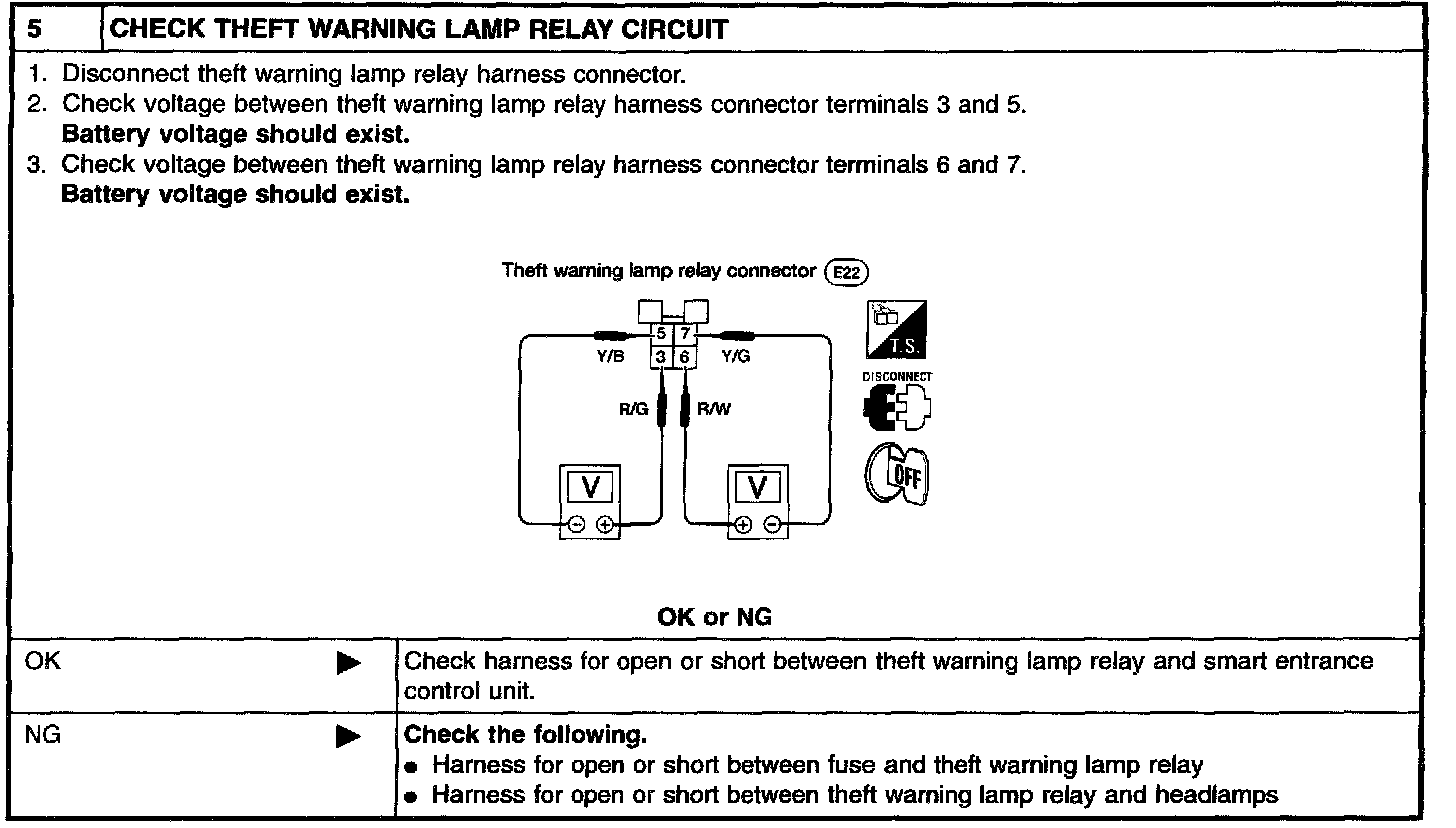

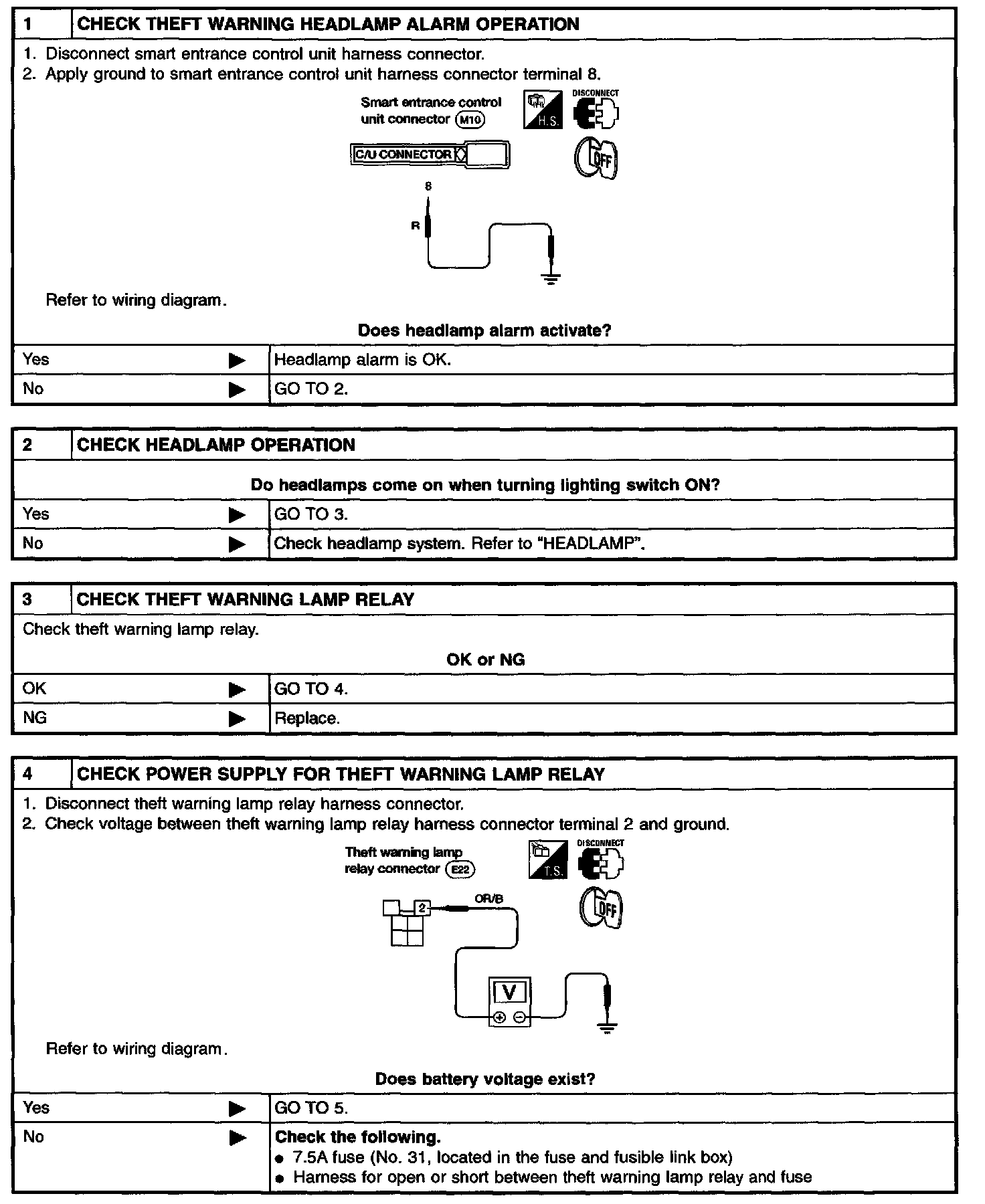

THEFT WARNING HEADLAMP ALARM CHECK

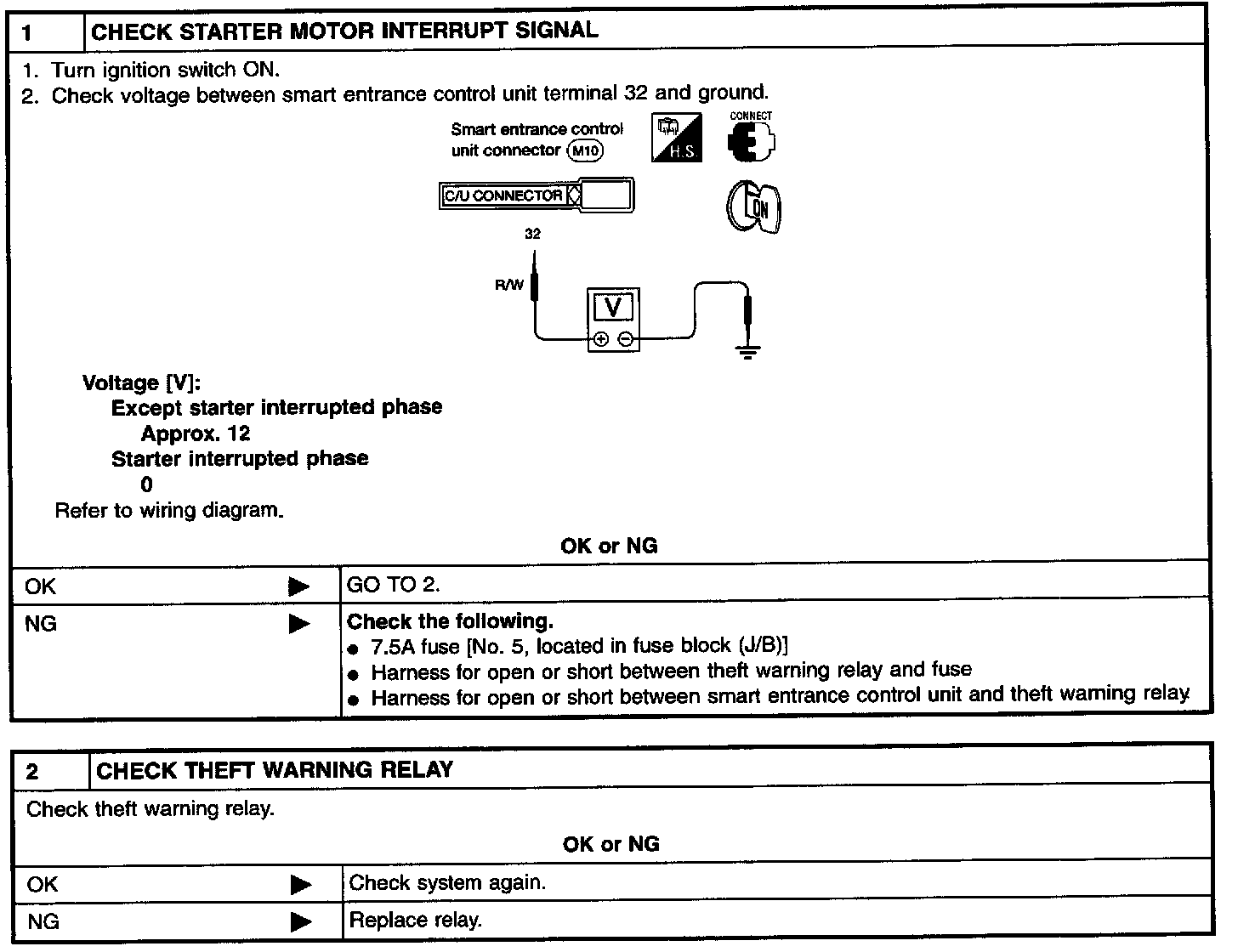

STARTER INTERRUPT SYSTEM CHECK
