Before VIN 343314

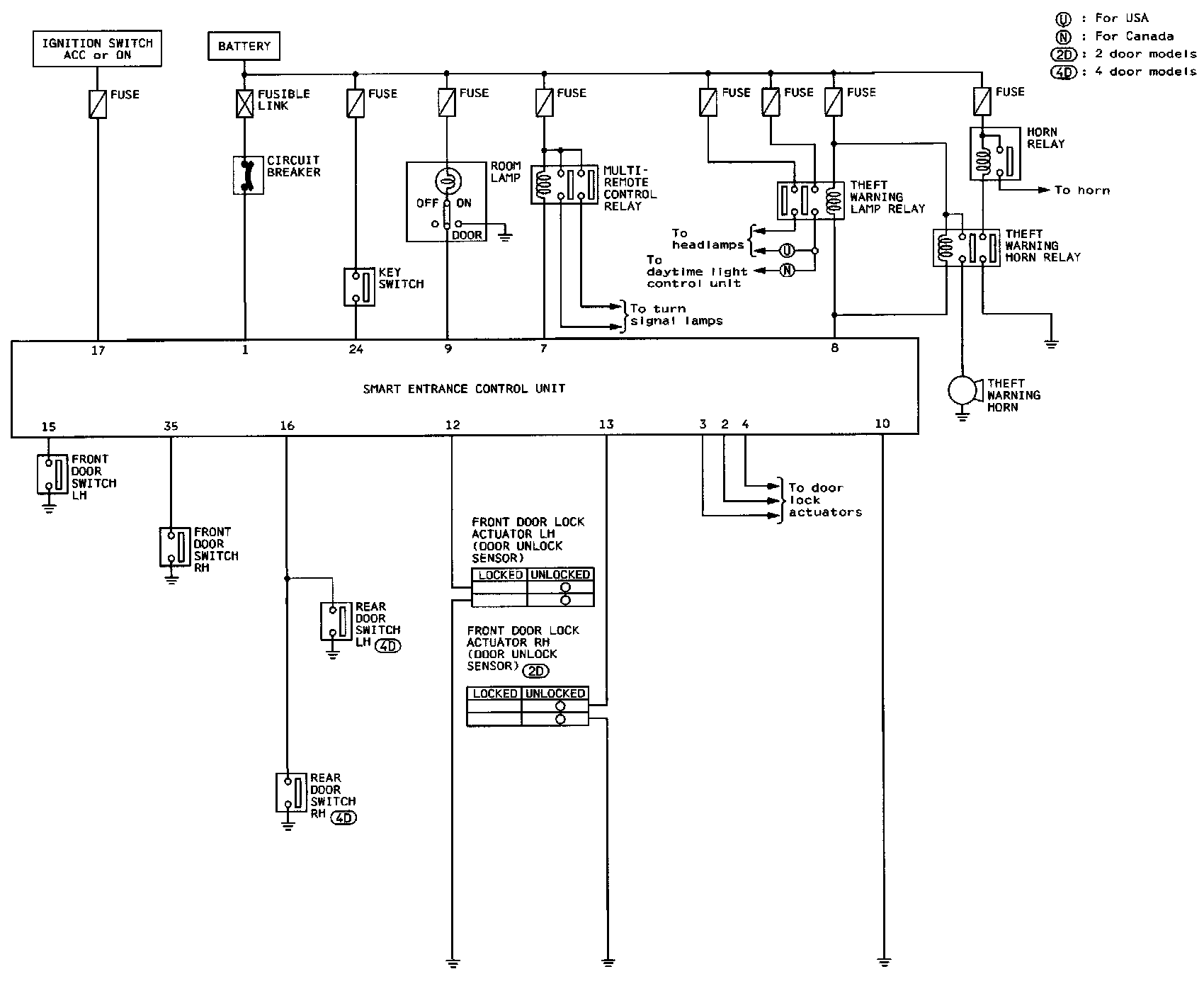

Schematic

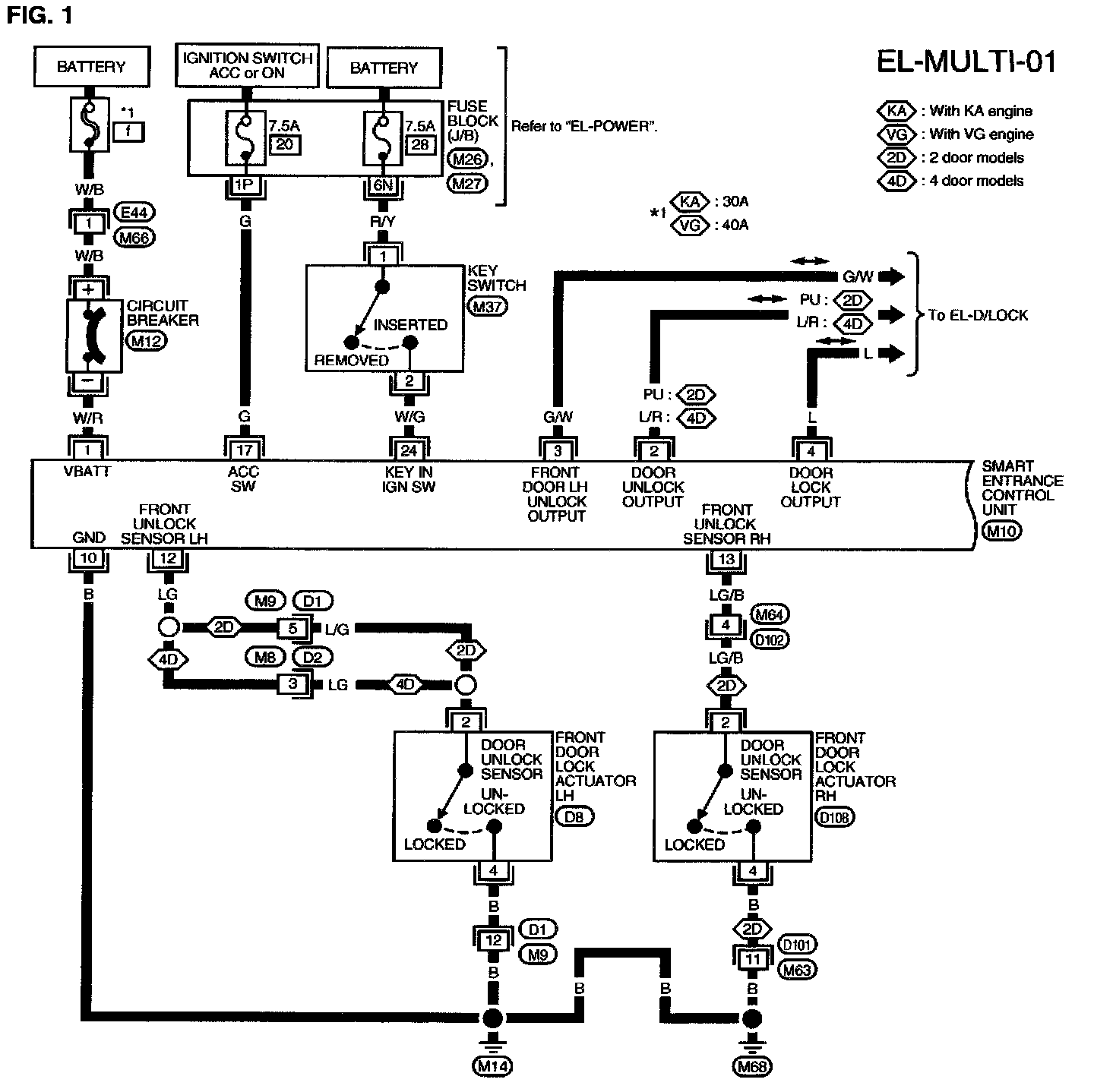

EL-MULTI-01:

(Part 1 of 3)
Fuse Block (J/B)
Circuit Breaker
Key Switch
Smart Entrance Control Unit
Front Door Lock Actuator (LH & RH)

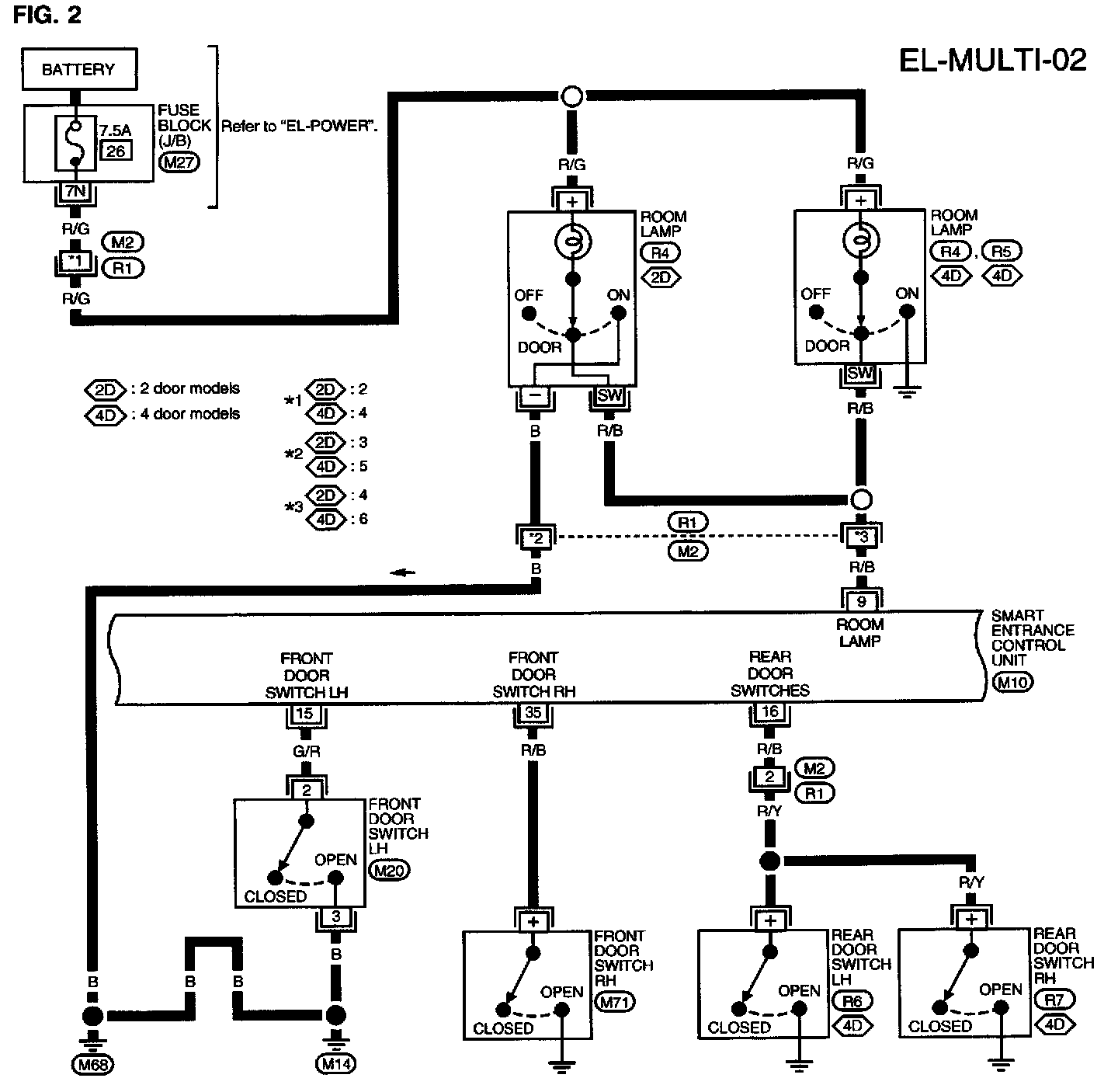

EL-MULTI-02:

(Part 2 of 3)
Fuse Block (J/B)
Room Lamp
Smart Entrance Control Unit
Front Door Switch (LH & RH)
Rear Door Switch (LH & RH)

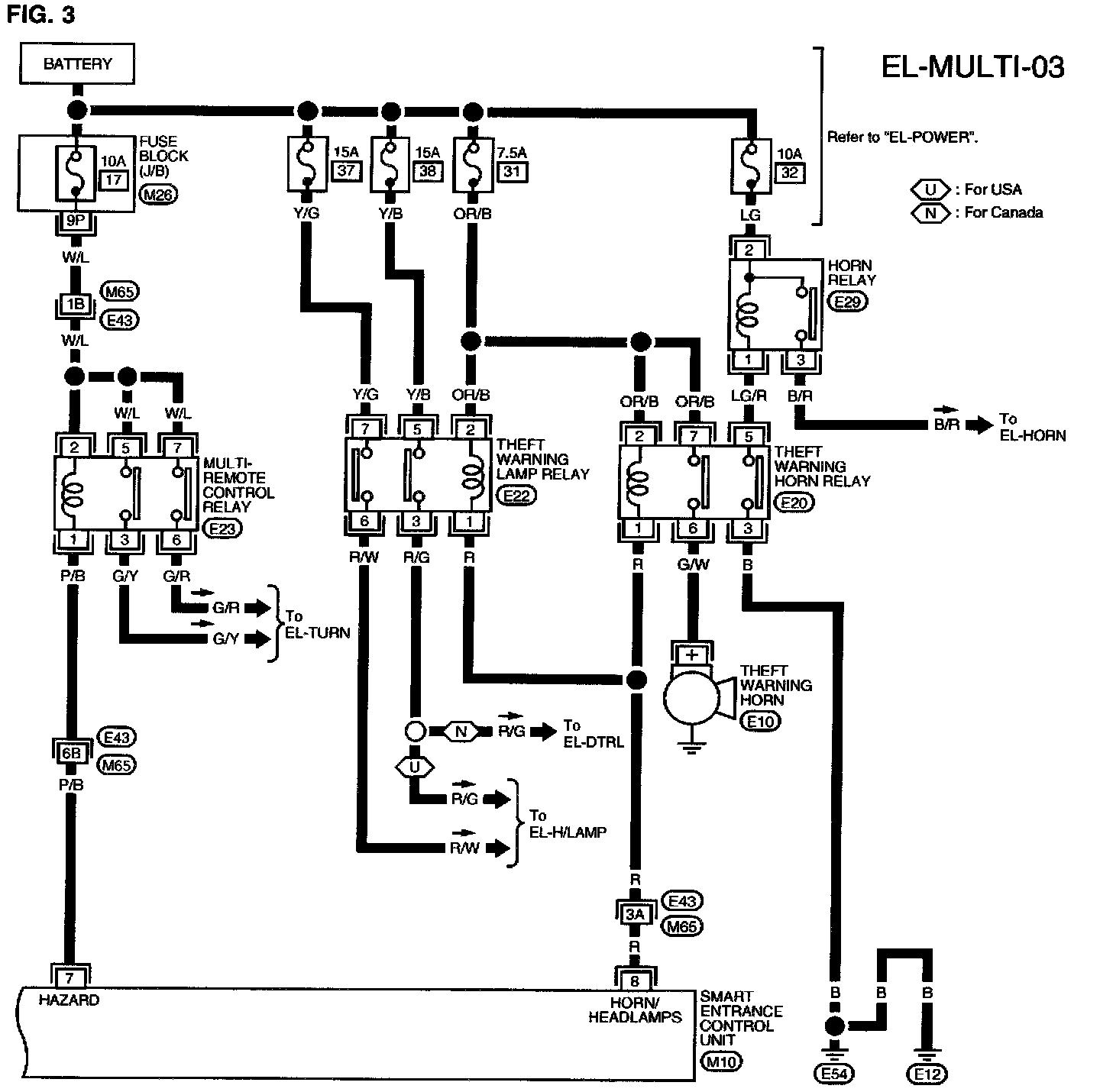

EL-MULTI-03:

(Part 3 of 3)
Fuse Block (J/B)
Horn Relay
Multi-Remote Control Relay
Theft Warning Lamp Relay
Theft Warning Horn Relay
Theft Warning Horn
Smart Entrance Control Unit

Circuit Diagrams

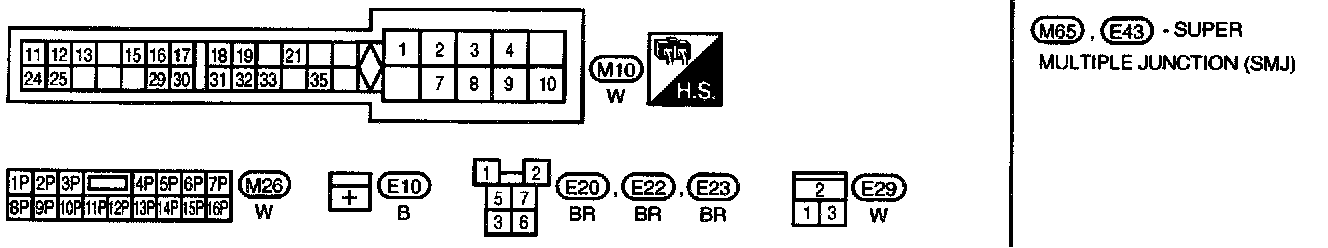

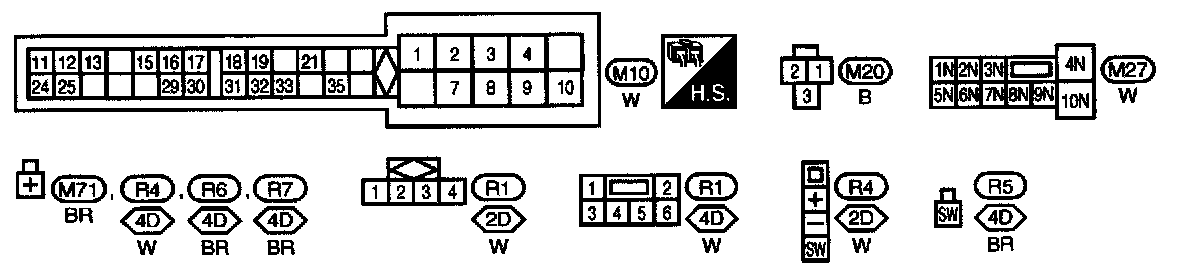

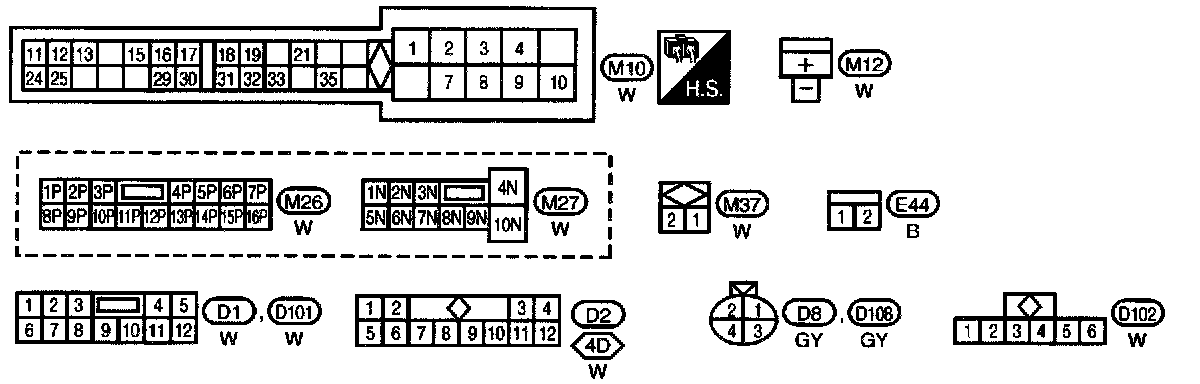

Circuit Connectors

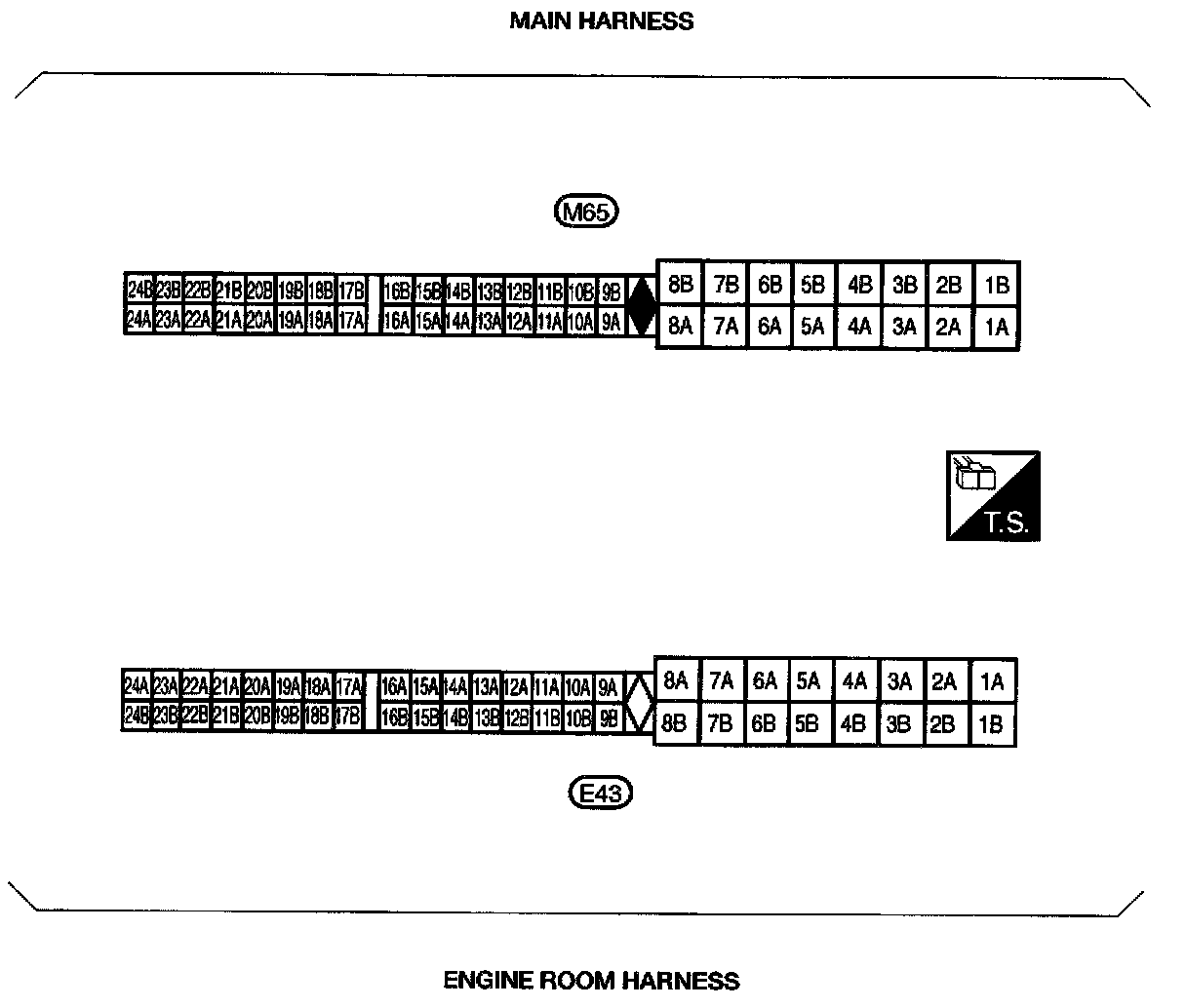

E43, M65 Super Multiple Junction (SMJ) Terminal Arrangement
