Before VIN #343314

Description

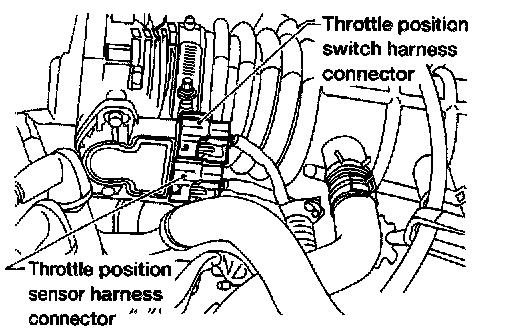

- Throttle position sensor
The throttle position sensor detects the throttle valve position and sends a signal to the TCM.
- Throttle position switch
Consists of a wide open throttle position switch and a closed throttle position switch. The wide open position switch sends a signal to the TCM when the throttle valve is open at least 1/2 of the full throttle position. The closed throttle position switch sends a signal to the TCM when the throttle valve is fully closed.

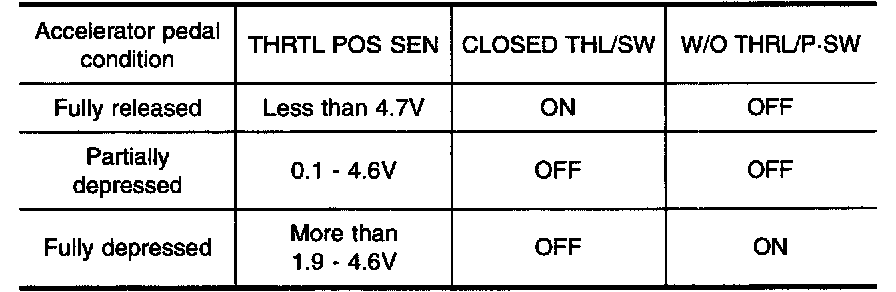

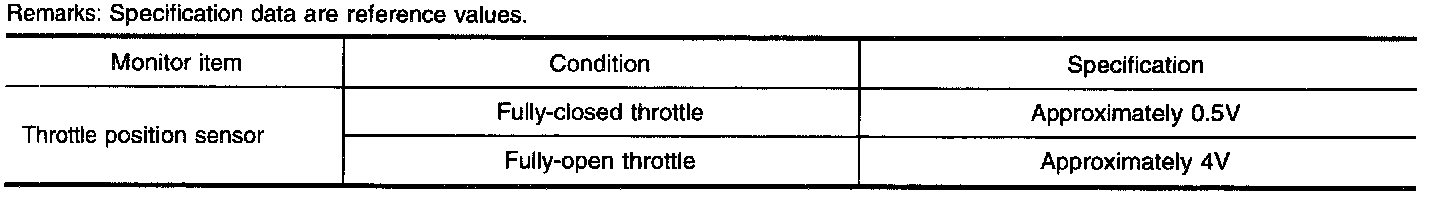

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE





TCM TERMINALS AND REFERENCE VALUE

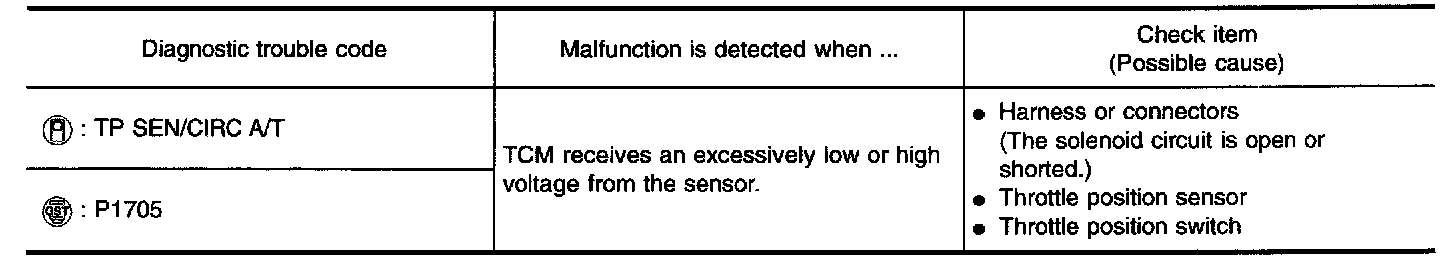

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

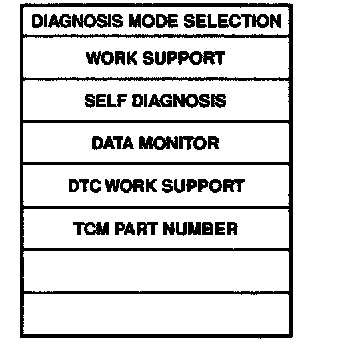

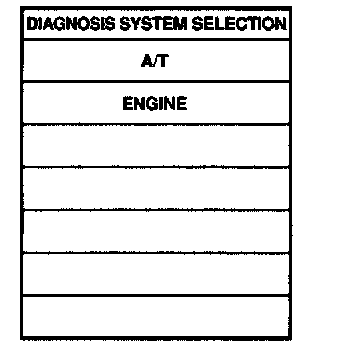

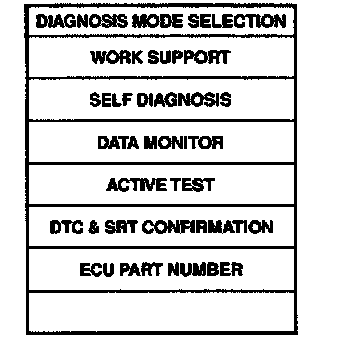

1. Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.





2. Apply vacuum to the throttle opener, then check the following. Refer to step 1 and step 2 of "Preparation", TCM SELF-DIAGNOSIS PROCEDURE (NO TOOLS)". TCM Self-Diagnostic Procedure (No Tools)
If the check result is NG, go to "DIAGNOSTIC PROCEDURE", below.
If the check result is OK, go to following step.

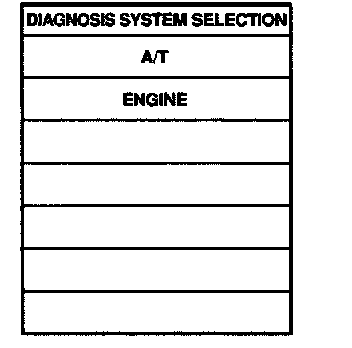

3. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
4. Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3 V or less
Selector lever: D position (O/D ON)
If the check result is NG, go to "DIAGNOSTIC PROCEDURE", below.
If the check result is OK, go to following step.
5. Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
Accelerator pedal: Wide open throttle
Selector lever: D position (O/D ON)

WITH GST
1. Follow the procedure "WITH CONSULT-II".

Wiring Diagram

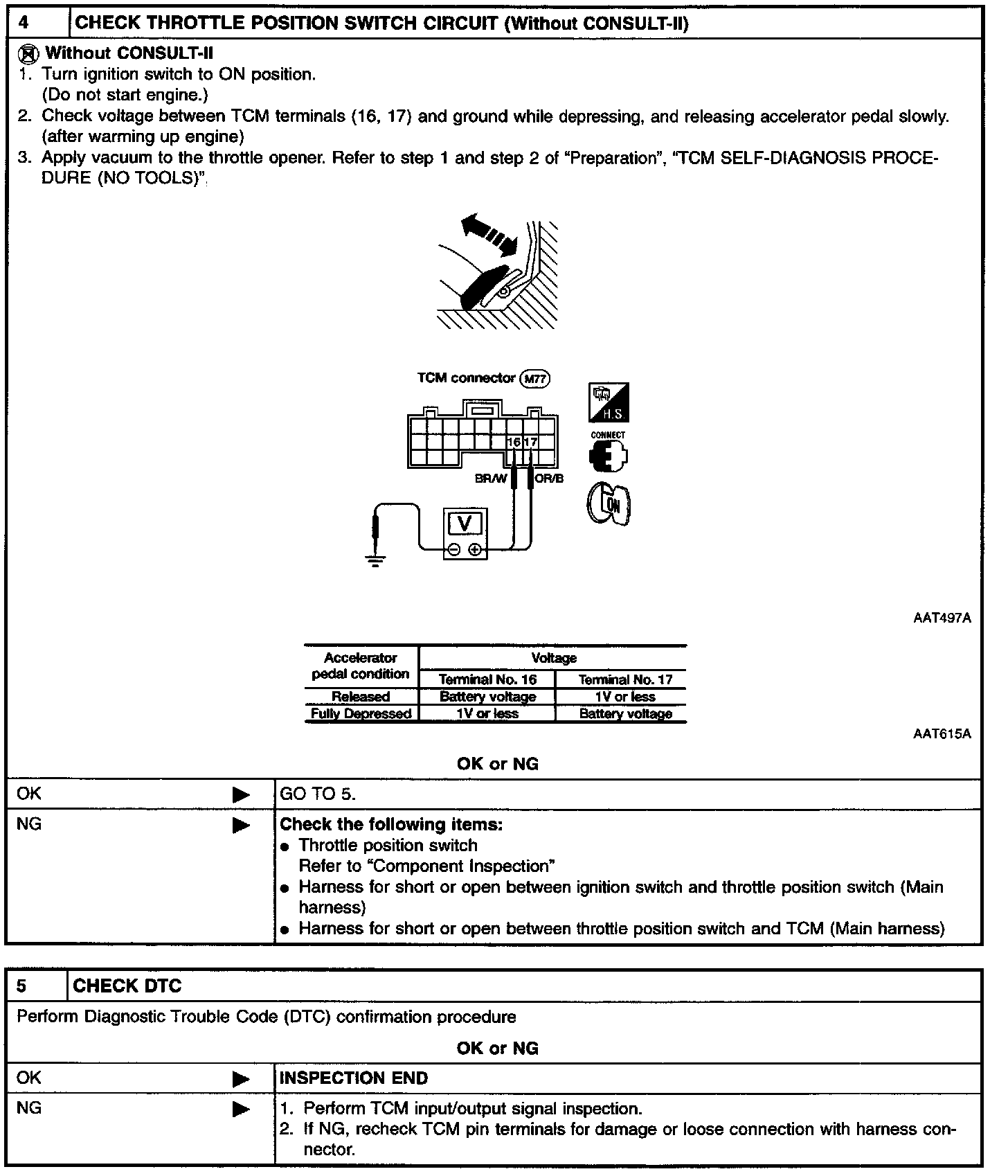

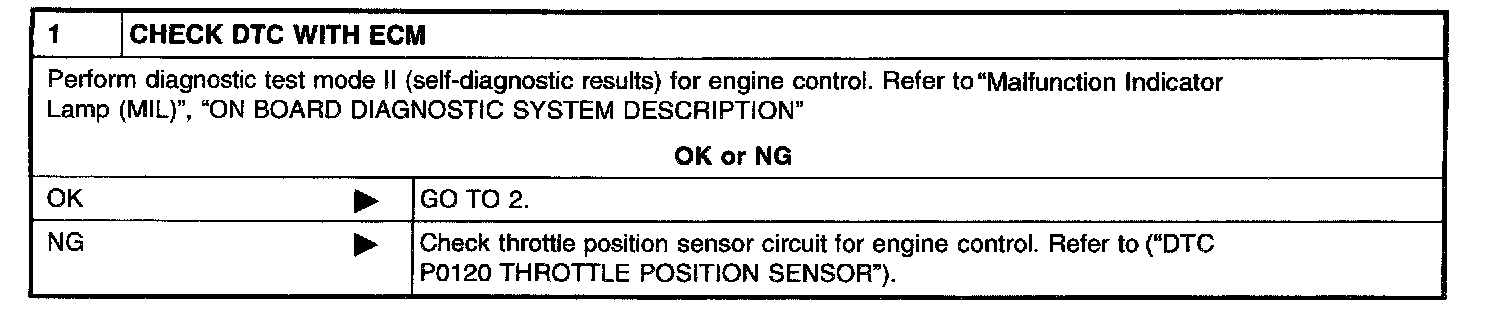

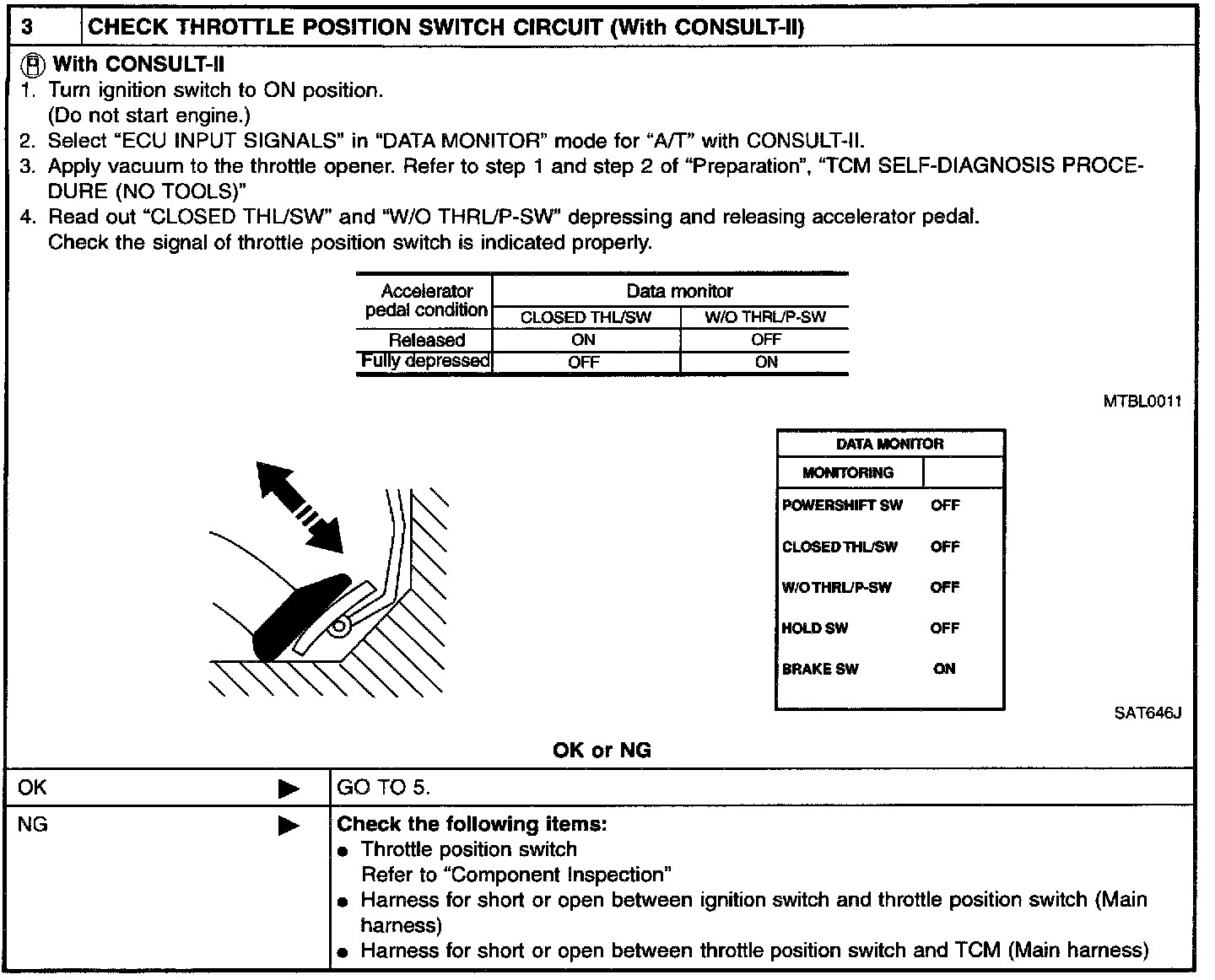

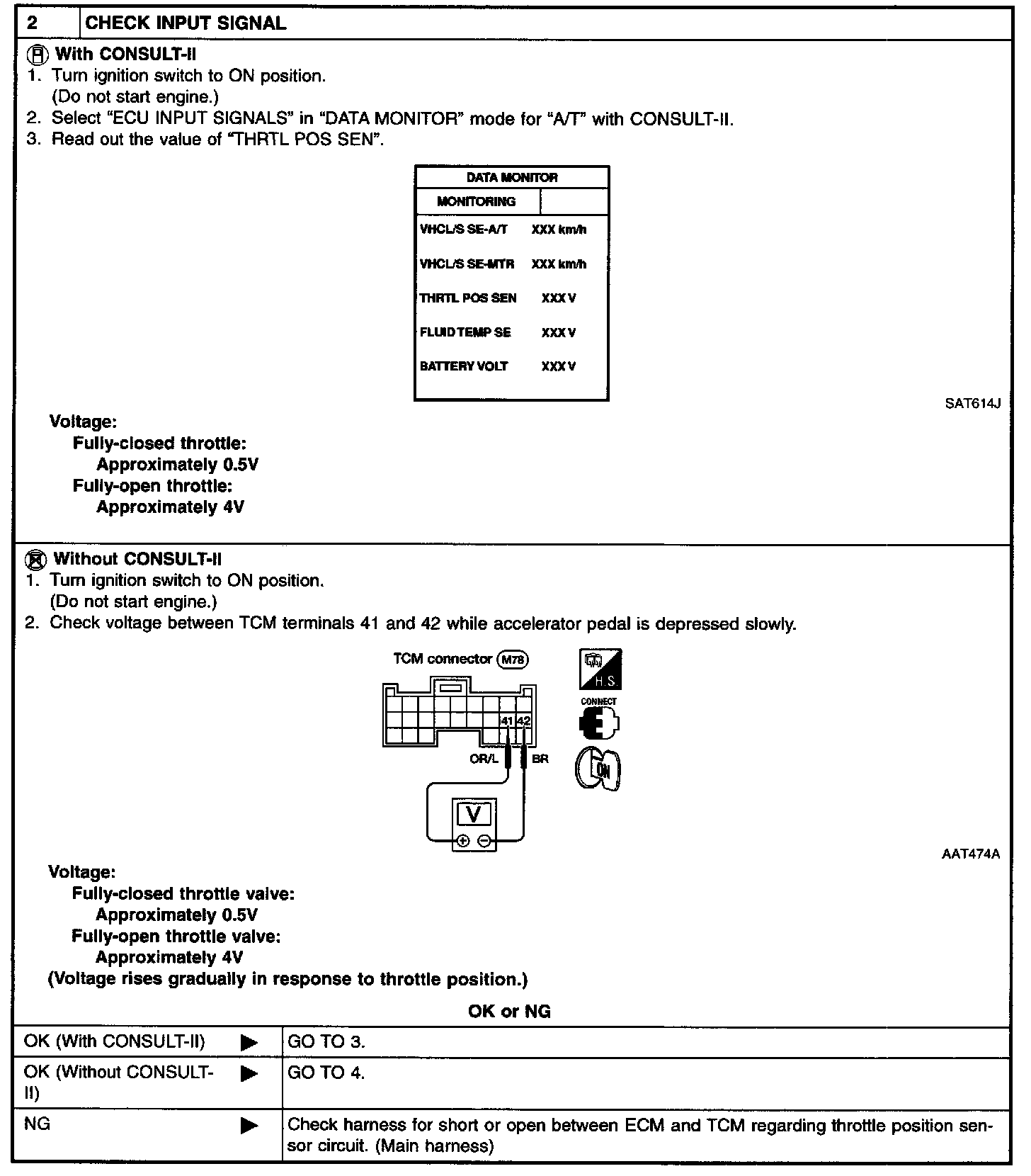

Diagnostic Procedure














Component Inspection

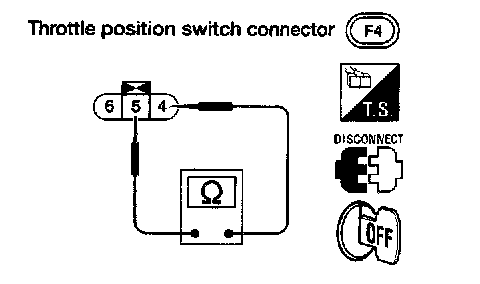

THROTTLE POSITION SWITCH

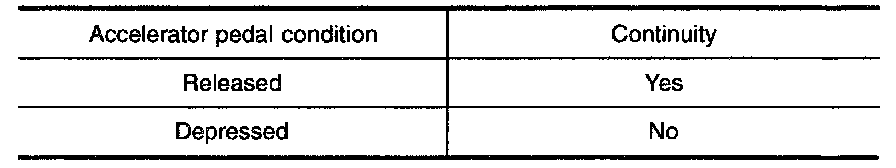

Closed Throttle Position Switch (idle position)








- Check continuity between terminals 4 and 5. [Refer to "Preparation", "TCM SELF-DIAGNOSIS PROCEDURE (NO TOOLS)".]
- To adjust closed throttle position switch, refer to Powertrain Management; Computers and Control Systems.

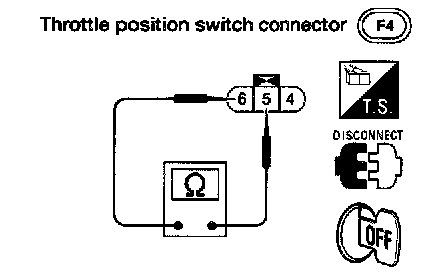

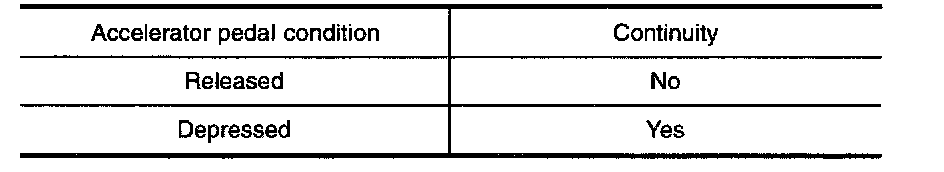

Wide Open Throttle Position Switch








- Check continuity between terminals 5 and 6.
