Beginning With VIN #343314

Description

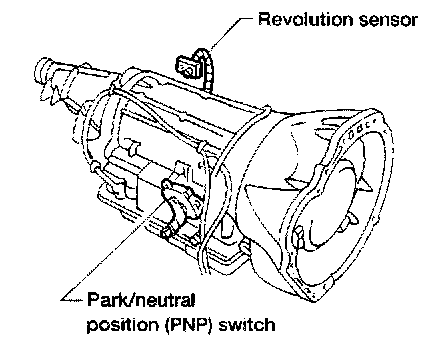

- The PNP switch assembly includes a transmission rang switch.
- The transmission range switch detects the selector position and sends a signal to the TCM.

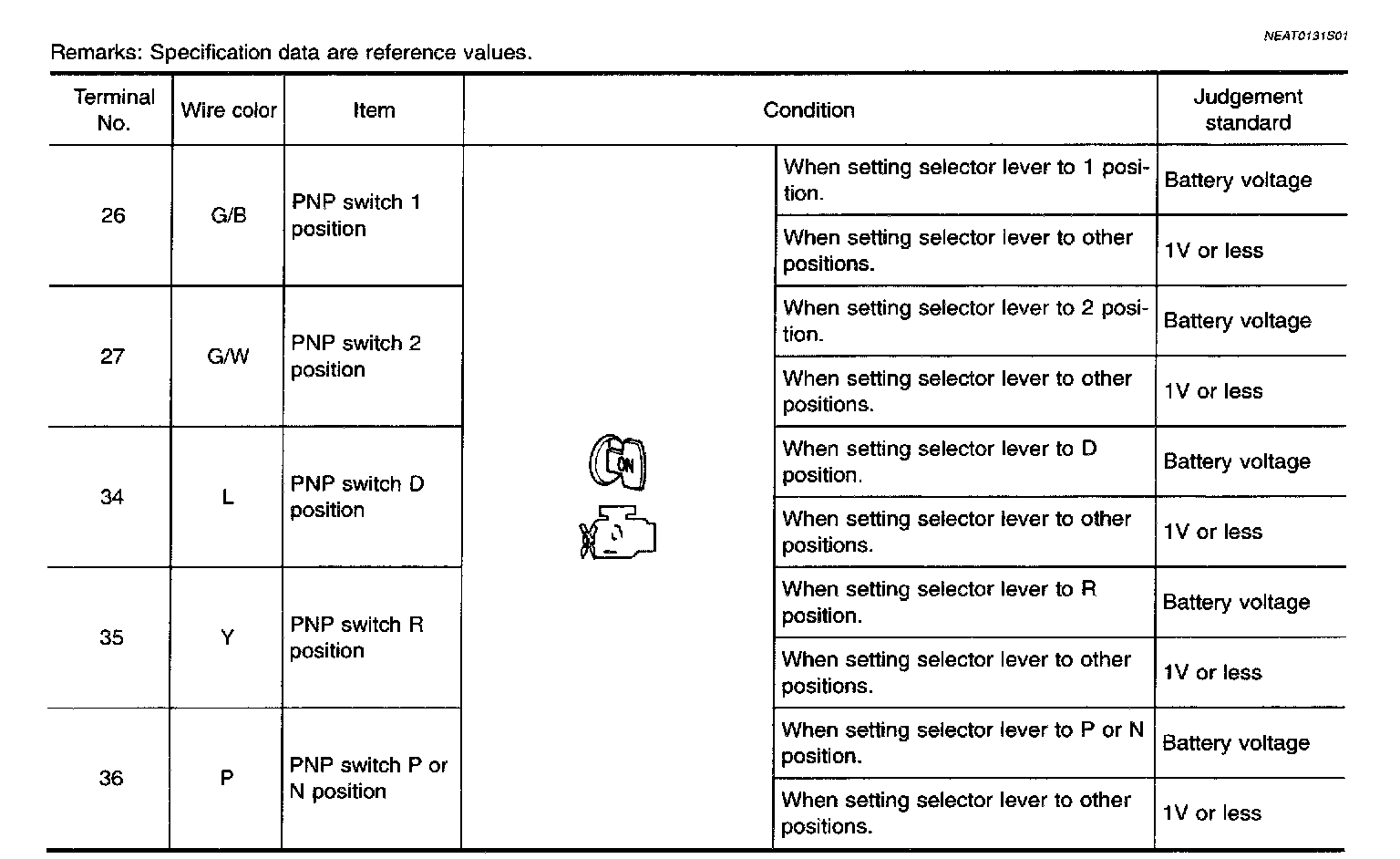

TCM TERMINALS AND REFERENCE VALUE

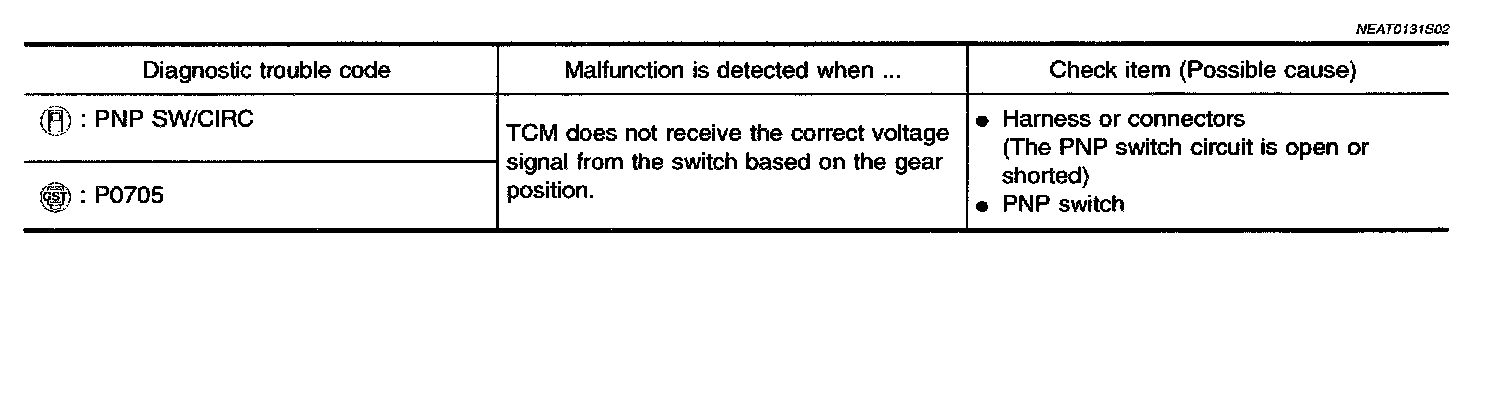

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II








1. Turn ignition switch ON.

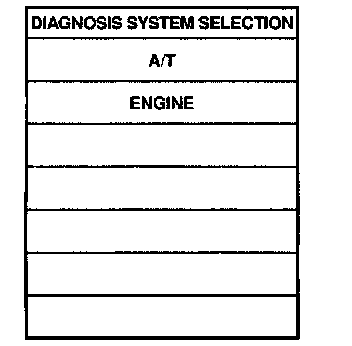

2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3 V
Selector lever: D position (O/D ON or OFF)

WITH GST
1. Follow the procedure "WITH CONSULT-II".




Wiring Diagram

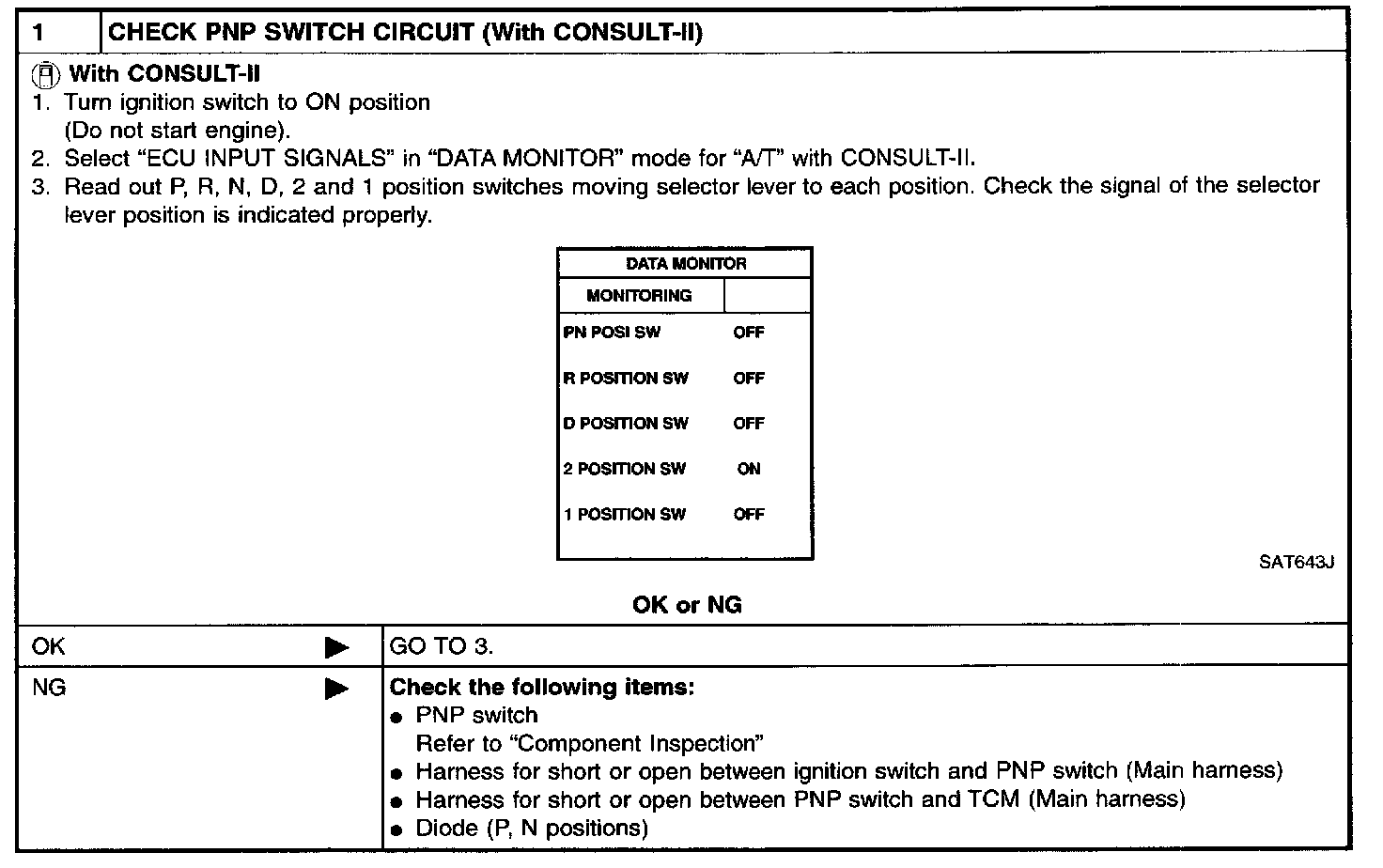

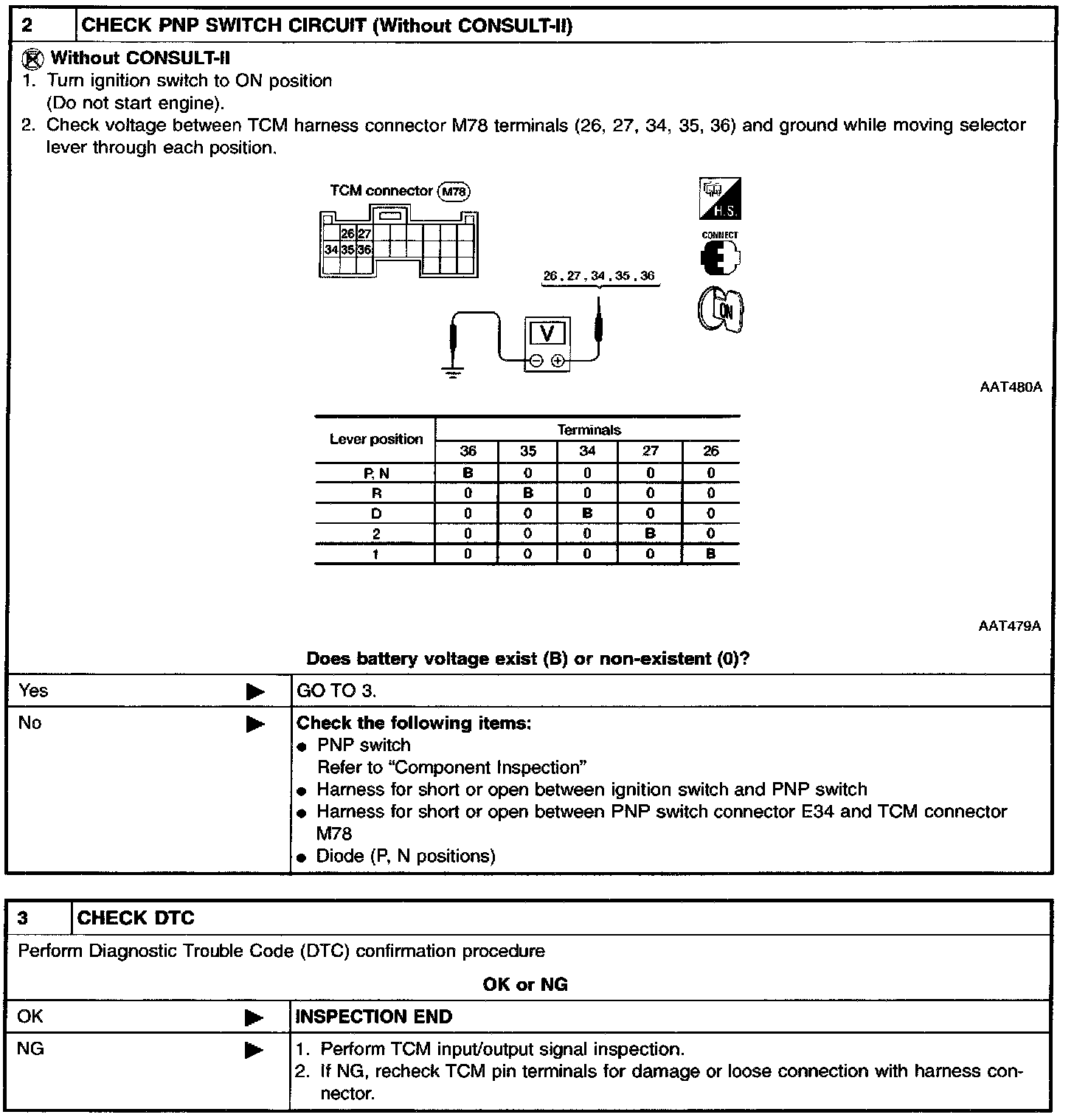

Diagnostic Procedure

Component Inspection
PNP SWITCH

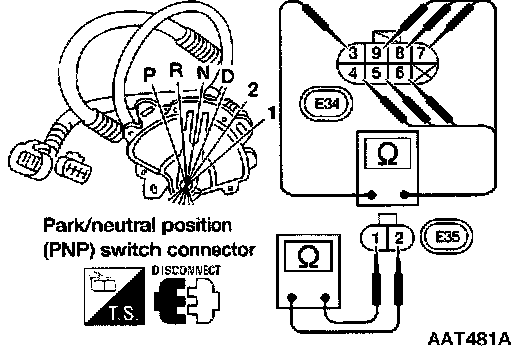

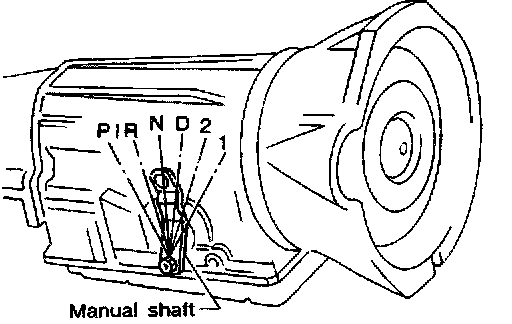

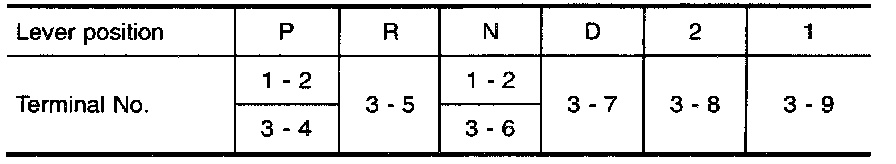

1. Check continuity between terminals 1 and 2 and between terminals 3 and (4, 5, 6, 7, 8, 9) while moving manual shaft through each position.





2. If NG, check again with manual control linkage disconnected from manual shaft of A/T assembly. Refer to step 1.

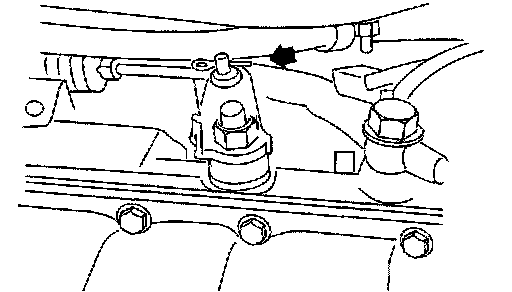

3. If OK on step 2, adjust manual control linkage.

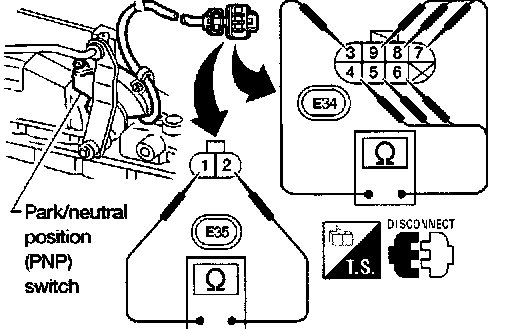

4. If NG on step 2, remove PNP switch from A/T and check continuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch.
6. If NG on step 4, replace PNP switch.
