To VIN # 350000

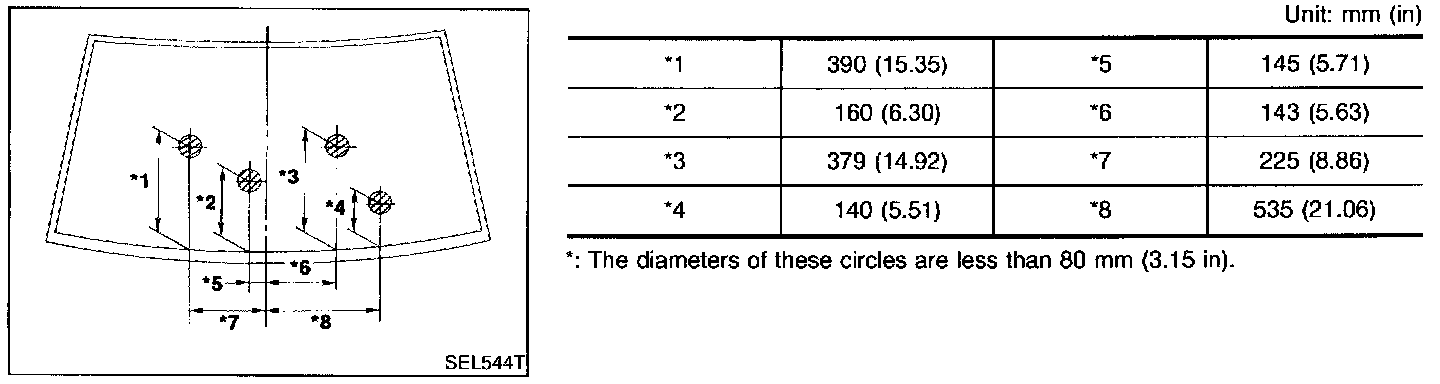

WASHER NOZZLE ADJUSTMENT

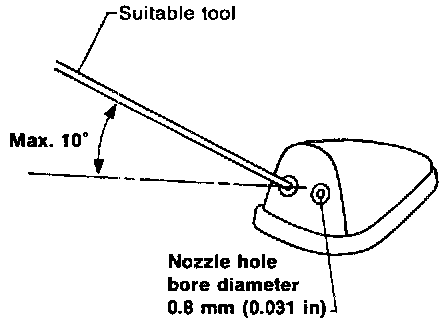

- Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range: ±10°

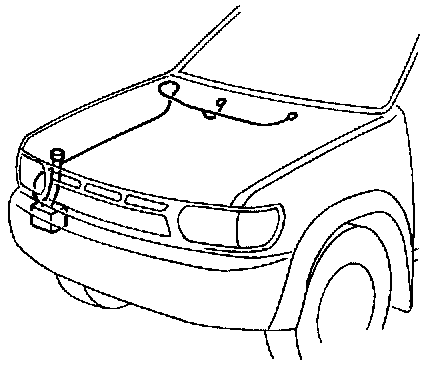

WASHER TUBE LAYOUT

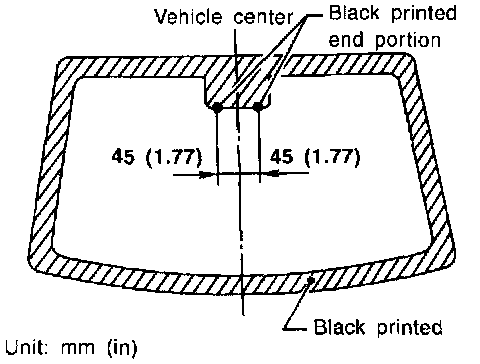

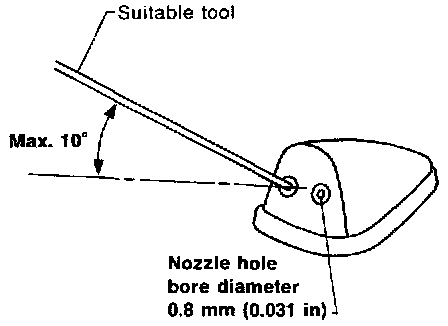

- Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range: ±10° (In any direction)

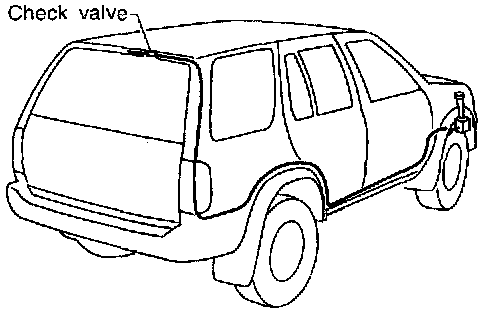

WASHER TUBE LAYOUT

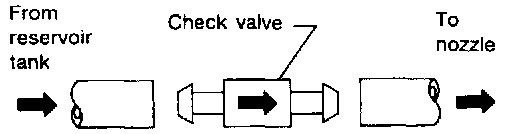

Check Valve





- A check valve is provided in the washer fluid line. Be careful not to connect check valve to washer tube in the wrong direction.
