Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Wiper and Washer Systems >> Adjustments >> From VIN # 350001 >> Rear Wiper and Washer

Rear Wiper and Washer







Washer Nozzle Adjustment

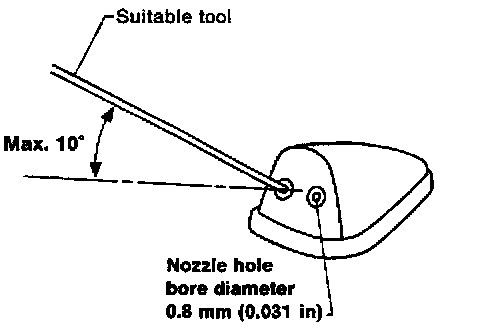

- Adjust washer nozzle with suitable tool as shown in the figure at left.
Adjustable range: ±10 (In any direction)
