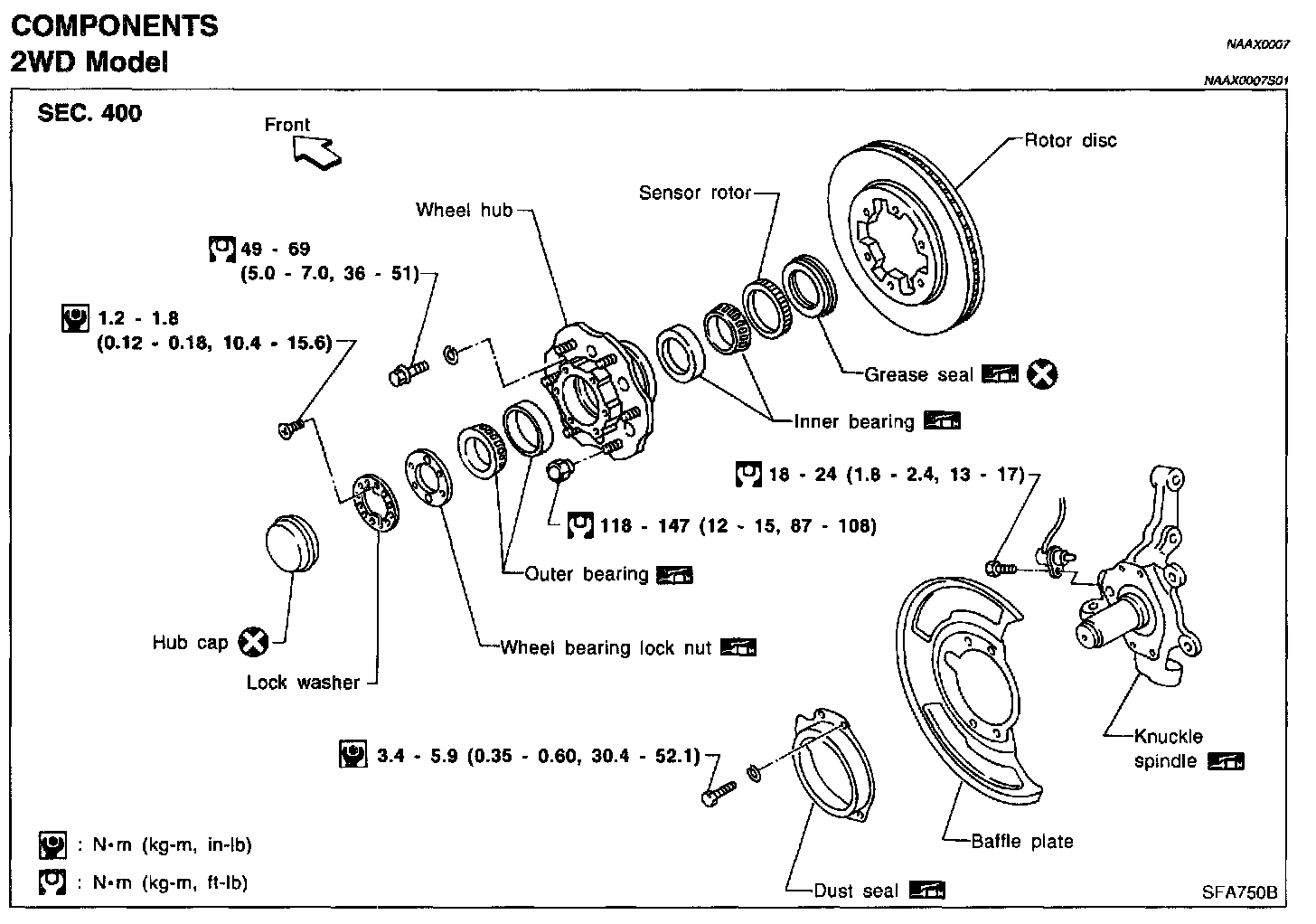

Front Axle Parts

1. Check front axle and front suspension parts for excessive play, cracks, wear or other damage.





2. Shake each front wheel to check for excessive play.





3. Retighten all axle and suspensions nuts and bolts properly.
