Rear Differential

FRONT OIL SEAL REPLACEMENT





1. Remove propeller shaft.

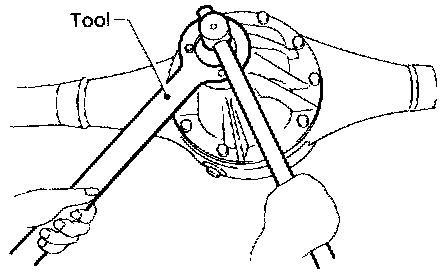

2. Loosen drive pinion nut.

Tool number: KV38104700 (J34311)

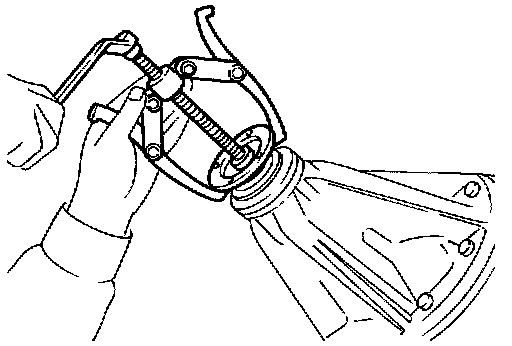

3. Remove companion flange.





4. Remove front oil seal.

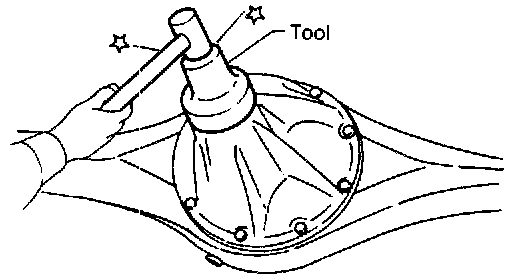

5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.

Tool number: KV38100500 (J25273)

6. Install companion flange and drive pinion nut.
7. Install rear propeller shaft.
