Front Differential

FRONT OIL SEAL REPLACEMENT

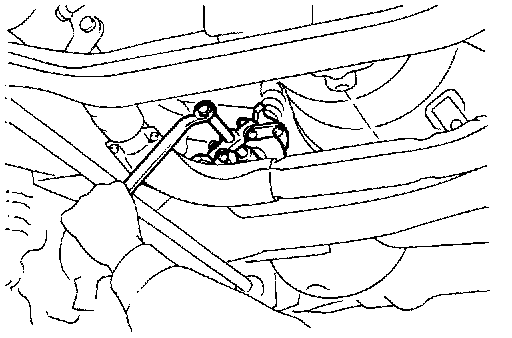

1. Remove front propeller shaft.

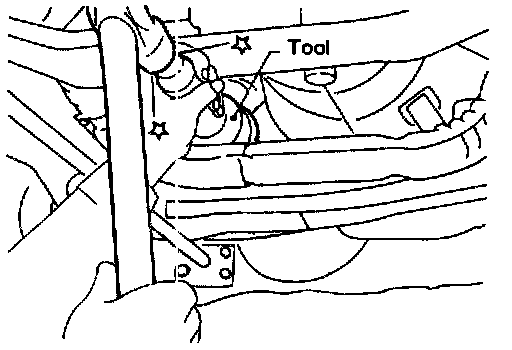

2. Loosen drive pinion nut.

Tool number: ST38060002 (J34311)

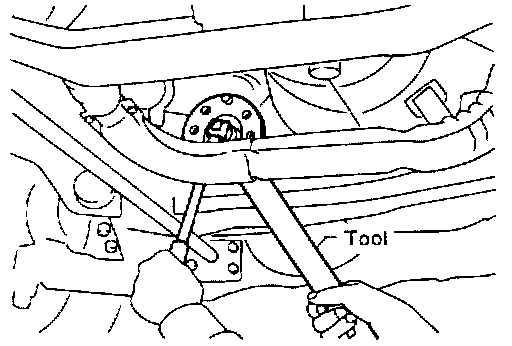

3. Remove companion flange.





4. Remove front oil seal.





5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
6. Install companion flange and drive pinion nut.
7. Install propeller shaft.

Tool number: KV38100500 (J25273)
