Clutch Release Fork: Service and Repair

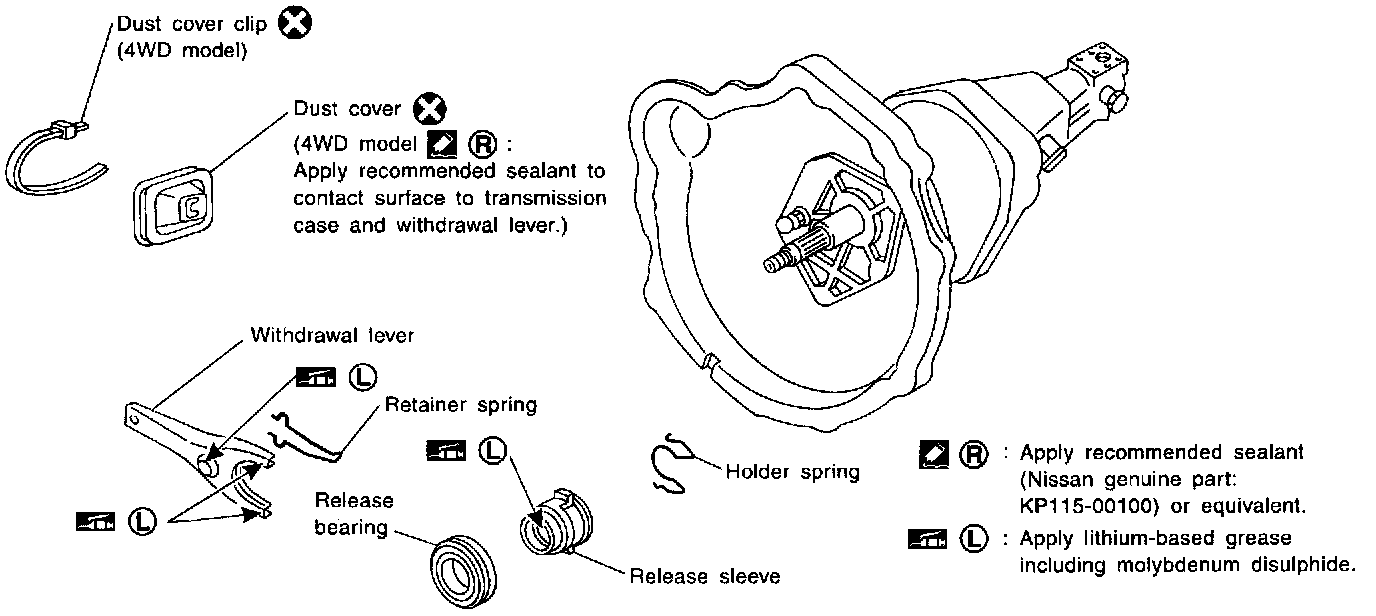

REMOVAL AND INSTALLATION





- Remove release bearing.





- Install release bearing with suitable drift.





- Install retainer spring and holder spring.

INSPECTION





Check the following items, and replace if necessary.
- Release bearing, to see that it rolls freely and is free from noise, cracks, pitting or wear
- Release sleeve and withdrawal lever rubbing surface, for wear, rust or damage

LUBRICATION
- Apply recommended grease to contact surface and rubbing surface.
- Too much lubricant might damage clutch disc facing damage.

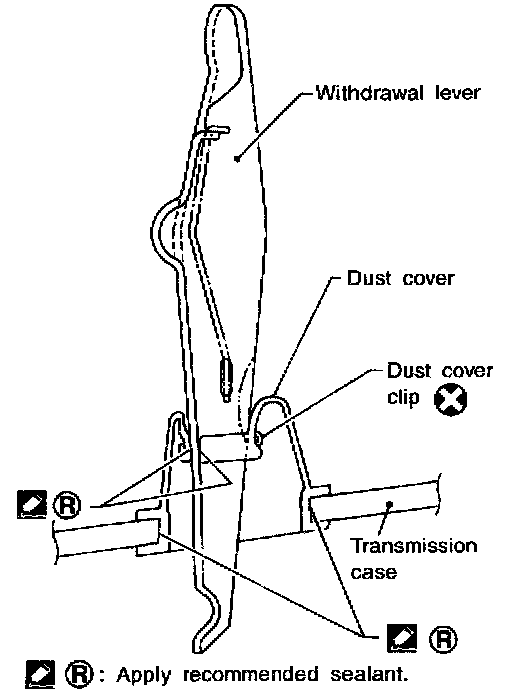

WATERPROOF - FOR 4WD MODEL





- Apply recommended sealant to contact surface of dust cover to transmission case and withdrawal lever and then install dust cover clip.

Recommended sealant: Nissan genuine part (KP115-00100) or equivalent
