Removal and Installation

REMOVAL
1. Remove battery negative terminal.
2. Remove exhaust front and rear tubes.
3. Remove fluid charging pipe from A/T assembly.
4. Remove oil cooler pipe from A/T assembly.
5. Plug up openings such as the fluid charging pipe hole, etc.
6. Remove propeller shaft.

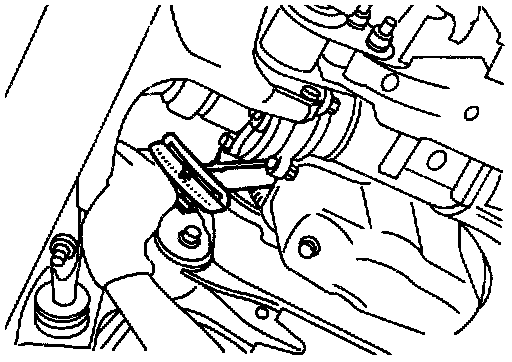

7. Remove transfer control linkage from transfer.
- Insert plug into rear oil seal after removing rear propeller shaft.
- Be careful not to damage spline, sleeve yoke and rear oil seal.

8. Remove A/T control cable from A/T assembly.
9. Disconnect A/T and speedometer sensor harness connectors.
10. Remove starter motor.

Tightening torque: 41 - 52 Nm (4.2 - 5.3 kg.m, 30 - 38 ft. lbs.)

11. Remove gusset and rear plate cover securing engine to A/T assembly.
12. Remove bolts securing torque converter to drive plate.
- Remove the bolts by turning crankshaft.

13. Support A/T assembly with a jack.
14. Remove rear engine mounting member from body and A/T assembly. Tighten rear engine mounting member to the specified torque.
15. Remove bolts securing A/T assembly to engine.
16. Pull A/T assembly backwards.
- Secure torque converter to prevent it from dropping.
- Secure A/T assembly to a jack.

17. Lower A/T assembly.

INSTALLATION

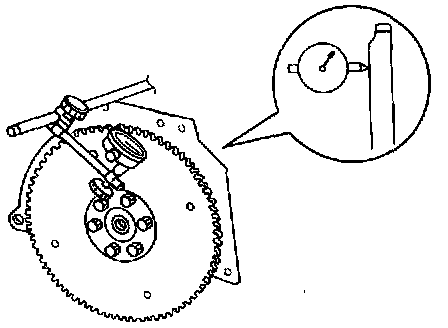

- Drive plate runout

Maximum allowable runout: Refer to Inspection, Cylinder Block.

If this runout is out of specification, replace drive plate with ring gear.

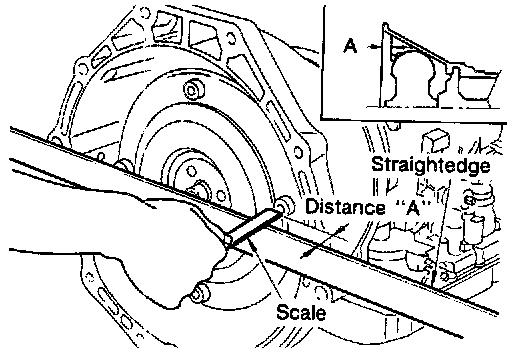

- When connecting torque converter to transmission, measure distance "A" to be certain that they are correctly assembled.

Distance "A": 26.0 mm (1.024 inch) or more





- Install converter to drive plate.

Tightening torque: 44 - 59 Nm (4.5 - 6.0 kg.m, 33 - 43 ft. lbs.)

- After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transmission rotates freely without binding.

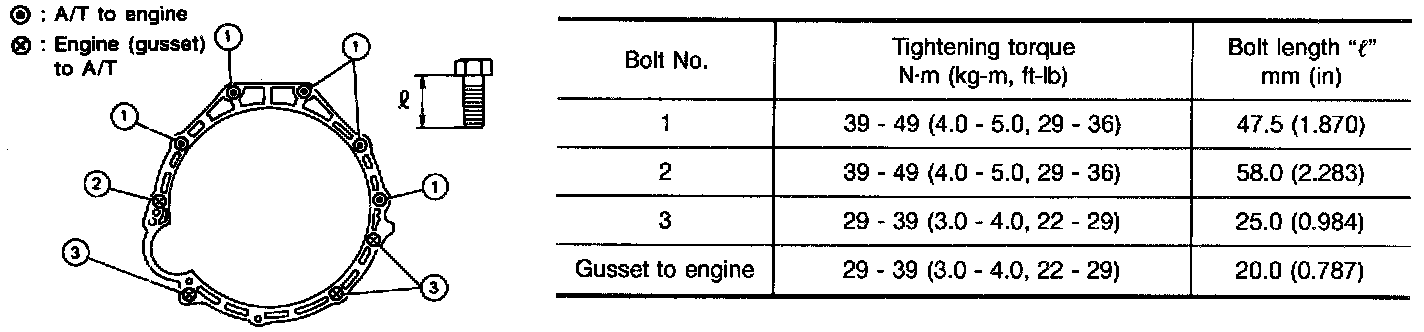

- Tighten bolts securing transmission.
- Reinstall any part removed.





- Check fluid level in transmission. Move selector lever through all positions to be sure that transmission operates correctly. With parking brake applied, rotate engine at idling. Move selector lever through "N" to "D", to "2", to "1" and to "R" positions. A slight shock should be felt by hand gripping selector each time transmission is shifted.
- Perform road test.
