Rear

COIL SPRING AND SHOCK ABSORBER

REPLACEMENT
Refer to Suspension / Service and Repair for rear suspension removal procedure.

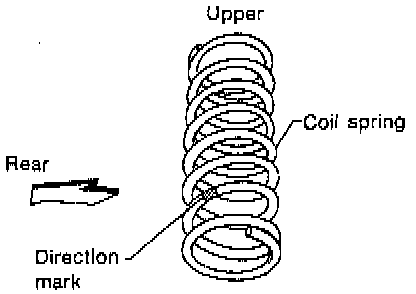

- When installing coil spring, pay attention to its direction. Be sure spring rubber seat is not twisted and has not slipped off when installing coil spring.

INSPECTION
- Check coil spring for yield, deformation or cracks.
- Check shock absorber for oil leakage, cracks or deformation.
- Check all rubber parts for wear, cracks or deformation. Replace if necessary.
