Rear

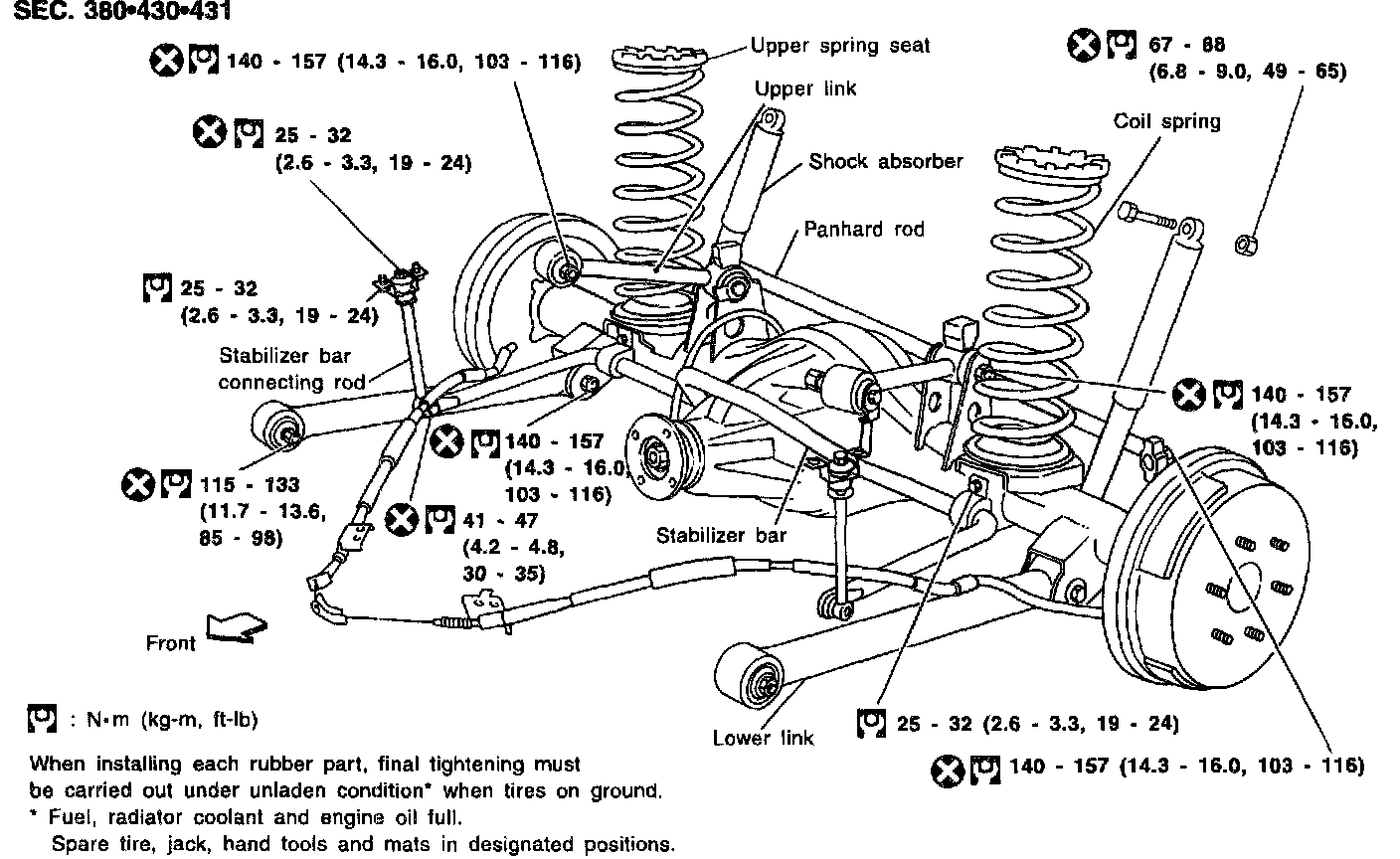

REMOVAL AND INSTALLATION





Refer to Suspension; Service and Repair; Rear Suspension.
When installing coil spring, pay attention to its direction. Be sure spring rubber seat is not twisted and has not slipped off when installing coil spring.

INSPECTION
- Check coil spring for yield, deformation and cracks.
- Check shock absorber for oil leakage, cracks and deformation.
- Check all rubber parts for wear, cracks and deformation. Replace if necessary.
