Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Stabilizer Bar >> Service and Repair >> To VIN # 350000 >> Rear

Rear






REPLACEMENT





- When removing and installing stabilizer bar, fix portion A.

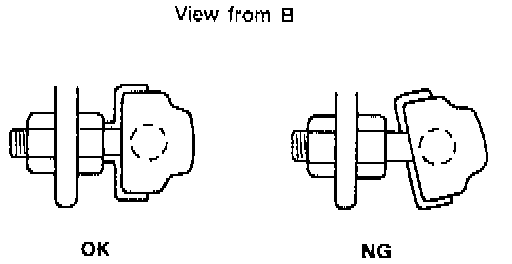

- Install stabilizer bar with ball joint socket properly placed.
