Front

REPLACEMENT

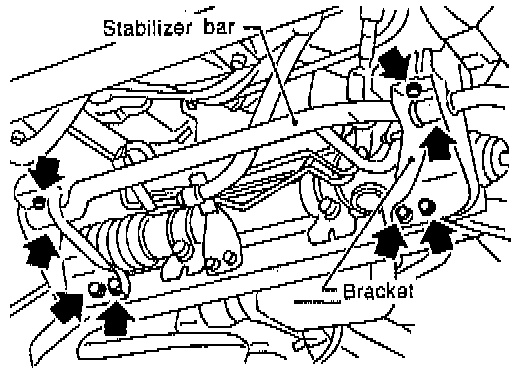

- Remove stabilizer bar and connecting rod.

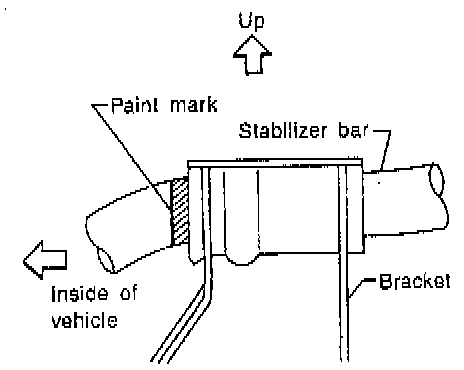

- When installing stabilizer, make sure that paint mark and bracket face in their correct directions.





- When removing and installing stabilizer bar fix portion A.

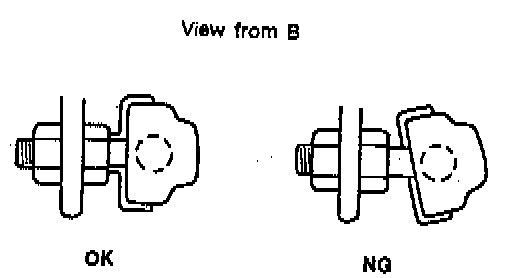

- Install stabilizer bar with ball joint socket properly placed.



INSPECTION

- Check stabilizer for deformation or cracks. Replace if necessary.
- Check rubber bushings for deterioration or cracks. Replace if necessary.





- Check ball joint can rotate in all directions. If movement is not smooth and free, replace stabilizer bar connecting rod.
