Front

2W/D:

4W/D:

REMOVAL AND INSTALLATION

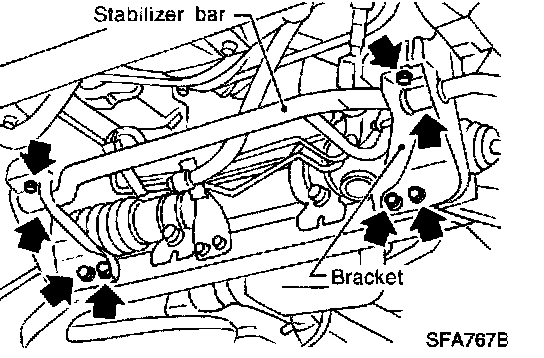

^ Remove stabilizer bar and connecting rod.

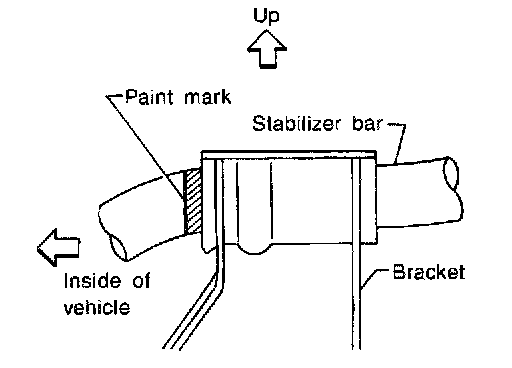

^ When installing stabilizer, make sure that paint mark and bracket face in their correct directions.

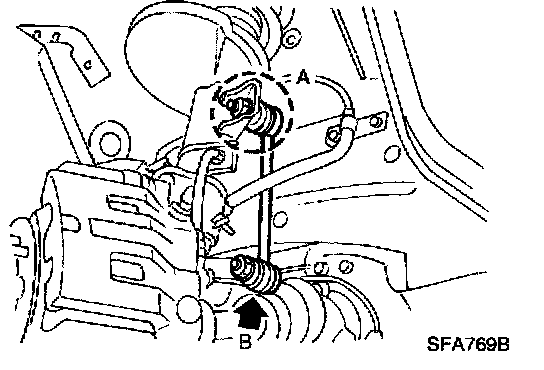

^ When removing and installing stabilizer bar fix portion A.

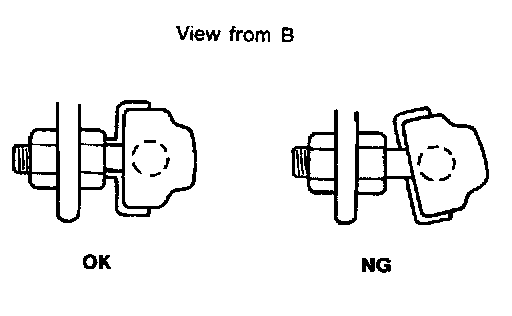

^ Install stabilizer bar with ball joint socket properly placed.

INSPECTION





^ Check stabilizer for deformation and cracks. Replace if necessary.
^ Check rubber bushings for deterioration and cracks. Replace if necessary.

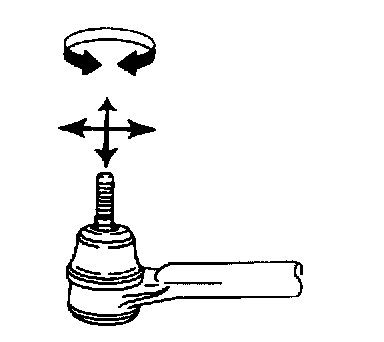

^ Check ball joint can rotate in all directions. If movement is not smooth and free, replace stabilizer bar connecting rod.
