Wheel Balance Adapter Kit

Wheel Balance Adapter Kit

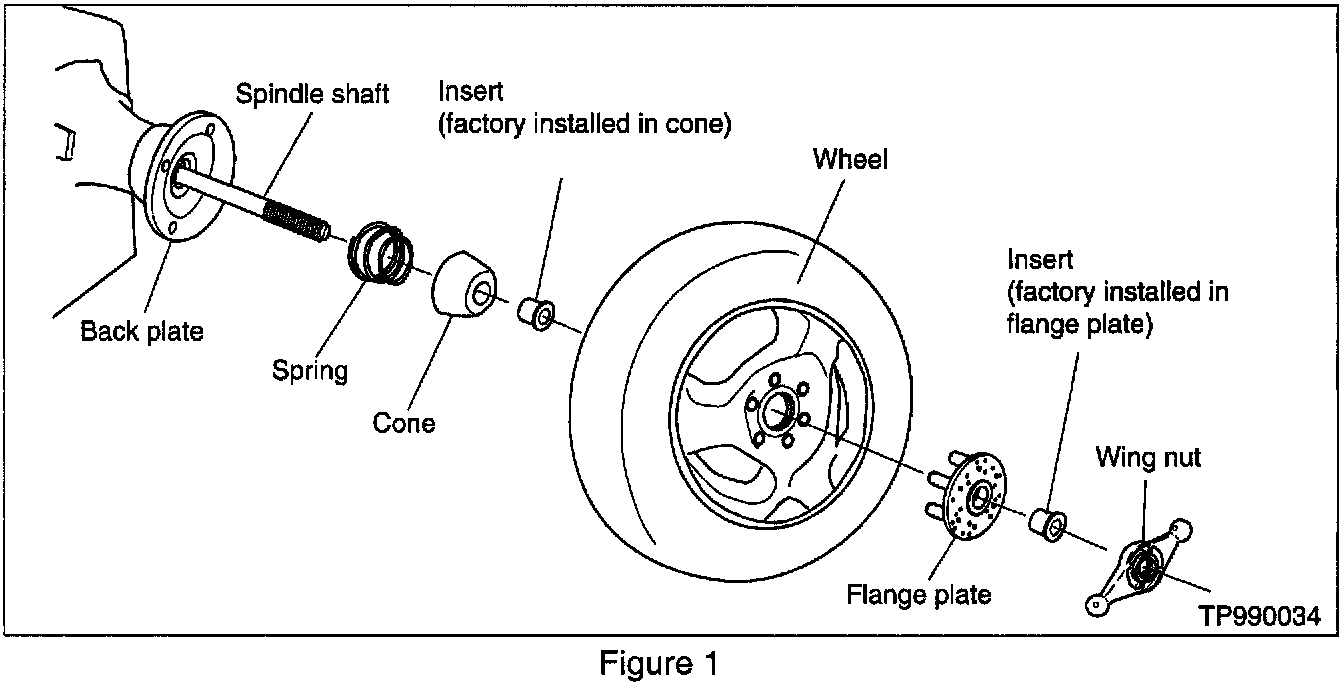

Figure 1:





Install the wheel balance adapter kit on the wheel and wheel balance machine in the order shown in the illustration.
