Replacement

REMOVAL

1. Set wheels in the straight ahead position.

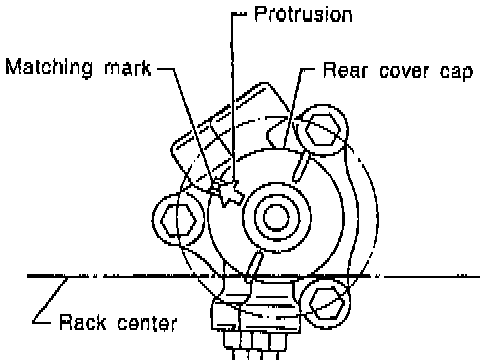

2. Straight forward position is indicated by a protrusion on the power steering gear rear cover cap and matching mark on the rear housing.





3. Remove steering column upper and lower joint from transfer gear.

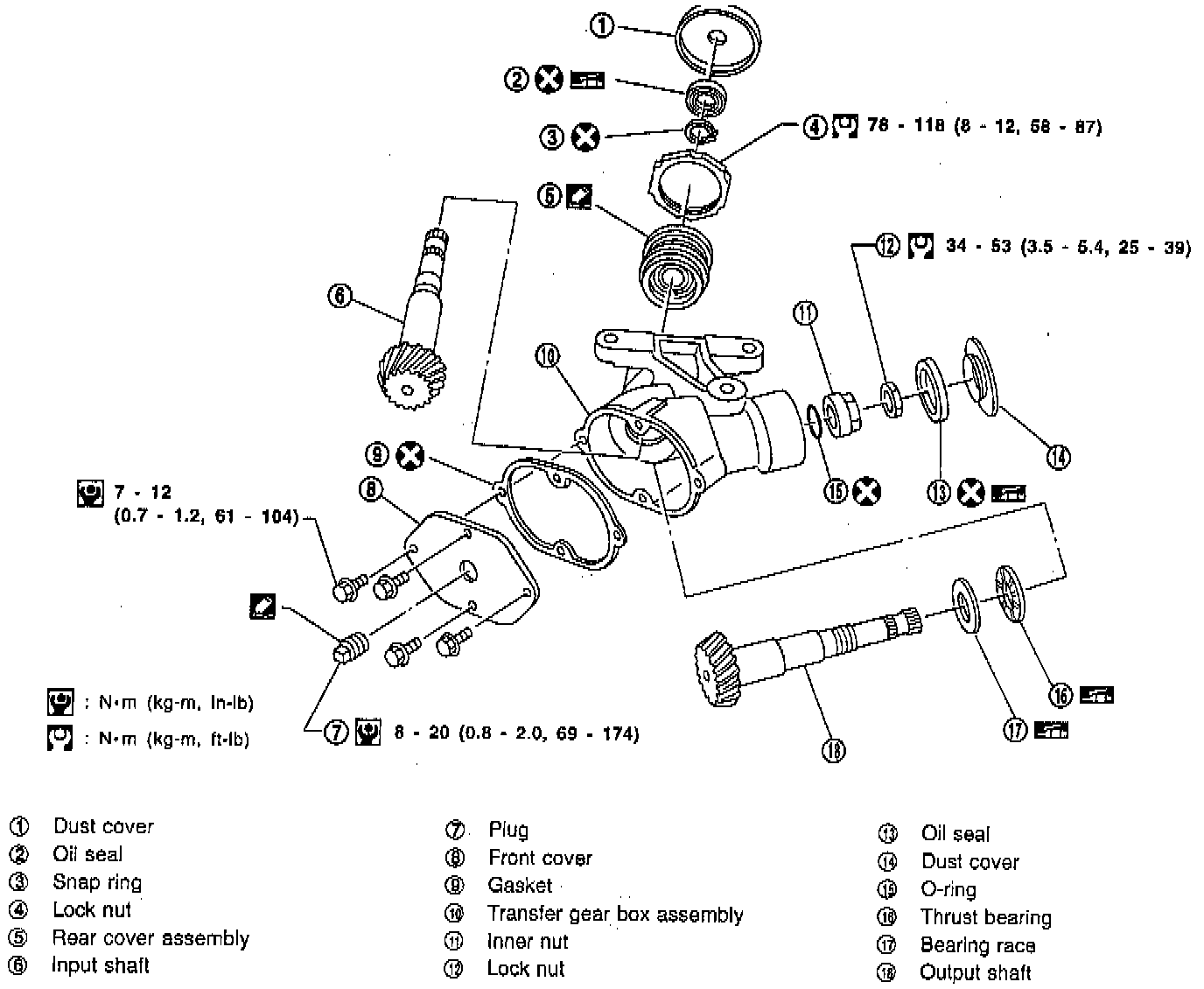

4. Remove transfer gear assembly.


INSTALLATION

1. Set wheels in the straight ahead position.

2. Install transfer gear assembly.





3. Install column lower joint while aligning groove with protrusions on the steering gear rear cover cap.

4. Tighten bolt while aligning groove on steering gear. Before tightening bolt, ensure it is inserted correctly.

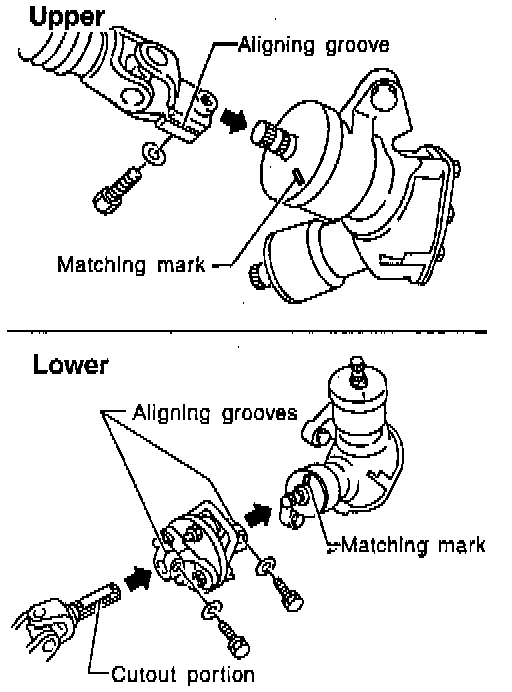

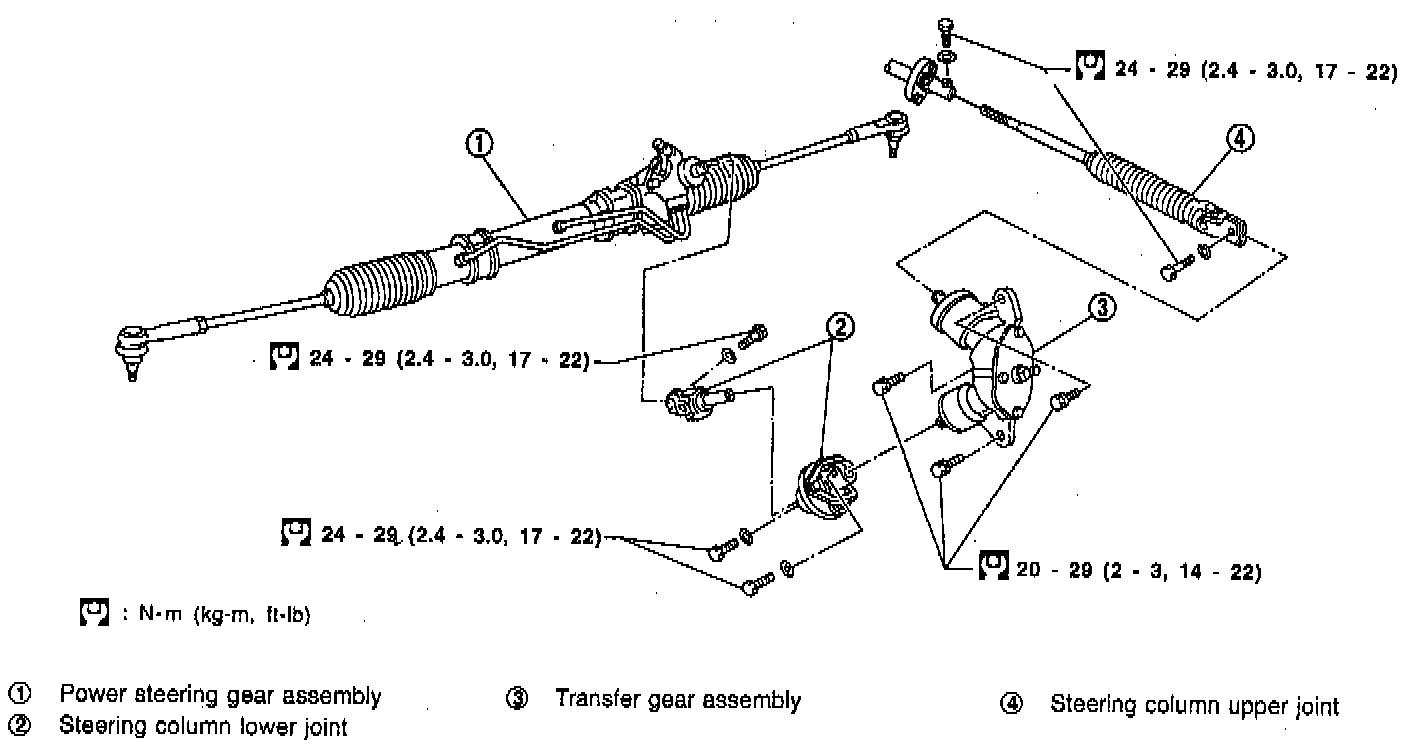

5. When attaching steering column upper and lower joint to transfer gear, it must be positioned as shown in figure.
