Steering Column: Specifications

DIMENSIONS

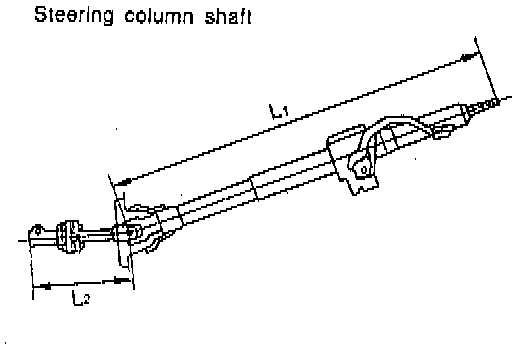

Shaft Length "L1": 700.3 - 704.3 mm (27.57 - 27.73 inch)
Lower Shaft Length "L2": 178 - 180 mm (7.01 - 7.09 inch)

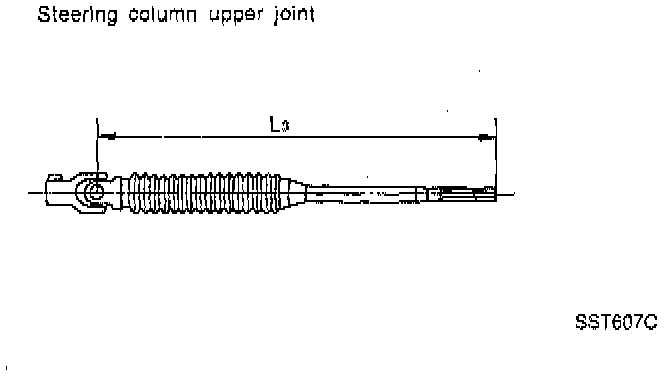

Upper Shaft Length "L3": 430.7 - 432.7 mm (16.96 - 17.04 inch)

TIGHTENING SPECIFICATIONS
Column To Mount Brackets: 13 - 18 Nm (108 - 156 inch lbs.)
Lock Nut: 25 - 34 Nm (18 - 25 ft. lbs.)
Column Lower Joint To Steering Gear: 24 - 29 Nm (17 - 22 ft. lbs.)
Column Lower Joint To Transfer Gear: 24 - 29 Nm (17 - 22 ft. lbs.)
Mounting To Firewall: 9 - 12 Nm (78 - 104 inch lbs.)
