Nissan-Datsun Truck
>>
1999
>>
Pathfinder XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
To VIN # 350000
>>

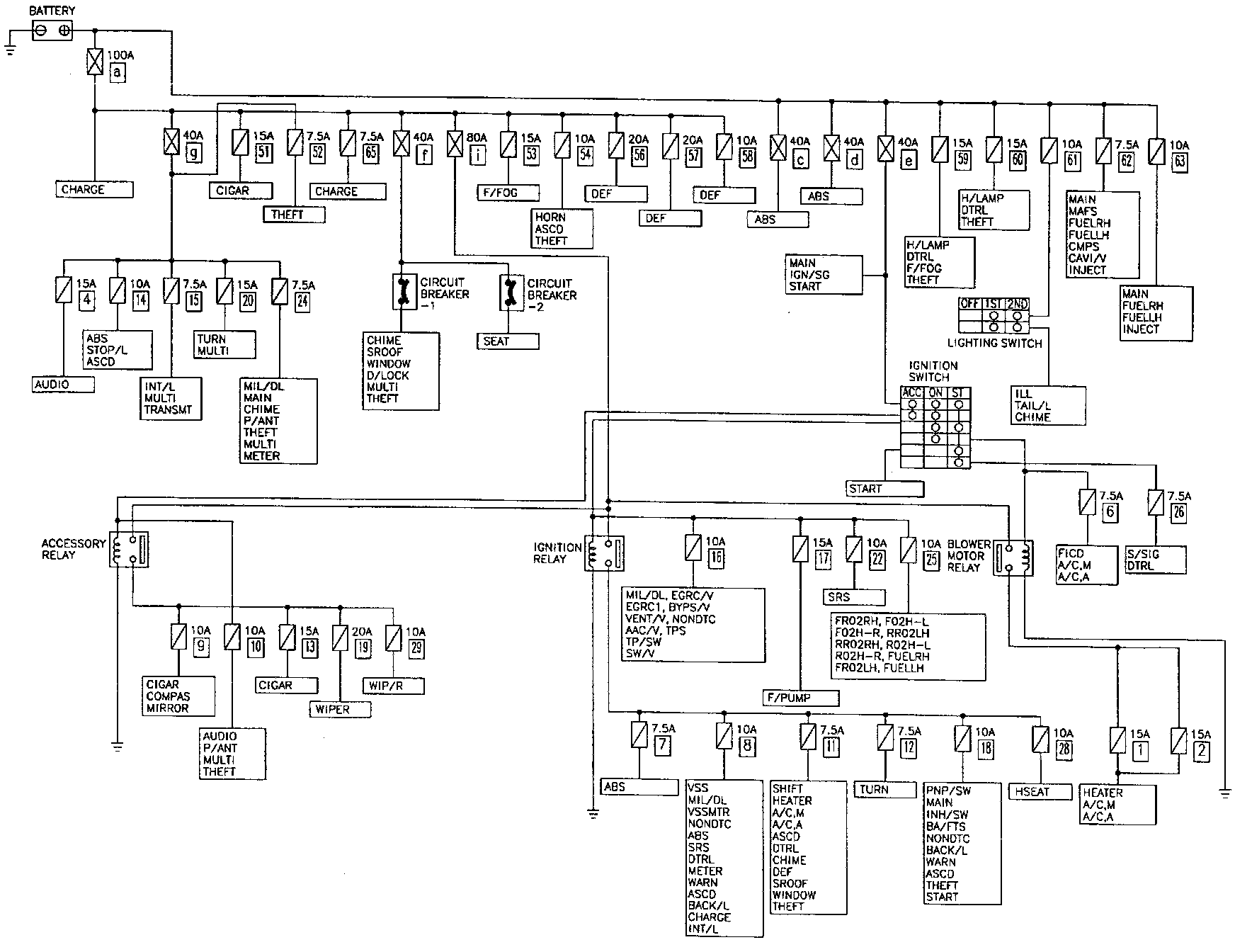

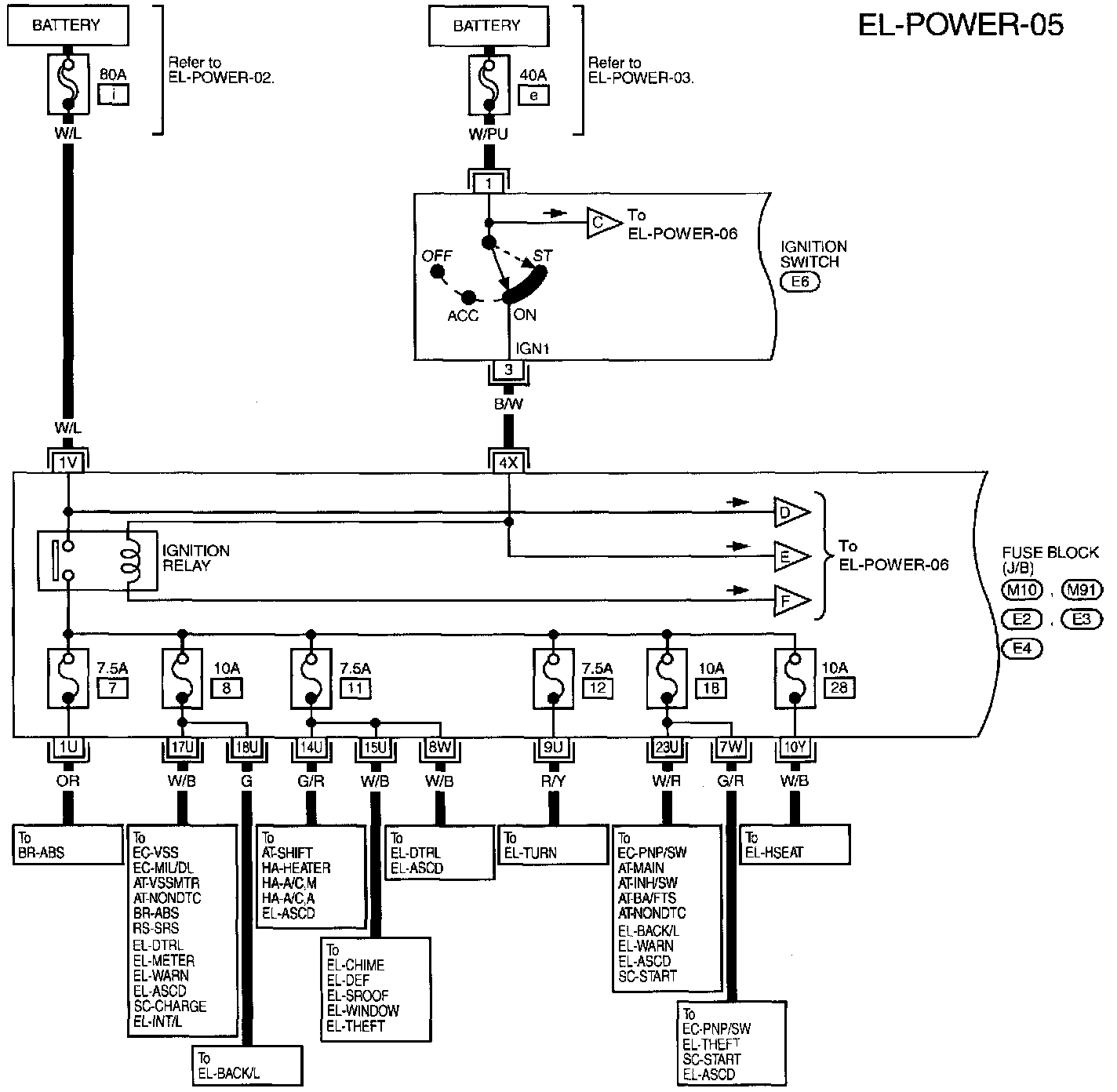

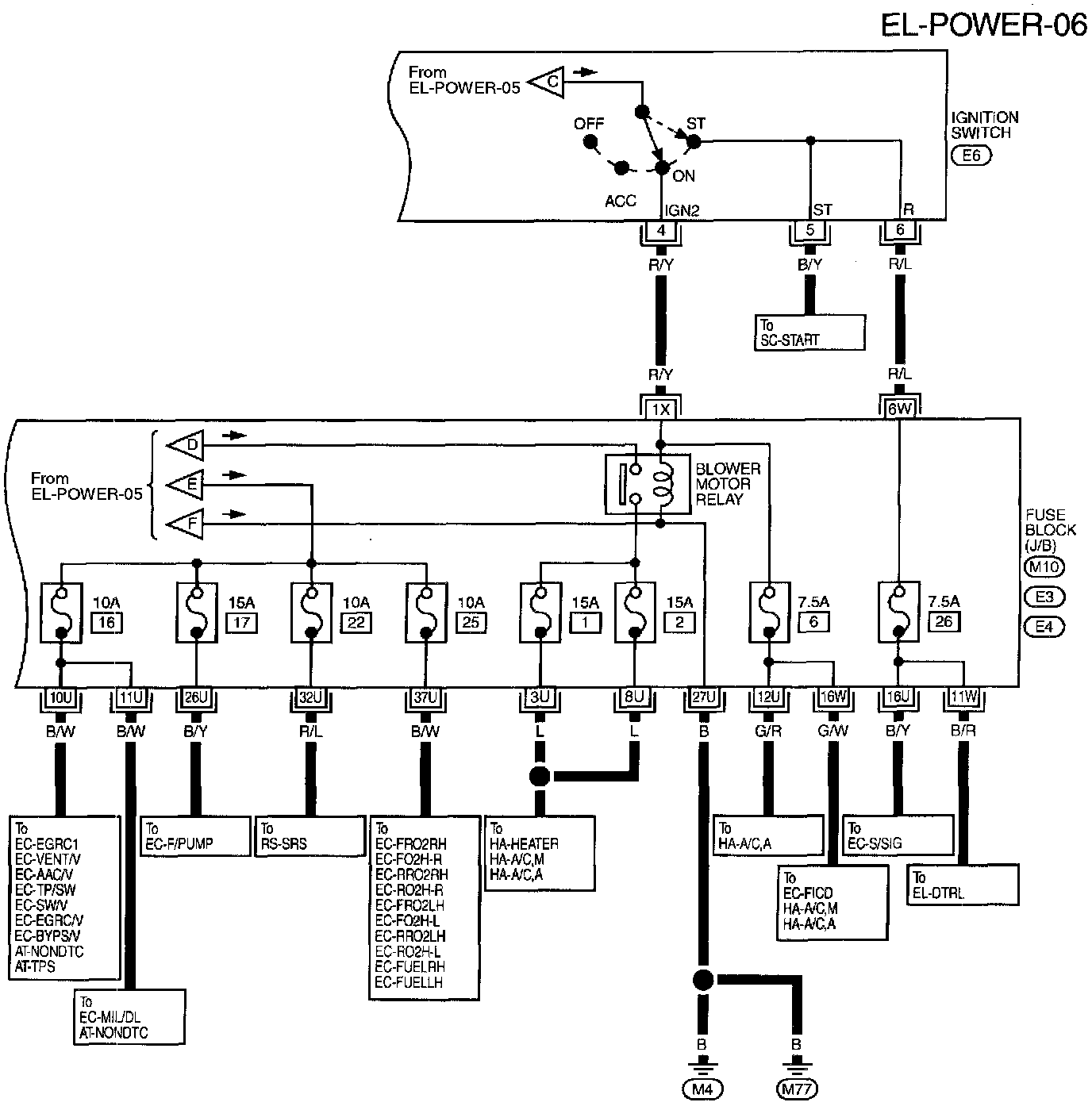

Ignition Power Supply - Ignition Switch In "ON" and /or "START"
Ignition Power Supply - Ignition Switch In "ON" and /or "START"
Schematic
Circuit Diagrams
Circuit Connectors
E2, E3, E4, M10, M91 Terminal Arrangement
