To VIN # 350000
>>

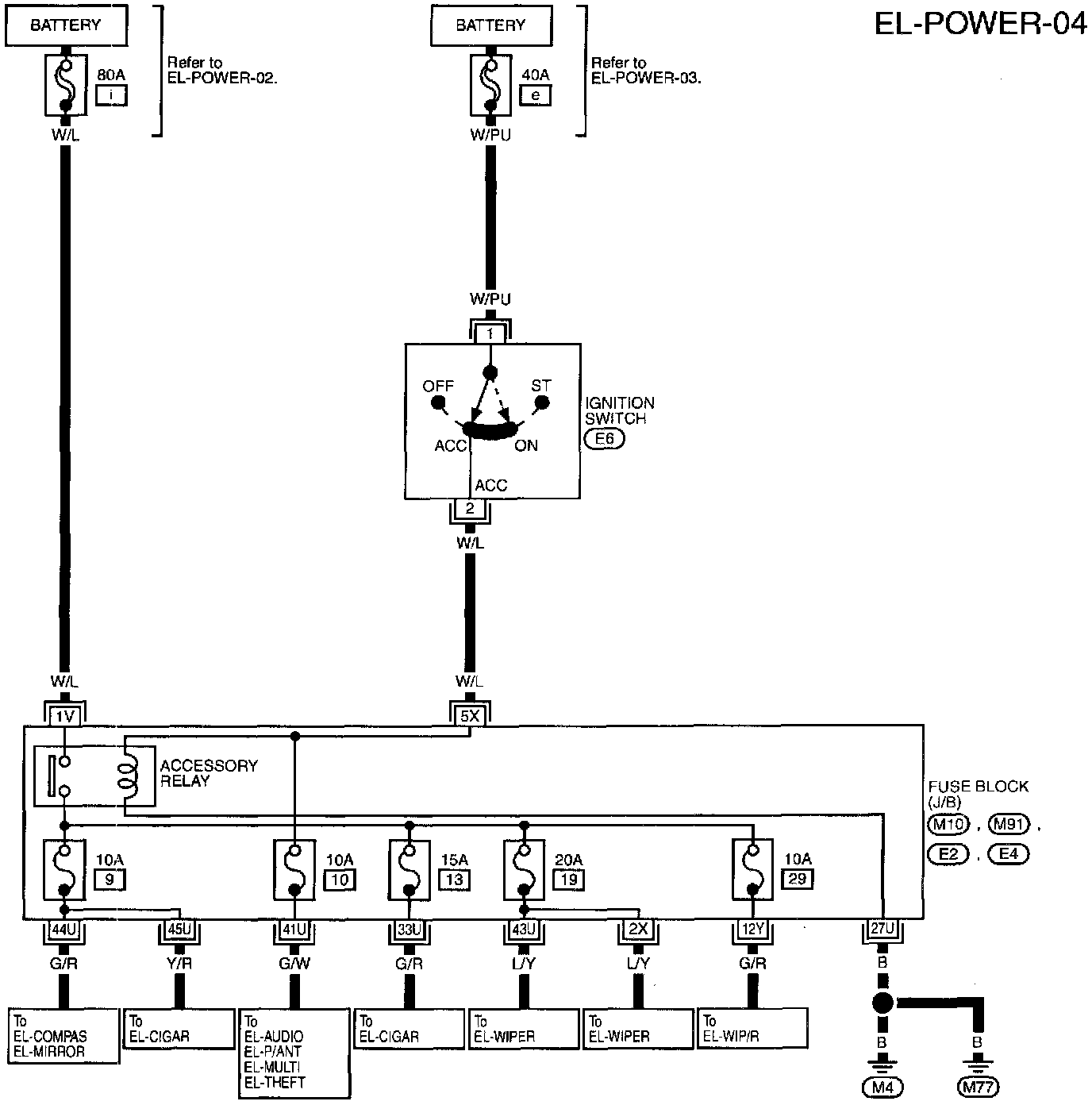

Accessory Power Supply - Ignition Switch In "ACC" & "ON"
Accessory Power Supply - Ignition Switch In "ACC" & "ON"
Schematic
Circuit Diagrams
Circuit Connectors

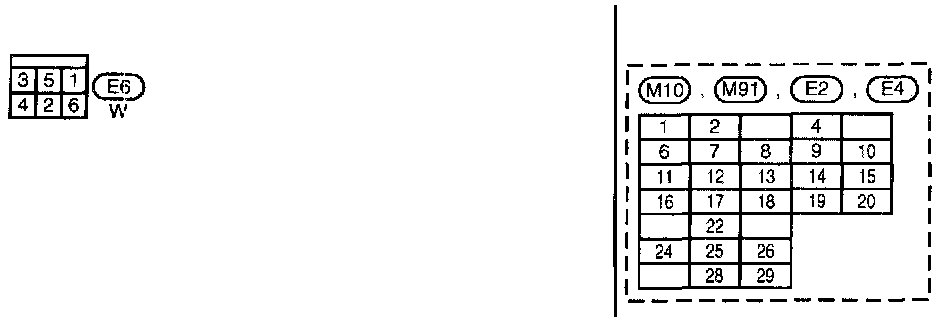

E2, E4, M10, M91 Terminal Arrangement
