Circuit Breaker: Diagrams

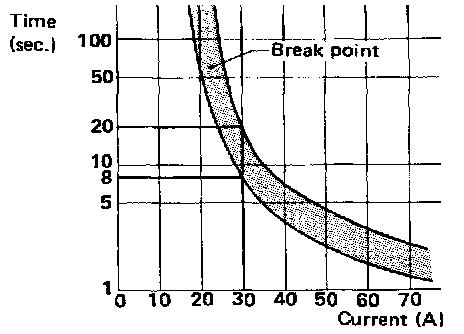

For example, when current is 30 A, the circuit is broken within 8 to 20 seconds.
Circuit breakers are used in the following systems.
- Warning chime
- Power window & power door lock
- Power Sunroof
- Power seat
- Multi-remote control system
- Theft warning system
