To VIN # 350000

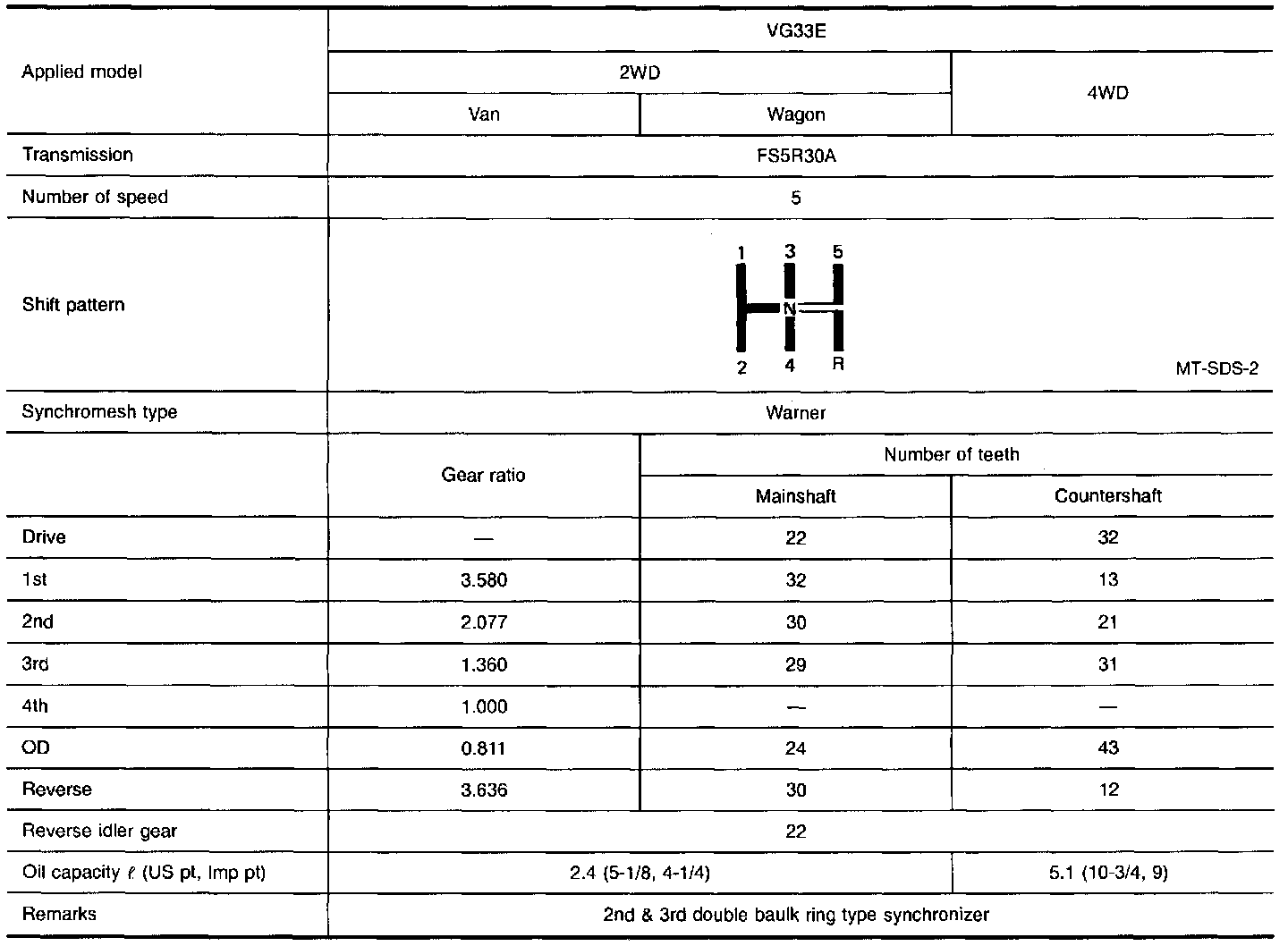

GENERAL SPECIFICATIONS

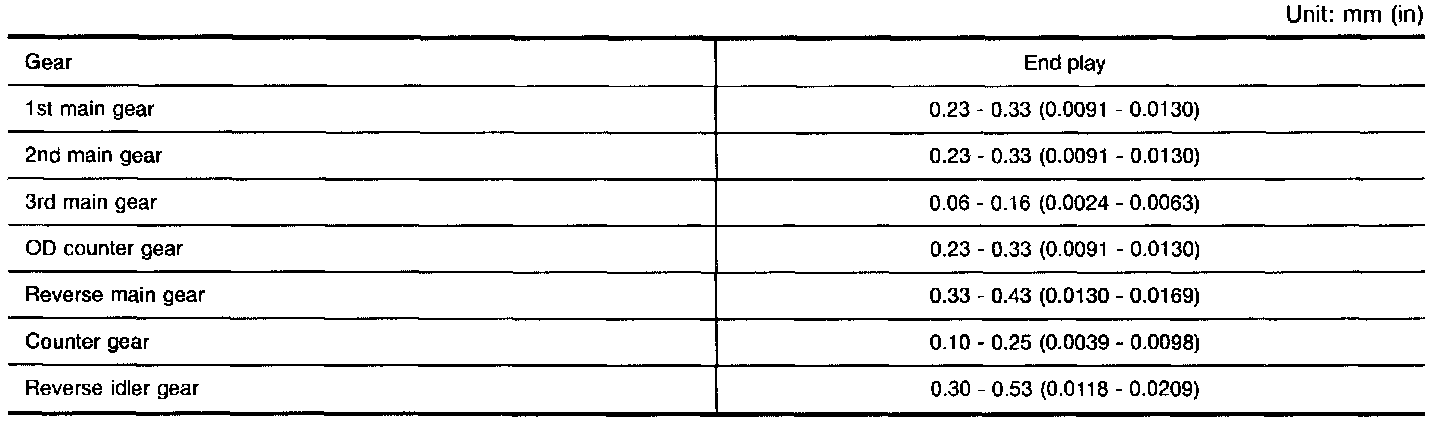

GEAR END PLAY

AVAILABLE SNAP RING

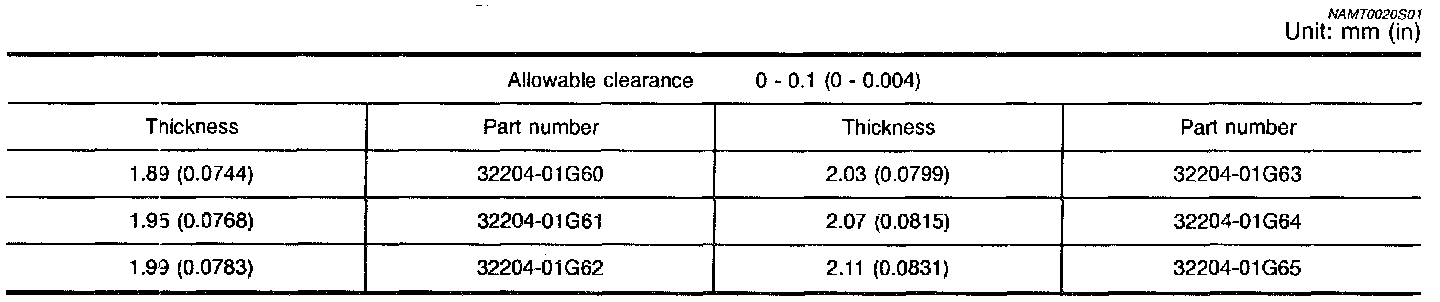

MAIN DRIVE GEAR SNAP RING

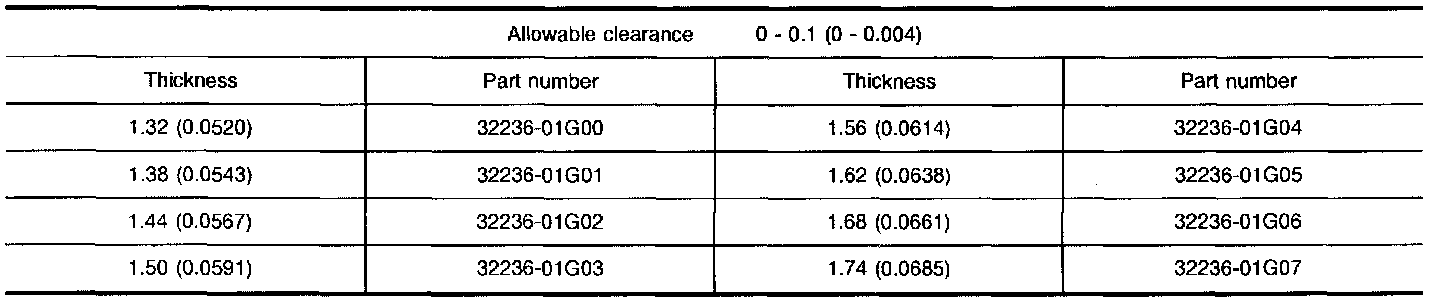

COUNTER GEAR SNAP RING

AVAILABLE SHIM AND WASHER





TABLE FOR PROPER COUNTER GEAR FRONT BEARING THRUST WASHER

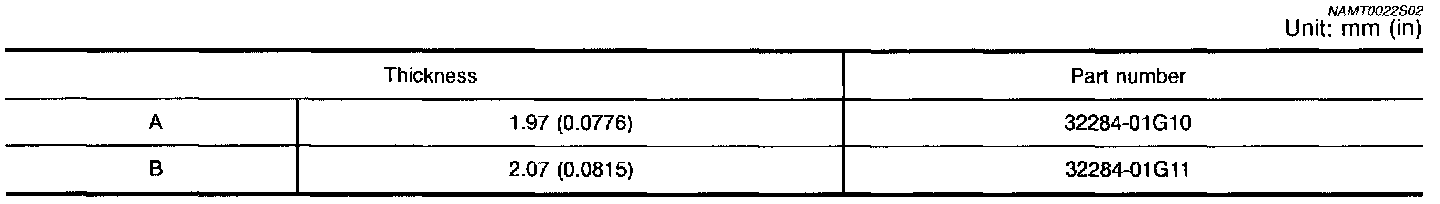

REVERSE IDLER REAR THRUST WASHER
