Synchronizer Ring, M/T

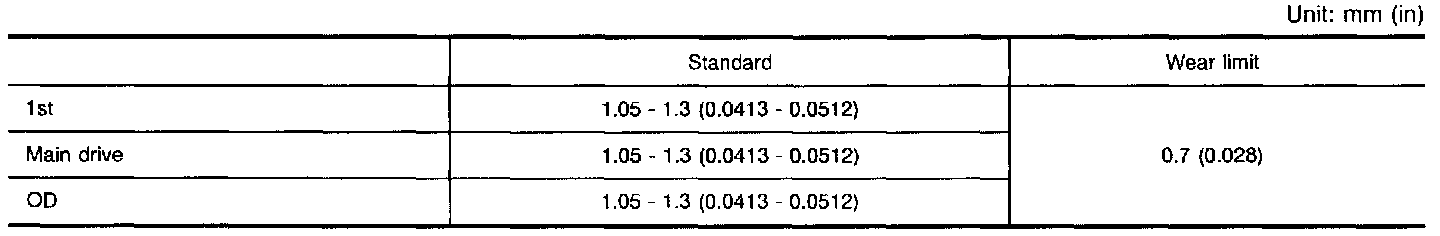

CLEARANCE BETWEEN BAULK RING AND GEAR

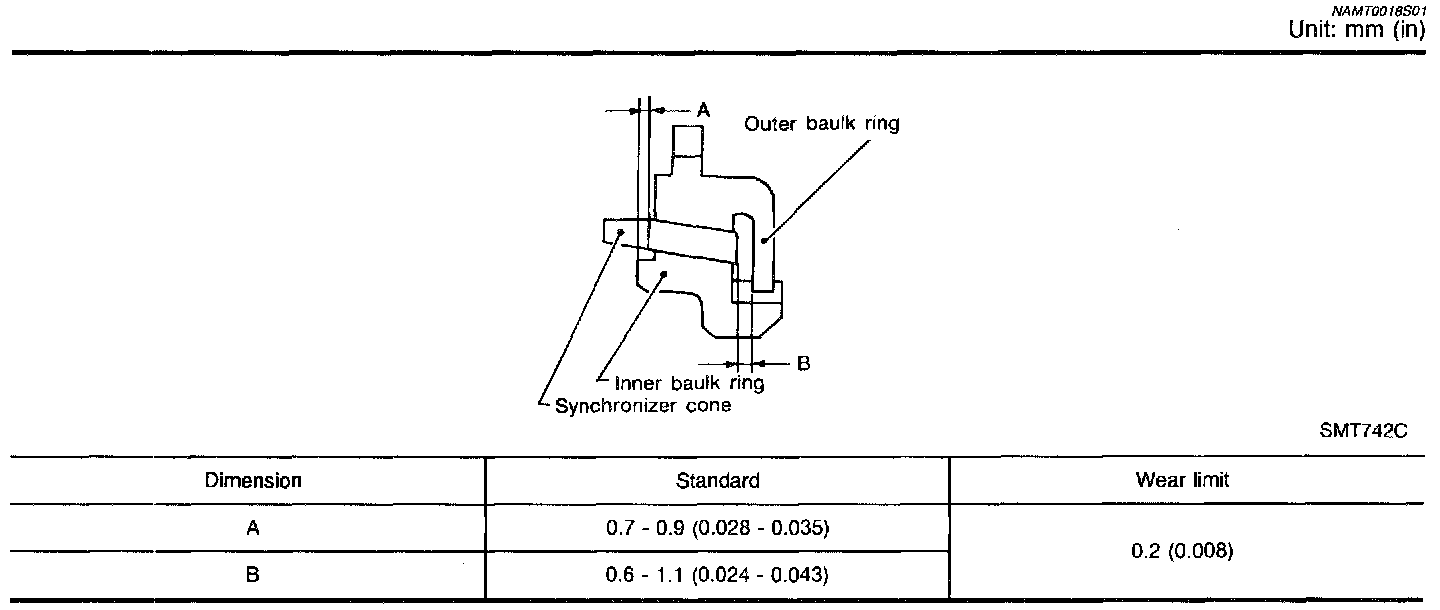

2ND AND 3RD BAULK RING

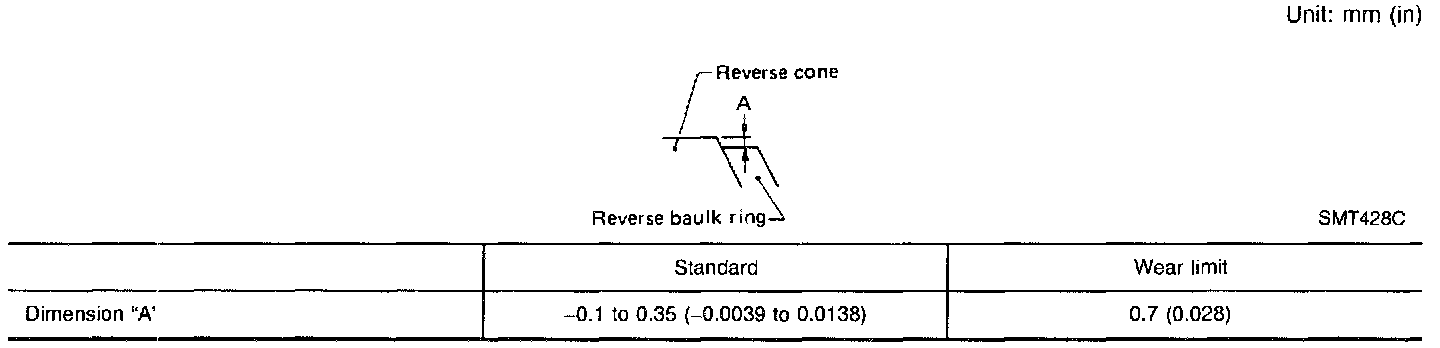

DISTANCE BETWEEN REAR SURFACE REVERSE CONE/REVERSE BAULK RING
