To VIN # 350000




Cylinder Head

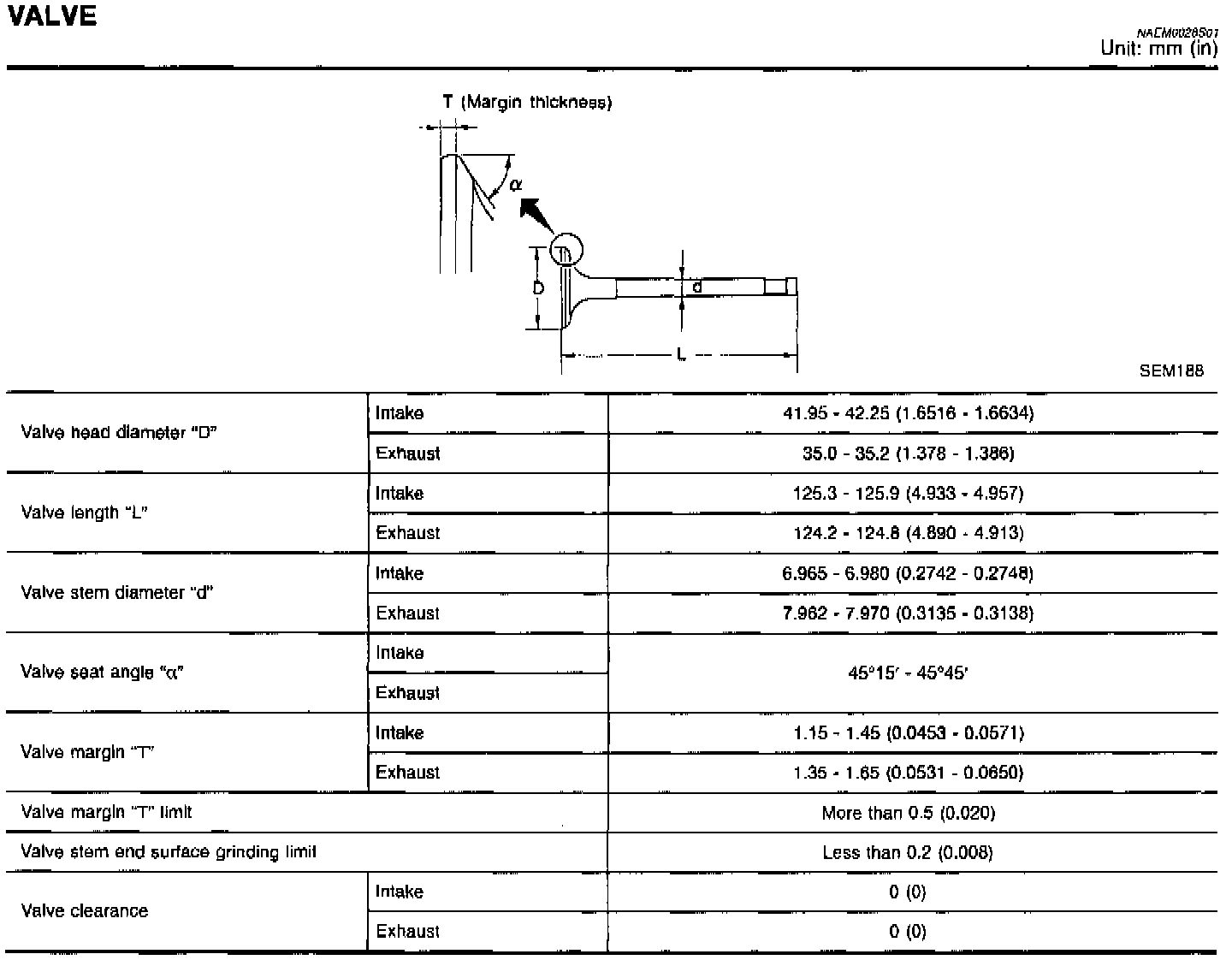

Valve

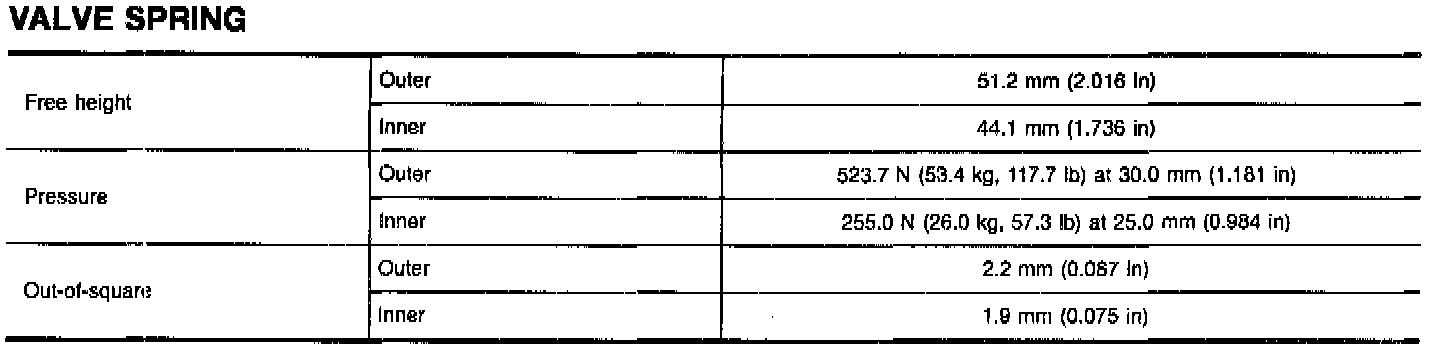

Valve Spring

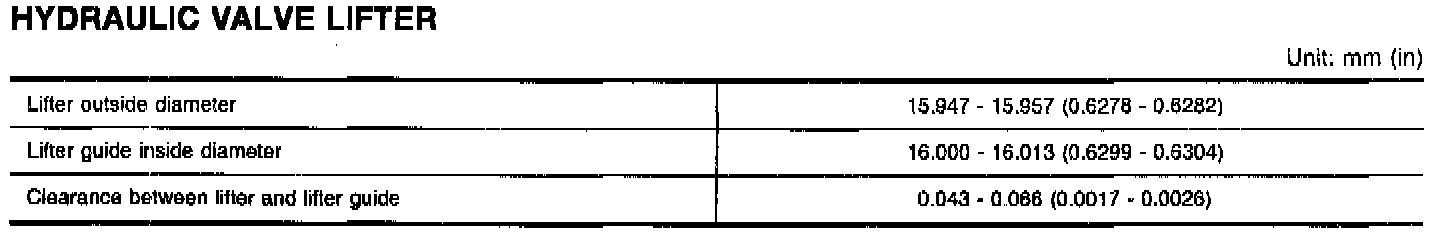

Hydraulic Valve Lifter

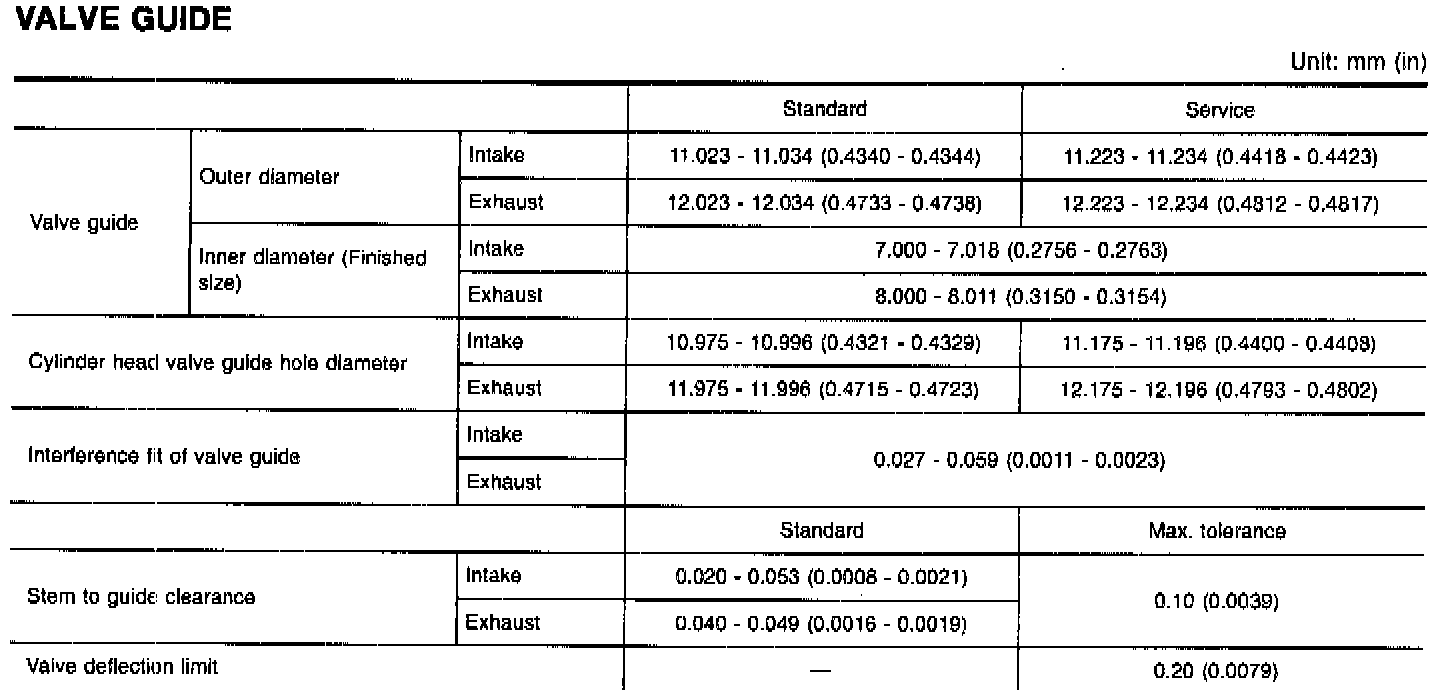

Valve Guide

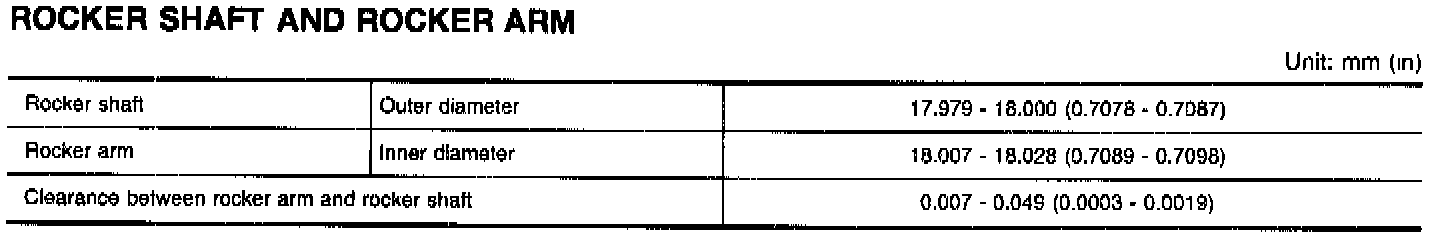

Rocker Arm Shaft

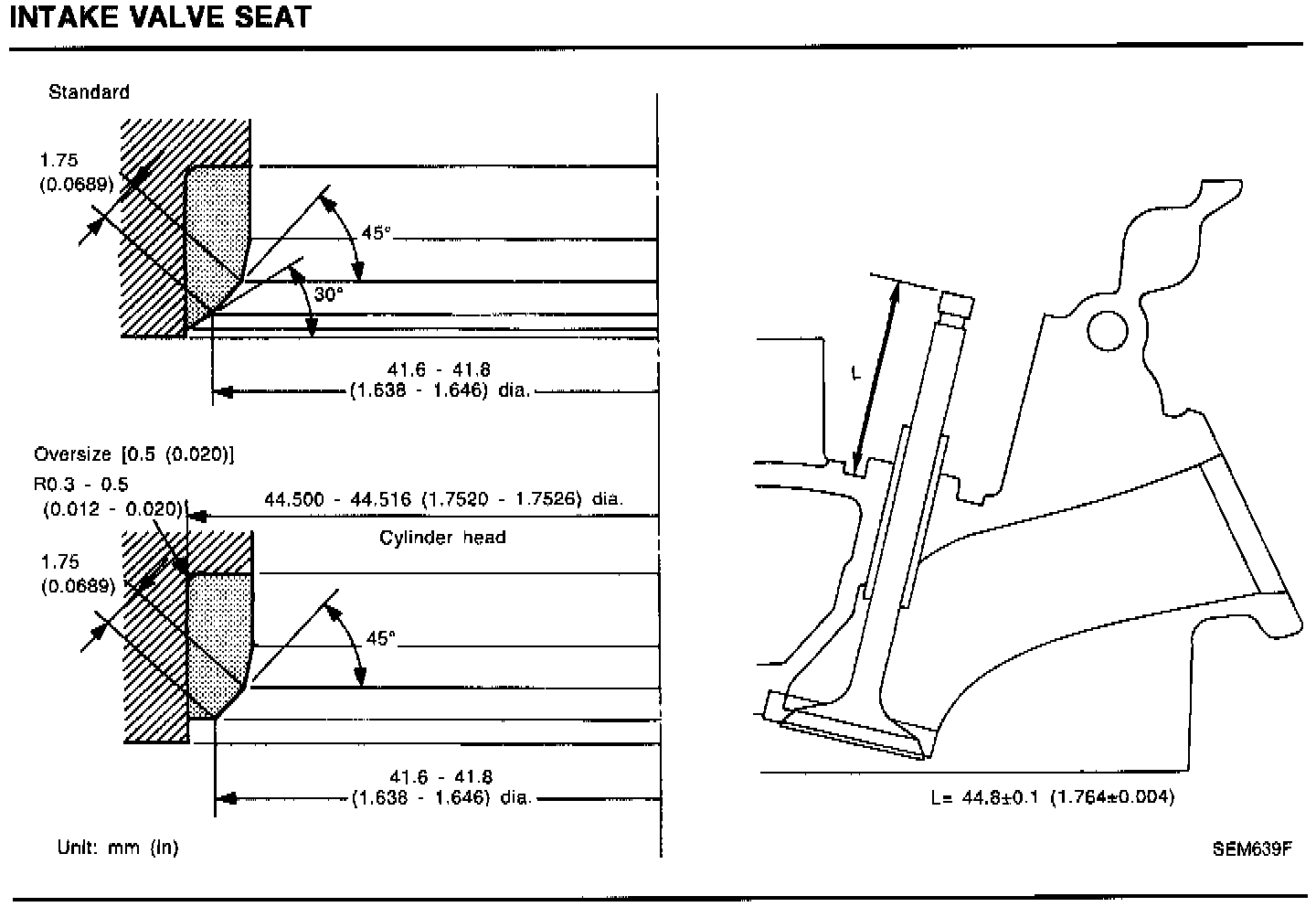

Intake Valve Seat

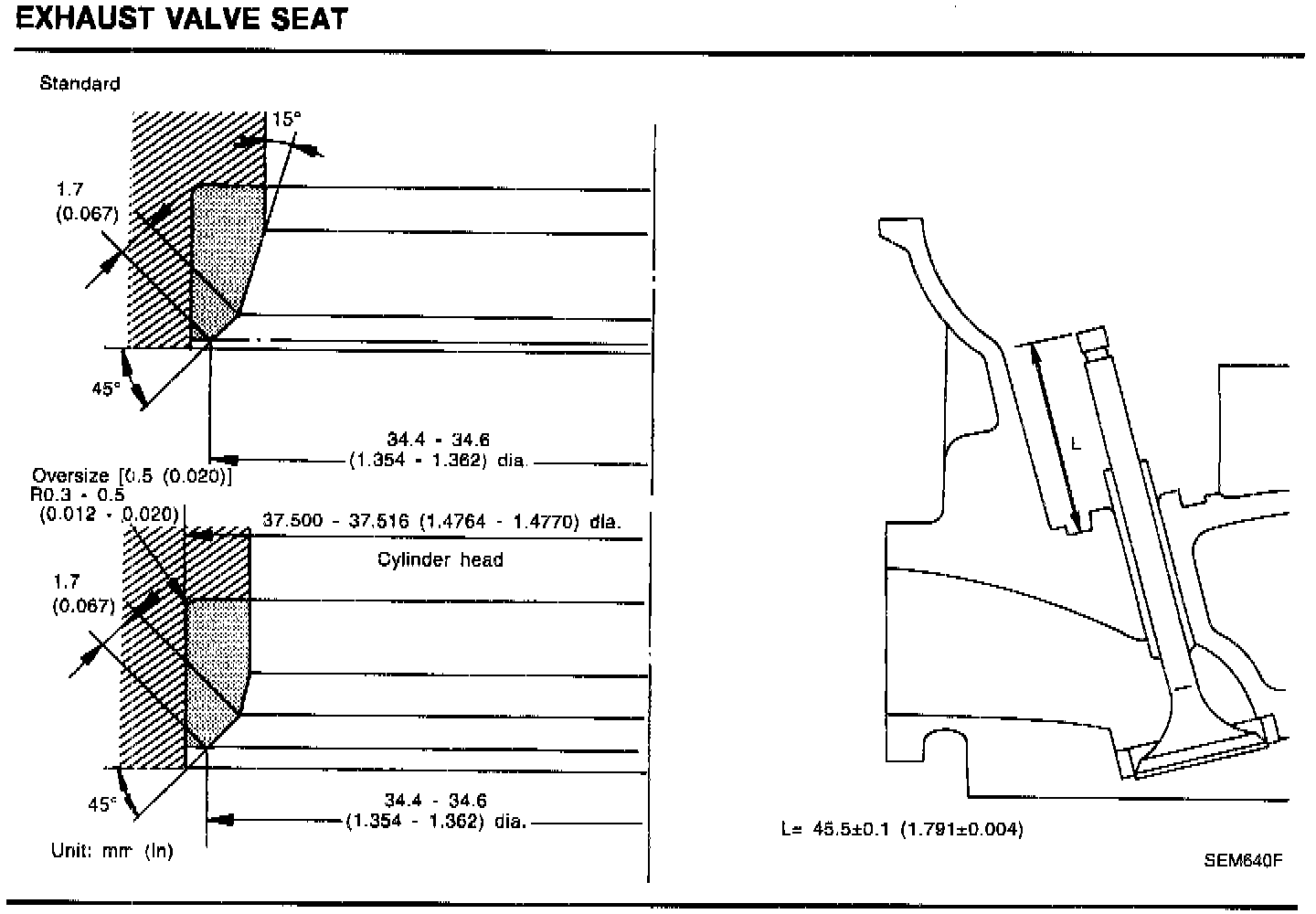

Exhaust Valve Seat

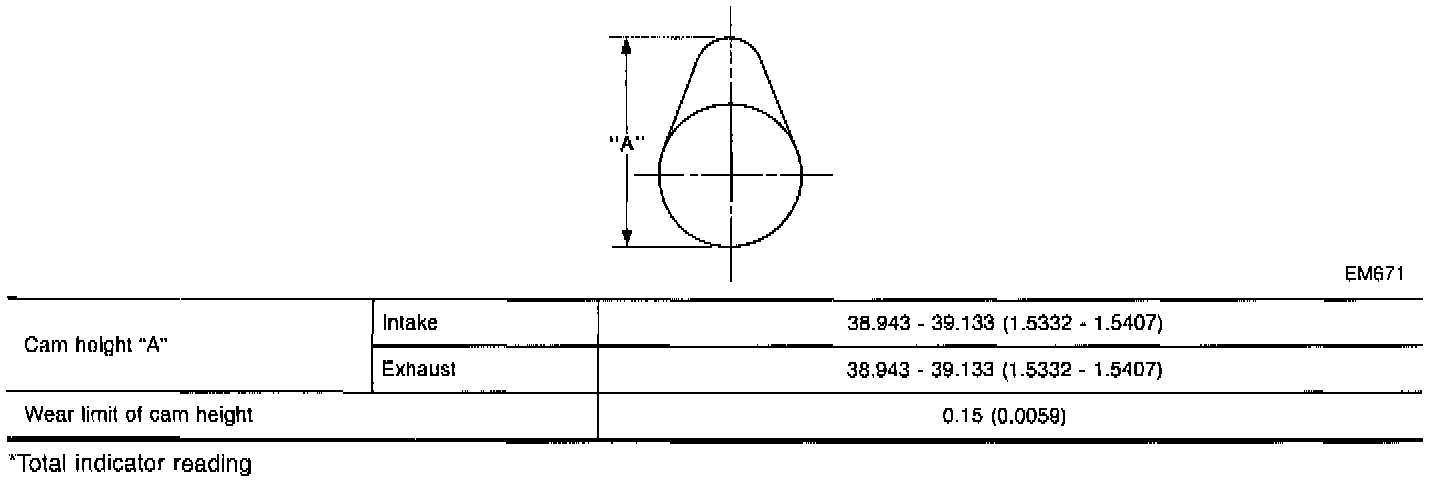

Camshaft and Camshaft Bearing




Cylinder Block

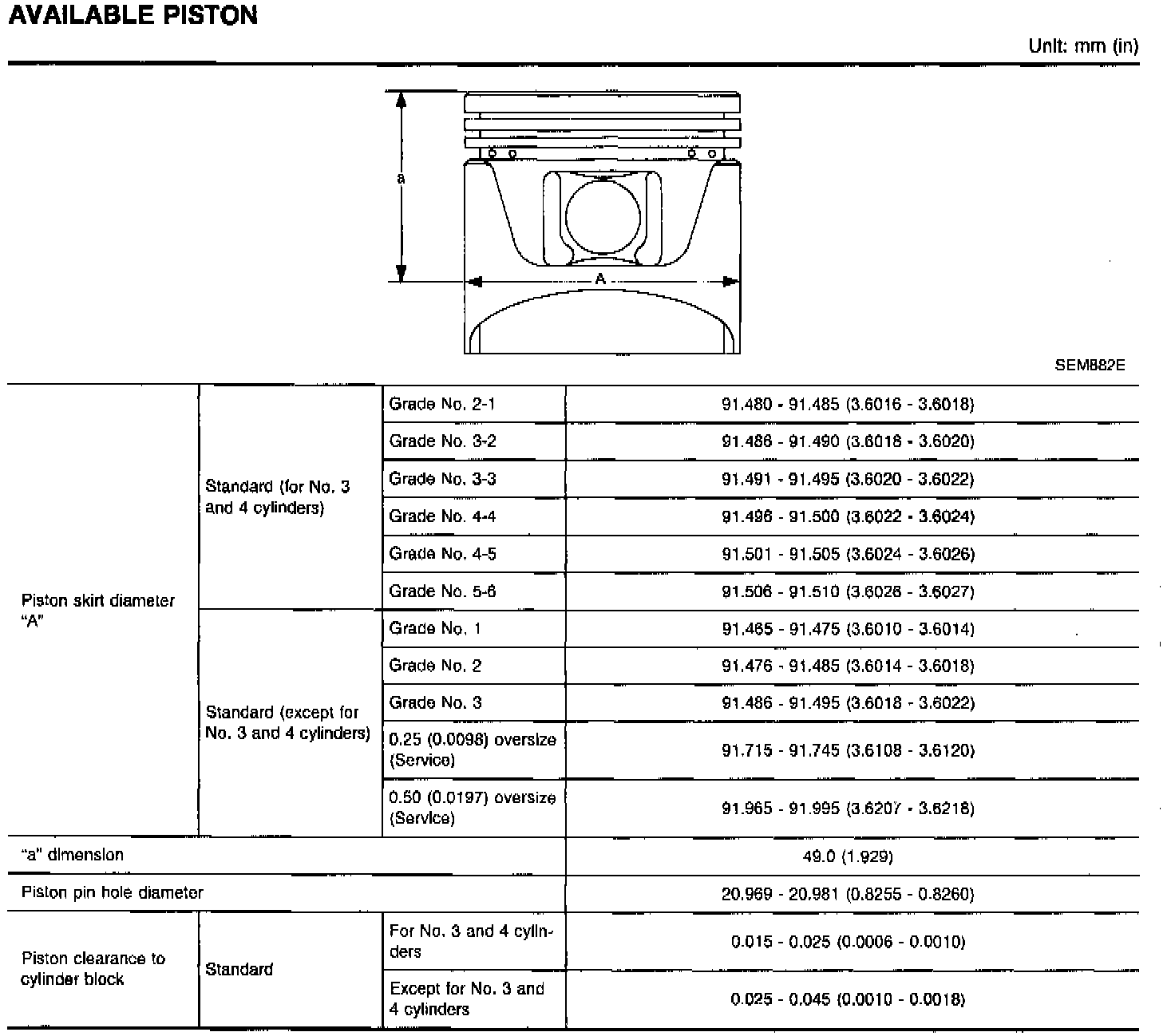

Available Piston

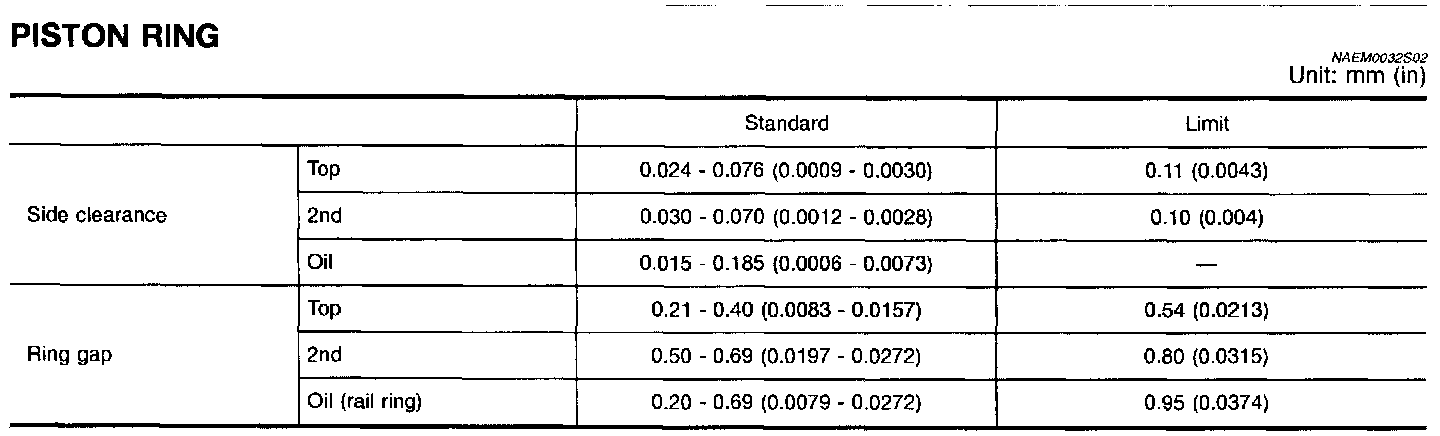

Piston Ring

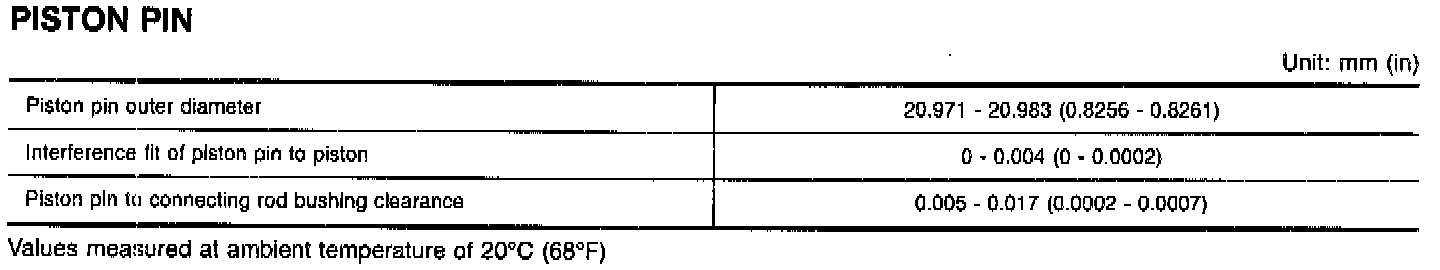

Piston Pin

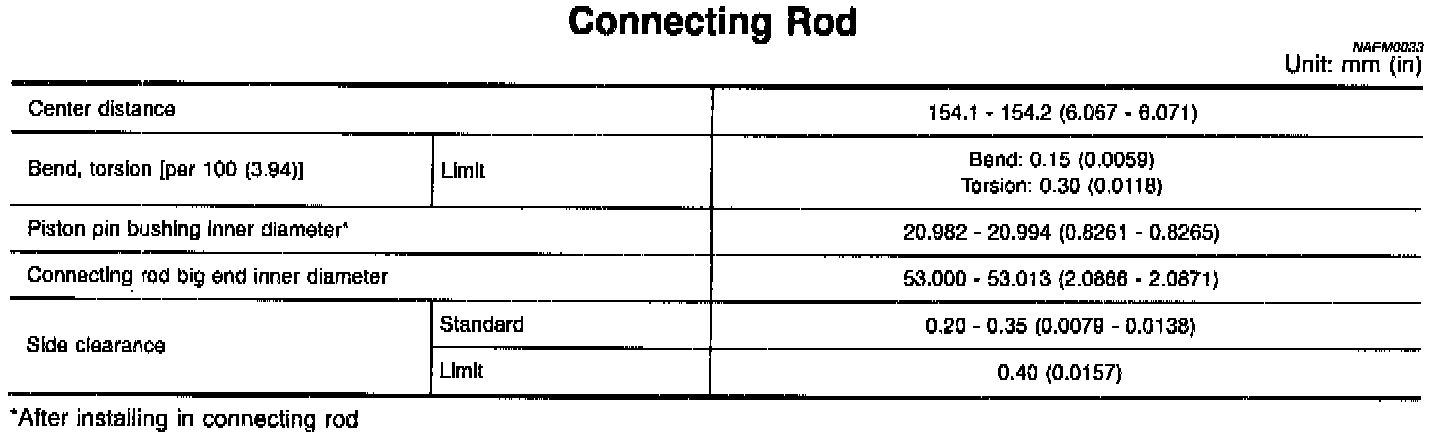

Connecting Rod

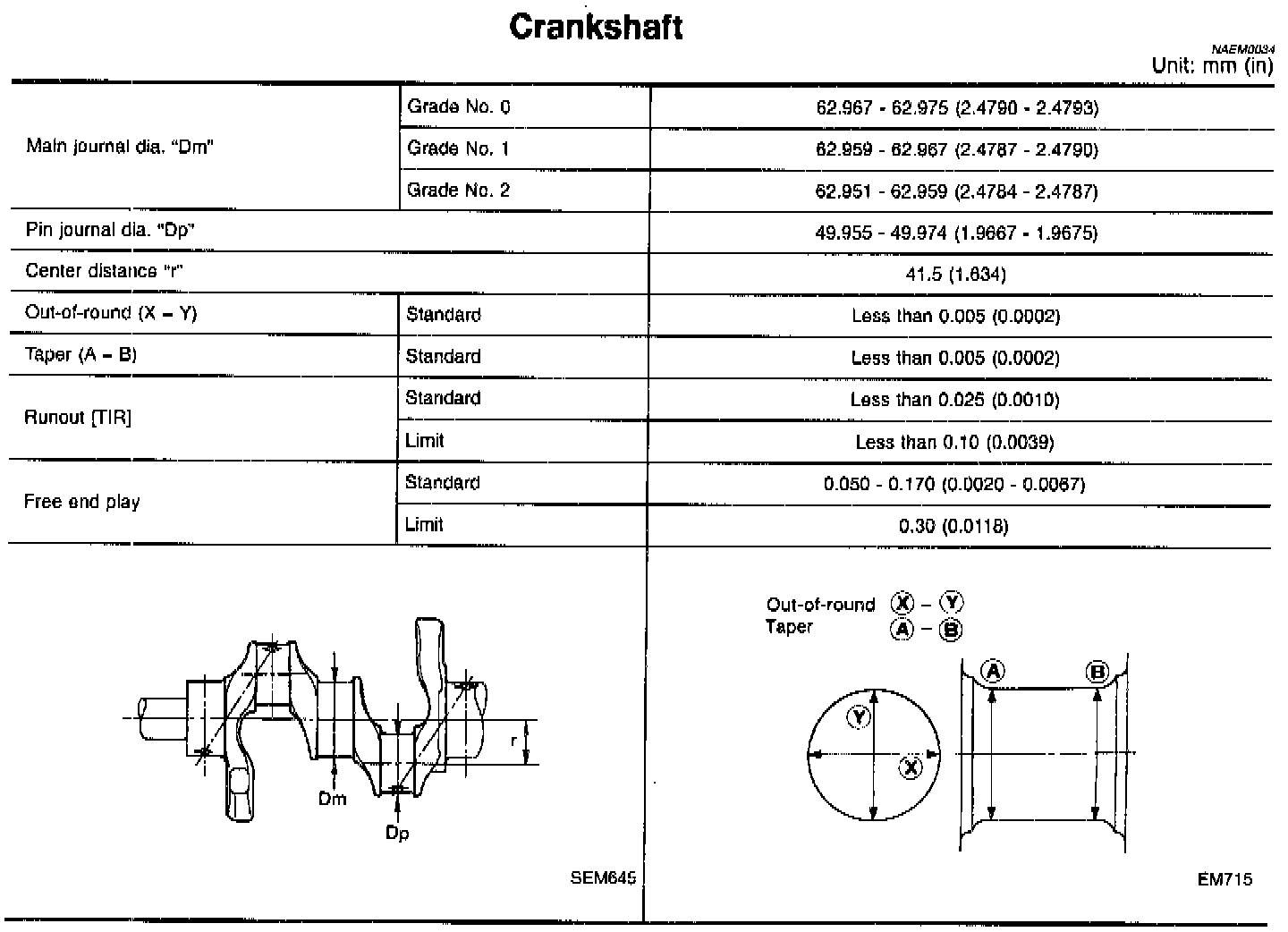

Crankshaft

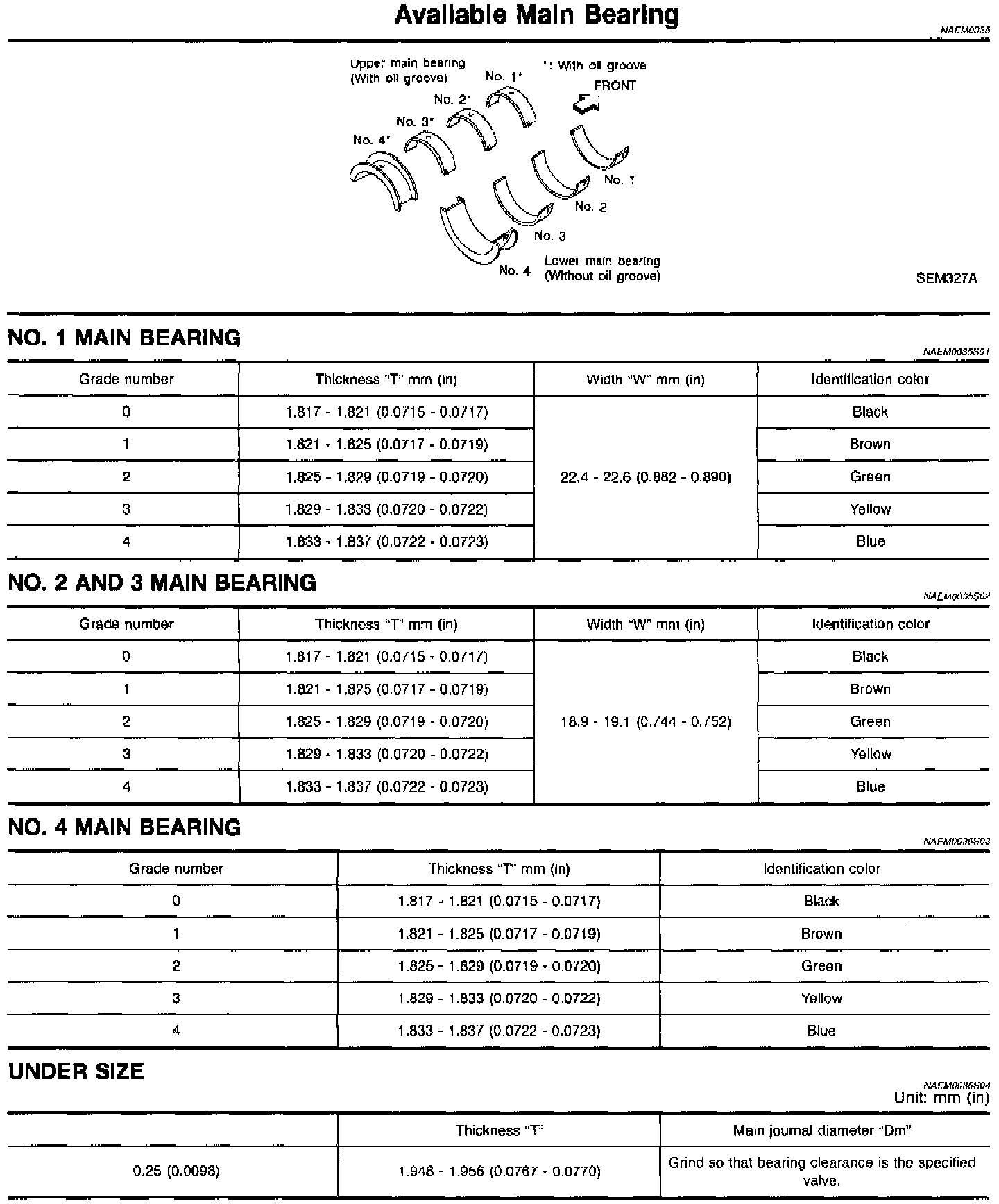

Available Main Bearing




Connecting Rod Bearing Undersize

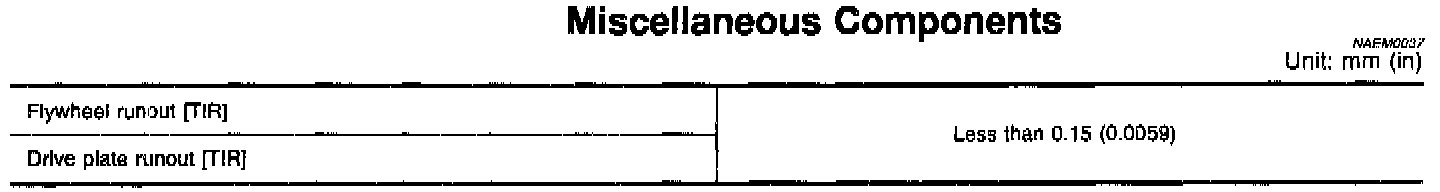

Miscellaneous Components




Bearing Clearance
