Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive/Propeller Shafts, Bearings and Joints >> From VIN # 350001

From VIN # 350001

Service Data and Specifications

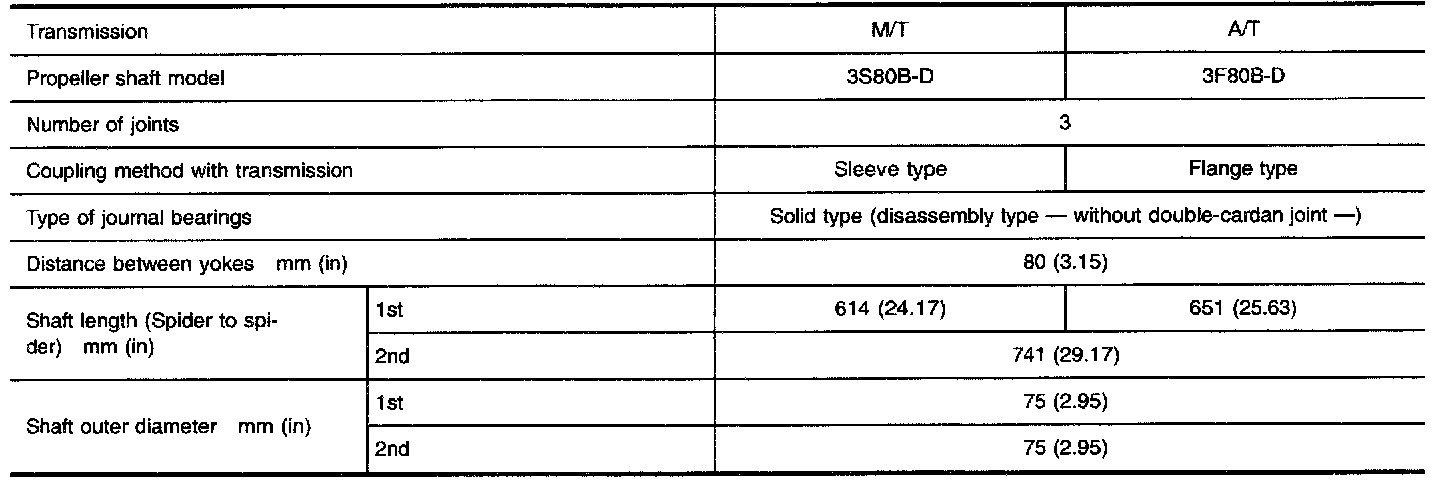

GENERAL SPECIFICATIONS





2WD Model

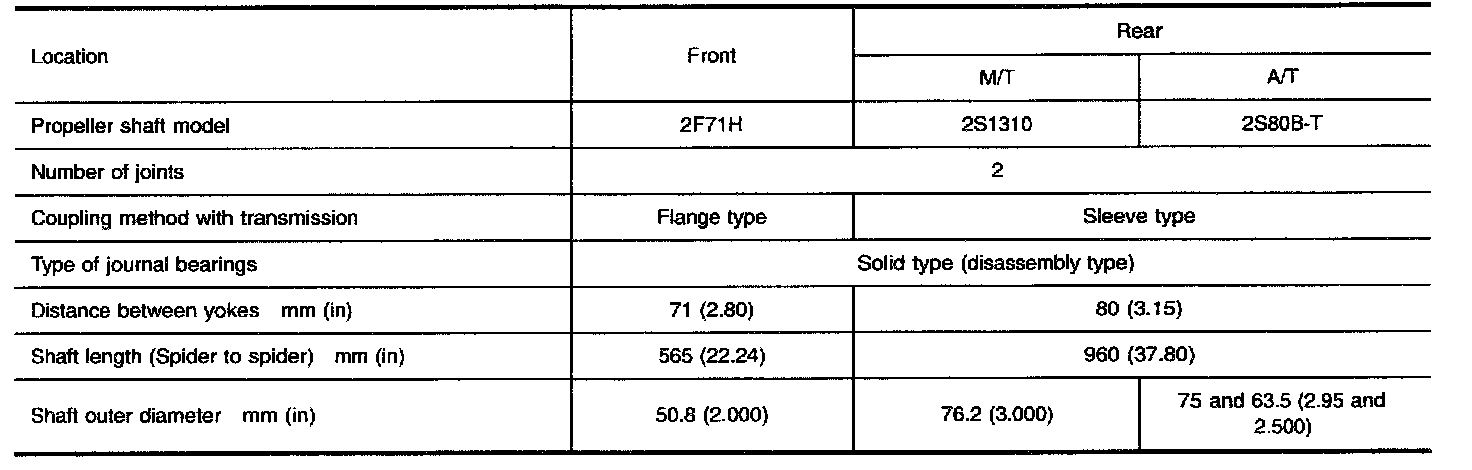

4WD Model

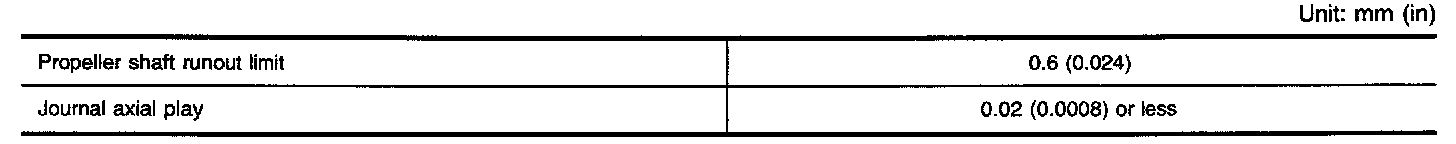

SERVICE DATA

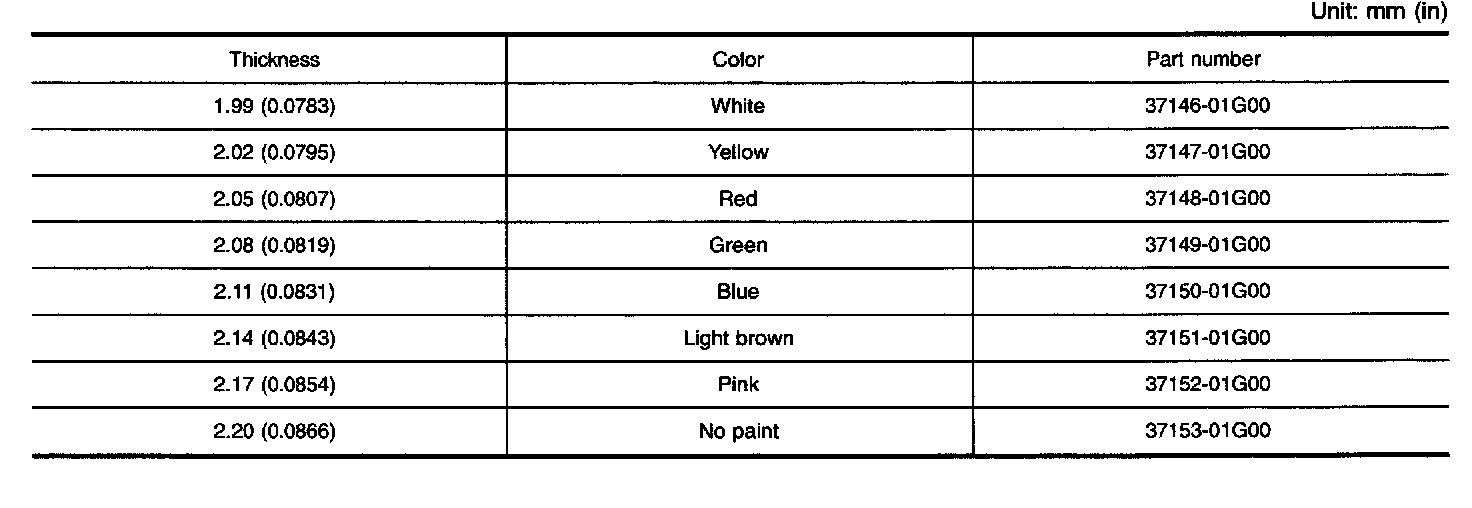

SNAP RING (80B)

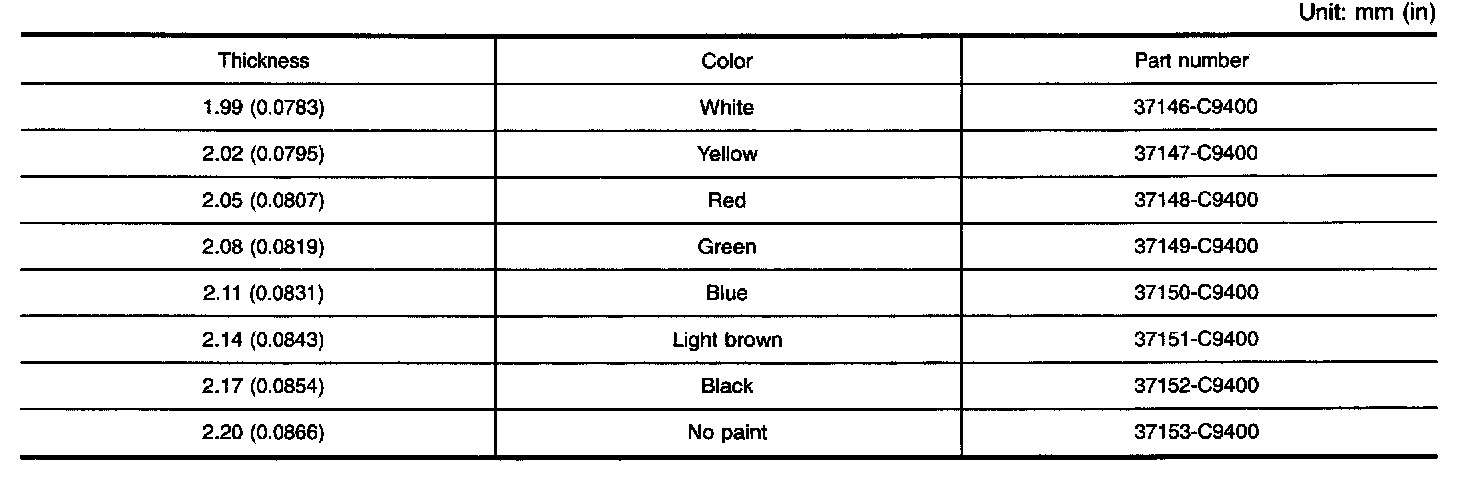

SNAP RING (71H)
