Fuel Temperature Sensor: Testing and Inspection








TANK FUEL TEMPERATURE SENSOR

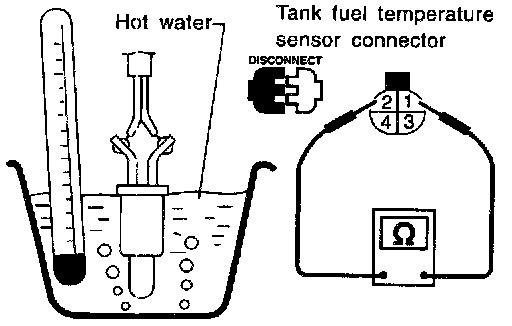

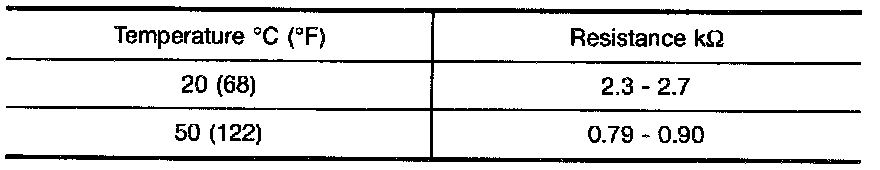

Check resistance by heating with hot water or heat gun as shown in the figure.
If NG, replace tank fuel temperature sensor.
