To VIN # 350000









CLOSED THROTTLE POSITION SWITCH
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF".

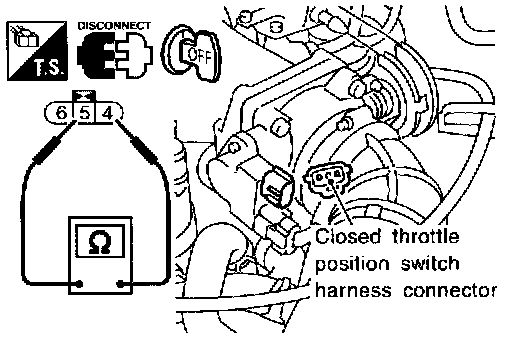

3. Disconnect throttle position switch harness connector.

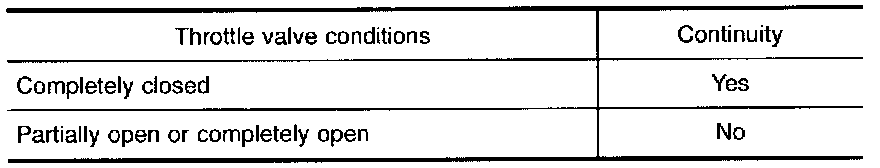

4. Check continuity between terminals 5 and 4 while opening throttle valve manually.
