Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Crankshaft Position Sensor >> Diagrams >> Electrical Diagrams

Electrical Diagrams

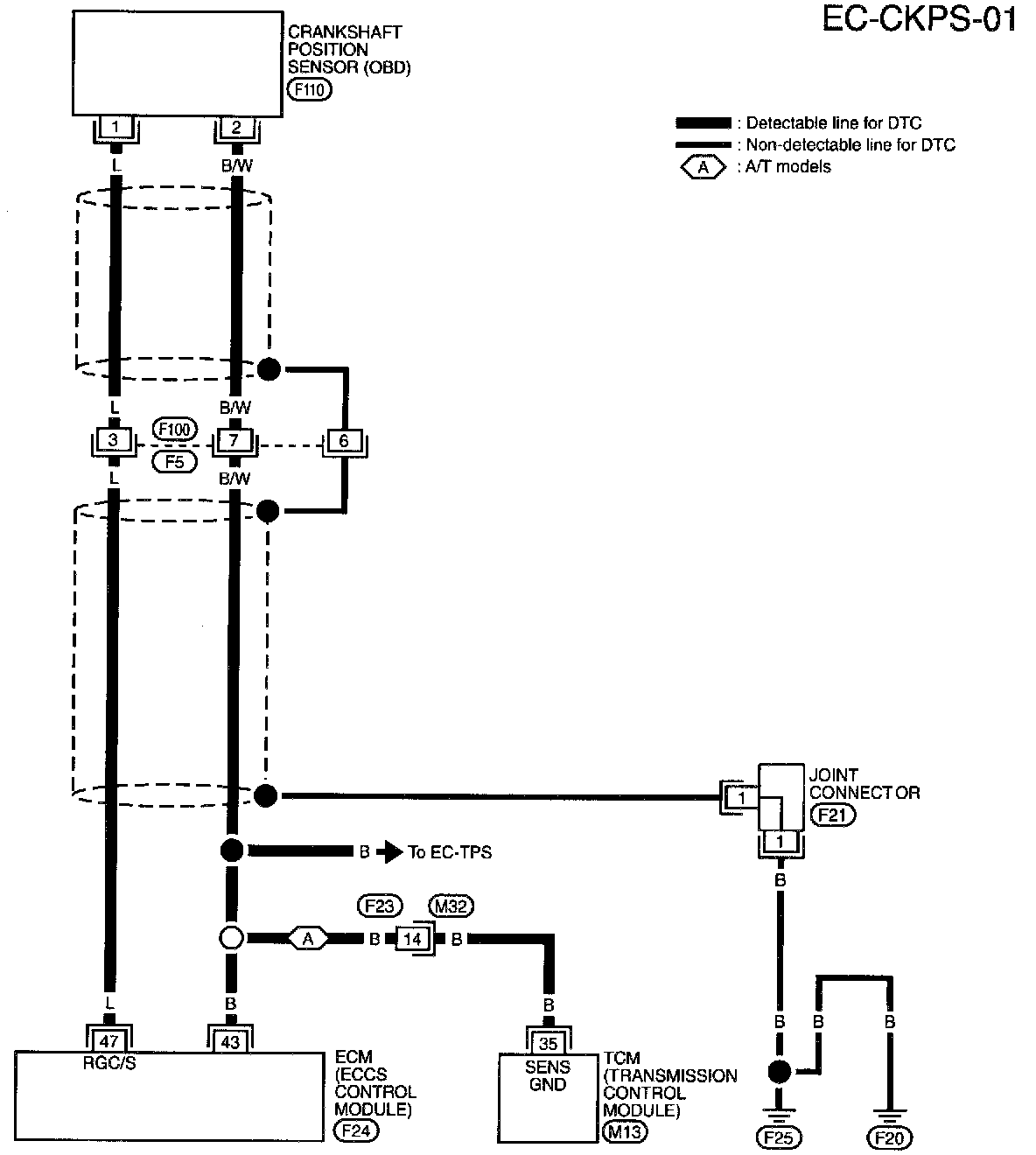

(OBD) - Circuit Diagram

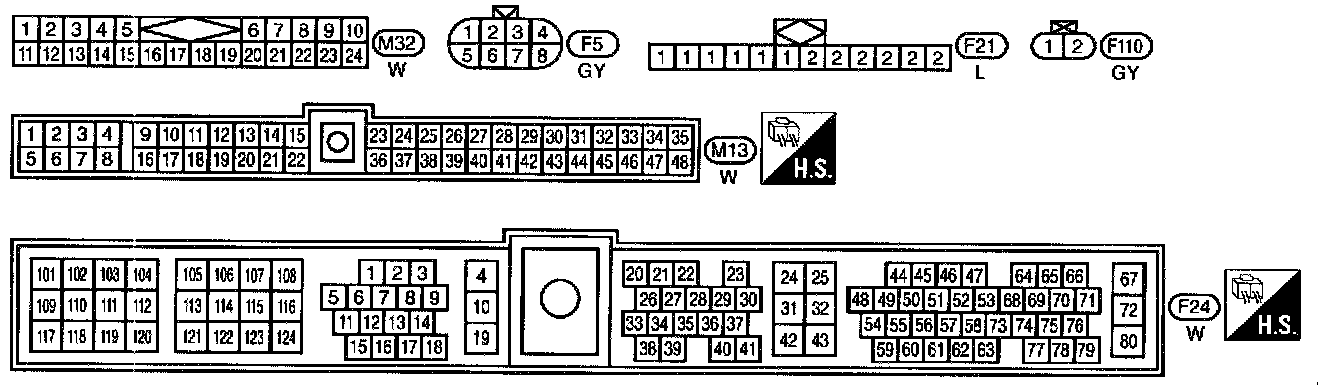

(OBD) Circuit Connectors
