Solar Sensor
>>
Testing and Inspection
>>
To VIN # 350000
To VIN # 350000

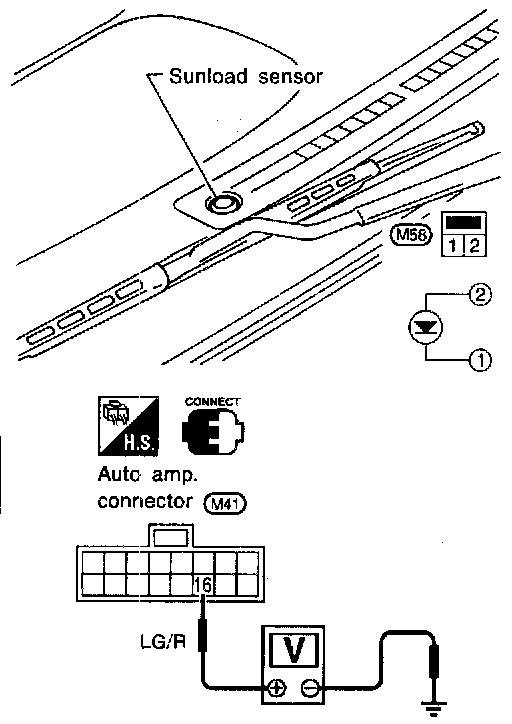

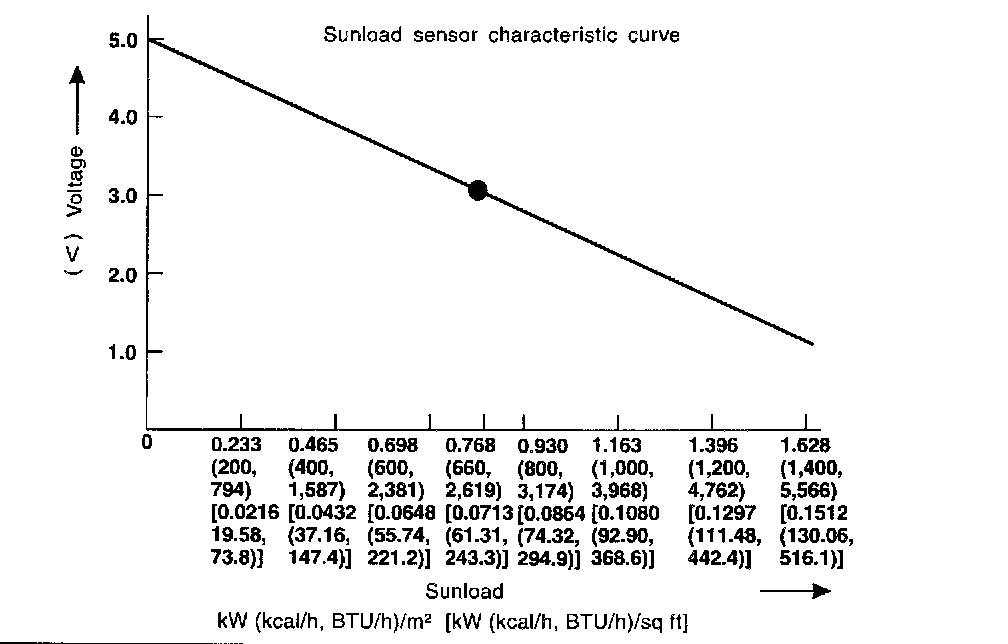

Measure voltage between auto amp. terminal 16 and body ground. If NG, replace sunload sensor.
-
When checking sunload sensor, select a place where sun shines directly on it.
