Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Testing and Inspection

Engine - Coolant Temperature Sensor/Switch: Testing and Inspection

ENGINE COOLANT TEMPERATURE SENSOR

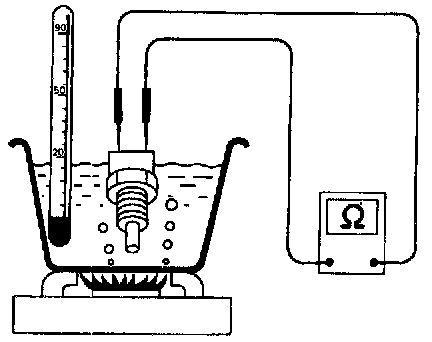

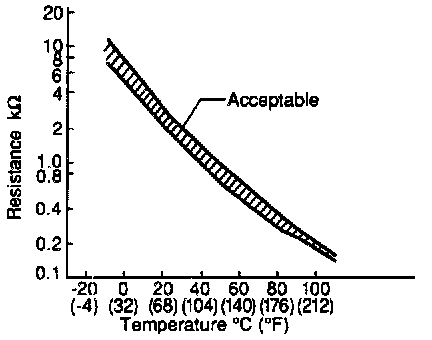

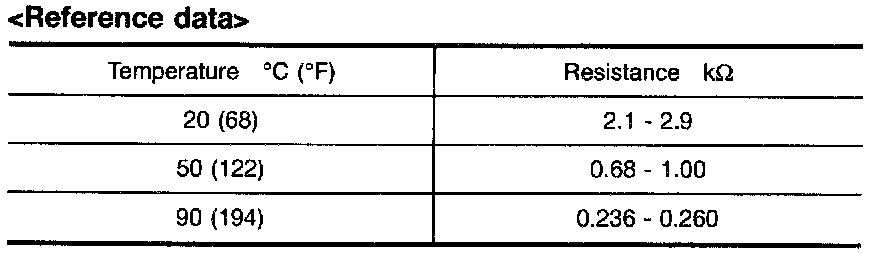

Check resistance as shown in the figure.
If No, replace engine coolant temperature sensor.
