To VIN # 350000

Electrical Component Inspection

G Sensor

CAUTION: The G sensor is easily damaged if it sustains an impact. Be areful not to drop or bump it.





1. Measure resistance between terminals 2 and 51 of G sensor unit connector.
Resistance between terminal 2 and 51:
Installed in vehicle: 1400 - 1600 ohms

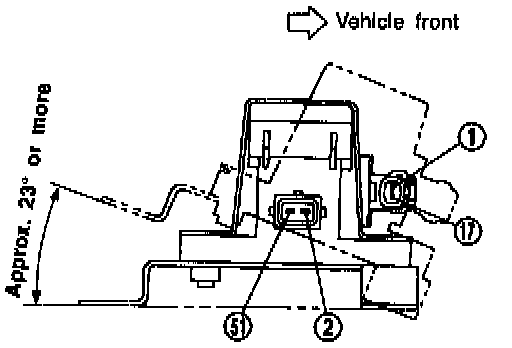

Tilted as shown: 4700 - 5500 ohms
2. Measure resistance between terminals 1 and 17 of the G sensor unit connector.
Resistance: 70 - 124 ohms.
