From VIN # 350001

Rear Seat Belt:








REMOVAL AND INSTALLATION

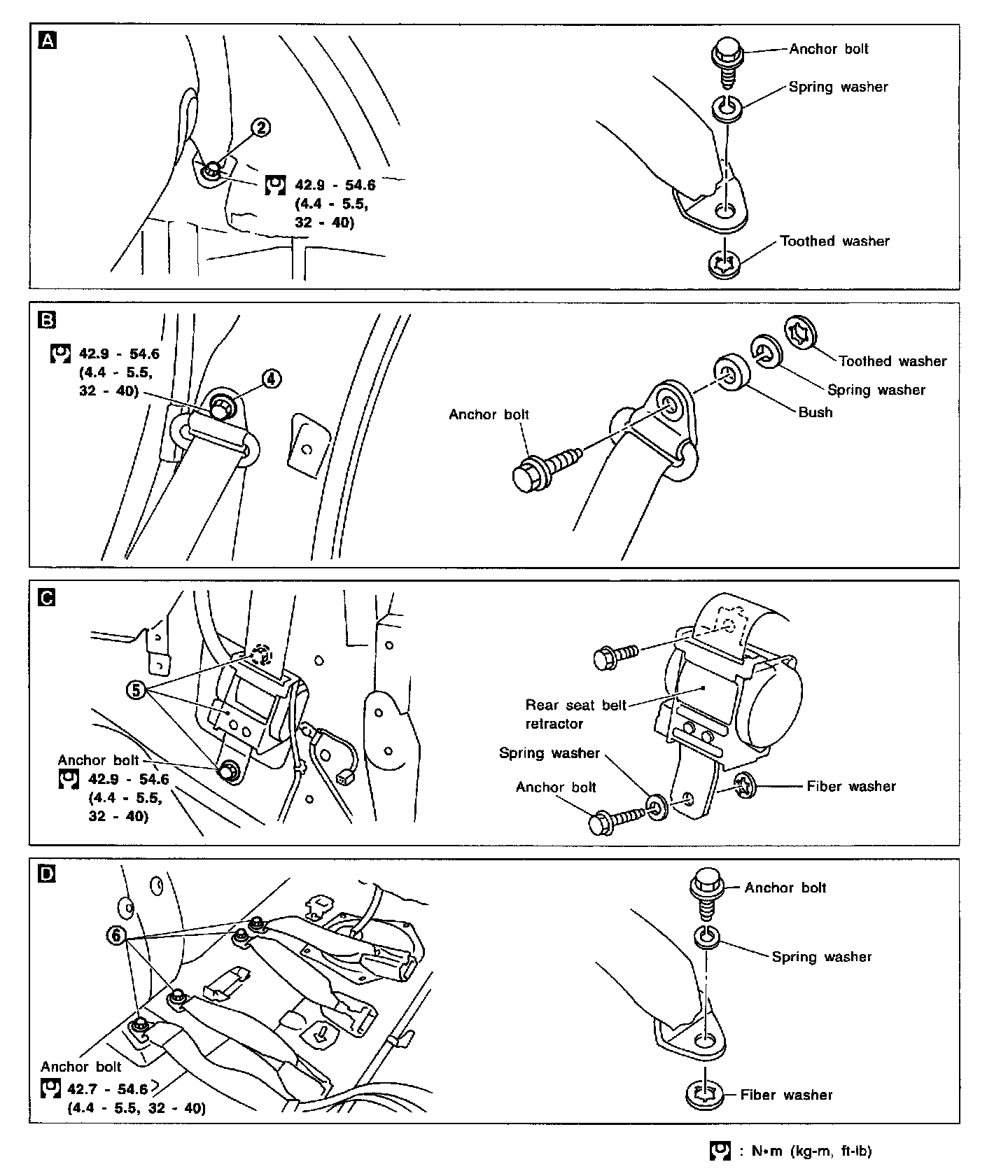

1. Raise up rear seat cushion.
2. Remove outer anchor bolt. A
3. Remove rear side upper and lower garnish.
4. Remove anchor through-bolt. B
5. Remove anchor bolt and bolt securing rear seat belt retractor, then remove seat belt and seat belt retractor. C
6. Remove each anchor bolt. D

Reverse procedure to install.
